No.

Part Name

Part No.

Qty.

No.

Part Name

Part No.

Qty.

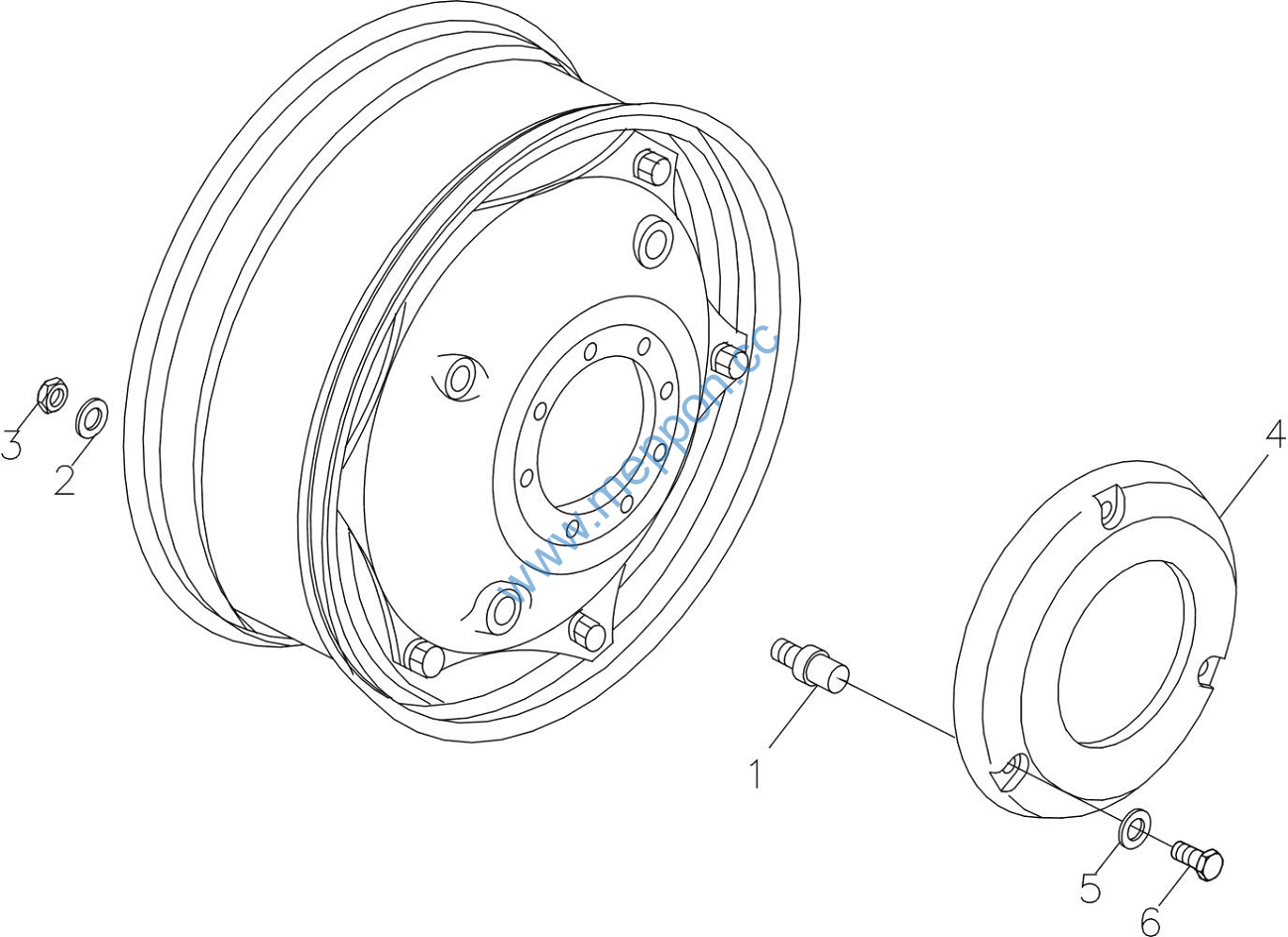

1

Socket bolt, counterweight disc

44018046/1.49.723

6

6

Washer, spoke

4986961/1.49.440

6

3

Washer 16-Zn.D

GB 97.1-87

6

7

Bolt M16×1.5×35-Zn.D

GB/T5785-2000

6

4

Nut    M16×1.5

GB/T6171-2000

6

5

Disc (RR 2), driving wheel

SZ804.74A.502

2

No.

Part Name

Part No.

Qty.

No.

Part Name

Part No.

Qty.

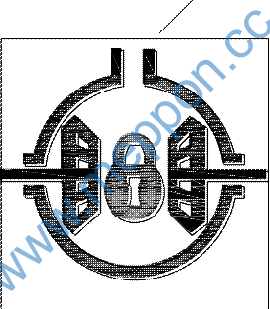

1

Differential lock-up sign

1.98/880009827

1

16

Hydraulic lifting warning sign (in English)

1.98.077A/5126654A

1

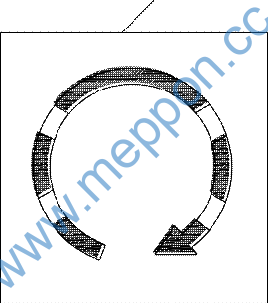

2

Starting sign

1.98/880009825

1

3

Emergency brake sign

1.98/880009854

1

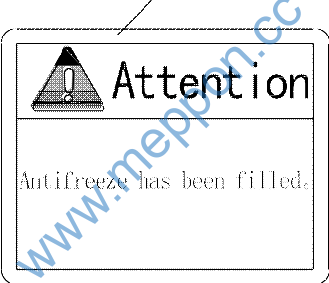

4

Antifreeze sign (in English)

SZ804.98.315

1

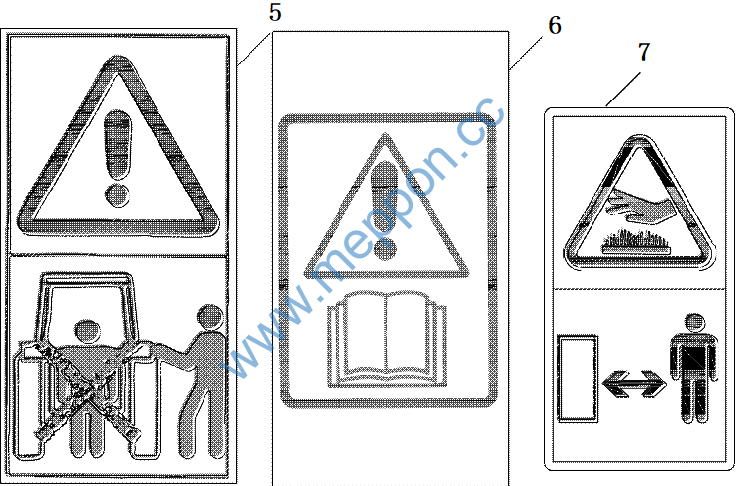

5

Oil change label (in English)

SZ804.98.318

1

6

“Keep away from lifter”

warning sign

1.98/880009842

1

7

Sign, operation manual

1.98/880009843

1

8

Heat warning sign

1.98/880009846

1

9

Fan warning sign

1.98/880009847

1

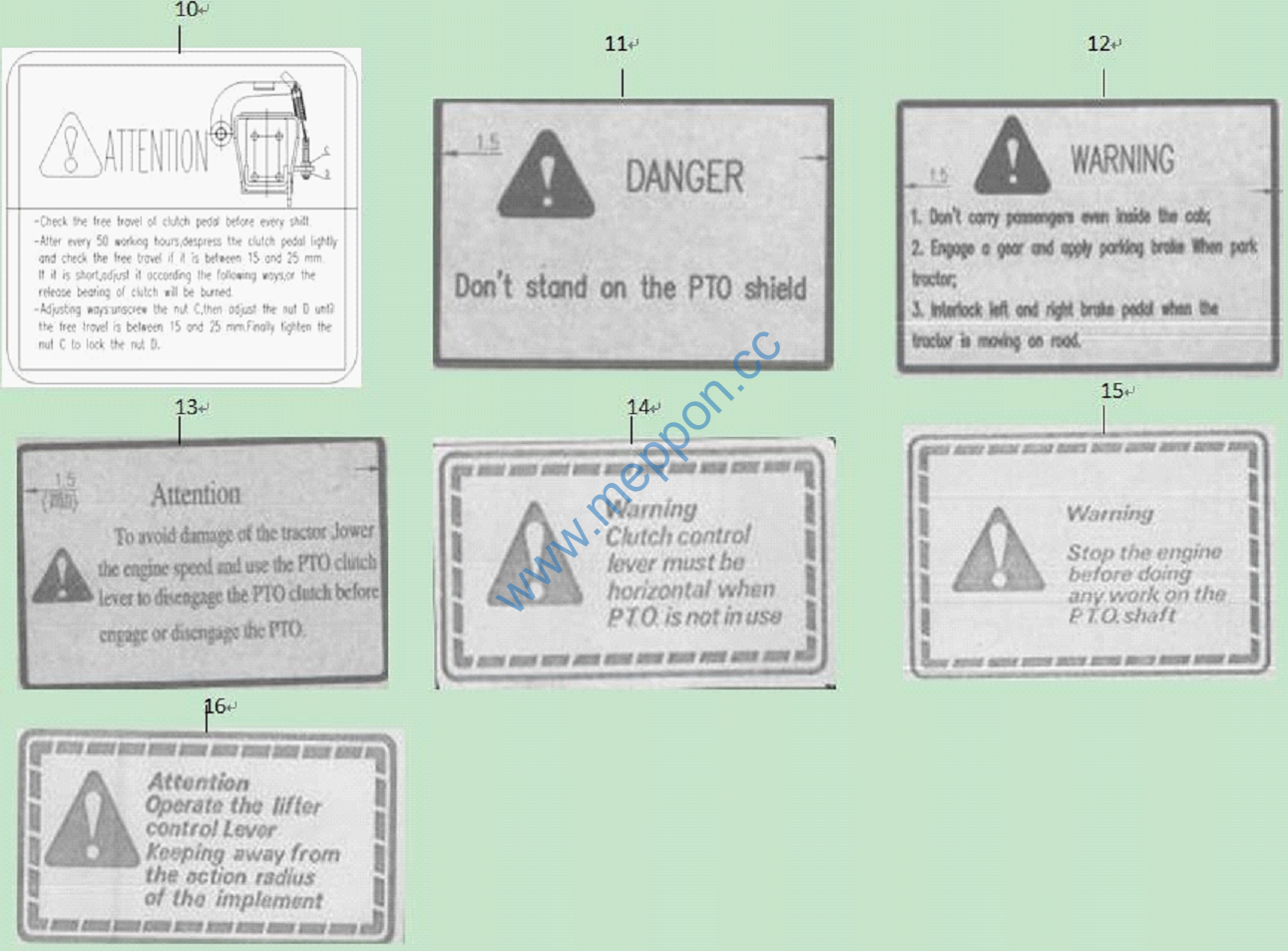

10

Clutch adjustment warning sign

（in English）

1.26/8808026004SZ

1

11

Guard safety warning sign (in

English)

1.98/880009809A

1

12

Safe operation sign (in English)

1.98/880009808A

1

13

PTO control warning sign (in

English)

1.98/880009815

1

14

Position    sign    (in    English),

lever, auxiliary clutch

1.98.019A/5011794A

1

15

Implement    safety    sign    (in

English)

1.98.061A/5011792A

1
