YTO X704 Tractor Parts Catalogue BASIC MODEL 17
14 |
Nut M8 |
GB 6172-86 |
4 |
28 |
Welded load control lever unit |
804C.55.012-2 |
1 |
29 |
Screw M4X10 |
5113531/1.82.797C |
4 |
||||

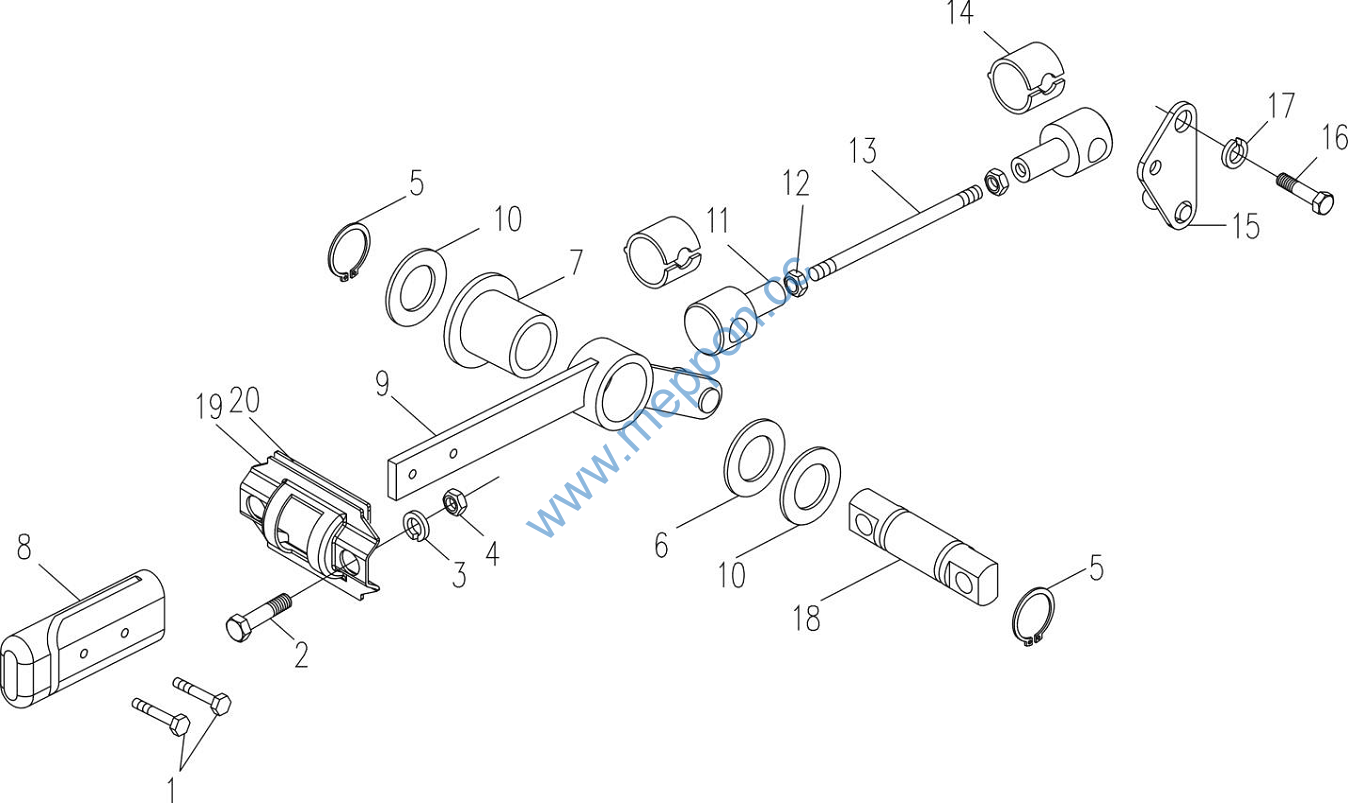

55 Lifter control mechanism
55 Lifter control mechanism
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
1 |
Bolt M4×10 |
5113531/1.82.797C |
2 |
||||
2 |
Bolt M8×30 |
GB/T5783-2000 |
2 |
||||
3 |
Washer 8 |
GB/T93-1987 |
2 |
||||
4 |
Nut M8 |
GB 6170-20000 |
2 |
||||
5 |
Retainer ring 21 |
11066976/12245 |
2 |
||||
6 |
Thickness shim, shaft, lever |
5126195/1.82.255A |
1 |
||||
7 |
Bushing, outer lever |
5126032/1.82.262 |
1 |
||||
8 |
Head, sensitivity handle |
SZ804.55.524 |
1 |
||||
9 |
Control lever assembly |
804C.55.013 |
1 |
||||
10 |
Washer, pin, lever 21×35×2 |
5126031/1.82.255 |
2 |
||||
11 |
Cover, ball joint |
10124411/13130/01 |
2 |
||||
12 |
Nut M6 |
GB 6170-86 |
2 |
||||
13 |
Adjusting yoke |
804C.55.106 |
1 |
||||
14 |
Clip 10 |
10124874/13130/03 |
2 |
||||
15 |
Pin, adjustment lever |
15126193/1.82.279 |
1 |
||||
16 |
Bolt M6×12 |
GB/T5783-2000 |
1 |
||||
17 |
Washer 6 |
GB /T7244-87 |
1 |
||||
18 |
Pin, adjustment lever |
804C.55.107 |
1 |
||||
19 |
Gasket, cover, short pin |
5134732/1.82.280D |
1 |
||||
20 |
Cover, short pin |
5134731/1.82.280C |
1 |
||||

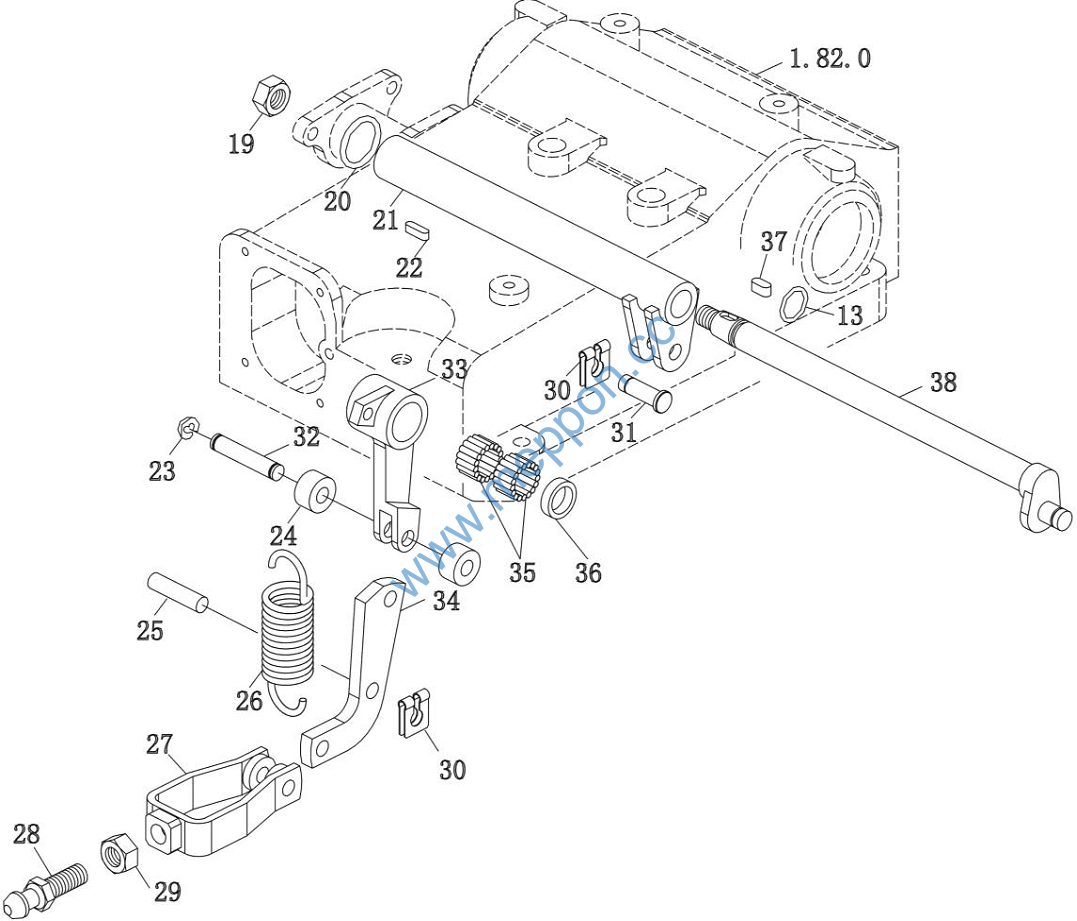

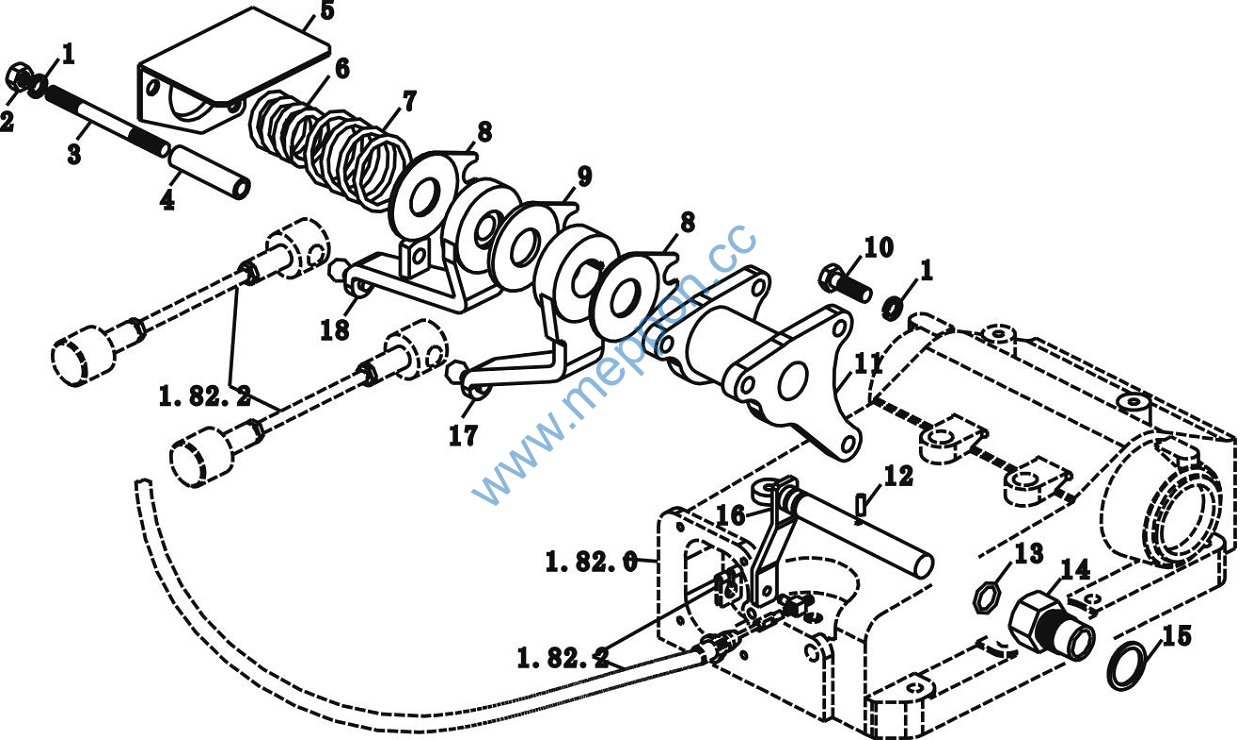

55 Control mechanism with load control distributor
55 Control mechanism with load control distributor
55 Control mechanism with load control distributor
55 Control mechanism with load control distributor
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
1 |
Washer 8 |
GB/T7244-1987 |
8 |
19 |
Self-locking nut M10×1.25 |
12575614/10125 |
1 |
2 |
Nut M8 |
GB/T6170-2000 |
3 |
20 |
O-sealing ring 21.89×2.62 |
14457681/14618 |
1 |
3 |
Studs |
13544324/10219 |
3 |
21 |
Operating shaft, load control |
5129388/1.82.550 |
1 |
4 |
Spacer, sector plate |
5117204/1.85.515 |
3 |
22 |
Key 4×14 |
GB 1096-76 |
1 |
5 |
Cap, spring, control sector plate |
5129672/1.82.519 |
1 |
23 |
Retainer ring 8 |
GB/T894.1-1986 |
3 |
6 |
Spring |
4973370/1.82.513 |
1 |
24 |
Roller |
5111028/1.82.562 |
3 |
7 |
Spring |
4952761/1.82.511 |
1 |
25 |
Pin |
5011775/1.82.532 |
1 |
8 |
Friction disc |
5153008/1.82.508A |
2 |
26 |
Spring, lever arm |
5148884/1.82.588 |
1 |
9 |
Friction disc |
5153007/1.82.508 |
1 |
27 |
Pull rod, control valve |
5120281/1.82.586 |
1 |
10 |
Bolt M8×25 |
GB/T5783-2000 |
3 |
28 |
Ball Bolt |
5120282/1.82.587 |
1 |
11 |
Support, control lever |
5129377SZ/1.82.517 |
1 |
29 |
Nut M10×1.25 |
GB/T6173-2000 |
1 |
12 |
Spiral spring pin 4×24 |
BZ/JHX-SZ |
1 |
30 |
Spring clip 8 |
11064076/12252 |
3 |
13 |
O-sealing ring 10.82×1.78 |
14453081/14618 |
2 |
31 |
Pin |
5117161/1.82.557 |
1 |
14 |
Plug |
5129399/1.82.544 |
1 |
32 |
Pin |
5117136/1.82.561 |
1 |
15 |
Rectangular cross-section seal ring 22×28×1.5 |
10263460/14607 |
1 |
33 |
Lever arm assembly |
5117135/1.82.541 |
1 |
16 |
Rise-Hold-Fall joystick |
5129393/1.82.542 |
1 |
34 |
Joystick |
5120291/1.82.541 |
1 |
17 |
Hub unit, load control lever |
5129376/1.82.502 |
1 |
35 |
Needle bearing 14×20×12 |
5109160/1.82.536 |
4 |
18 |
Hub unit, position control lever |
5129374/1.82.518A |
1 |
36 |
Bushing, load control lever |
5116251/1.82.543 |
1 |
37 |
Key 5×10 |
GB 1096-79 |
1 |
||||

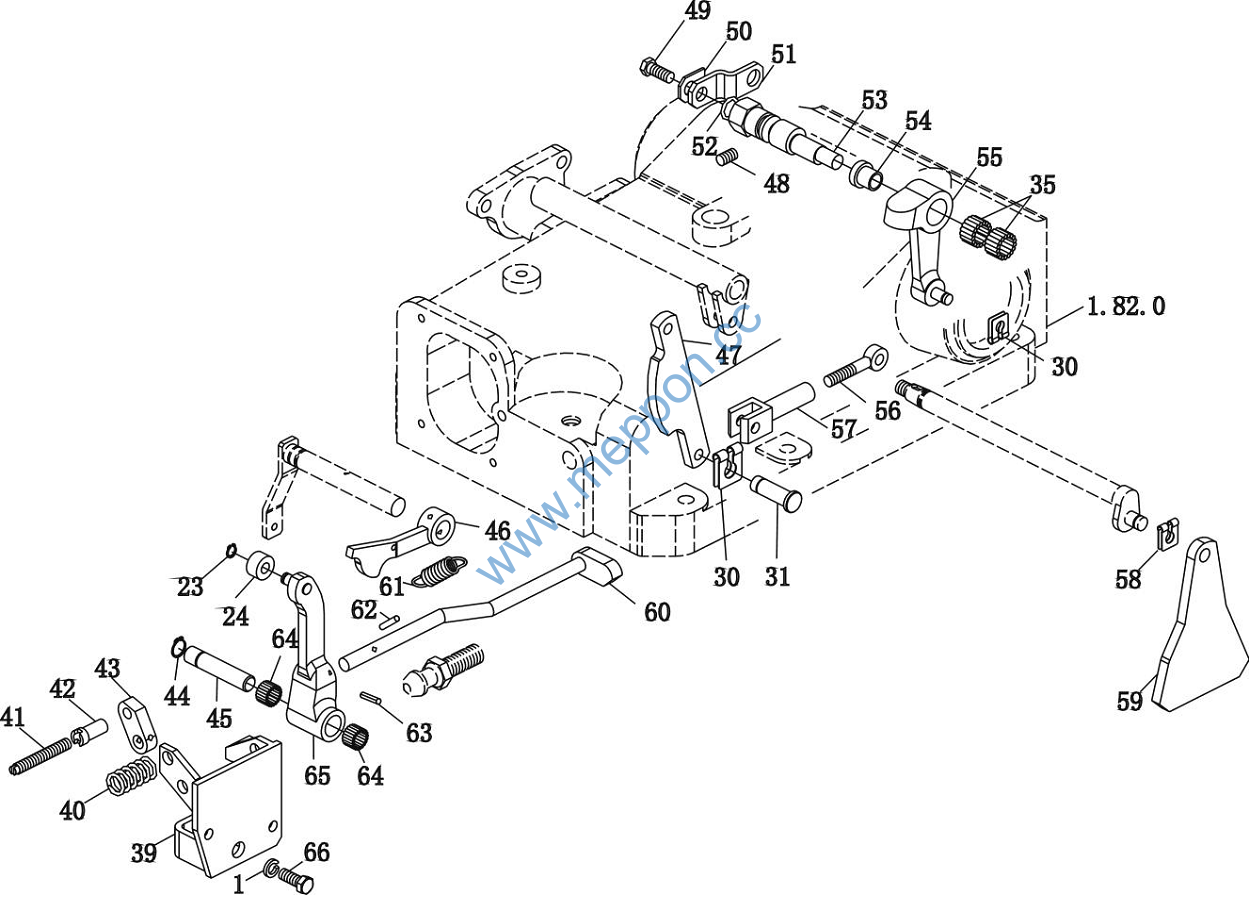

55 Control mechanism with load control distributor
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
38 |
Crank axle |
5129386/1.82.506 |
1 |
52 |
O-sealing ring 15.54×2.62 |
14457281/14618 |
1 |
39 |
Support, lever |
5129400/1.82.531 |
1 |
53 |
Shaft, inner lever |
5135221/1.82.533 |
1 |
40 |
Spring |
4959139/1.63.807 |
1 |
54 |
Bushing, load control lever |
5135219/1.82.546 |
1 |
41 |
Bolt, limit adjustment M8×1.25×55 |
5121522/1.82.540 |
1 |
55 |
Inner lever assembly |
5117151/1.82.535 |
1 |
42 |
Screw tube, limit adjustment M8×1.25×20 |
5121523/1.82.540A |
1 |
56 |
Control lever (RR), load control |
885136355/1.82.548A |
1 |
43 |
Stopper (FR) |
885120284/1.82.539A |
1 |
57 |
Fork, rod, load control |
885136356/1.82.548 |
1 |
44 |
Retainer ring 12 |
13397576/12248 |
1 |
58 |
Spring clip |
11064176/12252 |
1 |
45 |
Pin |
5117156/1.82.530 |
1 |
59 |
Cam, position control |
5117143/1.82.522 |
1 |
46 |
Raise-Neutral-Lower cam |
5129396/1.82.527 |
1 |
60 |
Limit link |
5120285/1.82.538 |
1 |
47 |
Cam, load control |
5122497/1.82.524 |
1 |
61 |
Spring |
4973650/1.82.563 |
1 |
48 |
Screw M8×12 |
GB 71-85 |
1 |
62 |
Elastic cylindrical pin 3×22 |
BZ/JHX-SZ |
1 |
49 |
Bolt M10×1.25×18 |
GB/T5786-2000 |
1 |
63 |
Elastic cylindrical pin 4×20 |
BZ/JHX-SZ |
1 |
50 |
Washer 10 |
14198800/10182 |
1 |
64 |
Needle bearing 12×16×10 |
5117138/1.82.537 |
2 |
51 |
Grip, shaft, inner lever, load control |
5135220/1.82.515A |
1 |
65 |
Joystick assembly, main control valve |
5126220/1.82.512 |
1 |
66 |
Bolt M8×20 |
GB 30-76 |
2 |
||||

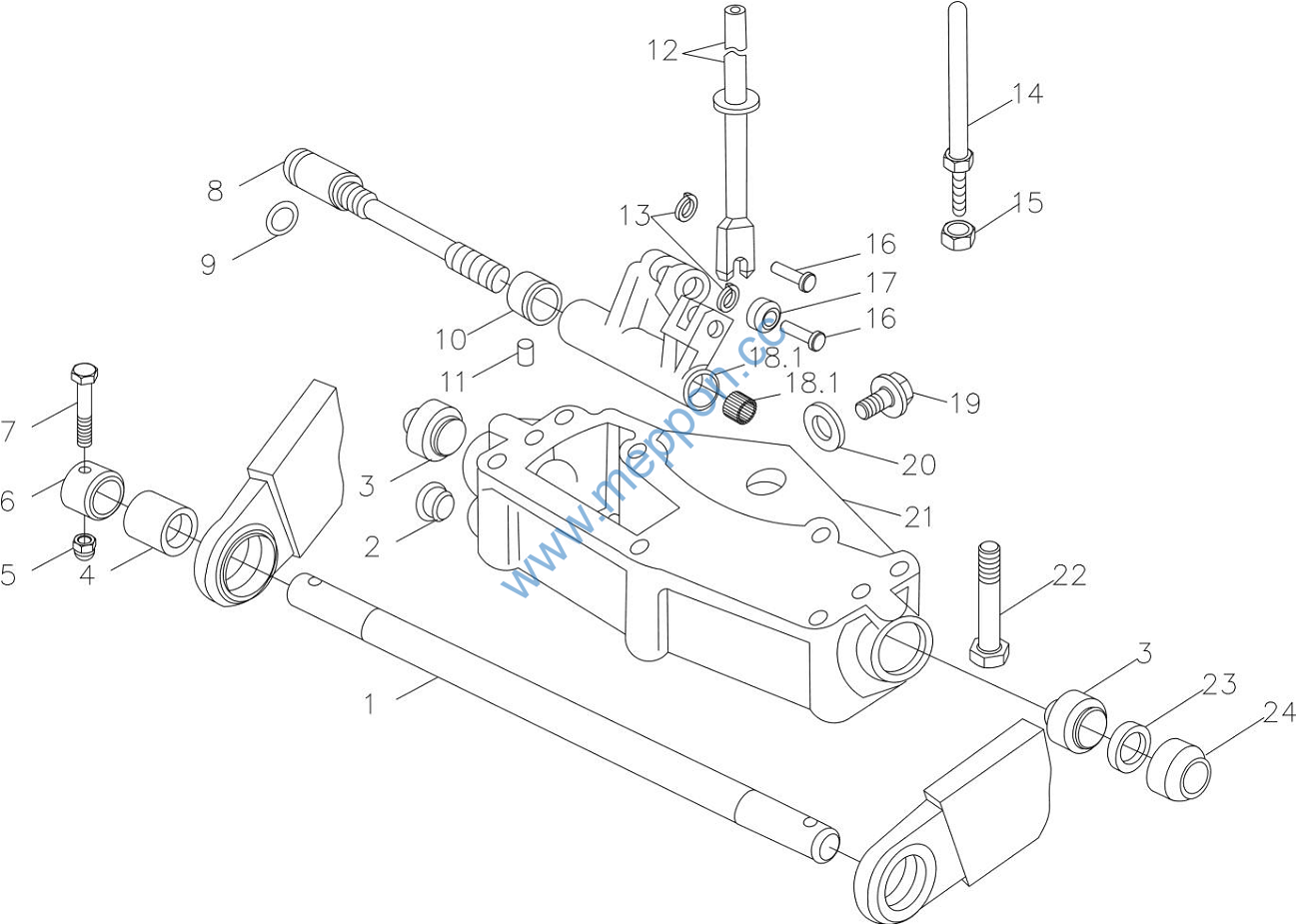

56 Suspension mechanism
56 Suspension mechanism
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
1 |
Knee |
5116243/1.89.622 |
1 |
12 |
Long pole unit, load control |
SZ804.56.016 |
1 |
2 |
Plug 25 |
4997756/1.89.698 |
1 |
13 |
Retainer ring 10 |
SZ804.56.038 |
2 |
3 |
Joint bearing U25 |
GB 304-6 |
2 |
14 |
Pole with ball |
5119529/1.21.071 |
1 |
4 |
Spacer, ball pivot |
5116246/1.89.624A |
2 |
15 |
Dowel pin 15×22 |
GB/T6173-2000 |
1 |
5 |
Nut M10×1.25 |
SZ804.56.113 |
2 |
16 |
Pin, roller |
5109172/1.89.635 |
2 |
6 |
Retainer ring, rod (LWR) |
5111643/1.89.657 |
2 |
17 |
Roller |
5109156/1.89.632 |
1 |
7 |
Nut M10×1.25×55 |
SZ804.56.013-2 |
2 |
18 |
Sensing fork unit, load control |
885123964/1.89.627 |
1 |
8 |
Sensing shaft, load control |
SZ804.56.114A |
1 |
18.1 |
Sensing fork, load control |
885123963/1.89.627 |
1 |
9 |
O-sealing ring 15.08×2.62 |
5130456/1.89.657 |
1 |
18.2 |
Needle bearing 14×20×12 |
5109160/1.82.536 |
2 |
10 |
Bushing, sensing shaft, load control |
SZ804.56.104 |
1 |
19 |
Hexagon head plug M22×1.5 |
10305174/14530 |
1 |
11 |
Dowel pin 15×22 |
GB/T6170-2000 |
2 |
20 |
Rectangular cross-section seal ring 22×28×1.5 |
10263460/14607 |
1 |
21 |
Support, knee |
124562/1.89.616 |
1 |
||||
22 |
Bolt 16×1.5×115 |
B5785-86 |
7 |
||||
23 |
Oil seal assembly, knee |
SZ804.56.023 |
2 |
||||
24 |
Spacer, shaft, ball joint |
5116245/1.89.623A |
2 |
||||
