YTO X704 Tractor Parts Catalogue BASIC MODEL 16
50 Fuel tank & fuel lines
No. |
Part Name |
Part Name No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
1 |
Fuel feed pipe joint to left fuel pipe of fuel tank |
5131418/1.04.612A |
1 |
13 |
Composite gasket 28, diesel tank |
SZ804.50.028 |
3 |
2 |
Clamp 8~12 |
JK-000 |
11 |
14 |
Plug M28×1.5 |
SZ804.50.212 |
1 |
3 |
Oil pipe cock assembly |
885120589/1.04.625A |
1 |
15 |
Sealing ring 12×28×1.5 |
10298460/14607 |
4 |
4 |
Oil pipe, cock to oil filter |
5133999/1.04.607 |
2 |
16 |
Link bolt for pipe joint M12×1.5 |
10181714/14256 |
2 |
5 |
Joint, steering tube |
SZ804.50.104 |
3 |
17 |
Bearing plate, fuel tank cock |
5132605/1.04.0 |
1 |
6 |
Washer 10-Zn.D |
GB/T97.1-2002 |
1 |
18 |
Fuel tank assembly |
X881200406/1.04.0 |
1 |
7 |
Nut M10-Zn.D |
6171-86 |
1 |
19 |
Oil tank cap with lock |
LHYXG-3.1 |
1 |
8 |
Oil pipe, oil supply pipe joint to switch |
5131413/1.04.605 |
1 |
20 |
Wrap, flange, fuel tank |
4998724/1.04.055 |
1 |
9 |
Joint, oil supply pipe |
5110573/1.04.636 |
1 |
21 |
Buffer washer, fuel tank |
4998710/1.04.077 |
4 |
10 |
Fuel feed pipe joint to right fuel pipe of fuel tank |
5131417/1.04.612 |
1 |
22 |
Buffer, fuel tank |
4952241/1.87.038 |
4 |
11 |
Banjo union |
884671700/0.20131 |
2 |
23 |
Spacer, buffer, fuel tank |
4998708/1.04.076 |
2 |
12 |
Fuel pressure reducing connector |
5110571/1.04.637 |
2 |
24 |
Washer 10-Zn |
GB/T93-1987 |
2 |
25 |
Bolt M10×55-Zn.D |
GB/T5783-2000 |
2 |
||||
26 |
Oil-water separator |
SQCL500-80 |
1 |
||||

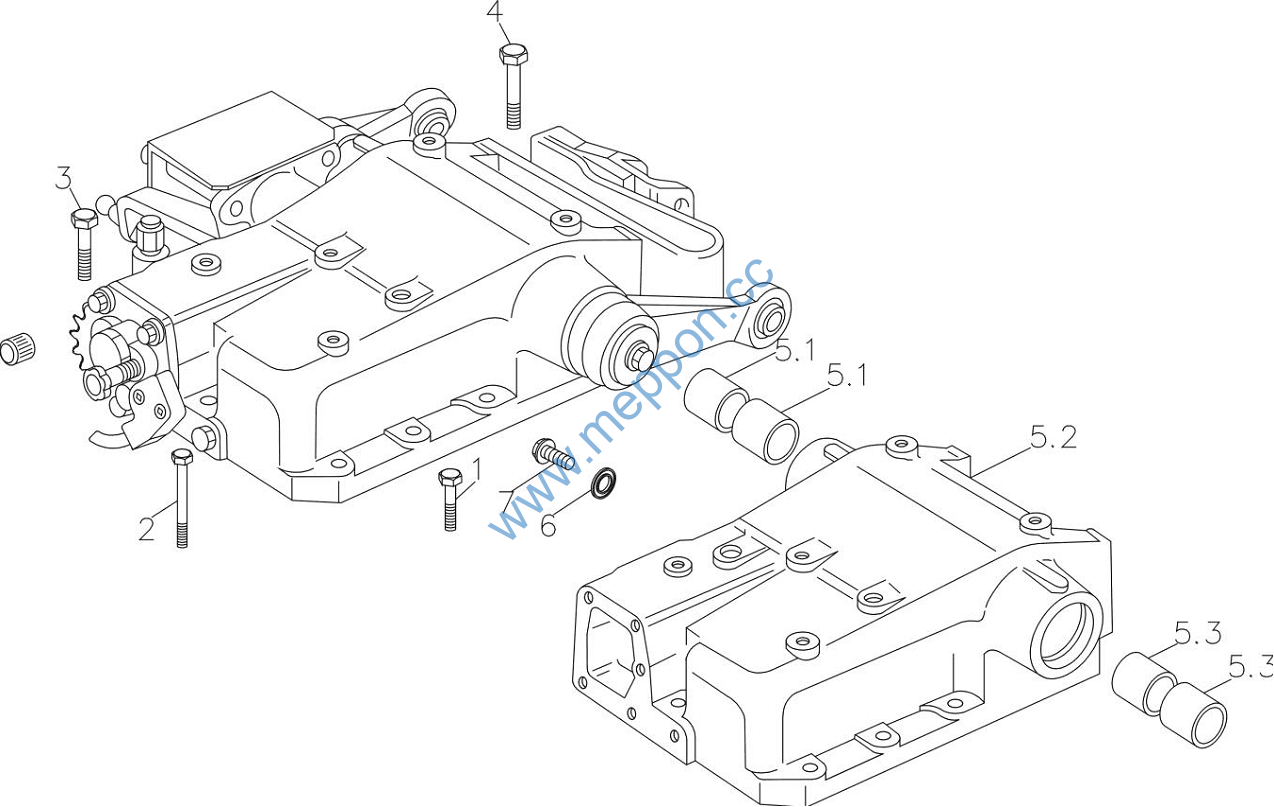

55 Housing assembly, hydraulic lifter
55 Housing assembly, hydraulic lifter
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
Hydraulic lifter assembly |
SZ804.55.001 |
1 |
|||||
1 |
Bolt M12×1.25×35 |
GB/T5786-2000 |
1 |
||||
2 |
Bolt M12×1.25×90 |
GB/T5785-2000 |
3 |
||||
3 |
Bolt M12×1.25×45 |
GB/T5785-2000 |
6 |
||||
4 |
Bolt M12×1.25×50 |
GB/T5785-2000 |
1 |
||||
5 |
Lifter housing unit |
SZ804.55.011 |
1 |
||||
5.1 |
Spacer(RH), Lift shaft |
5108108/1.82.016 |
2 |
||||
5.2 |
Lifter housing |
SZ804.55.101 |
1 |
||||
5.3 |
Spacer(LH), Lift shaft |
5117165/1.82.017 |
2 |
||||
6 |
Rectangular cross-section seal ring 22×28×1.5 |
10263460/14607 |
1 |
||||
7 |
Plug M22×1.5 |
10305174/14530 (for assembly process) |
1 |
||||
8 |
Dowel pin B15X22, transmission case & lifter |
1.21.071/5119529 |
2 |
||||
55 Lifter cylinder piston
55 Lifter cylinder piston
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
1 |
Bolt M14×1.5×65 |
11227034/10312 |
1 |
||||
2 |
O-sealing ring 17.12×2.62 |
14457381/14618 |
1 |
||||
3 |
Cylinder, lifter |
5131998/1.82.608 |
1 |
||||
4 |
Bolt M16×1.5×75 |
GB/T5785-2000 |
2 |
||||
5 |
O-sealing ring 98.02×3.53 |
14465980/14618 |
2 |
||||
6 |
Retainer ring, O-ring, piston |
885125941/1.82.611 |
2 |
||||
7 |
Piston assembly, lifter |
5132001/1.82.612A |
1 |
||||
7.1 |
Piston, lifter |
885132000/1.82.612 |
1 |
||||
7.2 |
Support, piston rod |
573148/1.82.615 |
1 |
||||

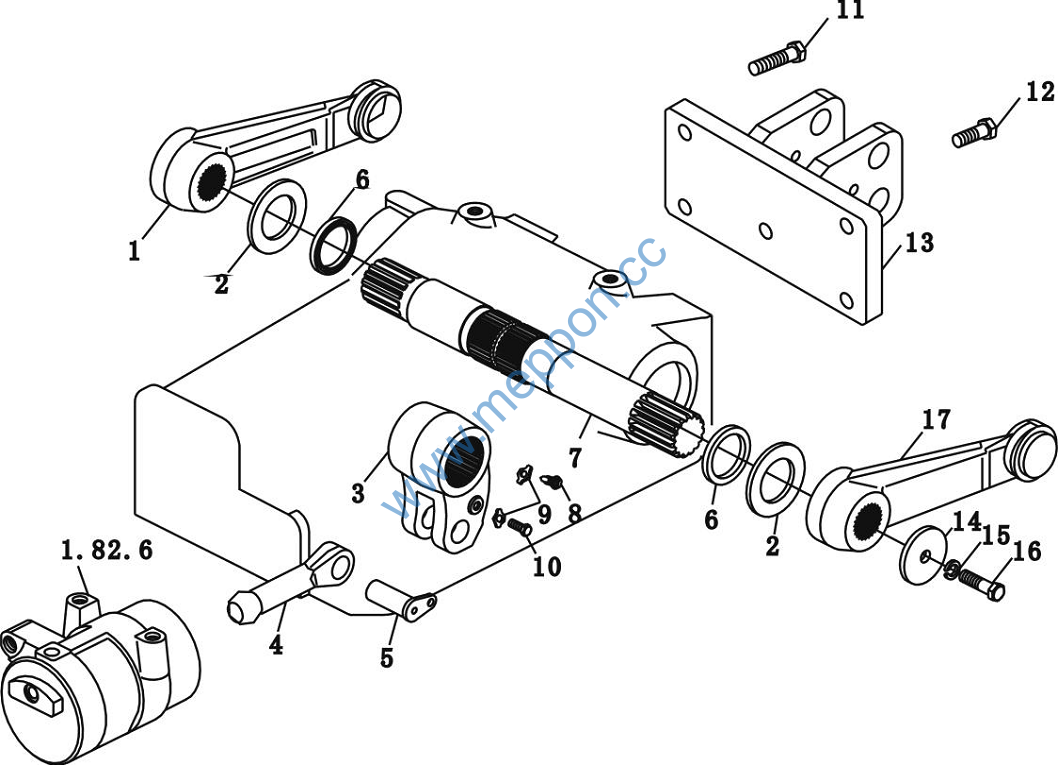

55 Lifter shaft & load transfer mechanism (without auxiliary cylinder)
55 Lifter shaft & load transfer mechanism (without auxiliary cylinder)
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
1 |
Lift arm assembly (RH) |
5123954/1.82.811A |
1 |
17 |
Lift arm assembly (LH) |
ME700.55.014 |
1 |
2 |
Washer, lift shaft |
885111082/1.82.818 |
2 |
||||
3 |
Inner lift arm assembly |
SZ804.55.083 |
1 |
||||
4 |
Piston rod |
5121221SZ/1.82.812 |
1 |
||||
5 |
Pin, push rod |
5122356/1.82.813 |
1 |
||||
6 |
Oil seal 55×70×8, lift shaft |
5105903/1.82.821 |
2 |
||||
7 |
Lift shaft |
885117187/1.82.808 |
1 |
||||
8 |
Positioning bolt |
5117190/1.82.819 |
1 |
||||
9 |
Washer 10 |
GB 854-88 |
2 |
||||
10 |
Bolt M10×1.25×16 |
GB/T5786-2000 |
1 |
||||
11 |
Bolt M14×1.5×40 |
GB/T5786-2000 |
4 |
||||
12 |
Bolt M14×1.5×35 |
GB/T5786-2000 |
1 |
||||
13 |
Support weldment, rod (UPR) |
SZ804.55.020 |
1 |
||||
14 |
Washer, lift shaft |
5122898/1.82.817 |
2 |
||||
15 |
Washer 14 |
GB 93-86 |
2 |
||||
16 |
Bolt M14×1.5×30 |
GB/T5786-2000 |
2 |
||||

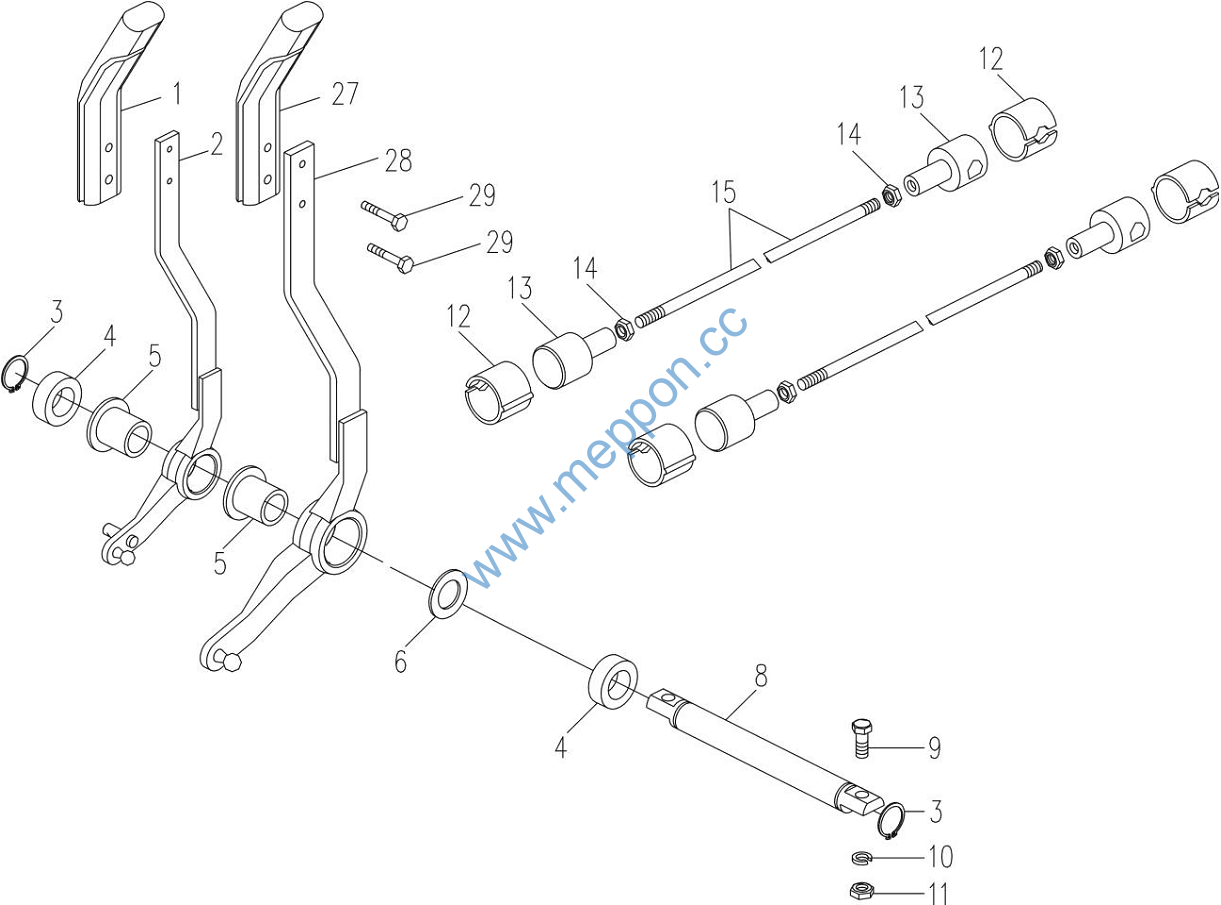

55 Lifter control mechanism
55 Lifter control mechanism
55 Lifter control mechanism
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
1 |
Head, handle, position control lever |
SZ900.55.102 |
1 |
15 |
Control rod, lifter |
804C.55.105 |
2 |
2 |
Welded position control rod unit |
804C.55.011-2 |
1 |
17 |
Bolt M6×1×16 |
GB/T5783-2000 |
2 |
3 |
Retainer ring 21 |
11066976/12245 |
4 |
18 |
Ball socket |
4998311/1.80.255 |
2 |
4 |
Spacer, pin, lever |
5127167/1.82.255B |
2 |
19 |
Ball socket |
5109058/1.80.254 |
1 |
5 |
Bushing, outer lever |
5126032/1.82.262 |
2 |
20 |
Washer 6 |
GB/T7244-1987 |
3 |
6 |
Thickness shim, shaft, lever |
5126195/1.82.255A |
2 |
21 |
Nut M6 |
GB/T6170-2000 |
4 |
8 |
Pin, lever |
5126024/1.82.254 |
1 |
22 |
Head, handle, regulator valve |
SZ804.55.523 |
1 |
9 |
Bolt M8×22 |
GB/T5783-2000 |
4 |
23 |
Pin 4×32 |
14164470/12213 |
1 |
10 |
Washer 8 |
GB/T7244-1987 |
4 |
24 |
Adjusting yoke, lowering valve |
1.82.282/5144120 |
1 |
11 |
Nut M8 |
GB/T6170-2000 |
4 |
25 |
Spring pin |
889960079/1.82.283 |
1 |
12 |
Clip 13 |
10125574/13130/03 |
4 |
26 |
Universal joint assembly |
885134039/1.82.283 |
1 |
13 |
Cover, spherical joint |
10124514/13130/01 |
4 |
27 |
Head, handle, lever, force adjustment |
SZ900.55.101 |
1 |
