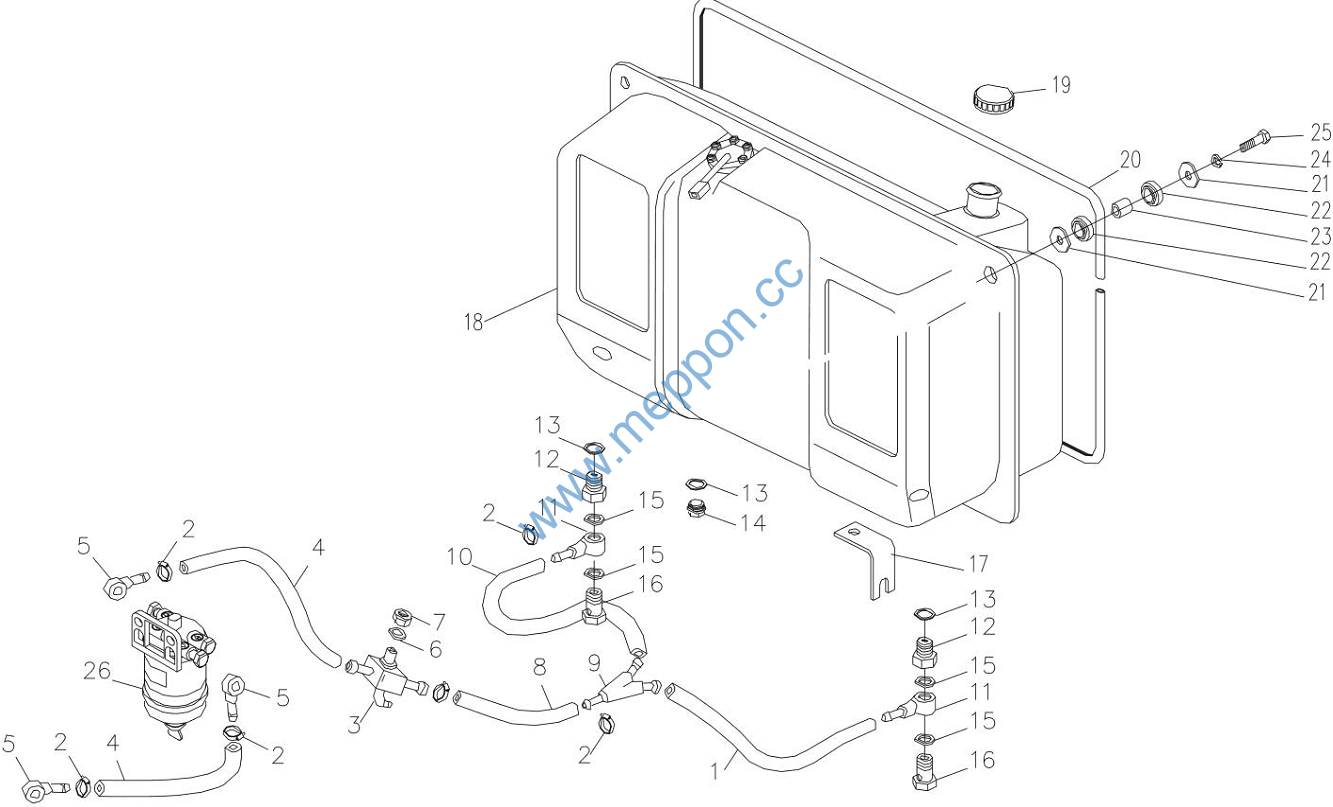

YTO X704 Tractor Parts Catalogue BASIC MODEL 15
48 Electrical system control components
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
1 |
Nut 4-Zn.D |
GB/T6170-2000 |
6 |
||||
2 |
Washer 4-Zn.D |
GB/T93-1987 |
6 |
||||
3 |
Oil level sensor |
LTYW-400 |
1 |
||||
LTYW-370A(for auxiliary fuel tank) |
1 |
||||||
4 |
Switch, parking brake light |
JK232A-1 |
1 |
||||
5 |
Switch, hydraulic brake light |
JK613B/1.75.072 |
1 |
||||
6 |
Oil pressure alarm |
3846N-010-B2 |
1 |
||||

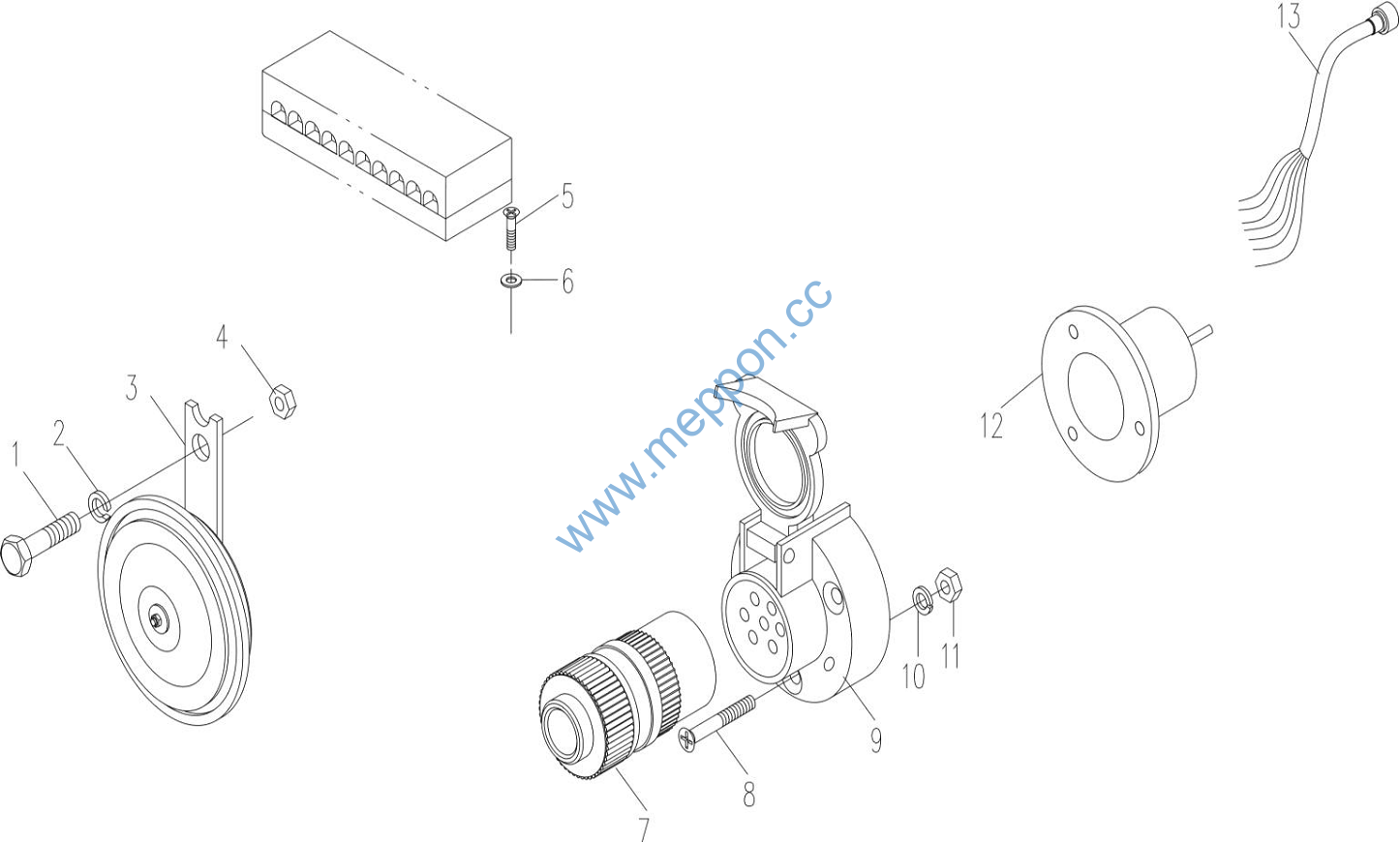

48 Electrical system accessories
48 Electrical system accessories
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
1 |
Bolt M8×20 |
GB 5780-86 |
1 |
||||
2 |
Washer 8 |
GB/T93-1987 |
1 |
||||
3 |
Horn (12V) |
50F |
1 |
||||
4 |
Nut M8 |
GB/T6170-2000 |
1 |
||||
5 |
Tapping screw ST4.8×16-C-H |
GB/T845-1985 |
2 |
||||
6 |
Spring nutST4.8×20A |
ZBT31004-87 |
2 |
||||
7 |
7-hole trailer plug(on-vehicle spare Part Names) |
DJ102/1.75.125A |
1 |
||||
8 |
Screw M5×35 |
GB 65-85 |
3 |
||||
9 |
7-hole trailer socket |
DJ101/1.75.125A |
1 |
||||
10 |
Washer 5 |
GB/T93-1987 |
3 |
||||
11 |
Nut M5 |
GB/T6170-2000 |
3 |
||||
12 |
Guard, 7-hole trailer socket |
5102234/1.75.126 |
1 |
||||
13 |
Harness, 7-hole trailer socket |
8A5130585/1.75.418 |
1 |
||||

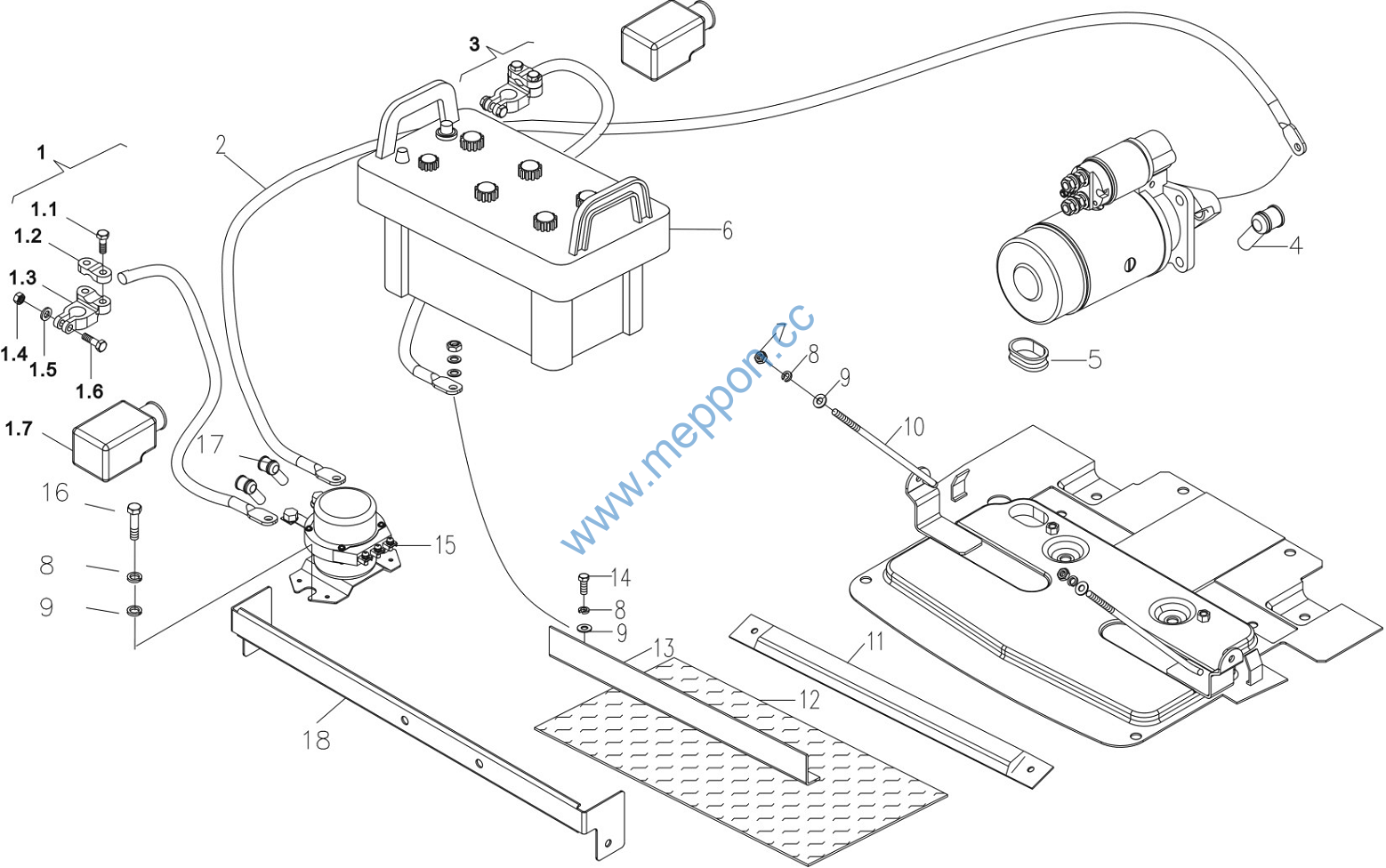

48 Starting cables, battery tray & fixture
48 Starting cables, battery tray & fixture
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
1 |
Battery positive pole to power switch cable |
SZ804.48.037 |
1 |
10 |
Fastening bolt |
8B0007415/1.74 |
2 |
1.1 |
Bolt M6×20-Zn.D |
GB/T5783-2000 |
2 |
880007415/1.74(for 150 battery) |
2 |
||
1.2 |
Pressure plate, terminal, battery |
SZ804.48.352 |
1 |
11 |
Pressure plate, battery |
SZ804.48.304-1 |
1 |
1.3 |
Positive terminal, battery |
SZ804.48.351 |
1 |
SZ804.48B.304(150 for 150 battery) |
1 |
||
1.4 |
Nut M6-Zn.D |
GB/T6170-2000 |
2 |
12 |
Rubber pad |
SZ804.48.305 |
1 |
1.5 |
Washer 6-Zn.D |
GB/T97.1-2000 |
2 |
13 |
Limit angle, battery |
880007417/1.74 |
1 |
1.6 |
Bolt M6×25-Zn.D |
GB/T5783-2000 |
2 |
14 |
Bolt M8×20 |
GB/T5783-2000 |
2 |
1.7 |
Guard, terminal, battery |
SZ804.48.355 |
1 |
15 |
Power switch |
DK139 |
1 |
2 |
Power switch to starter cable |
804C.48.012 |
1 |
16 |
Bolt M8×25 |
GB/T5783-2000 |
2 |
3 |
Ground cable |
SZ804.48.038 |
1 |
17 |
Wire sheath, power switch |
SZ804.48.109 |
2 |
4 |
Guard, terminal, starter |
SZ804.48.106 |
1 |
18 |
Support weldment, power switch |
Z804.48.031 (used when front-mounted A/C battery) |
1 |
5 |
Wire sheath |
665-3708111A |
1 |
||||
6 |
Battery |
6-QW-120T |
1 |
||||
6-QW-150(optional) |
1 |
||||||
7 |
Nut M8 |
GB/T6170-2000 |
2 |
||||
8 |
Washer 8 |
GB/T93-1987 |
6 |
||||
9 |
Washer 8 |
GB/T97.1-2002 |
6 |

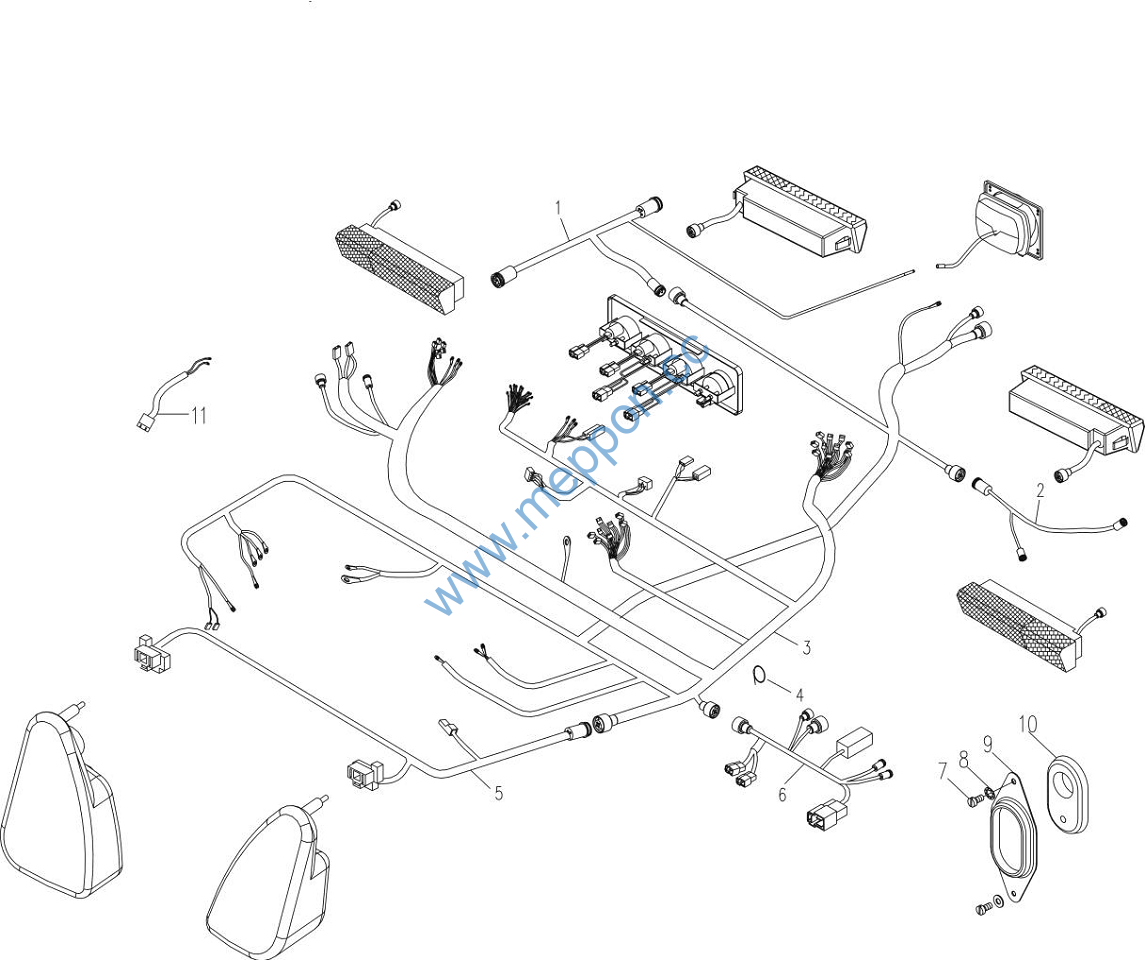

48 Electrical system harnesses
48 Electrical system harnesses
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
1 |
Harness (RR, LH) |
SZ904.48.022-2 |
1 |
4 |
Cable tie |
885112712/1.75.488 |
10 |
2 |
Harness (RR) |
SZ804.48.023-3 |
1 |
5 |
Harness (FR, LH) |
X700.48.021-4 |
1 |
3 |
Main harness |
SZ804.48B.020-4 |
1 |
6 |
Cab harness |
SZ804.48B.024-2 |
1 |
SZ804.48D.020-4(for equipped with pre-heater) |
1 |
7 |
Screw M5×16 |
GB/T822-2000 |
2 |
||
8 |
Washer 5 |
GB93-97 |
2 |
||||
9 |
Cover, insulation pad |
4998891/1.75.480 |
1 |
||||
10 |
Insulation pad |
4998892/1.75.494 |
1 |
||||
11 |
Fusible link |
SZ804.48B.026 |
1 |
||||

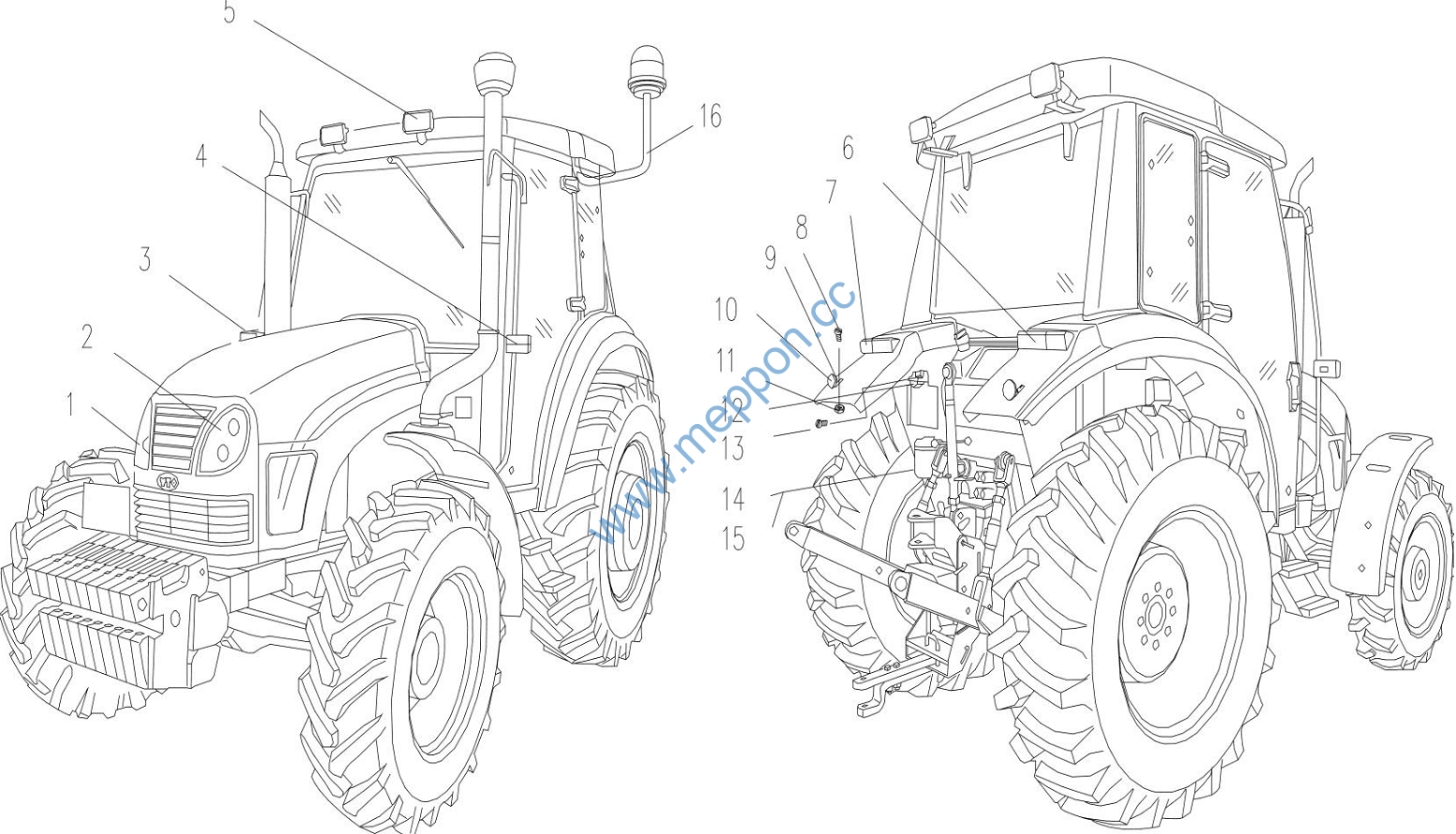

48 Lighting system
48 Lighting system
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
1 |
Combination headlight (RH) |
700.48.031-1 |
1 |
7 |
Combination taillight (LH) |
Z-HX180-E(L)/12 |
1 |
1.1 |
Bulb, high beam & low beam |
H1 12V 55W |
1 for each |
8 |
Bolt M6×20 |
GB/T5783-2000 |
4 |
2 |
Combination headlight (LH) |
700.48.030-1 |
1 |
9 |
Bracket, reflector |
SZ804.48.111-1 |
2 |
Nut M6 |
GB 6177-86 |
6 |
10 |
Reflector |
LHF-SQ-011 |
2 |
|
3 |
Signal light (FR, RH) |
Z-QX110×70-E(R)/12 |
1 |
11 |
Nut M6 |
GB 6177-86 |
4 |
3.1 |
Bulb, turn light |
1141 12V 21W |
1 |
12 |
License light |
T41-3210(optional) |
2 |
3.2 |
Bulb, position light (FR) |
89 12V 5W |
1 |
13 |
Bolt M5×16 |
GB/T822-2000 |
2 |
4 |
Signal light (FR, LH) |
Z-QX110×70-E(L)/12 |
1 |
14 |
Washer |
XD103 |
1 |
5 |
Rectangular work light |
WFD2020-1 |
4 |
15 |
Screw M6×16 |
GB/T818-2000 |
2 |
5.1 |
Bulb |
H3 12V 55W |
1 for each |
16 |
Revolving caution light (optional) |
LTD153A/12 |
1 |
6 |
Combination taillight (RH) |
Z-HX180-E(R)/12 |
1 |
||||
6.1 |
Bulb, turn light |
1141 12V 21W |
1 for each |
||||
6.2 |
Bulb, position light (RR) |
89 12V 5W |
1 |
||||
6.3 |
Bulb, brake light |
1141 12V 21W |
1 |
||||
