No.

Part Name

Part No.

Qty.

No.

Part Name

Part No.

Qty.

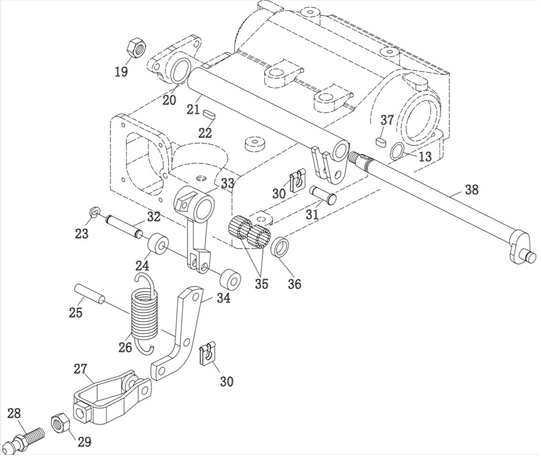

1

Washer 8

GB/T7244-1987

8

19

Self-locking nut M10×1.25

12575614/10125

1

2

Nut    M8

GB/T6170-2000

3

20

O-sealing ring 21.89×2.62

14457681/14618

1

3

Studs

13544324/10219

3

21

Operating shaft, load control

5129388/1.82.550

1

4

Spacer, sector plate

5117204/1.85.515

3

22

Key 4×14

GB 1096-76

1

5

Cap, spring, control sector plate

5129672/1.82.519

1

23

Retainer ring 8

GB/T894.1-1986

3

6

Spring

4973370/1.82.513

1

24

Roller

5111028/1.82.562

3

7

Spring

4952761/1.82.511

1

25

Pin

5011775/1.82.532

1

8

Friction disc

5153008/1.82.508A

2

26

Spring, lever arm

5148884/1.82.588

1

9

Friction disc

5153007/1.82.508

1

27

Pull rod, control valve

5120281/1.82.586

1

10

Bolt M8×25

GB/T5783-2000

3

28

Ball Bolt

5120282/1.82.587

1

11

Support, control lever

5129377SZ/1.82.517

1

29

Nut    M10×1.25

GB/T6173-2000

1

12

Spiral spring pin 4×24

BZ/JHX-SZ

1

30

Spring clip 8

11064076/12252

3

13

O-sealing ring 10.82×1.78

14453081/14618

2

31

Pin

5117161/1.82.557

1

14

Plug

5129399/1.82.544

1

32

Pin

5117136/1.82.561

1

15

Rectangular cross-section seal ring 10.82×1.78

10263460/14607

1

33

Lever arm assembly

5117135/1.82.541

1

16

Rise-Hold-Fall joystick

5129393/1.82.542

1

34

Joystick

5120291/1.82.541

1

17

Hub unit, load control lever

5129376/1.82.502

1

35

Needle bearing 14×20×12

5109160/1.82.536

4

18

Hub unit, position control lever

5129374/1.82.518A

1

36

Bushing, load control lever

5116251/1.82.543

1

37

Key 5×10

GB 1096-79

1

No.

Part Name

Part No.

Qty.

No.

Part Name

Part No.

Qty.

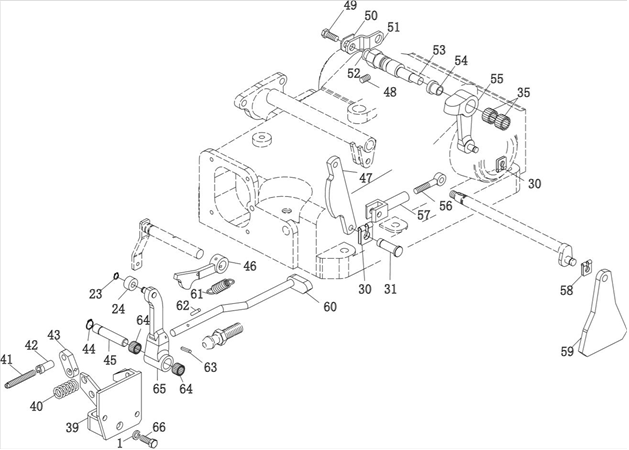

38

Crank axle

5129386/1.82.506

1

52

O-sealing ring 15.54×2.62

14457281/14618

1

39

Support, lever

5129400/1.82.531

1

53

Shaft, inner lever

5135221/1.82.533

1

40

Spring

4959139/1.63.807

1

54

Bushing, load control lever

5135219/1.82.546

1

41

Bolt, limit adjustment M8×1.25×55

5121522/1.82.540

1

55

Inner lever assembly

5117151/1.82.535

1

42

Screw tube, limit adjustment M8×1.25×20

5121523/1.82.540A

1

56

Control lever (RR), load control

885136355/1.82.548A

1

43

Stopper (FR)

885120284/1.82.539A

1

57

Fork, rod, load control

885136356/1.82.548

1

44

Retainer ring 12

13397576/12248

1

58

Spring clip

11064176/12252

1

45

Pin

5117156/1.82.530

1

59

Cam, position control

5117143/1.82.522

1

46

Raise-Neutral-Lower cam

5129396/1.82.527

1

60

Limit link

5120285/1.82.538

1

47

Cam, load control

5122497/1.82.524

1

61

Spring

4973650/1.82.563

1

48

Screw    M8×12

GB 71-85

1

62

Elastic cylindrical pin 3×22

BZ/JHX-SZ

1

49

Bolt M10×1.25×18

GB/T5786-2000

1

63

Elastic cylindrical pin 4×20

BZ/JHX-SZ

1

50

Washer    10

14198800/10182

1

64

Needle bearing 12×16×10

5117138/1.82.537

2

51

Grip, shaft, inner lever, load control

5135220/1.82.515A

1

65

Joystick assembly, main control

valve

5126220/1.82.512

1

66

Bolt M8×20

GB 30-76

2

No.

Part Name

Part No.

Qty.

No.

Part Name

Part No.

Qty.

1

Shaft, pin unit

SZ1204.58E.021

1

14

Spacer (LH), lift shaft

ME700.55.106

1

2

Double-acting hydraulic

cylinder assembly

SZ1204.55E.018

1

15

Oil cup M10×1

GB/T1152-1987

2

3

Spacer

ME700.55.103

1

16

Bolt    M10×1.25×16

GB/T5786-2000

1

4

Bolt    M10×1.25X25

GB/T5786-2000

1

17

Washer 10

GB/T854-1988

1

5

Washer    10

GB/T93-1987

1

18

Pin, push rod

ME700.55.204

1

7

Bushed bracket assembly

ME700.55.012A

1

19

Inner lift arm

ME700.55.105-1

1

8

Bolt    M12×1.25×35-10.9

GB/T5786-2000

11

20

Positioning bolt

5117190/1.82.819

1

9

Washer 12

GB/T93-1987

11

21

Lift shaft

5117187/1.82.808

1

10

Bolt    M14×1.5×30

GB/T5786-2000

2

22

Spacer (RH), lift shaft

ME700.55.104

1

11

Washer 14

GB/T93-1987

2

23

Lift arm assembly (RH)

5123959/1.82.811A

1

12

Washer, lift shaft

5122898/1.82.817

2

24

Longitudinal sticker, lifter

ME700.55.121-1

1

13

Lift arm assembly (LH)

ME700.55.014

1

25

Jacket, lift shaft

ME700.55.150

1

No.

Part Name

Part No.

Qty.

No.

Part Name

Part No.

Qty.

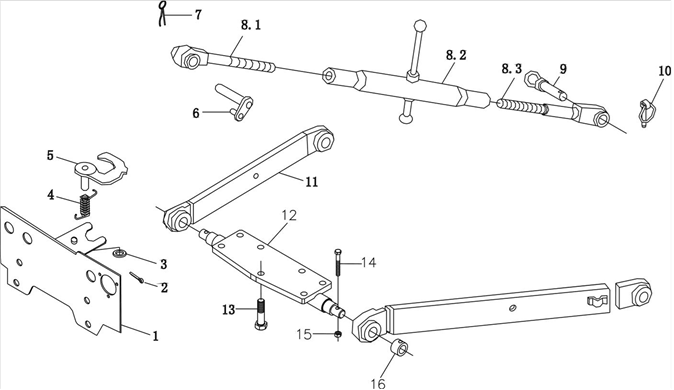

1

Support assembly, quick change coupler

ME700.56.011-1

1

12

Bearer unit, rod (LWR)

SZ804.56.020-1

1

2

Pin 3×25

GB/T 91-2000

1

13

Bolt    M18×1.5×50-Zn.D

GB/T 5785-2000

7

3

Washer 12

GB/T 97.1-2002

1

14

Bolt    M10×55-Zn.D

GB/T 5785-2000

2

4

Stop spring, diagonal-brace hook

5140549/1.82.067

1

15

Nut    M10-Zn·D

GB/T 889.2-86

2

5

Hook, link (UPR)(for transport purpose)

SZ804.56.026

1

16

Retainer ring, rod (LWR)

SZ804.56.113

2

6

Connecting pin assembly (FR), rod (UPR)

5120672/1.89.669

1

17

Dowel pin 15×22

5119529/1.21.071

2

7

Split pin

567406/1.89.945

3

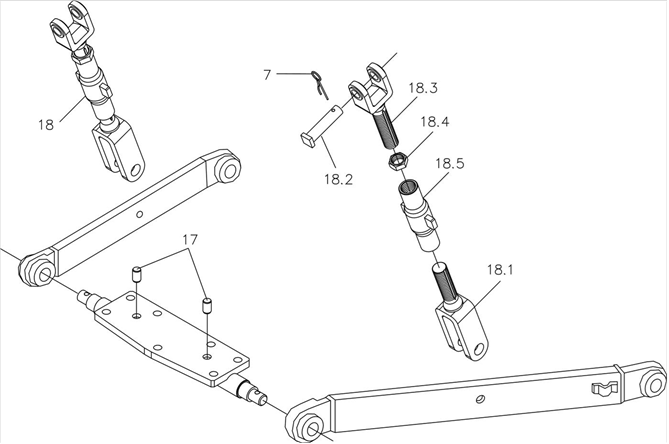

18

Lift link assembly

ME700.56.013

2

8

Link assembly (UPR)

ME700.56.012A

1

18.1

Clevis assembly (LWR),

lift link

SZ804.56.038

2

8.1

Screw assembly (FR), rod (UPR)

ME700.56.018

1

18.2

Connecting pin (UPR),

lift link (LH & RH)

5111643/1.89.657

2

8.2

Adjustment screw tube assembly, link (UPR)

ME700.56.019A

1

18.3

Clevis (UPR), lift link

ME700.56.107

2

8.3

Screw assembly (RR), link (UPR)

ME700.56.020

1

8.4

Locking nut

ME700.56.114

2

8.4

Locking nut

ME700.56.114

1

18.5

Adjustment screw tube

assembly, lift link

ME700.56.022

2

9

Pin (RR), upper link

822483/1.82.967

1

10

Lock pin assmbly

4967704/1.82.941A

1

11

Link assembly (LWR)

ME700.56.014

2
