YTO X704 Tractor Parts Catalogue Optional model 18

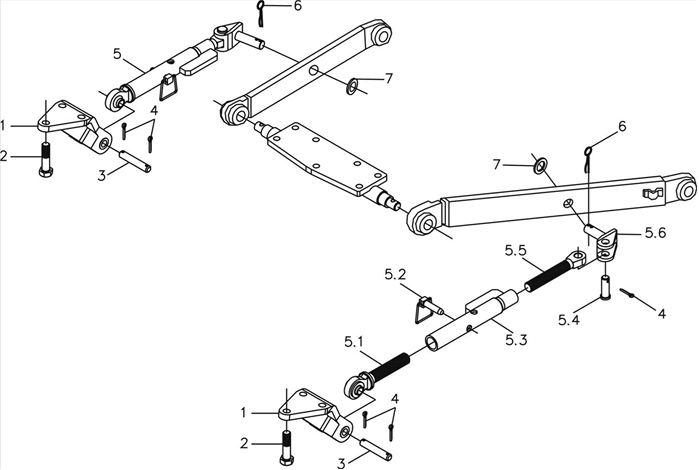

56 Force-in-earth suspension mechanism (optional)
56 Force-in-earth suspension mechanism (optional)
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
1 |
Support, limit link |
SZ804.56.118 |
2 |
5.3 |
Sleeve assembly, limit rod |
ME700.56.023 |
2 |
2 |
Bolt M18×1.5×50-Zn.D |
GB/T 5786-2000 |
6 |
5.4 |
Pin (RR), limit link |
885103861/1.89.956 |
2 |
3 |
Pin (FR), limit link |
5125861/1.89.955 |
2 |
5.5 |
Section (RR), limit link |
ME700.56.112 |
2 |
4 |
Pin 6.3×40 |
GB/T 91-2000 |
4 |
5.6 |
Pin unit (RR), limit rod |
5123274/1.89.958A |
2 |
5 |
Limit link assembly |
ME700.56.015 |
2 |
6 |
Locking pin assembly |
SZ804.56.040 |
2 |
5.1 |
Section assembly (FR), limit link |
5103858/1.89.950A |
2 |
7 |
Washer, pin (LWR), lift link |
562106/1.89.962 |
2 |
5.2 |
Pin (FR), limit link |
5103862/1.89.959A |
2 |
57 Distribution assembly (option without sensitivity)
57 Distribution assembly (option without sensitivity)
No. |
Part |
Part No. |
Qty. |
No. |
Part |
Part No. |
Qty. |
Distributor assembly |
SZ804.57.001-1 |
1 |
20 |
Adjusting knob, control valve, lowering speed |
5120798/1.82.476 |
1 |
|
1 |
Head, handle, lever, sensitivity adjustment |
5120762/1.82.433 |
1 |
21 |
Nut M10×1.25 |
6173-86 |
1 |
2 |
Positioning spring |
5120761/1.82.431 |
1 |
22 |
Retainer ring |
GB 5117726/1.82.454 |
2 |
3 |
Steel ball 7.938 |
GB 308-84 |
1 |
23 |
Main control valve assembly |
5117723/1.82.446A |
1 |
4 |
Lever, sensitivity adjustment |
5117736/1.82.438 |
1 |
24 |
Bolt M12×1.25×20 |
14360524/10356 |
1 |
5 |
Plug, sensitivity adjustment |
5120760/1.82.437 |
1 |
25 |
Seal washer 12 |
JB 1002-77 |
1 |
6 |
Seal washer 22×28×1 |
JB 1002-77 |
1 |
26 |
Pin, sensitivity adjustment |
5117735/1.82.436 |
1 |
7 |
Sector plate, adjusting handle |
5120763/1.82.435 |
1 |
27 |
Cylindrical pin 3×16 |
BZ/JHX-SZ |
1 |
8 |
O-ring26.5×1.8 |
GB/T3452.1-2000 |
1 |
28 |
O-ring8.75×1.8 |
GB/T3452.1-2000 |
1 |
9 |
Sensitivity control valve |
5117731/1.82.471A |
1 |
29 |
Plug M6 |
10269150/14545 |
3 |
10 |
Retainer ring 12 |
13420376/12248 |
1 |
30 |
Plug M10 |
10269350/14545 |
2 |
11 |
Spring washer |
5122030/1.2.494 |
1 |
31 |
Distributor housing unit with oil return valve |
5117743/1.82.401A |
1 |
12 |
Spring, pilot valve |
5115469/1.82.497 |
1 |
32 |
Spring , return valve |
5117729/1.82.448 |
1 |
13 |
O-ring30×2.65 |
GB/T3452.1-2000 |
1 |
33 |
Screw plug, return valve |
5117734/1.82.455 |
1 |
14 |
Plug, valve, sensitivity adjustment |
5122029/1.82.493 |
1 |
34 |
Descent speed control valve adjusting screw |
5117741/1.82.474 |
1 |
15 |
Spring, main control valve |
4973361/1.82.444 |
1 |
35 |
O-ring6.9×1.8 |
GB/T3452.1-2000 |
1 |
16 |
Seat, main control valve |
5117725/1.82.490 |
1 |
36 |
Retainer ring |
5120771/1.82.479 |
1 |
17 |
O-ring25×1.8 |
GB/T3452.1-2000 |
1 |
||||
18 |
Pilot valve |
5117732/1.82.492 |
1 |
||||
19 |
O-sealing ring 17×2.65 |
GB/T3452.1-2000 |
5 |
57 Distribution assembly (option without sensitivity)
No. |
Part |
Part No. |
Qty. |
No. |
Part |
Part No. |
Qty. |
37 |
Steel ball 3/16in |
GB 308-84 |
1 |
45 |
Support (UPR), one-way valve |
5148907/1.82.432 |
1 |
38 |
Cylindrical pin 4×14 |
BZ/JHX-SZ |
1 |
46 |
Seat, one-way valve |
4951476/1.82.464 |
1 |
39 |
Control valve, lowering speed |
5120770/1.82.472 |
1 |
47 |
Spring |
44018852/1.80.766 |
1 |
40 |
Spring |
596854/1.29.641 |
1 |
48 |
Support (LWR), one-way valve |
5148905/1.82.432A |
1 |
41 |
Relief valve assembly |
5117739/1.82.451 |
1 |
49 |
Steel ball 13.4938G10 |
GB 308-84 |
1 |
42 |
Bolt M8×1.25×30-Zn |
GB/T5783-2000 |
4 |
50 |
O-ring20×2.65 |
GB/T3452.1-2000 |
1 |
43 |
Washer 8 |
GB/T7244-1987 |
4 |
51 |
Retainer ring |
4958830/1.82.429 |
1 |
44 |
O-ring20×2.65 |
GB/T3452.1-2000 |
2 |
52 |
Oil outlet joint, one-way valve |
5131278/1.82.430 |
1 |
58 Force-in-earth hydraulic line assembly (optional)
58 Force-in-earth hydraulic line assembly (optional)
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
1 |
Bolt M8×35 |
GB/T5783-2000 |
2 |
12.4 |
O-ringφ17×2.65 |
GB3452.1-82 |
1 |
2 |
Washer 8 |
GB/T7244-1987 |
6 |
13 |
Clamp Φ36-50 |
JK-2A |
2 |
3 |
Retainer ring |
44015841/1.82.181 |
1 |
14 |
Oil suction rubber sleeve |
SZ1204.58F.110A 8A |
1 |
4 |
O-sealing ring 2.62×17.12 |
14457381/14618 |
1 |
15 |
Oil suction pipe assembly (RR) |
5149038-SZ-1/1.82.148 |
1 |
5 |
Gear oil pump |
CBN-G320 |
1 |
16 |
Washer 12 |
GB/T93-1987 |
3 |
6 |
O-sealing ring 2.62×20.29 |
14457581/14618 |
1 |
17 |
Bolt M12×1.25×45 |
GB/T5785-2000 |
1 |
7 |
Bolt M8×55 |
16044324/10312 |
2 |
18 |
Bolt M12×1.25×40 |
15510624/10312 |
2 |
8 |
Bolt M8×45 |
GB/T70.1-2000 |
4 |
19 |
Bracket, filter |
SZ804.58.010-1 |
1 |
9 |
Oil outlet pipe assembly (FR) |
SZ804.58E.011 |
1 |
20 |
Washer 10 |
GB/T93-1987 |
2 |
Connection hose assembly, outlet, pump |
SZ804.58E.012 |
1 |
21 |
Bolt M10×25 |
GB/T5783-2000 |
2 |
|
10 |
Oil suction pipe assembly (FR) |
8B5149060-SZ-1/1.82.150 |
1 |
22 |
Oil outlet pipe assembly to multi-way valve |
ME700.58.020 |
1 |
11 |
O-sealing ring 31.34×3.53 |
14463681/14618 |
2 |
||||
12 |
Filter assembly |
SZ804.58.023-1 |
1 |
||||
12.1 |
Rubber padφ133×φ120×5 |
XYLQ-09-002 |
1 |
||||
12.2 |
O-ringφ40×4 |
GB3452.1-82 |
1 |
||||
12.3 |
Filter element |
XYLQ-017-Z-000 |
1 |
