YTO X704 Tractor Parts Catalogue Optional model 16

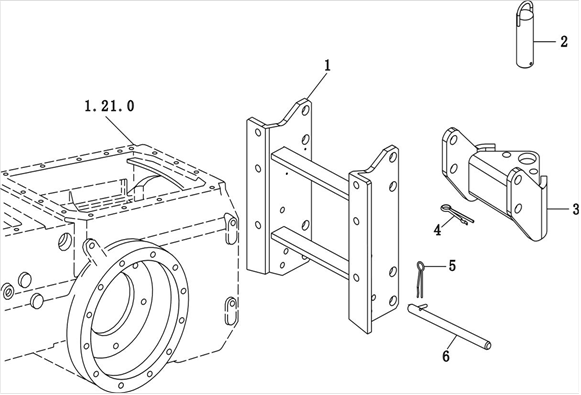

53 Hitch bar (optional)
53 Hitch bar
No. |
Part |
Part No. |
Qty. |
No. |
Part |
Part No. |
Qty. |
1 |
Bracket assembly, traction coupler |
5124430/1.89.008 |
1 |
||||
8808089051/1.89(for assembling single auxiliary cylinder) |
1 |
||||||
2 |
Trailer pin assembly |
SZ804.53.014 |
1 |
||||
3 |
Trailer hook assembly |
SZ804.53.011 |
1 |
||||
4 |
Lock pin |
44007661/1.82.945 |
1 |
||||
5 |
Lock pin |
4996920/1.89.051 |
2 |
||||
6 |
Horizontal hitch pin |
5117437/1.89.026 |
2 |

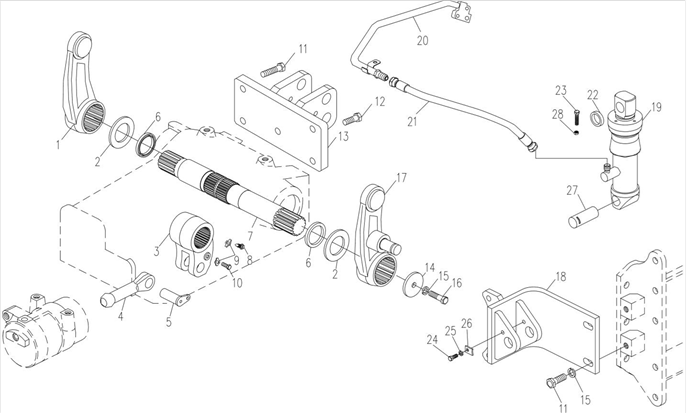

55 Lifter shaft & load transfer mechanism (optional single auxiliary cylinder)
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
1 |
Lift arm assembly (RH) |
1.82.811A/5123959 |
1 |
18 |
Support assembly, auxiliary cylinder |
SZ904.55.010 |
1 |
2 |
Washer, lift shaft |
885111082/1.82.818 |
2 |
19 |
Slave cylinder assembly |
SZ804.55.081 |
1 |
3 |
Inner lift arm assembly |
SZ804.55.083 |
1 |
20 |
Oil pipe, auxiliary cylinder |
5133117/1.82.193A |
1 |
4 |
Piston rod |
5121221SZ/1.82.812 |
1 |
21 |
Oil delivery hose to cylinder |
5126672/1.63.566 |
1 |
5 |
Pin, push rod |
5122356/1.82.813 |
1 |
22 |
Sleeve, pivot, auxiliary cylinder |
1204.55.116 |
1 |
6 |
Oil seal 55×70×8, lift shaft |
5105903/1.82.821 |
2 |
23 |
Bolt M8X×50-Zn.D |
GB5782-86 |
1 |
7 |
Lift shaft |
5117187/1.82.808 |
1 |
24 |
Bolt M10×1.25×16 |
GB5786-86 |
1 |
8 |
Positioning bolt |
5117190/1.82.819 |
1 |
25 |
Locking plate 10 |
14198801/10188 |
1 |
9 |
Washer 10 |
GB 854-88 |
2 |
26 |
Fastening pad |
44002815/1.32.032 |
1 |
10 |
Bolt M10×1.25×16 |
GB/T5786-2000 |
1 |
27 |
Pin, slave cylinder |
8851010297/1.82.191 |
1 |
11 |
Bolt M14×1.5×40 |
GB/T5786-2000 |
4 |
28 |
Nut M8 |
GB6185.1-87 |
1 |
12 |
Bolt M14×1.5×35 |
GB/T5786-2000 |
1 |
||||
13 |
Support weldment, rod (UPR) |
SZ804.55.020 |
1 |
||||
14 |
Washer, lift shaft |
5122898/1.82.817 |
2 |
||||
15 |
Washer 14 |
GB 93-86 |
2 |
||||
16 |
Bolt M14×1.5×30 |
GB/T5786-2000 |
2 |
||||
17 |
Lift arm weldment (LH) (crank) |
1.82/8B08082053SZ |
1 |

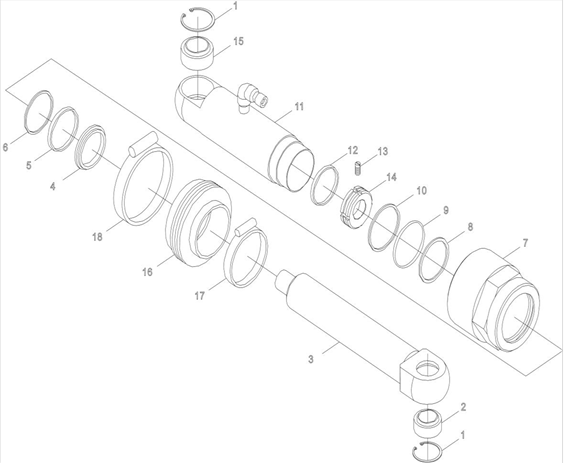

55 Auxiliary cylinder assembly
55 Auxiliary cylinder assembly
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
1 |
Retainer ring D47 |
GB893.1-86 |
2 |
||||
2 |
Joint bearing GE28ES(special) |
GB304.5-81 |
1 |
||||
3 |
Piston rod |
SZ804.55.081-01 |
1 |
||||
4 |
Scraper seal d50 |
Fa |
1 |
||||
5 |
Double lip seal ring d50×60×7 |
GT |
1 |
||||
6 |
Slip ring d60×61×4.2 |
GS |
1 |
||||
7 |
Cylinder head |
SZ804.55.081-02 |
1 |
||||
8 |
Gasket |
SZ804.55.081-03 |
1 |
||||
9 |
O-ring63×3.55 |
GB3452.1-82 |
1 |
||||
10 |
Retainer ring φ68.5/63×1.5 |
1 |
|||||
11 |
Cylinder block |
SZ804.55.081-04 |
1 |
||||
12 |
Guide ring, piston |
SZ804.55.081-07 |
1 |
||||
13 |
Screw M6×8 |
GB78-76 |
1 |
||||
14 |
Round nut |
SZ804.55.081-05 |
1 |
||||
15 |
Joint bearing GE30ES |
GB304.5-81 |
1 |
||||
16 |
Dust cover |
SZ804.55.081-06 |
1 |
||||
17 |
Hose clamp |
40-60 |
1 |
||||
18 |
Hose clamp |
60-80 |
1 |

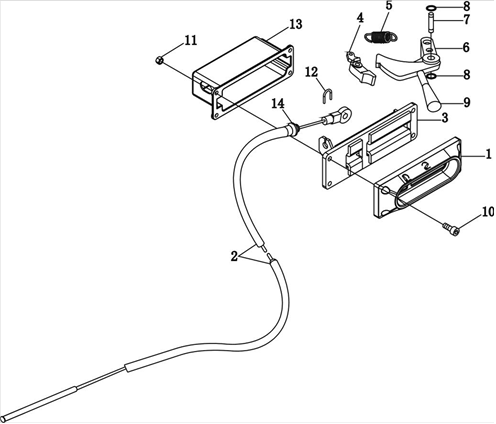

55 Lifter control mechanism (optional fast rise-fall feature)
55 Lifter control mechanism (optional fast rise-fall feature)
No. |
Part |
Part No. |
Qty. |
No. |
Part |
Part No. |
Qty. |
1 |
Cover plate, support, control lever |
SZ804.55.517 |
1 |
||||
2 |
Cable, fast rise-fall |
1.82.229/5139172 |
1 |
||||
3 |
Support unit, fast rise-fall |
SZ804.55.053 |
1 |
||||
4 |
Button, control push rod, hydraulic fast rise-fall |
5128641/1.10.064 |
1 |
||||
5 |
Tension spring, control lever, hydraulic fast rise-fall |
5128638/1.10.067 |
1 |
||||
6 |
Welded control lever unit, hydraulic fast rise-fall |
1604.20.016-1 |
1 |
||||
7 |
Pin, control lever, hydraulic fast rise-fall |
5128637/1.10.066 |
2 |
||||
8 |
Retainer ring 6 |
GB/T894.1-1986 |
4 |
||||
9 |
Head, handle, fast rise-fall |
SZ804.55.507 |
1 |
||||
10 |
Screw M5×35 |
GB 818-2000 |
4 |
||||
11 |
Nut M5 |
GB/T6170-2000 |
4 |
||||
12 |
Clip D=5 |
11063876/12252 |
1 |
||||
13 |
Splash guard, fast rise-fall |
SZ804.55.518 |
1 |
||||
14 |
Retainer ring 5 |
GB/T896-1986 |
1 |

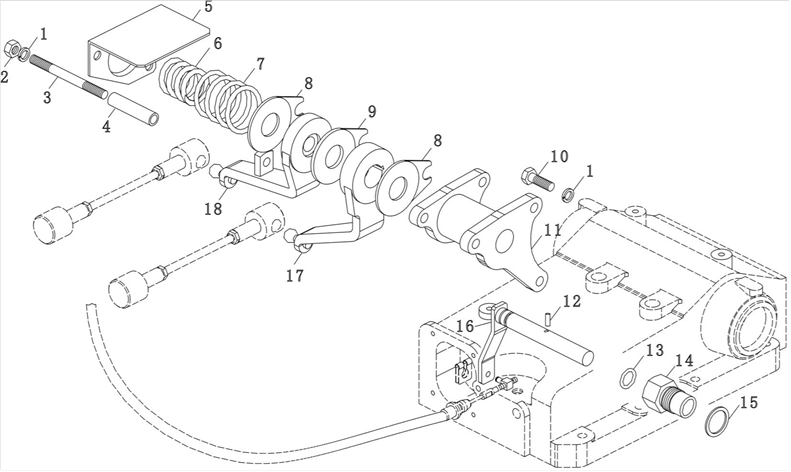

55 Distributor control mechanism (optional fast rise-fall feature)
