YTO X704 Tractor Parts Catalogue Optional model 15
.. 115 ..
48 Lighting system (optional ROPS)
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
1 |
Combination headlight (RH) |
700.48.031-1 |
1 |
7 |
Combination taillight (LH) |
Z-HX180-E(L)/12 |
1 |
1.1 |
Bulb, high beam & low beam |
H1 12V 55W |
1 for each |
8 |
Reflector |
LHF-SQ-011 |
2 |
2 |
Combination headlight (LH) |
700.48.030-1 |
1 |
9 |
License light |
T41-3210(optional) |
1 |
Nut M6 |
GB 6177-86 |
6 |
10 |
Bolt M5×16 |
GB/T822-2000 |
2 |
|
3 |
Signal light (FR, RH) |
Z-QX100-E(R)/12 |
1 |
||||
3.1 |
Bulb, turn light |
1141 12V 21W |
1 |
||||
3.2 |
Bulb, position light (FR) |
89 12V 5W |
1 |
||||
4 |
Signal light (FR, LH) |
Z-QX100-E(L)/12 |
1 |
||||
5 |
Combination taillight (RH) |
Z-HX180-E(R)/12 |
1 |
||||
5.1 |
Bulb, turn light |
1141 12V 21W |
1 |
||||
5.1 |
Bulb, position light (RR) |
89 12V 5W |
1 |
||||
5.3 |
Bulb, brake light |
1141 12V 21W |
1 |
||||
6 |
Work light (RR) |
WFD134-11 |
2 |
||||
6.1 |
Bulb |
1227 12V 35W |
2 |
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
1 |
Fuel feed pipe joint to left fuel pipe of fuel tank |
5131418/1.04.612A |
1 |
13 |
Composite gasket 28, diesel tank |
SZ804.50.028 |
3 |
2 |
Clamp 8~12 |
JK-000 |
8 |
14 |
Plug M28×1.5 |
SZ804.50.212 |
1 |
3 |
Oil pipe cock assembly |
885120589/1.04.625A |
1 |
15 |
Sealing ring 12×28×1.5 |
10298460/14607 |
4 |
4 |
Oil pipe, cock to oil filter |
5133999/1.04.607 |
1 |
16 |
Link bolt for pipe joint M12×1.5 |
10181714/14256 |
2 |
5 |
Joint, steering tube |
SZ804.50.104 |
1 |
17 |
Bearing plate, fuel tank cock |
5132605/1.04.0 |
1 |
6 |
Washer 10-Zn.D |
GB/T97.1-2002 |
1 |
18 |
Fuel tank assembly |
LX700.50.011 |
1 |
7 |
Nut M10-Zn.D |
6171-86 |
1 |
19 |
Oil tank cap with lock |
LHYXG-3.1 |
1 |
8 |
Oil pipe, oil supply pipe joint to switch |
5131413/1.04.605 |
1 |
20 |
Wrap, flange, fuel tank |
4998724/1.04.055 |
1 |
9 |
Joint, oil supply pipe |
5110573/1.04.636 |
1 |
21 |
Buffer washer, fuel tank |
4998710/1.04.077 |
4 |
10 |
Fuel feed pipe joint to right fuel pipe of fuel tank |
5131417/1.04.612 |
1 |
22 |
Buffer, fuel tank |
4952241/1.87.038 |
4 |
11 |
Banjo union |
884671700/0.20131 |
2 |
23 |
Spacer, buffer, fuel tank |
4998708/1.04.076 |
2 |
12 |
Fuel pressure reducing connector |
5110571/1.04.637 |
2 |
24 |
Washer 10-Zn |
GB/T93-1987 |
2 |
25 |
Bolt M10×55-Zn.D |
GB/T5783-2000 |
2 |
||||
26 |
Oil-water separator |
SQCL500-80 |
1 |

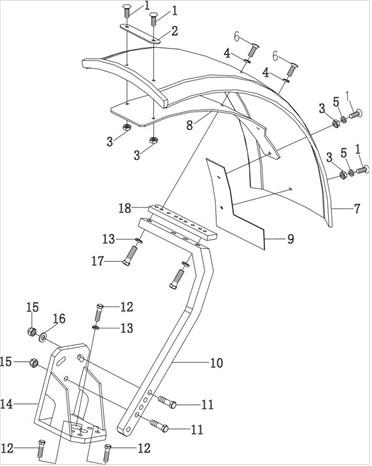

47 Front mud guard
47 Front mud guard
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
1 |
Bolt M10×1.25×30-Zn.D |
GB/T5786-2000 |
8 |
10 |
Support arm (LH) |
885148594/1.87.4 |
1 |
2 |
Connecting plate |
5148599/1.87.4 |
4 |
Support arm (RH) |
885148595/1.87.4 |
1 |
|
3 |
Nut M10×1.25-Zn.D |
GB 889.2-86 |
8 |
11 |
Bolt M14×1.5×65-Zn.D |
GB/T5785-2000 |
4 |
4 |
Washer 10-Zn.D |
GB/T93-1987 |
4 |
12 |
Bolt M12×1.25×45-10.9-Zn.D |
GB/T5785-2000 |
6 |
5 |
Washer 10 |
GB 5287-85 |
4 |
13 |
Washer 12-Zn.D |
GB/T93-1987 |
6 |
6 |
Bolt M10×30-Zn.D |
GB 5783-85 |
4 |
14 |
Bracket unit |
5148602/1.87.4 |
2 |
7 |
Fender (FR) |
5122261/1.87.407 |
2 |
15 |
Nut M14×1.5-Zn.D |
GB 889.2-86 |
4 |
8 |
Support plate (LH) |
5148596/1.87.4 |
1 |
16 |
Washer 14 |
GB/T97.1-2002 |
2 |
Support plate (RH) |
5148597/1.87.4 |
1 |
17 |
Bolt M12×1.25×40 |
GB/T5786-2000 |
4 |
|
9 |
Spring leaf (LH) |
5149441/1.87.4 |
3 |
18 |
Nut plate |
5148598/1.87.4 |
2 |
Spring leaf (RH) |
5148600/1.87.4 |
3 |

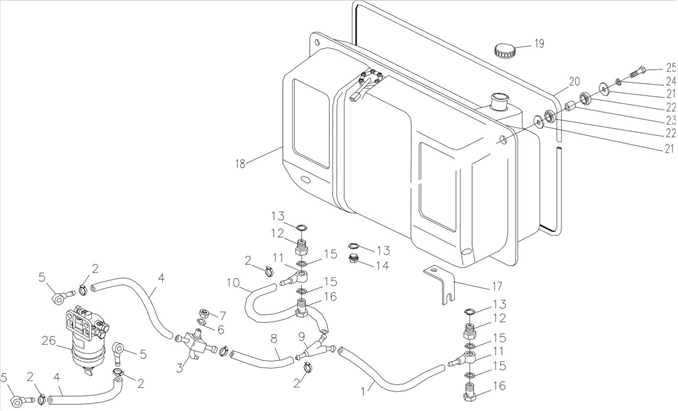

50 Fuel tank & fuel lines (optional auxiliary tank)
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
1 |
Fuel tank unit |
SZ804.50.030 |
1 |
23 |
Oil tank cap with lock |
LHYXG-3.1 |
1 |
2 |
Oil pipe, cock to oil filter |
5133999/1.04.607 |
2 |
24 |
Bolt M10×45-Zn.D |
GB 5782-86 |
2 |
3 |
Bearing plate, oil pipe cock |
5132605/1.04.0 |
1 |
25 |
Washer 10-Zn.D |
GB 93-87 |
2 |
4 |
Oil pipe cock assembly |
885120589/1.04.625A |
1 |
26 |
Buffer washer 11×32×3-Zn.D, fuel tank |
4998710/1.04.077 |
4 |
5 |
Washer 10-Zn.D |
GB/T97.1-2002 |
1 |
27 |
Buffer, fuel tank |
4952241/1.87.038 |
4 |
6 |
Nut M10-Zn.D |
GB/T6171-2000 |
1 |
28 |
Spacer, buffer, fuel tank |
4998708/1.04.076 |
2 |
7 |
Bolt M8×16- Zn.D |
GB/T5783-2000 |
2 |
29 |
Edge-flange joint |
4984904/1.85.078 |
1 |
8 |
Washer 8-Zn.D |
GB/T7244-2000 |
3 |
30 |
Pin 3.2×20 |
GB/T91-2000 |
1 |
9 |
Washer 8-Zn.D |
GB/T97.1-2002 |
3 |
31 |
Washer 10-Zn.D |
GB/T97.1-2002 |
1 |
10 |
Connector tube, fuel tank |
SZ804.50.303 |
1 |
32 |
Strap unit |
SZ804.50.032 |
1 |
11 |
Clamp 25~38 |
5129538/1.04.619 |
2 |
33 |
Pin B10×70 |
GB/T886-1986 |
1 |
12 |
Joint, oil through pipe |
5150930/1.04.6 |
1 |
34 |
Bolt 16×1.5×55 |
GB/T5786-2000 |
2 |
13 |
Composite gasket 28, diesel tank |
SZ804.50.028 |
3 |
35 |
Washer 16 |
GB/T93-1987 |
4 |
14 |
Plug M28×1.25 |
SZ804.50.212 |
1 |
36 |
Bolt 16×1.5×45 |
GB/T5786-2000 |
2 |
15 |
Link bolt for pipe joint M12×1.5 |
10181714/14256 |
1 |
37 |
Bracket unit, auxiliary tank |
LY1054.50.031 |
1 |
16 |
Seal washer 12×18×1.5 |
10298460/14607 |
2 |
38 |
Nut M8-Zn.D |
GB/T6170-1986 |
1 |
17 |
Banjo union |
884671700/0.20.131 |
1 |
39 |
Breather hose, additional tank |
SZ804.50.301 |
1 |
18 |
Breather connection unit, additional tank |
5119825/1.04.637A |
1 |
40 |
Clamp 8-12 |
JK-0000 |
11 |
19 |
Bearing pad, fuel tank |
5141798/1.04.040B |
1 |
41 |
Baffle |
SZ804.50.302-1 |
1 |
20 |
Side pad, fuel tank |
5141796/1.04.039B |
2 |
42 |
Hoop 38-25 |
QC/T619 |
2 |
21 |
Fuel tank assembly |
881200406/1.04.0 |
1 |
43 |
Clamp connecting rubber strip |
LJT01A1530 |
2 |
22 |
Wrap, flange, fuel tank |
4998724/1.04.055 |
1 |

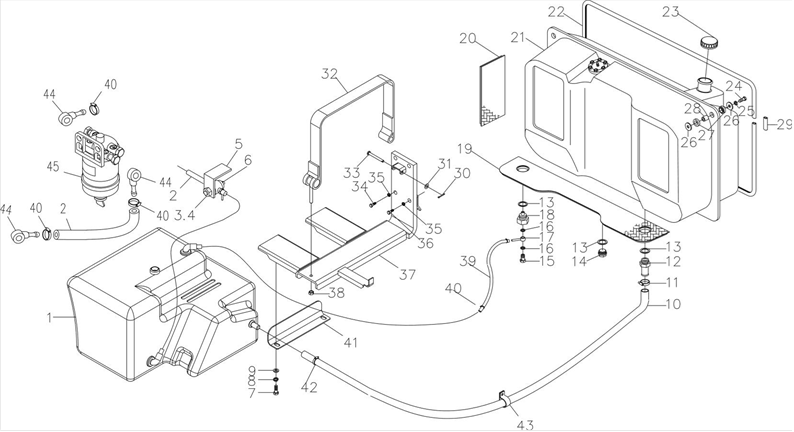

50 Fuel tank & fuel lines (optional auxiliary tank)
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
44 |
Oil pipe joint |
SZ804.80.104 |
3 |
||||
45 |
Oil-water separator |
SQCL500-80 |
1 |
||||
