YTO X704 Tractor Parts Catalogue Optional model 14
- Canopy assembly (optional)
No. |
Part |
Part No. |
Qty. |
No. |
Part |
Part No. |
Qty. |
1 |
Roof |
1.87.760/5137614 |
1 |
||||
2 |
Welded mounting bracket assembly (RH), roof |
SZ700.46B.011 |
1 |
||||
3 |
Welded mounting bracket assembly (LH), roof |
SZ700.46B.010 |
1 |
||||
4 |
U-bolt |
SZ700.46B.202 |
4 |
||||
5 |
Washer 12 |
GB7244 |
8 |
||||
6 |
Nut M12×1.5-Zn.D |
GB6176 |
8 |
||||
7 |
Nut M8 |
GB889.1 |
6 |
||||
8 |
Washer |
1.87.706F/5137571 |
12 |
||||
9 |
Pad (UPR) |
1.87.706D/5137569 |
6 |
||||
10 |
Pad (LWR) |
1.87.706E/5137570 |
6 |
||||
11 |
Spacer |
1.87.706G/5137572 |
6 |

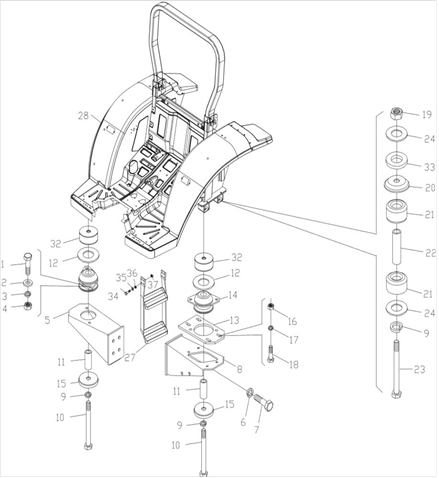

- Floor, mud guard & tall panel assembly (optional ROPS)
47 Floor, mud guard & tall panel assembly (optional ROPS)
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
1 |
Bolt M12×1.25×30 |
GB/T5786-2000 |
4 |
18 |
Bolt M10×1.25×40 |
GB/T5785-2000 |
4 |
2 |
Washer 12 |
GB/T97.1-2002 |
4 |
19 |
Nut M16×1.5-Zn.D |
GB/T6171-2000 |
4 |
3 |
Washer 12 |
GB/T93-1987 |
4 |
20 |
Cover (UPR), buffer washer |
4997421/1.87.043 |
4 |
4 |
Nut M12×1.25-Zn.D |
GB/T6171-2000 |
4 |
21 |
Buffer washer |
4997423/1.87.038 |
8 |
5 |
Bracket unit (RH) |
885147444/1.87.0 |
1 |
22 |
Inner spacer, rear suspension |
5132015/1.87.0 |
4 |
6 |
Bolt M14×1.5×35 |
GB/T5786-2000 |
8 |
23 |
Bolt M16×1.5×150 |
SZ804.47.716 |
4 |
7 |
Washer 14 |
GB/T93-1987 |
8 |
24 |
Washer (LWR) |
4997422/1.87.039 |
8 |
8 |
Bracket unit (LH) |
8A5145508SZ/1.87.0 |
1 |
27 |
Vehicle step |
SZ900.47A.071 |
2 |
9 |
Washer 16-Zn.D |
GB/T93-1987 |
6 |
28 |
ROPS assembly |
LX804.47.011-1 |
1 |
10 |
Bolt M16×1.5×160 |
SZ804.47.717 |
2 |
32 |
Washer, elastic suspension (FR) |
8A1208706/1.87.0 |
2 |
11 |
Inner spacer, suspension (FR) |
5132014/1.87.0 |
2 |
33 |
Washer, elastic suspension (FR) |
885130819/1.87.0 |
4 |
12 |
Washer (UPR), front suspension |
5132013/1.87.0 |
2 |
34 |
Bolt M8×30-Zn.D |
GB5783-2000 |
12 |
13 |
Mounting plate, front suspension |
5130167/1.87.0 |
1 |
35 |
Washer 8-Zn.D |
GB/T7244-1987 |
12 |
14 |
Elastic support, front suspension, floor |
5132016/1.87.0 |
2 |
36 |
Washer 8-Zn.D |
GB/T96.1-2002 |
12 |
15 |
Washer (LWR), front suspension |
5132012/1.87.0 |
2 |
37 |
Nut M8-Zn.D |
GB/T6170-2000 |
8 |
16 |
Nut M10×1.25-Zn.D |
GB/T6171-2000 |
4 |
||||
17 |
Washer 10-Zn.D |
GB/T7244-1987 |
4 |

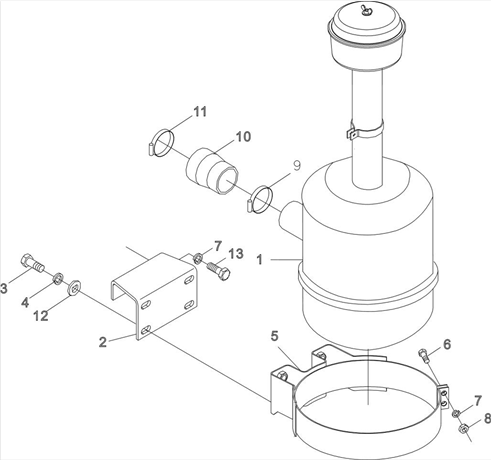

21 Installed air cleaner assembly (optional ROPS)
21 Installed air cleaner assembly (optional ROPS)
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
1 |
Air Filter Assembly |
KY250A7 |
1 |
||||
2 |
Transition support weldment, air cleaner |
4RCT4.220100-SZ |
1 |
||||
3 |
Bolt M10×20-Zn.D |
GB/T5783-2000 |
1 |
||||
4 |
Washer 10-Zn.D |
GB/T93-1987 |
6 |
||||
5 |
Bracket unit, air cleaner |
6RTF.210350 |
6 |
||||
6 |
Bolt M8×30-Zn.D |
GB/T70.1-2000 |
1 |
||||
7 |
Washer 8-Zn.D |
GB/T7244-1987 |
2 |
||||
9 |
Hose clamp(76-92) |
QC/T619-1999 |
2 |
||||
10 |
Intake connecting hose |
4MCT.210001SZ |
1 |
||||
11 |
Clamp(80-100) |
QC/T619-1999 |
1 |
||||
12 |
Washer 10-Zn.D |
GB/T97.1-2002 |
4 |
||||
13 |
Bolt M8×20-Zn.D |
GB/T5783-2000 |
2 |

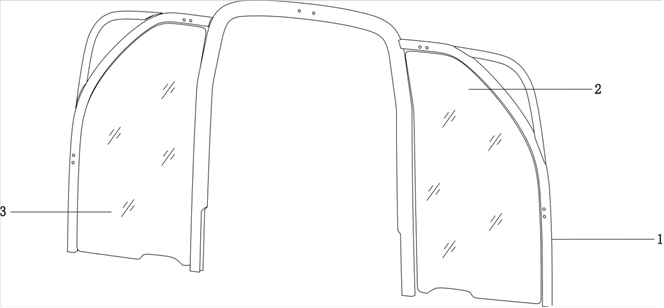

47 Partition (optional ROPS)
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
Partition assembly |
700.47.005 |
1 |
|||||
1 |
Welded partition |
700.47.051 |
1 |
||||
2 |
Glass (LH) |
700.47.510 |
1 |
||||
3 |
Glass (RH) |
700.47.504 |
1 |
||||

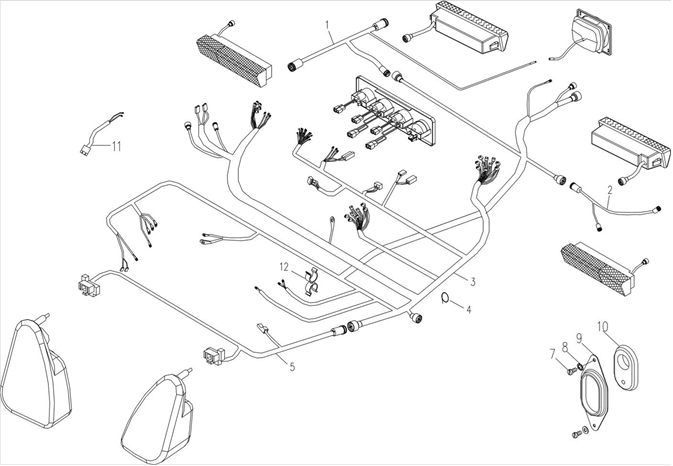

48 Electrical system harnesses (optional ROPS)
48 Electrical system harnesses (for models with optional ROPS)
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
1 |
Harness (RR, LH) |
SZ700.48A.022-1 |
1 |
4 |
Cable tie |
885112712/1.75.488 |
10 |
2 |
Harness (RR) |
SZ700.48.023-2 |
1 |
5 |
Harness (FR, LH) |
X700.48.021-4 |
1 |
3 |
Main harness |
SZ804.48B.020-4 |
1 |
7 |
Screw M5×16 |
GB/T822-2000 |
2 |
SZ904.48B.020-4(For side-mounted battery) |
1 |
8 |
Washer 5 |
GB93-97 |
2 |
||
SZ804.48D.020-4(for equipped with pre-heater) |
1 |
9 |
Cover, insulation pad |
4998891/1.75.480 |
1 |
||
SZ904.48D.020-4(battery side-mounted, for equipped with pre-heater) |
1 |
10 |
Insulation pad |
4998892/1.75.494 |
1 |
||
11 |
Fusible link |
SZ804.48B.026 |
1 |
