YTO X704 Tractor Parts Catalogue Optional model 12
37 Gearbox assembly with synchro shuttle shift (matching 11″ clutch)
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
1 |
Bearing 6008-2RS |
GB/T276-1994 |
1 |
19 |
Retainer ring 40 |
GB/T895.1-1986 |
2 |
2 |
Bearing retainer D63×84×3 |
SZ804.21.702 |
1 |
20 |
Collar (RH), synchronizer |
804C.37B.106 |
1 |
3 |
Retainer ring 85 |
11062176/12246 |
1 |
21 |
Bearing 61909 |
GB/T276-1994 |
1 |
4 |
Oil seal D=45×85×10 |
5144379/1.25.030 |
1 |
22 |
Retainer ring 68 |
GB/T893.1-1986 |
1 |
5 |
Retainer ring 45 |
12245/11062176 |
1 |
24 |
Locking nut |
804C.37B.107 |
1 |
6 |
Retainer ring 85 |
12246/11062176 |
2 |
25 |
Oil seal, shaft, main clutch |
4985295/1.28.174 |
1 |
7 |
Bearing 6209 |
GB/T276-1994 |
1 |
26 |
Driving shaft, additional reducer |
804C.37B.108 |
1 |
8 |
Main clutch shaft unit with synchro actuator |
804C.37B.011 |
1 |
27 |
Oil seal, shaft, main clutch |
804C.37B.110 |
1 |
9 |
Retainer, driving gear, synchromesh reverser |
804C.37B.104 |
1 |
28 |
Bolt M12×1.25×25 |
GB/T5786-2000 |
1 |
10 |
Retainer ring 55 |
GB/T895.1-1986 |
2 |
29 |
Washer 12 |
GB/T854-1988 |
1 |
11 |
Retainer I, needle bearing |
804C.37B.119 |
2 |
30 |
Stop washer, shaft, driven gear |
5117561/1.32.338 |
1 |
13 |
Bearing K485425 |
JB/T7918-1997 |
2 |
31 |
Washer, locking plate |
5117562/1.32.338A |
1 |
14 |
Collar (LH), synchronizer |
804C.37B.105 |
1 |
32 |
O-sealing ring 2.62×26.64 |
14618 14457980 |
2 |
33 |
Shaft, idler, synchromesh reverser |
804C.37B.112 |
1 |
||||
34 |
Idler, synchromesh reverser |
804C.37B.111 |
1 |
||||
35 |
Spacer ring, idler |
5117570/1.34.127 |
1 |
||||
36 |
Retainer ring 32 |
GB/T894.1-1986 |
1 |
||||
37 |
Spacer ring (FR), driven gear |
5117563/1.32.339 |
1 |
37 Gearbox assembly with synchro shuttle shift (matching 11″ clutch)
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
38 |
Retainer II, needle bearing |
804C.37B.120 |
2 |
||||
39 |
Retainer ring 40 |
GB/T895.1-1986 |
2 |
||||
40 |
Driven gear, synchromesh reverser |
804C.37B.109 |
1 |
||||
41 |
Bearing K324036 |
JV/T7918-1998 |
3 |
||||
42 |
Spacer ring (RR), driven gear |
5117560/1.32.336 |
2 |
||||
43 |
Bolt M8×25 |
GB/T5783-2000 |
3 |
||||
44 |
Bearing cap, driven shaft |
5117552/1.28.127 |
1 |
||||
45 |
Primary driving gear, reverser, shift collar |
804C.37B.117 |
1 |
||||
46 |
Shift collar, gearshift, main transmission |
1204.37A.106 |
1 |
||||
47 |
Gear retainer, gearshift, main transmission |
1204.37A.105 |
1 |
||||
48 |
Engagement cone, reverser, shift collar |
804C.37B.118 |
1 |
||||

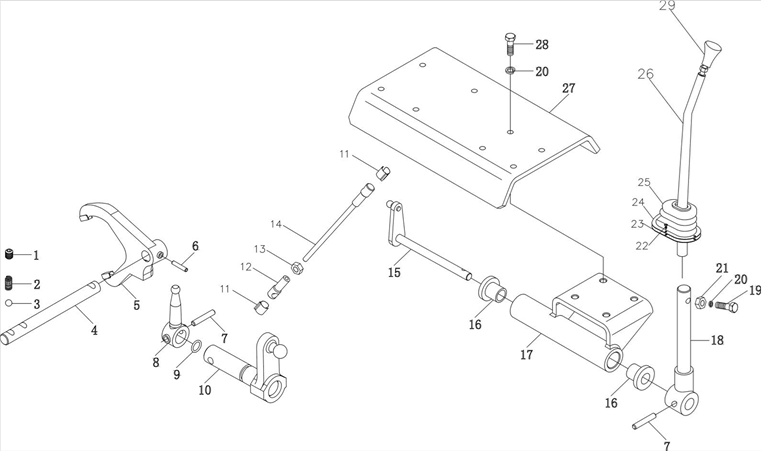

37 Control mechanism of gearbox assembly with synchro shuttle shift (optional)
- Control mechanism of gearbox assembly with synchro shuttle shift (optional)
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
1 |
Hexagon screw M10×1.25×15 |
SZ804.37B.509 |
1 |
16 |
Bushing, shaft, pedal, brake (RH) |
5110545/1.68.011A |
2 |
2 |
Spring |
884994342/1.29.031 |
1 |
17 |
Hinged support unit |
5126304/1.32.372 |
1 |
3 |
Steel ball 8.7312 G100b |
GB/T 308-2002 |
1 |
18 |
Extension rod unit (LWR), shift lever |
SZ804.37B.050 |
1 |
4 |
Slider, additional reducer |
804C.37B.113 |
1 |
19 |
Bolt M8×40-Zn.D |
GB/T5783-2000 |
1 |
5 |
Fork, additional reducer |
804C.37B.114 |
1 |
20 |
Washer 8 |
GB/T93-1987 |
9 |
6 |
Elastic cylindrical pin D=5×35 |
BZ/JHX-SZ |
1 |
21 |
Nut M8-Zn.D |
GB/T6175-2000 |
1 |
7 |
Elastic cylindrical pin D=8×35 |
BZ/JHX-SZ |
2 |
22 |
Tapping screwST6.3×22-C-H |
GB/T845-1985 |
4 |
8 |
Shifting block |
804C.37B.115 |
1 |
23 |
Washer, retaining plate, dust cover |
8808087101/1.87.5 |
1 |
9 |
O-sealing ring 2.62×15.54 |
14457280/14618 |
1 |
24 |
Retaining plate, dust cover |
5130833/1.87.5 |
1 |
10 |
Rockshaft unit, control |
804C.37B.012 |
1 |
25 |
Dust cover, joystick, reverser |
885132032/1.87.5 |
1 |
11 |
Clip 15 |
10125674-13130/03 |
2 |
26 |
Joystick weldment, reverser |
885130083-1/1.34.261C |
1 |
12 |
Cover, ball joint15 |
10124610-13130/01 |
2 |
27 |
Horizontal frame, side control |
5129404/1.32.370 |
1 |
13 |
Nut M10×1.25 |
GB/T6173-86 |
2 |
28 |
Bolt M8×20 |
GB/T5783-2000 |
8 |
14 |
Link unit |
5129408/1.32.385A |
1 |
29 |
Control lever, reverserl |
SZ804.37B.503A |
1 |
15 |
Small shaft weldment |
5139367/1.32.386A |
1 |

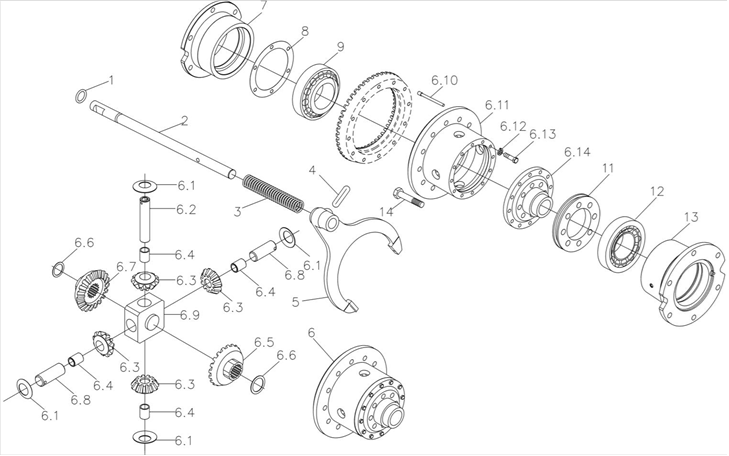

38 Rear axle differential gear drive (optional for four planet gear arrangement)
- Rear axle differential gear drive (optional for four planet gear arrangement)
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
1 |
O-sealing ring 15.54×2.62 |
14457280/14618 |
1 |
7 |
Bearing seat, differential |
1.32.003/4991470SZ |
1 |
2 |
Shaft, fork, differential lock |
5123685/1.32.628 |
1 |
8 |
Adjusting shim, differential |
1.32.022/4991682~ 4991684 |
As required |
3 |
Spring, fork, differential lock |
5114581/1.32.629 |
1 |
9 |
Bearing 32013E(2007113) |
GB/T 297-1994 |
1 |
4 |
Coil spring pin 6×40 |
BZ/JHX-SZ |
1 |
11 |
Differential lock unit |
5117245/1.32.608A |
1 |
5 |
Fork, differential lock |
5113659/1.32.625 |
1 |
Sleeve, differential lock |
1.32.608/5117244 |
1 |
|
6 |
Differential assembly |
SZ804.38M.001-TY |
1 |
Lock pin 12×35 |
1.32.610/4991654 |
8 |
|
6.1 |
Thrust washer, planetary gear |
1.32.425/4991658SZ |
4 |
12 |
Bearing 30211E(7211E) |
GB/T 297-1994 |
1 |
6.2 |
Shaft, planetary gear I |
LY1054.38.110 |
1 |
13 |
Bearing seat, differential |
1.32.003/4991470SZ |
1 |
6.3 |
Planetary gear |
LY1054.38.107 |
4 |
14 |
Screw M10×1.25×30 |
14233624/10357 |
12 |
6.4 |
Bushing |
COB010 2530 |
4 |
||||
6.5 |
Side gear (RH), differential |
LY1054.38.108 |
1 |
||||
6.6 |
Thrust washer, side gear, thickness1.4~2.1 |
1.32.424/ 4997236~ 880803203 |
2 |
||||
6.7 |
Side gear (LH), differential |
LY1054.38.109 |
1 |
||||
6.8 |
Shaft, planetary gear II |
LY1054.38.113 |
2 |
||||
6.9 |
Bushing, shaft, planetary gear I |
LY1054.38.112 |
1 |
||||
6.1 |
Dowel, shaft, planet gear |
1.32.428/4991719 |
3 |
||||
6.11 |
Carrier, differential |
1.32 /880803207 |
1 |
||||
6.12 |
Washer 8-Zn.D |
GB/T93-1987 |
12 |
||||
6.13 |
Bolt M8×25-Zn.D |
GB/T5783-2000 |
12 |
||||
6.14 |
Carrier, differential II |
LY1054.38.106 |
1 |

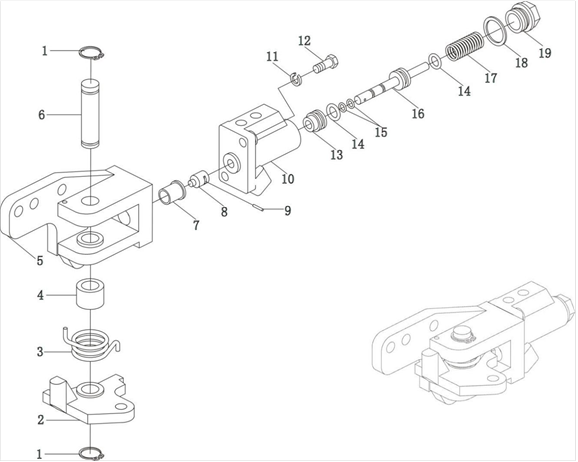

38 Differential lock control (optional differential lock hydraulic disengaging mechanism)
38 Differential lock control (optional differential lock hydraulic disengaging mechanism)
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
Hydraulic disengaging mechanism, differential lock |
1.32.745/5123692 |
10 |
Housing, cylinder, disengaging mechanism |
5127340/1.32.752 |
1 |
||
1 |
Retainer ring 16 |
GB 894.1-86 |
2 |
11 |
Washer 8-Zn.D |
GB 93-87 |
2 |
2 |
Control rocker, differential lock |
88512123/1.32.722 |
1 |
12 |
Bolt M8×20-Zn.D |
GB 70-85 |
2 |
3 |
Return spring, rocker, differential lock |
5125755/1.32.753 |
1 |
13 |
Intermediate piston |
5115124/1.32.852 |
1 |
4 |
Bushing, disengaging mechanism |
5123694/1.32.747 |
1 |
14 |
O-ring12.37×2.62 |
14457081/14618 |
2 |
5 |
Support, hydraulic disengaging mechanism, differential lock |
5123689/1.32.735 |
1 |
15 |
O-ring4.47×1.78 |
14452581/14618 |
2 |
6 |
Control pin, differential lock |
5123690/1.32.737 |
1 |
16 |
Piston, cylinder |
5115125/1.32.853 |
1 |
7 |
Bushing, support, disengaging mechanism, differential lock |
5123693/1.32.746 |
1 |
17 |
Spring, piston, cylinder |
5118126/1.32.854 |
1 |
8 |
Lock pin |
5128094/1.32.748 |
1 |
18 |
Rectangular seal ring 22×28×1.5 |
10263460/14607 |
1 |
9 |
Needle 2×11.8Ⅰ |
GB 309-77 |
1 |
19 |
Plug, cylinder |
885115127/1.32.855 |
1 |
