YTO X704 Tractor Parts Catalogue Optional model 07

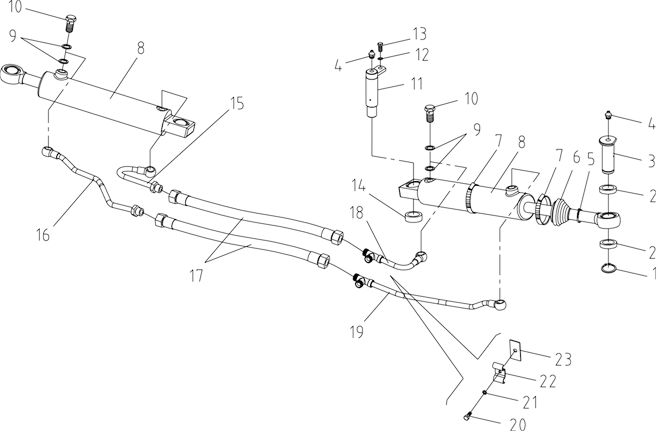

31 Front axle assembly (double cylinder, optional)
.. 45 ..
31 Front axle assembly (double cylinder, optional)
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
Steering cylinder assembly |
20117030033 |
1 |
16 |
Steering oil pipe assembly (LH), cylinder (LH) |
20121020047 |
1 |
|
1 |
Retainer ring 20 |
11066870/12245 |
2 |
17 |
Hose D=8×470, cylinder |
5145419A/22 |
2 |
2 |
Washer, pin, cylinder |
5100730/1.63.589 |
4 |
18 |
Steering oil pipe assembly (LH), cylinder (RH) |
5139048A/22 |
1 |
3 |
Pin, cylinder |
4987671/1.63.584 |
2 |
19 |
Steering oil pipe assembly (RH), cylinder (RH) |
20121020045 |
1 |
4 |
Oil cup M10×1 |
GB/T 1152-89 |
4 |
20 |
Bolt M6×16 |
GB/T 5783-1986 |
1 |
5 |
Plastic cable tie |
31114010088 |
2 |
271 |
Spring washer 6 |
GB/T 7244-1987 |
1 |
6 |
1004 cylinder jacket |
31701000028 |
2 |
22 |
Oil pipe clamp |
4999554/1.63.583 |
1 |
7 |
Hoop (Φ50~Φ70) |
JK-3X |
4 |
23 |
Support plate |
5138294/1.63.22 |
1 |
8 |
Steering cylinder |
5142046/22 |
2 |
||||
9 |
Composite seal washer14 |
JB 982-77 |
8 |
||||
10 |
Hollow bolt M14 |
10184314/14256 |
4 |
||||
11 |
Pin assembly, cylinder |
5142048/22 |
2 |
||||
12 |
Washer 8 |
GB/T 7244-87 |
2 |
||||
13 |
Bolt M8×16 |
GB/T 5783-86 |
2 |
||||
14 |
Spacer, pin, cylinder |
5142223/22 |
2 |
||||
15 |
Steering oil pipe assembly (RH), cylinder (LH) |
20121020046 |
1 |
.. 46 ..

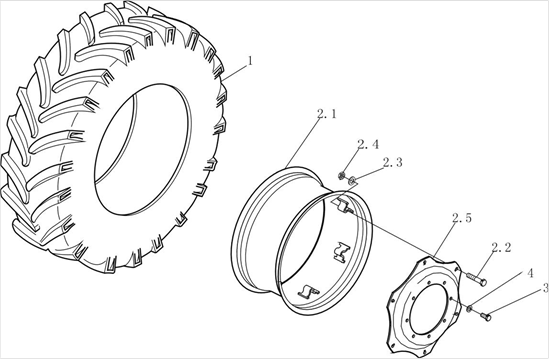

32 Front driving wheel assembly (optional)
.. 47 ..
32 Front driving wheel assembly (optional)
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
Front wheel assembly,11.2-28 |
Paddyfield wheel assembly (FR), 9.5-24 |
||||||
1 |
Traction tire 11.2-28(including tire and tube) |
GB 2979-91 |
2 |
1 |
Rice tire 9.5-24, driving wheel(including tire and tube) |
GB 2979-91 |
2 |
2 |
Rim and spoke uni(t W10-28) |
5132075/1.49.401 |
2 |
2 |
Rim and spoke unit (W8-24) |
SZ704.32A.010 |
2 |
2.1 |
Welded rim unit (W10-28) |
5132072/1.49.405 |
2 |
2.1 |
Welded rim unit (W8-24) |
SZ704.32A.101 |
2 |
2.2 |
Bolt, rim & spoke M16×1.5×78.5 |
5112385/1.49.541 |
12 |
2.2 |
Bolt, rim & spoke M16×1.5×78.5 |
5112385/1.49.541 |
12 |
2.3 |
Washer, spoke 16.6×33×3.5 |
4986961/1.49.440 |
12 |
2.3 |
Washer, spoke 16.6×33×3.5 |
4986961/1.49.440 |
12 |
2.4 |
Nut M16×1.5 |
GB/T6171-2000 |
12 |
2.4 |
Nut M16×1.5 |
GB/T6171-2000 |
12 |
2.5 |
Spoke, front wheel |
5125865/1.49.407 |
2 |
2.5 |
Spoke, front wheel |
SZ704.32A.102 |
2 |
3 |
Bolt M16×1.5×45 |
14258034/10357/04 |
16 |
3 |
Bolt M16×1.5×45 |
14258034/10357/04 |
16 |
4 |
Washer |
4986961/1.49.440 |
16 |
4 |
Washer |
4986961/1.49.440 |
16 |
.. 48 ..
32 Front driving wheel assembly (optional)
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
||
Paddyfield wheel assembly (FR), 12.4-28 |
Paddyfield wheel assembly (FR), 12.4-26 |
||||||||
1 |
12.4-28 front drive wheel tire used for paddy field (including tire and tube) |
GB 2979-91 |
2 |
1 |
Inner tube & outer cover, paddy tire 12.4-26 |
GB 2979-91 |
2 |
||
2 |
Rim and spoke unit (W10-28) |
5132075/1.49.401 |
2 |
2 |
Hub unit, traction wheel(W11-26) |
SZ1204.32A.010 |
2 |
||
2.1 |
Welded rim unit (W10-28) |
5132072/1.49.405 |
2 |
2.1 |
Welded rim unit (W11-26) |
SZ1204.32A.011 |
2 |
||
2.2 |
Bolt, rim & spoke M16×1.5×78.5 |
5112385/1.49.541 |
12 |
2.2 |
Bolt, rim & spoke M16×1.5×78.5 |
5112385/1.49.541 |
12 |
||
2.3 |
Washer, spoke 16.6×33×3.5 |
4986961/1.49.440 |
12 |
2.3 |
Washer, spoke 16.6×33×3.5 |
4986961/1.49.440 |
12 |
||
2.4 |
Nut |
M16×1.5 |
GB/T6171-2000 |
12 |
2.4 |
Nut |
M16×1.5 |
GB 6171-86 |
12 |
2.5 |
Spoke, front wheel |
5125865/1.49.407 |
2 |
2.5 |
Spoke, front wheel |
1204.32.101 |
2 |
||
3 |
Bolt |
M16×1.5×45 |
14258034/10357/04 |
16 |
3 |
Bolt |
M16×1.5×45 |
14258034/10357/04 |
16 |
4 |
Washer |
4986961/1.49.440 |
16 |
4 |
Washer |
4986961/1.49.440 |
16 |
.. 49 ..

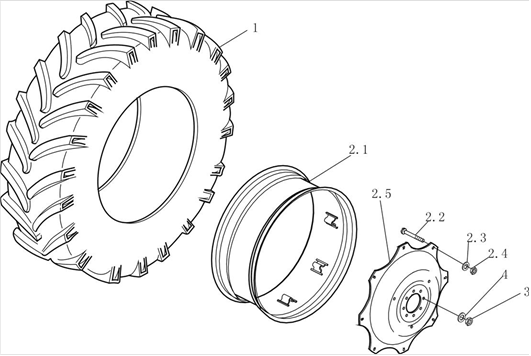

34 Rear driving wheel assembly (optional)
.. 50 ..
34 Rear driving wheel assembly (optional)
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
||
Wheel assembly (RR), 16.9-34 |
Wheel assembly (RR), 13.6-38 |
||||||||
1 |
Traction tire 16.9-34(including tire and tube) |
GB 2979-91 |
2 |
1 |
Traction tire 13.6-38(including tire and tube) |
GB 2979-91 |
2 |
||
2 |
Rim and spoke uni(t W15-34) |
880804902/1.49 |
2 |
2 |
Rim and spoke unit (W12-38) |
885132573/1.49.502A |
2 |
||
2.1 |
Welded rim unit (W15-34) |
880804903/1.49 |
2 |
2.1 |
Welded rim unit (W12-38) |
885132572/1.49.505A |
2 |
||
2.2 |
Bolt, rim & spoke |
5131725/1.49.541A |
16 |
2.2 |
Bolt, rim & spoke M16×1.5×78.5 |
5112385/1.49.541 |
16 |
||
2.3 |
Washer, spoke 16.6×33×3.5 |
4986961/1.49.440 |
16 |
2.3 |
Washer, spoke 16.6×33×3.5 |
4986961/1.49.440 |
16 |
||
2.4 |
Nut |
M16×1.5 |
GB/T6171-2000 |
16 |
2.4 |
Nut |
M16×1.5 |
GB/T6171-2000 |
16 |
2.5 |
Spoke, traction wheel |
880804906/1.49 |
2 |
2.5 |
Spoke, traction wheel |
885125704/1.49.507C |
2 |
||
3 |
Nut |
M18×1.5 |
GB/T6171-2000 |
16 |
3 |
Nut |
M18×1.5 |
GB/T6171-2000 |
16 |
4 |
Washer |
44011091/1.49.540 |
16 |
4 |
Washer |
44011091/1.49.540 |
16 |
.. 51 ..
34 Rear driving wheel assembly (optional)
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
||
Paddyfield wheel assembly (RR), 11-32 |
Paddyfield wheel assembly (RR), 13.6-38 |
||||||||
1 |
11.2-28 front drive wheel tire used for paddy field (including tire and tube) |
GB 2979-91 |
2 |
1 |
Rice tire 13.6-38, driving wheel (RR)(including tire and tube) |
GB 2979-91 |
2 |
||
2 |
Rim and spoke uni(t W10-32) |
SZ704.34A.010 |
2 |
2 |
Rim and spoke unit (W12-38) |
885132573/1.49.502A |
2 |
||
2.1 |
Welded rim unit (W10-32) |
SZ704.34A.011 |
2 |
2.1 |
Welded rim unit (W12-38) |
885132572/1.49.505A |
2 |
||
2.2 |
Bolt, rim & spoke M16×1.5×78.5 |
5112385/1.49.541 |
12 |
2.2 |
Bolt, rim & spoke M16×1.5×78.5 |
5112385/1.49.541 |
12 |
||
2.3 |
Washer, spoke 16.6×33×3.5 |
4986961/1.49.440 |
12 |
2.3 |
Washer, spoke 16.6×33×3.5 |
4986961/1.49.440 |
12 |
||
2.4 |
Nut |
M16×1.5 |
GB/T6171-2000 |
12 |
2.4 |
Nut |
M16×1.5 |
GB/T6171-2000 |
12 |
2.5 |
Spoke, traction wheel |
SZ704.34A.102 |
2 |
2.5 |
Spoke, traction wheel |
885125704/1.49.507C |
2 |
||
3 |
Nut |
M18×1.5 |
GB/T6171-2000 |
16 |
3 |
Nut |
M18×1.5 |
GB/T6171-2000 |
16 |
4 |
Washer |
44011091/1.49.540 |
16 |
4 |
Washer |
44011091/1.49.540 |
16 |
