YTO X704 Tractor Parts Catalogue Optional model 08
34 Rear driving wheel assembly (optional)
|
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
|
Paddyfield wheel assembly (RR), 14.9-30 |
Paddyfield wheel assembly (RR), 16.9-34 |
||||||
|
1 |
Rice tire 14.9-30 |
GB/T2979-82 |
2 |
1 |
Rice tire 16.9-34 |
GB 2979-91 |
2 |
|
2 |
Rim and spoke uni（t W12-30） |
SZ700.34.020 |
2 |
2 |
Rim and spoke unit （W15-34） |
880804902/1.49 |
2 |
|
2.1 |
Rim and bracket weldment (W12-30) |
SZ700.34.021 |
2 |
2.1 |
Welded rim unit （W15-34） |
880804903/1.49 |
2 |
|
2.2 |
Nut M16×1.5 |
GB/T6171-86 |
16 |
2.2 |
Bolt, rim & spoke |
5131725/1.49.541A |
16 |
|
2.3 |
Washer, spoke 16.6×33×3.5 |
4986961/1.49.440 |
16 |
2.3 |
Washer, spoke 16.6×33×3.5 |
4986961/1.49.440 |
16 |
|
2.4 |
Spoke, traction wheel |
880804910/1.49 |
2 |
2.4 |
Nut M16×1.5 |
GB/T6171-2000 |
16 |
|
2.5 |
Bolt, rim & spoke M16×1.5×125 |
5131725/1.49.541 |
16 |
2.5 |
Spoke, traction wheel |
880804906/1.49 |
2 |
|
3 |
Nut M18×1.5 |
GB/T6171-86 |
16 |
3 |
Nut M18×1.5 |
GB/T6171-2000 |
16 |
|
4 |
Washer |
44011091/1.49.540 |
16 |
4 |
Washer |
44011091/1.49.540 |
16 |

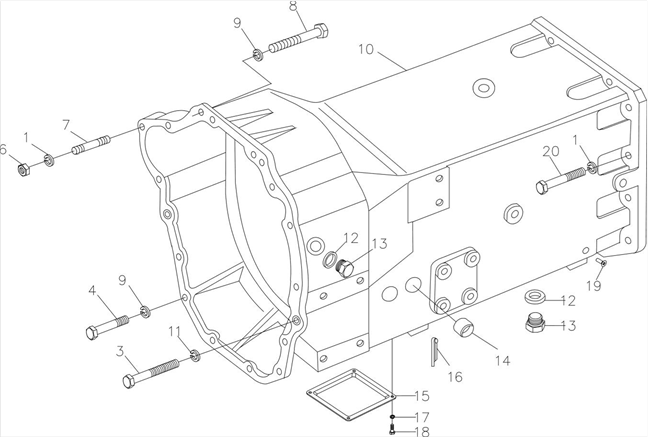

37 Body (optional, without load control)
|
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
|
1 |
Washer 12 |
GB/T93-1987 |
15 |
22 |
Dowel pin 15 |
10839910/12507 |
2 |
|
3 |
Bolt M16×110 |
GB/T5782-2000 |
2 |
23 |
Shield (LWR), cover (UPR), transmission case |
5147242/1.21.014 |
1 |
|
4 |
Bolt M14×75-Zn.D |
GB/T70.1-2000 |
2 |
24 |
Washer 6 |
GB/T93-1987 |
8 |
|
6 |
Nut M12-Zn.D |
GB/T6170-2000 |
3 |
25 |
Bolt M6×12 |
GB/T70-85 |
8 |
|
7 |
Stud AGM12-M12×55-8.8-Zn.D |
GB/T899–1988 |
3 |
26 |
Plug 25 |
10159004/14520 |
4 |
|
8 |
Bolt M14×75-Zn.D |
GB/T5782-2000 |
8 |
27 |
Cover (UPR), transmission case |
5132478SZ/1.21.008 |
1 |
|
9 |
Washer 14 |
GB/T93-1987 |
10 |
28 |
Elbow connection, breather plug |
885139648/1.21.072 |
1 |
|
10 |
Housing, reducer |
LX954.37.101 |
1 |
29 |
Clamp (Φ8～Φ19mm) |
JK-000 |
2 |
|
11 |
Washer 16 |
GB/T93-197 |
2 |
30 |
Breather hose |
5139650/1.21.074 |
1 |
|
12 |
Washer 22 |
JB/T982-1977 |
2 |
31 |
Bolt M10×1.25×70 |
GB/T5785-2000 |
2 |
|
13 |
Plug M22×1.5 |
10305171/14530 |
2 |
32 |
Bolt M10×1.25×35 |
GB/T5785-2000 |
6 |
|
14 |
Bushing, shaft, release fork, main clutch |
5133142/1.21.031 |
2 |
33 |
Breather plug assembly |
5141476/1.21.076A |
2 |
|
15 |
Inspection cover, clutch |
LY1054.37.106 |
1 |
34 |
Dowel pin 15×22 |
5119529/1.21.071 |
2 |
|
16 |
Pin 6.3×32 |
GB/T91-2000 |
1 |
35 |
Housing, transmission case |
SZ804.37.117 |
1 |
|
17 |
Washer 8 |
GB/T93-1987 |
7 |
36 |
Dowel pin |
5110200/1.21.065 |
4 |
|
18 |
Bolt M8×16 |
GB/T5783-2000 |
4 |
37 |
Dowel pin B12×18 |
GB/T119-86 |
4 |
|
19 |
Screw M10×1.25×20 |
13305311/10532 |
1 |
38 |
Connection, transmission case & reducer screw M12×1.25×40 |
SZ804.37.512 |
12 |
|
20 |
Screw M12×1.25×40, connecting transmission case with reducer |
SZ804.37.512 |
12 |
39 |
Elbow connection weldment, breather plug |
SZ804.37.040 |
1 |
|
21 |
Magnetic drain plug unit |
885118991/1.21.030A |
2 |
40 |
Elbow connection weldment, breather plug |
SZ804.37.403 |
1 |

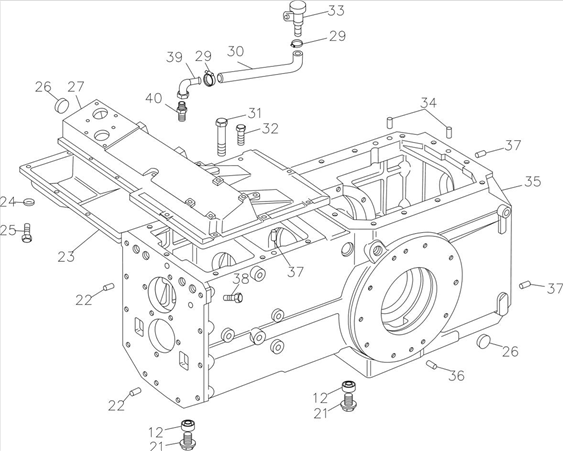

37 Body (optional high gear)
|
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
|
1 |
Washer 12 |
GB/T93-1987 |
15 |
22 |
Dowel pin 15 |
10839910/12507 |
2 |
|
3 |
Bolt M16×110 |
GB/T5782-2000 |
2 |
23 |
Shield (LWR), cover (UPR), transmission case |
5147242/1.21.014 |
1 |
|
4 |
Bolt M14×75-Zn.D |
GB/T70.1-2000 |
2 |
24 |
Washer 6 |
GB/T93-1987 |
8 |
|
6 |
Nut M12-Zn.D |
GB/T6170-2000 |
3 |
25 |
Bolt M6×12 |
GB/T70-85 |
8 |
|
7 |
Stud AGM12-M12×55-8.8-Zn.D |
GB/T899–1988 |
3 |
26 |
Plug 25 |
10159004/14520 |
4 |
|
8 |
Bolt M14×75-Zn.D |
GB/T5782-2000 |
8 |
27 |
Cover (UPR), transmission case |
5132478SZ/1.21.008 |
1 |
|
9 |
Washer 14 |
GB/T93-1987 |
10 |
28 |
Elbow connection, breather plug |
885139648/1.21.072 |
1 |
|
10 |
Housing, reducer |
LX954.37.101 |
1 |
29 |
Clamp (Φ8～Φ19mm) |
JK-000 |
2 |
|
11 |
Washer 16 |
GB/T93-197 |
2 |
30 |
Breather hose |
5139650/1.21.074 |
1 |
|
12 |
Washer 22 |
JB/T982-1977 |
2 |
31 |
Bolt M10×1.25×70 |
GB/T5785-2000 |
2 |
|
13 |
Plug M22×1.5 |
10305171/14530 |
2 |
32 |
Bolt M10×1.25×35 |
GB/T5785-2000 |
6 |
|
14 |
Bushing, shaft, release fork, main clutch |
5133142/1.21.031 |
2 |
33 |
Breather plug assembly |
5141476/1.21.076A |
2 |
|
15 |
Inspection cover, clutch |
LY1054.37.106 |
1 |
34 |
Dowel pin 15×22 |
5119529/1.21.071 |
2 |
|
16 |
Pin 6.3×32 |
GB/T91-2000 |
1 |
35 |
Housing, transmission case |
SZ804.37B.531 |
1 |
|
17 |
Washer 8 |
GB/T93-1987 |
7 |
36 |
Dowel pin |
5110200/1.21.065 |
4 |
|
18 |
Bolt M8×16 |
GB/T5783-2000 |
4 |
37 |
Dowel pin B12×18 |
GB/T119-86 |
4 |
|
19 |
Screw M10×1.25×20 |
13305311/10532 |
1 |
38 |
Connection, transmission case & reducer screw M12×1.25×40 |
SZ804.37.512 |
12 |
|
20 |
Screw M12×1.25×40, connecting transmission case with reducer |
SZ804.37.512 |
12 |
39 |
Elbow connection weldment, breather plug |
SZ804.37.040 |
1 |
|
21 |
Magnetic drain plug unit |
885118991/1.21.030A |
2 |
40 |
Elbow connection weldment, breather plug |
SZ804.37.403 |
1 |
37 Body (optional, without load control, with high gear)
|
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
|
1 |
Washer 12 |
GB/T93-1987 |
15 |
22 |
Dowel pin 15 |
10839910/12507 |
2 |
|
3 |
Bolt M16×110 |
GB/T5782-2000 |
2 |
23 |
Shield (LWR), cover (UPR), transmission case |
5147242/1.21.014 |
1 |
|
4 |
Bolt M14×75-Zn.D |
GB/T70.1-2000 |
2 |
24 |
Washer 6 |
GB/T93-1987 |
8 |
|
6 |
Nut M12-Zn.D |
GB/T6170-2000 |
3 |
25 |
Bolt M6×12 |
GB/T70-85 |
8 |
|
7 |
Stud AGM12-M12×55-8.8-Zn.D |
GB/T899–1988 |
3 |
26 |
Plug 25 |
10159004/14520 |
4 |
|
8 |
Bolt M14×75-Zn.D |
GB/T5782-2000 |
8 |
27 |
Cover (UPR), transmission case |
5132478SZ/1.21.008 |
1 |
|
9 |
Washer 14 |
GB/T93-1987 |
10 |
28 |
Elbow connection, breather plug |
885139648/1.21.072 |
1 |
|
10 |
Housing, reducer |
LX954.37.101 |
1 |
29 |
Clamp (Φ8～Φ19mm) |
JK-000 |
2 |
|
11 |
Washer 16 |
GB/T93-197 |
2 |
30 |
Breather hose |
5139650/1.21.074 |
1 |
|
12 |
Washer 22 |
JB/T982-1977 |
2 |
31 |
Bolt M10×1.25×70 |
GB/T5785-2000 |
2 |
|
13 |
Plug M22×1.5 |
10305171/14530 |
2 |
32 |
Bolt M10×1.25×35 |
GB/T5785-2000 |
6 |
|
14 |
Bushing, shaft, release fork, main clutch |
5133142/1.21.031 |
2 |
33 |
Breather plug assembly |
5141476/1.21.076A |
2 |
|
15 |
Inspection cover, clutch |
LY1054.37.106 |
1 |
34 |
Dowel pin 15×22 |
5119529/1.21.071 |
2 |
|
16 |
Pin 6.3×32 |
GB/T91-2000 |
1 |
35 |
Housing, transmission case |
SZ804.37B.530 |
1 |
|
17 |
Washer 8 |
GB/T93-1987 |
7 |
36 |
Dowel pin |
5110200/1.21.065 |
4 |
|
18 |
Bolt M8×16 |
GB/T5783-2000 |
4 |
37 |
Dowel pin B12×18 |
GB/T119-86 |
4 |
|
19 |
Screw M10×1.25×20 |
13305311/10532 |
1 |
38 |
Connection, transmission case & reducer screw M12×1.25×40 |
SZ804.37.512 |
12 |
|
20 |
Screw M12×1.25×40, connecting transmission case with reducer |
SZ804.37.512 |
12 |
39 |
Elbow connection weldment, breather plug |
SZ804.37.040 |
1 |
|
21 |
Magnetic drain plug unit |
885118991/1.21.030A |
2 |
40 |
Elbow connection weldment, breather plug |
SZ804.37.403 |
1 |
37 Body (optional shuttle shift or creeper gear)
|
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
|
1 |
Washer 12 |
GB/T93-1987 |
15 |
22 |
Dowel pin 15 |
10839910/12507 |
2 |
|
3 |
Bolt M16×110 |
GB/T5782-2000 |
2 |
23 |
Shield (LWR), cover (UPR), transmission case |
5147242/1.21.014 |
1 |
|
4 |
Bolt M14×75-Zn.D |
GB/T70.1-2000 |
2 |
24 |
Washer 6 |
GB/T93-1987 |
8 |
|
6 |
Nut M12-Zn.D |
GB/T6170-2000 |
3 |
25 |
Bolt M6×12 |
GB/T70-85 |
8 |
|
7 |
Stud AGM12-M12×55-8.8-Zn.D |
GB/T899–1988 |
3 |
26 |
Plug 25 |
10159004/14520 |
4 |
|
8 |
Bolt M14×75-Zn.D |
GB/T5782-2000 |
8 |
27 |
Cover (UPR), transmission case |
SZ804.37B.506 |
1 |
|
9 |
Washer 14 |
GB/T93-1987 |
10 |
28 |
Elbow connection, breather plug |
885139648/1.21.072 |
1 |
|
10 |
Housing, reducer |
LY1054.37.101 |
1 |
29 |
Clamp (Φ8～Φ19mm) |
JK-000 |
2 |
|
11 |
Washer 16 |
GB/T93-197 |
2 |
30 |
Breather hose |
5139650/1.21.074 |
1 |
|
12 |
Washer 22 |
JB/T982-1977 |
2 |
31 |
Bolt M10×1.25×70 |
GB/T5785-2000 |
2 |
|
13 |
Plug M22×1.5 |
10305171/14530 |
2 |
32 |
Bolt M10×1.25×35 |
GB/T5785-2000 |
6 |
|
14 |
Bushing, shaft, release fork, main clutch |
5133142/1.21.031 |
2 |
33 |
Breather plug assembly |
5141476/1.21.076A |
2 |
|
15 |
Inspection cover, clutch |
LY1054.37.106 |
1 |
34 |
Dowel pin 15×22 |
5119529/1.21.071 |
2 |
|
16 |
Pin 6.3×32 |
GB/T91-2000 |
1 |
35 |
Housing, transmission case |
SZ804.37B.508 |
1 |
|
17 |
Washer 8 |
GB/T93-1987 |
7 |
36 |
Dowel pin |
5110200/1.21.065 |
4 |
|
18 |
Bolt M8×16 |
GB/T5783-2000 |
4 |
37 |
Dowel pin B12×18 |
GB/T119-86 |
4 |
|
19 |
Screw M10×1.25×20 |
13305311/10532 |
1 |
38 |
Connection, transmission case & reducer screw M12×1.25×40 |
SZ804.37.512 |
12 |
|
20 |
Screw M12×1.25×40, connecting transmission case with reducer |
SZ804.37.512 |
12 |
39 |
Elbow connection weldment, breather plug |
SZ804.37.040 |
1 |
|
21 |
Magnetic drain plug unit |
885118991/1.21.030A |
2 |
40 |
Elbow connection weldment, breather plug |
SZ804.37.403 |
1 |
37 Body (optional, without load control, with shuttle shift or creeper gear)
|
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
|
1 |
Washer 12 |
GB/T93-1987 |
15 |
22 |
Dowel pin 15 |
10839910/12507 |
2 |
|
3 |
Bolt M16×110 |
GB/T5782-2000 |
2 |
23 |
Shield (LWR), cover (UPR), transmission case |
5147242/1.21.014 |
1 |
|
4 |
Bolt M14×75-Zn.D |
GB/T70.1-2000 |
2 |
24 |
Washer 6 |
GB/T93-1987 |
8 |
|
6 |
Nut M12-Zn.D |
GB/T6170-2000 |
3 |
25 |
Bolt M6×12 |
GB/T70-85 |
8 |
|
7 |
Stud AGM12-M12×55-8.8-Zn.D |
GB/T899–1988 |
3 |
26 |
Plug 25 |
10159004/14520 |
4 |
|
8 |
Bolt M14×75-Zn.D |
GB/T5782-2000 |
8 |
27 |
Cover (UPR), transmission case |
SZ804.37B.506 |
1 |
|
9 |
Washer 14 |
GB/T93-1987 |
10 |
28 |
Elbow connection, breather plug |
885139648/1.21.072 |
1 |
|
10 |
Housing, reducer |
LY1054.37.101 |
1 |
29 |
Clamp (Φ8～Φ19mm) |
JK-000 |
2 |
|
11 |
Washer 16 |
GB/T93-197 |
2 |
30 |
Breather hose |
5139650/1.21.074 |
1 |
|
12 |
Washer 22 |
JB/T982-1977 |
2 |
31 |
Bolt M10×1.25×70 |
GB/T5785-2000 |
2 |
|
13 |
Plug M22×1.5 |
10305171/14530 |
2 |
32 |
Bolt M10×1.25×35 |
GB/T5785-2000 |
6 |
|
14 |
Bushing, shaft, release fork, main clutch |
5133142/1.21.031 |
2 |
33 |
Breather plug assembly |
5141476/1.21.076A |
2 |
|
15 |
Inspection cover, clutch |
LY1054.37.106 |
1 |
34 |
Dowel pin 15×22 |
5119529/1.21.071 |
2 |
|
16 |
Pin 6.3×32 |
GB/T91-2000 |
1 |
35 |
Housing, transmission case |
SZ804.37B.507 |
1 |
|
17 |
Washer 8 |
GB/T93-1987 |
7 |
36 |
Dowel pin |
5110200/1.21.065 |
4 |
|
18 |
Bolt M8×16 |
GB/T5783-2000 |
4 |
37 |
Dowel pin B12×18 |
GB/T119-86 |
4 |
|
19 |
Screw M10×1.25×20 |
13305311/10532 |
1 |
38 |
Connection, transmission case & reducer screw M12×1.25×40 |
SZ804.37.512 |
12 |
|
20 |
Screw M12×1.25×40, connecting transmission case with reducer |
SZ804.37.512 |
12 |
39 |
Elbow connection weldment, breather plug |
SZ804.37.040 |
1 |
|
21 |
Magnetic drain plug unit |
885118991/1.21.030A |
2 |
40 |
Elbow connection weldment, breather plug |
SZ804.37.403 |
1 |
37 Body (optional high gear with shuttle shift or creeper gear)
|
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
|
1 |
Washer 12 |
GB/T93-1987 |
15 |
22 |
Dowel pin 15 |
10839910/12507 |
2 |
|
3 |
Bolt M16×110 |
GB/T5782-2000 |
2 |
23 |
Shield (LWR), cover (UPR), transmission case |
5147242/1.21.014 |
1 |
|
4 |
Bolt M14×75-Zn.D |
GB/T70.1-2000 |
2 |
24 |
Washer 6 |
GB/T93-1987 |
8 |
|
6 |
Nut M12-Zn.D |
GB/T6170-2000 |
3 |
25 |
Bolt M6×12 |
GB/T70-85 |
8 |
|
7 |
Stud AGM12-M12×55-8.8-Zn.D |
GB/T899–1988 |
3 |
26 |
Plug 25 |
10159004/14520 |
4 |
|
8 |
Bolt M14×75-Zn.D |
GB/T5782-2000 |
8 |
27 |
Cover (UPR), transmission case |
SZ804.37B.506 |
1 |
|
9 |
Washer 14 |
GB/T93-1987 |
10 |
28 |
Elbow connection, breather plug |
885139648/1.21.072 |
1 |
|
10 |
Housing, reducer |
LY1054.37.101 |
1 |
29 |
Clamp (Φ8～Φ19mm) |
JK-000 |
2 |
|
11 |
Washer 16 |
GB/T93-197 |
2 |
30 |
Breather hose |
5139650/1.21.074 |
1 |
|
12 |
Washer 22 |
JB/T982-1977 |
2 |
31 |
Bolt M10×1.25×70 |
GB/T5785-2000 |
2 |
|
13 |
Plug M22×1.5 |
10305171/14530 |
2 |
32 |
Bolt M10×1.25×35 |
GB/T5785-2000 |
6 |
|
14 |
Bushing, shaft, release fork, main clutch |
5133142/1.21.031 |
2 |
33 |
Breather plug assembly |
5141476/1.21.076A |
2 |
|
15 |
Inspection cover, clutch |
LY1054.37.106 |
1 |
34 |
Dowel pin 15×22 |
5119529/1.21.071 |
2 |
|
16 |
Pin 6.3×32 |
GB/T91-2000 |
1 |
35 |
Housing, transmission case |
804C-1.37.112 |
1 |
|
17 |
Washer 8 |
GB/T93-1987 |
7 |
36 |
Dowel pin |
5110200/1.21.065 |
4 |
|
18 |
Bolt M8×16 |
GB/T5783-2000 |
4 |
37 |
Dowel pin B12×18 |
GB/T119-86 |
4 |
|
19 |
Screw M10×1.25×20 |
13305311/10532 |
1 |
38 |
Connection, transmission case & reducer screw M12×1.25×40 |
SZ804.37.512 |
12 |
|
20 |
Screw M12×1.25×40, connecting transmission case with reducer |
SZ804.37.512 |
12 |
39 |
Elbow connection weldment, breather plug |
SZ804.37.040 |
1 |
|
21 |
Magnetic drain plug unit |
885118991/1.21.030A |
2 |
40 |
Elbow connection weldment, breather plug |
SZ804.37.403 |
1 |
37 Body (optional, without load control, with high gear & shuttle shift or creeper gear)
|
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
|
1 |
Washer 12 |
GB/T93-1987 |
15 |
22 |
Dowel pin 15 |
10839910/12507 |
2 |
|
3 |
Bolt M16×110 |
GB/T5782-2000 |
2 |
23 |
Shield (LWR), cover (UPR), transmission case |
5147242/1.21.014 |
1 |
|
4 |
Bolt M14×75-Zn.D |
GB/T70.1-2000 |
2 |
24 |
Washer 6 |
GB/T93-1987 |
8 |
|
6 |
Nut M12-Zn.D |
GB/T6170-2000 |
3 |
25 |
Bolt M6×12 |
GB/T70-85 |
8 |
|
7 |
Stud AGM12-M12×55-8.8-Zn.D |
GB/T899–1988 |
3 |
26 |
Plug 25 |
10159004/14520 |
4 |
|
8 |
Bolt M14×75-Zn.D |
GB/T5782-2000 |
8 |
27 |
Cover (UPR), transmission case |
SZ804.37B.506 |
1 |
|
9 |
Washer 14 |
GB/T93-1987 |
10 |
28 |
Elbow connection, breather plug |
885139648/1.21.072 |
1 |
|
10 |
Housing, reducer |
LY1054.37.101 |
1 |
29 |
Clamp (Φ8～Φ19mm) |
JK-000 |
2 |
|
11 |
Washer 16 |
GB/T93-197 |
2 |
30 |
Breather hose |
5139650/1.21.074 |
1 |
|
12 |
Washer 22 |
JB/T982-1977 |
2 |
31 |
Bolt M10×1.25×70 |
GB/T5785-2000 |
2 |
|
13 |
Plug M22×1.5 |
10305171/14530 |
2 |
32 |
Bolt M10×1.25×35 |
GB/T5785-2000 |
6 |
|
14 |
Bushing, shaft, release fork, main clutch |
5133142/1.21.031 |
2 |
33 |
Breather plug assembly |
5141476/1.21.076A |
2 |
|
15 |
Inspection cover, clutch |
LY1054.37.106 |
1 |
34 |
Dowel pin 15×22 |
5119529/1.21.071 |
2 |
|
16 |
Pin 6.3×32 |
GB/T91-2000 |
1 |
35 |
Housing, transmission case |
SZ804.37B.532 |
1 |
|
17 |
Washer 8 |
GB/T93-1987 |
7 |
36 |
Dowel pin |
5110200/1.21.065 |
4 |
|
18 |
Bolt M8×16 |
GB/T5783-2000 |
4 |
37 |
Dowel pin B12×18 |
GB/T119-86 |
4 |
|
19 |
Screw M10×1.25×20 |
13305311/10532 |
1 |
38 |
Connection, transmission case & reducer screw M12×1.25×40 |
SZ804.37.512 |
12 |
|
20 |
Screw M12×1.25×40, connecting transmission case with reducer |
SZ804.37.512 |
12 |
39 |
Elbow connection weldment, breather plug |
SZ804.37.040 |
1 |
|
21 |
Magnetic drain plug unit |
885118991/1.21.030A |
2 |
40 |
Elbow connection weldment, breather plug |
SZ804.37.403 |
1 |
.. 62 ..
