YTO X704 Tractor Parts Catalogue Optional model 04

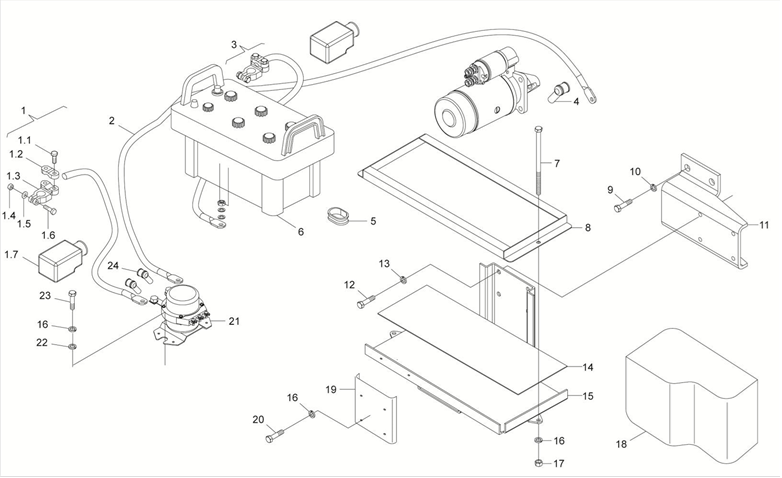

48 Starting cables, battery tray & fixture (optional built-in air cleaner)
.. 22 ..
48 Starting cables, battery tray & fixture (optional built-in air cleaner)
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
1 |
Cable, battery (+) to power switch |
SZ804.48.037 |
1 |
11 |
Transition frame |
SZ804.63C.101 |
1 |
1.1 |
Bolt M6×20-Zn.D |
GB/T5783-2000 |
2 |
12 |
Bolt M10×25 |
GB/T5783-2000 |
4 |
1.2 |
Pressure plate, terminal, battery |
SZ804.48.352 |
1 |
13 |
Washer 10 |
GB/T93-1987 |
4 |
1.3 |
Positive terminal, battery |
SZ804.48.351 |
1 |
14 |
Rubber pad |
SZ804.48.305 |
1 |
1.4 |
Nut M6-Zn.D |
GB/T6170-2000 |
2 |
15 |
Welded battery carrier unit |
SZ804.63C.010 |
1 |
1.5 |
Washer 6-Zn.D |
GB/T97.1-2000 |
2 |
16 |
Washer 8 |
GB/T93-1987 |
6 |
1.6 |
Bolt M6×25-Zn.D |
GB/T5783-2000 |
2 |
17 |
Nut M8 |
GB/T6170-2000 |
2 |
1.7 |
Guard, terminal, battery |
SZ804.48.355 |
1 |
18 |
Guard, battery |
SZ804.63C.109 |
1 |
2 |
Power switch to starter cable |
1604-1.48.063 |
1 |
19 |
Mounting plate, power switch |
SZ804.63C.102 |
1 |
3 |
Negative cable, battery |
SZ804.48.038 |
1 |
20 |
Bolt M8×20 |
GB/T5783-2000 |
2 |
4 |
Guard, terminal, starter |
SZ804.48.106 |
1 |
21 |
Main power switch |
DK139 |
1 |
5 |
Wire sheath |
665-3708111A |
1 |
22 |
Washer 8 |
GB/T97.1-2002 |
2 |
6 |
Battery |
6-QW-120T |
1 |
23 |
Bolt M8×25 |
GB/T5783-2000 |
2 |
7 |
Stay bolt |
1204-1.48.102 |
2 |
24 |
Wire sheath, power switch |
SZ804.48.109 |
2 |
8 |
Pressure plate |
SZ804.63.011-1 |
1 |
||||
9 |
Bolt M16×1.5×30 |
GB/T5786-2000 |
4 |
||||
10 |
Washer 16 |
GB/T93-1987 |
4 |
.. 23 ..

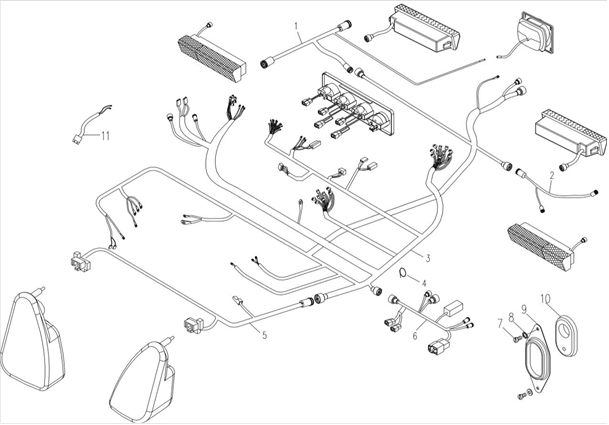

48 Electrical system harnesses (optional built-in air cleaner, with cab)
.. 24 ..
48 Electrical system harnesses (optional built-in air cleaner, with cab)
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
1 |
Harness (RR, LH) |
SZ904.48.022-2 |
1 |
4 |
Cable tie |
885112712/1.75.488 |
10 |
2 |
Harness (RR) |
SZ804.48.023-3 |
1 |
5 |
Harness (FR, LH) |
X700.48.021-4 |
1 |
3 |
Main harness |
SZ904.48B.020-4 |
1 |
6 |
Cab harness |
SZ804.48B.024-2 |
1 |
SZ904.48D.020-4(for equipped with pre-heater) |
1 |
7 |
Screw M5×16 |
GB/T822-2000 |
2 |
||
8 |
Washer 5 |
GB93-97 |
2 |
||||
9 |
Cover, insulation pad |
4998891/1.75.480 |
1 |
||||
10 |
Insulation pad |
4998892/1.75.494 |
1 |
||||
11 |
Fusible link |
SZ804.48B.026 |
1 |
.. 25 ..
48 Electrical system harnesses (optional built-in air cleaner, without cab)
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
1 |
Harness (RR, LH) |
SZ700.48A.022-1 |
1 |
4 |
Cable tie |
885112712/1.75.488 |
10 |
2 |
Harness (RR) |
SZ700.48.023-2 |
1 |
5 |
Harness (FR, LH) |
X700.48.021-4 |
1 |
3 |
Main harness |
SZ904.48B.020-4(For side-mounted battery) |
1 |
7 |
Screw M5×16 |
GB/T822-2000 |
2 |
SZ904.48D.020-4(battery side-mounted, for equipped with pre-heater) |
1 |
8 |
Washer 5 |
GB93-97 |
2 |
||
9 |
Cover, insulation pad |
4998891/1.75.480 |
1 |
||||
10 |
Insulation pad |
4998892/1.75.494 |
1 |
||||
11 |
Fusible link |
SZ804.48B.026 |
1 |
.. 26 ..

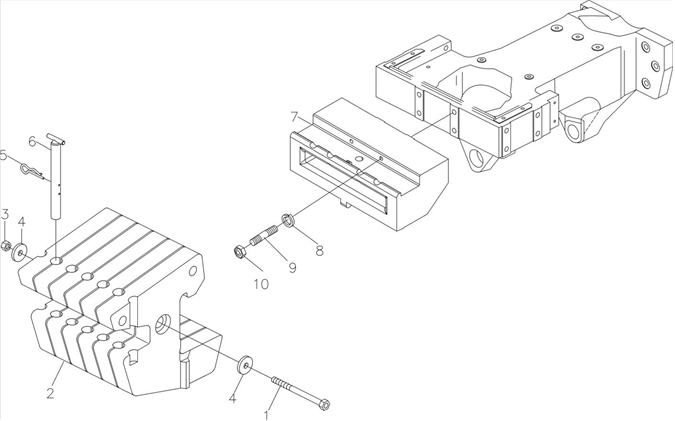

74 Front ballast assembly (optional built-in air cleaner)
.. 27 ..
74 Front ballast assembly (optional built-in air cleaner)
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
1 |
Stop bolt unit, counterweight (FR)(FR 10 optional) |
SZ804.30.022 |
1 |
3 |
Nut M16×1.5 |
10112/10790524 |
1 |
Stop bolt unit, counterweight (FR)(FR 8 optional) |
SZ804.74A.012 |
1 |
4 |
Washer |
SZ804.74.103 |
4 |
|
Stop bolt unit, counterweight (FR)(FR 6 optional) |
SZ804.30.021 |
1 |
5 |
Lock pin |
44007661/1.82.945 |
1 |
|
Bolt M16×1.5×250(FR 4 optional) |
10312/10790524 |
1 |
6 |
Traction pin assembly |
5118742/1.21.573 |
1 |
|
2 |
Counterweight (FR)(FR 10 optional) |
SZ804.74A.501 |
10 |
7 |
Ballast bracket |
SZ804.74A.512 |
1 |
Counterweight (FR)(FR 8 optional) |
SZ804.74A.501 |
8 |
8 |
Conical spring washer |
11200274/10187 |
4 |
|
Counterweight (FR)(FR 6 optional) |
SZ804.74A.501 |
6 |
9 |
Studs |
SZ804.74.510 |
4 |
|
Counterweight (FR)(FR 4 optional) |
SZ804.74A.501 |
4 |
10 |
Nut M16×1.5 |
10790524/10112 |
4 |
.. 28 ..

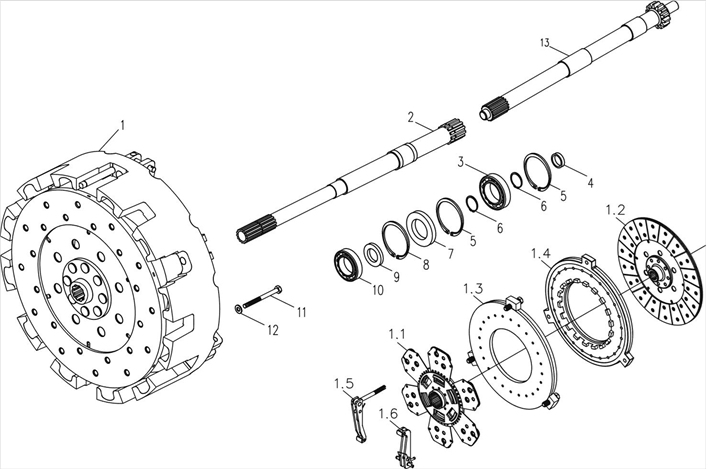

21 Clutch mechanism (optional 11″ clutch)
