YTO X704 Tractor Parts Catalogue Optional model 03

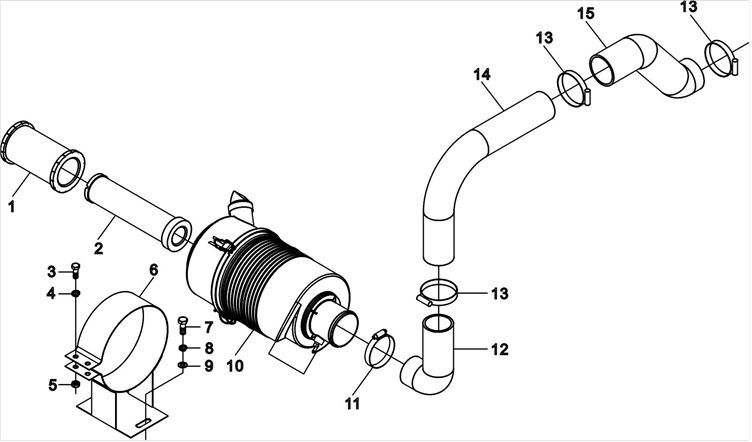

18 Installed built-in air cleaner assembly (optional)
|
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
|
1 |
Filter element |
P828889 |
1 |
||||
|
2 |
Filter element |
P829333 |
1 |
||||
|
3 |
Bolt M10×25-Zn.D |
GB/T5783-2000 |
4 |
||||
|
4 |
Washer 10-Zn.D |
GB/T93-1987 |
4 |
||||
|
5 |
Nut M10-Zn.D |
GB/T6170-2000 |
4 |
||||
|
6 |
Mounting bracket, air cleaner |
SZ4105T.210604 |
1 |
||||
|
7 |
Bolt M12×25-Zn.D |
GB/T5783-2000 |
2 |
||||
|
8 |
Washer 12-Zn.D |
GB/T93-1987 |
2 |
||||
|
9 |
Washer 12-Zn.D |
GB/T97.1-2002 |
2 |
||||
|
10 |
Air Filter Assembly |
G082525 |
1 |
||||
|
11 |
Clamp80-100 |
QC/T619-1999 |
1 |
||||
|
12 |
Connection hose, air inlet, air cleaner |
SZ804.18N.102 |
1 |
||||
|
13 |
Clamp76-92 |
QC/T619-1999 |
1 |
||||
|
14 |
Connection tube, air inlet |
SZ904.210602-1 |
1 |
||||
|
15 |
Intake hose |
SZ904.210603 |
1 |
||||
.. 15 ..
.. 16 ..

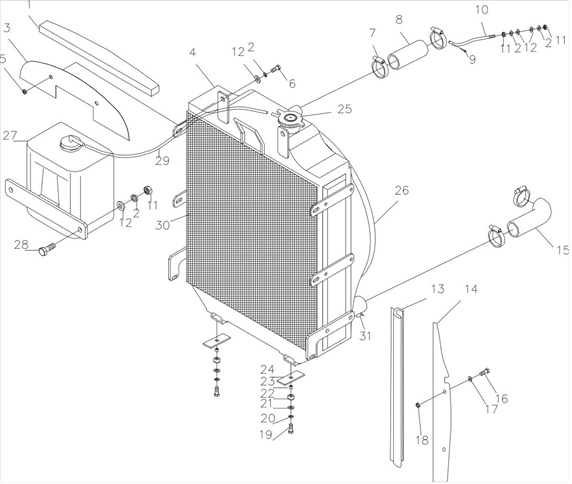

19 Installed radiator assembly (optional built-in air cleaner)
19 Installed radiator assembly (optional built-in air cleaner)
|
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
|
1 |
Gasket(Sponge) |
SZ700.47.164 |
1 |
13 |
Washer 8-Zn.D |
GB/T97.1-2002 |
2 |
|
2 |
Washer 8 |
GB/T93-1987 |
2 |
14 |
Sealing strips Ⅱ |
SZ700.47.166 |
2 |
|
3 |
Seal plate unit (UPR) |
SZ804.19A.016 |
1 |
15 |
Wind deflector Ⅱ |
SZ804.47.163 |
2 |
|
4 |
Radiator assembly |
SZ4108T.540000LV |
1 |
16 |
Water outlet hose, radiator |
4RTF.540006SZ |
1 |
|
5 |
Nut M8-Zn.D |
GB/T6170-2000 |
4 |
17 |
Bolt M6×16-Zn.D |
GB/T5783-2000 |
4 |
|
6 |
Bolt M8×20-Zn.D |
GB/T5783-2000 |
2 |
18 |
Washer 6 |
GB/T93-1987 |
4 |
|
7 |
Clamp d54(Stainless steel) |
JB/T 8870-99 |
4 |
19 |
Nut M6-Zn.D |
GB/T 6177-2000 |
4 |
|
8 |
Water inlet hose, radiator |
4RTF.540007AZ |
1 |
20 |
Bolt M10X50-Zn.D |
GB/T5783-2000 |
2 |
|
9 |
Pin 3×16 -Zn.D |
GB/T91-2000 |
1 |
21 |
Washer 10-Zn.D |
GB/T93-1987 |
4 |
|
10 |
Pull rod |
4RTF.540009AZ |
1 |
22 |
Washer 10-Zn.D |
GB/T5287-2000 |
2 |
|
12 |
Washer 8-Zn.D |
GB/T7244-1987 |
6 |
23 |
Shock absorber |
SZ4108T.540020 |
2 |
|
24 |
Cushion plate |
SZ4108T.540021 |
2 |
||||
|
25 |
Fan cowl |
SZ4108T.540000LV-000 |
1 |
||||
|
26 |
Rap, radiator |
SXG-I-0.7 |
1 |
||||
|
27 |
Overflow tank |
SZ804.19.030 |
1 |
||||
|
28 |
Bolt 8×20-Zn.D |
GB/T5783-2000 |
2 |
||||
|
29 |
Water overflow pipe |
SZ904.19.125 |
1 |
||||
|
30 |
Grass windshield |
4RTF540000-00-06 |
1 |
||||
|
31 |
Drain cock assembly |
T/HS-203-0 |
1 |
.. 17 ..

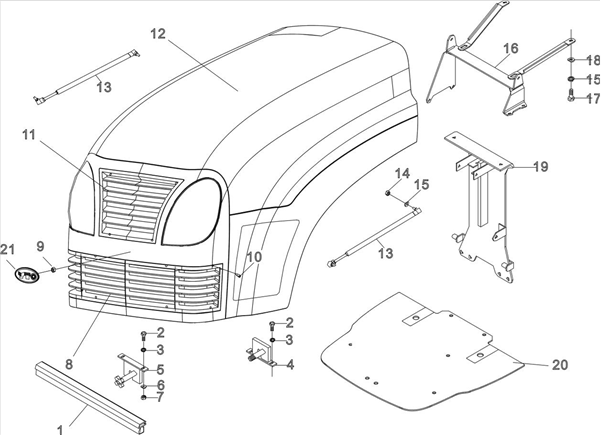

47 Hood (optional 150 AH battery or built-in air cleaner)
.. 18 ..
47 Hood
|
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
|
1 |
Seal (FR), hood |
SZ804.47.121 |
1 |
13 |
Air spring |
SZ950.47.099 |
2 |
|
2 |
Bolt M8×25-Zn.D |
GB5783-86 |
1 |
14 |
Nut M10-Zn.D |
GB6170-86 |
4 |
|
3 |
Washer 8-Zn.D |
GB/T93-1987 |
4 |
15 |
Washer 10-Zn.D |
GB/T93-1987 |
10 |
|
4 |
Lock pin assmbly |
SZ700.47.081-1 |
1 |
16 |
Holder unit, air spring |
SZ700.47.068-1 |
1 |
|
5 |
Lock assembly, hood |
SZ804.47.095 |
1 |
17 |
Bolt M10×30-Zn.D |
GB5783-86 |
4 |
|
6 |
Washer 8-Zn.D |
GB97.1-85 |
4 |
18 |
Washer 10-Zn.D |
GB96-85 |
4 |
|
7 |
Nut M8-Zn.D |
GB6170-86 |
2 |
19 |
Bracket weldment (LWR), hood |
X804.47.012A-1 |
1 |
|
8 |
Grille unit (LWR) |
700.47.015 |
1 |
20 |
Support plate, radiator & battery |
SZ804.48.030-3 |
1 |
|
9 |
Nut M5-Zn.D |
GB6177-86 |
2 |
21 |
Front logo |
SZ804.98.310 |
1 |
|
10 |
Tapping screw ST4.8×16-H |
GB845-85 |
8 |
||||
|
11 |
Grille unit (UPR) |
700.47.016 |
1 |
||||
|
12 |
Hood unit (FR) |
SZ700.47.010-2 |
1 |
.. 19 ..
.. 20 ..

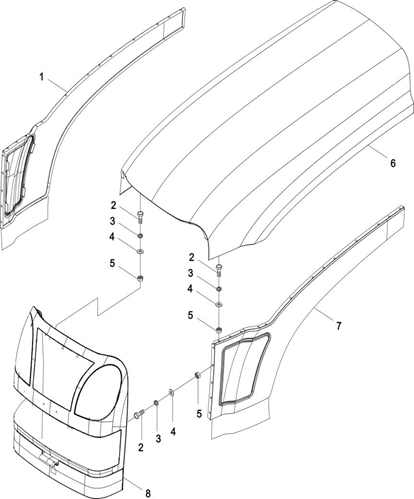

47 Hood
47 Hood
|
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
|
1 |
Side panel unit (RH) |
LX700.47B.014 |
1 |
||||
|
2 |
Screw M6*16-4.8-Zn.D |
GB/T818 |
1 |
||||
|
3 |
Washer 6-Zn.D |
GB/T93 |
33 |
||||
|
4 |
Washer 6-140HV-Zn.D |
GB/T97.1 |
33 |
||||
|
5 |
Nut M6-8-Zn.D |
GB/T6170 |
33 |
||||
|
6 |
Cover plate weldment (UPR), hood |
700.47.011 |
1 |
||||
|
7 |
Welded side panel unit (LH) |
LX700.47B.013 |
1 |
||||
|
8 |
Grille weldment |
SZ904.47.012A |
1 |
||||
.. 21 ..
