YTO X704 Tractor Parts Catalogue Optional model 02

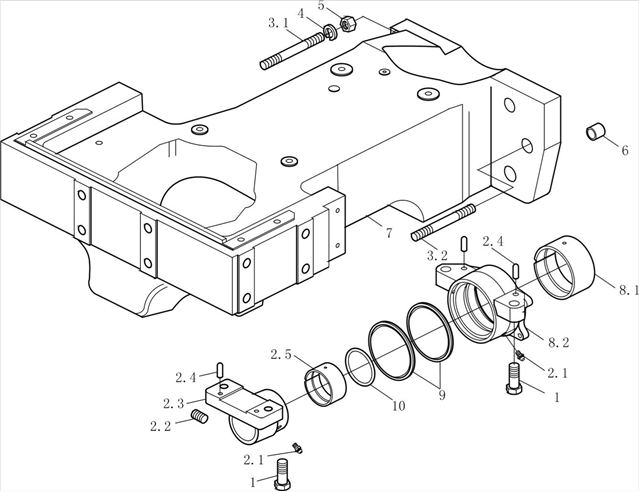

30 Front carrier assembly (optional two-stage balanced engine)
.. 7 ..
30 Front carrier assembly (optional two-stage balanced engine)
No. |
Part |
Part No. |
Qty. |
No. |
Part |
Part No. |
Qty. |
1 |
Bolt M18×1.5×65 |
14272034/10357/04 |
4 |
||||
2 |
Support unit (FR), rocking pin, front axle |
5140452/1.21.138A |
1 |
||||
2.1 |
Oil ring Z 1/8 in |
YTQ016-87 |
2 |
||||
2.2 |
Grease relief valve 0.5~1 |
13411117/14649 |
1 |
||||
2.3 |
Support (FR), rocking pin, front axle |
5140451/1.21.138 |
1 |
||||
2.4 |
Dowel pin 10 |
10837710/12506 |
4 |
||||
2.5 |
Spacer (FR), rocking pin, front axle |
5101112/1.21.194 |
1 |
||||
3.1 |
Mounting stud, front carrier |
885151253/1.21.126 |
4 |
||||
3.2 |
Mounting stud, front carrier |
5151252/1.21.126 |
2 |
||||
4 |
Washer 16×34×4.4 |
11200274/10187 |
6 |
||||
5 |
Nut M16×1.5 |
10790524/10112 |
6 |
||||
6 |
Hollow dowel pin |
5130081/1.21.193 |
2 |
||||
7 |
Bracket (FR) |
SZ904.30.501 |
1 |
||||
8 |
Support unit (RR), rocking pin, front axle |
5140454/1.21.139A |
1 |
||||
8.1 |
Spacer (RR), rocking pin, front axle |
5129385/1.21.195 |
1 |
||||
8.2 |
Support (RR), rocking pin, front axle |
5140453/1.21.139 |
1 |
||||
9 |
Oil seal 99×115×7.5 |
5140455/1.21.142 |
2 |
||||
10 |
O-sealing ring 53×5.3 |
GB/T3452.1-2000 |
1 |
.. 8 ..

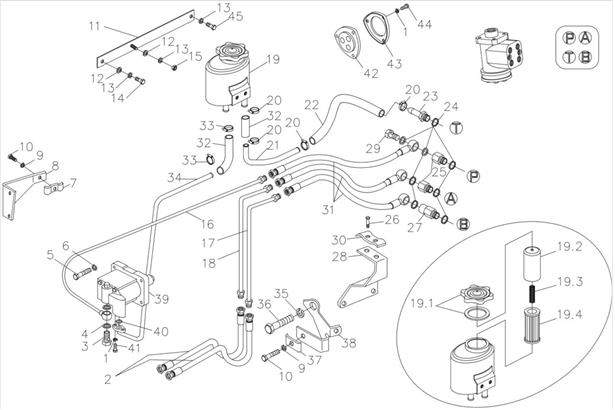

40 Steering system oil pipe(optional two-stage balanced engine)
.. 9 ..
40 Steering system oil pipe(optional two-stage balanced engine)
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
1 |
Washer 8 |
GB/T93-1987 |
7 |
19 |
Steering fluid reservoir assembly |
SZ804.40.056 |
1 |
2 |
Hose assembly, cylinder |
SZ804.40.051A |
1 |
19.1 |
Oil tank cap with gasket |
5111699/1.63.841B |
1 |
SZ804.40.052A |
1 |
19.2 |
Case, filter |
4997991/1.63.857 |
1 |
||
3 |
Hollow bolt |
885105699/1.63 |
1 |
19.3 |
Spring |
5103058/1.63.807 |
1 |
4 |
Rectangular cross-section seal ring 18×24×1.5 |
JB982-77 |
2 |
19.4 |
Filter element assembly |
4997992/1.63.858 |
1 |
5 |
Bolt M8×30-Zn.D |
GB/T5782-2000 |
4 |
20 |
Hoop 24 |
JB3616.1-84 |
4 |
6 |
Washer 8-Zn.D |
GB/T93-1987 |
4 |
21 |
Steering gear oil return pipe assembly(To oil tank) |
SZ700.40.017 |
1 |
7 |
Oil pipe clamp |
4999554/1.63.583 |
1 |
22 |
Oil return pipe, steering gear |
SZ804.40.507 |
1 |
8 |
Support, oil pipe |
5149036/1.63.896 |
1 |
23 |
Joint assembly, oil return pipe, steering gear |
885126687/1.63.824 |
1 |
9 |
Washer 6-Zn.D |
GB/T7244-1987 |
7 |
24 |
Rectangular cross-section seal ring 21.2×26×2 |
44019496/1.63.898 |
10 |
10 |
Bolt M6×14 |
GB/T5783-2000 |
2 |
||||
11 |
Bracket unit, steering fluid reservoir |
SZ804.40.054-2 |
1 |
25 |
Connection, hose, steering gear |
885126686/1.63.877 |
2 |
12 |
Washer 8-Zn.D |
GB/T97.1-2002 |
2 |
26 |
Bolt M6×22 |
GB/T5783-2000 |
3 |
13 |
Washer 8-Zn.D |
GB/T93-1987 |
3 |
27 |
Connection, hose, steering gear |
885126685/1.63.878 |
1 |
14 |
Bolt M8×20-Zn.D |
GB 5781-86 |
1 |
28 |
Bracket unit |
5149025/1.63.894 |
1 |
15 |
Nut M8-Zn.D |
GB/T6170-2000 |
1 |
29 |
Hollow bolt |
5112983/1.63.881 |
3 |
16 |
Oil pump outlet pipe assembly |
SZ904.40.019 |
1 |
30 |
Oil pipe splint |
880006302/1.63 |
1 |
17 |
Steering oil pipe assembly (RH) |
5149056/1.63.871 |
1 |
||||
18 |
Steering oil pipe assembly (LH) |
5149058/1.63.872 |
1 |
.. 10 ..
40 Steering system oil pipe(optional two-stage balanced engine)
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
31 |
Hose assembly, steering gear |
SZ804.40.053 |
3 |
||||
32 |
Hose |
SZ804.40.505 |
2 |
||||
33 |
Hoop 24 |
JB3616.1-84 |
4 |
||||
34 |
Oil pump inlet pipe assembly |
SZ804.40.062 |
1 |
||||
35 |
Washer 16-Zn.D |
GB/T93-1987 |
1 |
||||
36 |
Bolt M16×80-Zn.D |
GB/T5782-2000 |
1 |
||||
37 |
Oil pipe clamp |
5137954/1.63.832 |
1 |
||||
38 |
Support, oil pipe |
5149037/1.63.583 |
1 |
||||
39 |
Steering pump |
HLCB-D16/12 |
1 |
||||
40 |
O-ring20.29×2.62 |
14618/14457581 |
1 |
||||
41 |
Bolt M8×28-Zn.D |
GB5786 |
2 |
||||
42 |
Pad, hose, steering gear |
SZ804.40.501 |
1 |
||||
43 |
Flange, hose, steering gear |
5126690/1.63.875 |
1 |
||||
44 |
Bolt M8×30-Zn.D |
GB/T5783-2000 |
3 |
||||
45 |
Screw M8×20-Zn.D |
GB 68-85 |
1 |
.. 11 ..
.. 12 ..

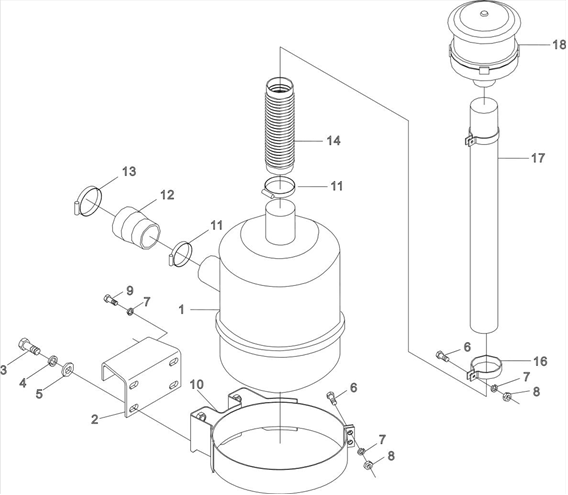

18 Installed air cleaner assembly (optional desert air cleaner)
18 Installed air cleaner assembly (optional desert air cleaner)
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
1 |
Air Filter Assembly |
F3/4L 912A-0000 |
1 |
17 |
Transition connection tube unit |
SZ4105T.21.012 |
1 |
2 |
Transition support weldment, filter |
4RCT4.220100-SZ |
1 |
18 |
Prefilter |
KA30A-70 |
1 |
3 |
Bolt M10×20-Zn.D |
GB/T5783-2000 |
4 |
||||
4 |
Washer 10-Zn.D |
GB/T93-1987 |
4 |
||||
5 |
Washer 10-Zn.D |
GB/T97.1-2002 |
4 |
||||
6 |
Bolt M8×30-Zn.D |
GB/70.1-2000 |
4 |
||||
7 |
Washer 8-Zn.D |
GB/T7244-1987 |
6 |
||||
8 |
Nut M8-Zn.D |
GB/T6170-2000 |
4 |
||||
9 |
Bolt M8×20-Zn.D |
GB/T5783-2000 |
2 |
||||
10 |
Bracket unit, air cleaner |
4RTF.210350 |
1 |
||||
11 |
Hose clamp(64-76) |
QC/T619-1999 |
3 |
||||
12 |
Intake connecting hose |
4RCT4.220006 |
1 |
||||
13 |
Clamp(76-92) |
QC/T619-1999 |
1 |
||||
14 |
Connection tube, air inlet |
SZ804.18.111 |
1 |
||||
16 |
Clamp |
SZ4105T.21.204 |
1 |
