YTO X704 Tractor Parts Catalogue Optional model 01
Parts Catalog for YTO-X704 Tractor
(Optional model)
YTO Group Corporation
Content
19 Installed radiator assembly (optional two-stage balanced engine) 1 20 Accelerator control mechanism(optional two-stage balanced engine) 3 30 Front carrier assembly (optional two-stage balanced engine) 7 40 Steering system oil pipe(optional two-stage balanced engine) 9 18 Installed air cleaner assembly (optional desert air cleaner) 12 18 Installed built-in air cleaner assembly (optional) 14 19 Installed radiator assembly (optional built-in air cleaner) 16 47 Hood (optional 150 AH battery or built-in air cleaner) 18 48 Starting cables, battery tray & fixture (optional built-in air cleaner) 22 48 Electrical system harnesses (optional built-in air cleaner) 24 74 Front ballast assembly (optional built-in air cleaner) 27 21 Clutch mechanism (optional 11″ clutch) 29 31 Front axle assembly (double cylinder, optional) 35 32 Front driving wheel assembly (optional) 47 34 Rear driving wheel assembly (optional) 50 37 Bo d y 5 4 37 Main gearbox (optional synchronizer structure) 63 37 Main gearbox (optional high gear & shift collar) 69 37 Main transmission gearshift (optional high gear) 72 37 Auxiliary gearbox & central drive (optional high gear) 74 37 Auxiliary gearbox & central drive (optional shuttle shift & 11″ clutch) 78 37 Additional shuttle shift (optional matching 11″ clutch) 82 37 Additional creeper gear (optional matching 11″ clutch) 84 37 Additional shuttle shift or creeper gear control mechanism (optional) 86 37 Gearbox assembly with synchro shuttle shift (matching 11″ clutch) 88 37 Control mechanism of gearbox assembly with synchro shuttle shift 91 |
38 Rear axle differential gear drive (optional for four planet gear arrangement) 93 38 Differential lock hydraulic disengaging mechanism (optional) 95 41 540/720 r/min PTO assembly (optional) 97 44 Driver’s seat assembly (optional) 103 46 Canopy assembly (optional) 105 47 Floor, mud guard & tall panel assembly (optional ROPS) 107 21 Installed air cleaner assembly (optional ROPS) 109 47 Partition (optional ROPS) 111 48 Electrical system harnesses (optional ROPS) 113 48 Lighting system (optional ROPS) 115 50 Fuel tank & fuel lines (optional ROPS) 117 47 Front mud guard (optional) 119 50 Fuel tank & fuel lines (optional auxiliary tank) 121 53 Hitch bar assembly (optional) 124 55 Lifter shaft & load transfer mechanism (optional single auxiliary cylinder)……………………………………………………………………..·126 55 Auxiliary cylinder assembly 128 58 Lifter control mechanism (optional fast rise-fall feature) 130 55 Distributor control mechanism (optional fast rise-fall feature) 132
|
.. 2 ..
Content
61 Force-in-earth multi-way valve & pilot line assembly with one set of hydraulic outputs 149 61 Force-in-earth multi-way valve assembly with one set of hydraulic outputs (Xinxiang Dongfeng) 153 61 Force-in-earth multi-way valve & pilot line assembly with two sets of hydraulic outputs 156 61 One-piece distribution valve(optional) 160 61 Single-piece single and double acting multi-way valve assembly 162 61 Three-piece distribution valve (optional) 165 61 Three-position valve assembly 168 |
74 Front ballast assembly (FR 8/10 optional) 170 74 Rear ballast (RR 6 optional) 172 80 Trailer brake system (optional) 174 43 Service brake lines (optional air brake) 177 48 Electrical system control components (optional air brake) 179 81 Heating & ventilation assembly (optional) 181 82 Air conditioner assembly (optional) 183 40 Steering system oil pipes (optional air conditioner) 185 98 Signs & decals (in Spanish) 188 |
- Installed radiator assembly (optional two-stage balanced engine)
.. 1 ..

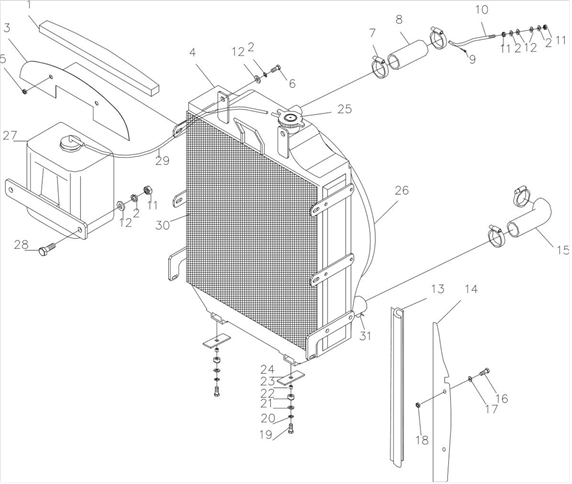

19 Installed radiator assembly (optional two-stage balanced engine)
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
1 |
Gasket(Sponge) |
SZ700.47.164 |
1 |
13 |
Washer 8-Zn.D |
GB/T97.1-2002 |
2 |
2 |
Washer 8 |
GB/T93-1987 |
2 |
14 |
Sealing strips Ⅱ |
SZ700.47.166 |
2 |
3 |
Seal plate unit (UPR) |
SZ804.19.016 |
1 |
15 |
Wind deflector Ⅱ |
SZ804.47.163 |
2 |
4 |
Radiator assembly |
SZ4108T.540000LV |
1 |
16 |
Water outlet hose, radiator |
4NC.540006SZ |
1 |
5 |
Nut M8-Zn.D |
GB/T6170-2000 |
4 |
17 |
Bolt M6×16-Zn.D |
GB/T5783-2000 |
4 |
6 |
Bolt M8×20-Zn.D |
GB/T5783-2000 |
2 |
18 |
Washer 6 |
GB/T93-1987 |
4 |
7 |
Clamp d54(Stainless steel) |
JB/T 8870-99 |
4 |
19 |
Nut M6-Zn.D |
GB/T 6177-2000 |
4 |
8 |
Water inlet hose, radiator |
LY1054.19.101 |
1 |
20 |
Bolt M10X50-Zn.D |
GB/T5783-2000 |
2 |
9 |
Pin 3×16 -Zn.D |
GB/T91-2000 |
1 |
21 |
Washer 10-Zn.D |
GB/T93-1987 |
4 |
10 |
Pull rod |
SZ804.19.501 |
1 |
22 |
Washer 10-Zn.D |
GB/T5287-2000 |
2 |
12 |
Washer 8-Zn.D |
GB/T7244-1987 |
6 |
23 |
Shock absorber |
SZ4108T.540020 |
2 |
24 |
Cushion plate |
SZ4108T.540021 |
2 |
||||
25 |
Fan cowl |
SZ4108T.540000LV-000 |
1 |
||||
26 |
Rap, radiator |
SXG-I-0.7 |
1 |
||||
27 |
Overflow tank |
SZ804.19.030 |
1 |
||||
28 |
Bolt 8×20-Zn.D |
GB/T5783-2000 |
2 |
||||
29 |
Water overflow pipe |
SZ904.19.125 |
1 |
||||
30 |
Grass windshield |
4RTF540000-00-06 |
1 |
||||
31 |
Drain cock assembly |
T/HS-203-0 |
1 |
.. 2 ..
- Accelerator control mechanism(optional two-stage balanced engine)
.. 3 ..
.. 4 ..

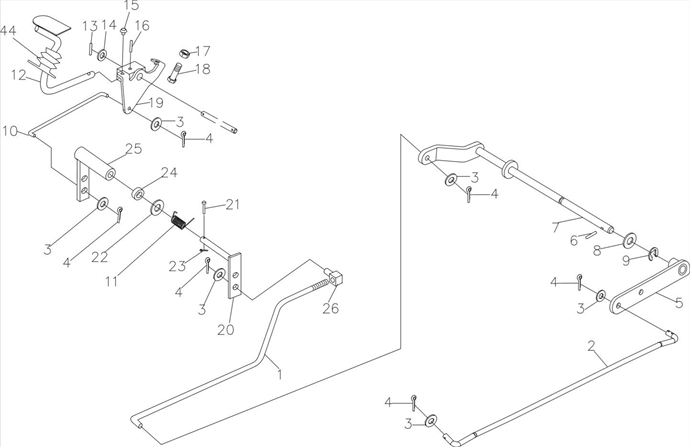

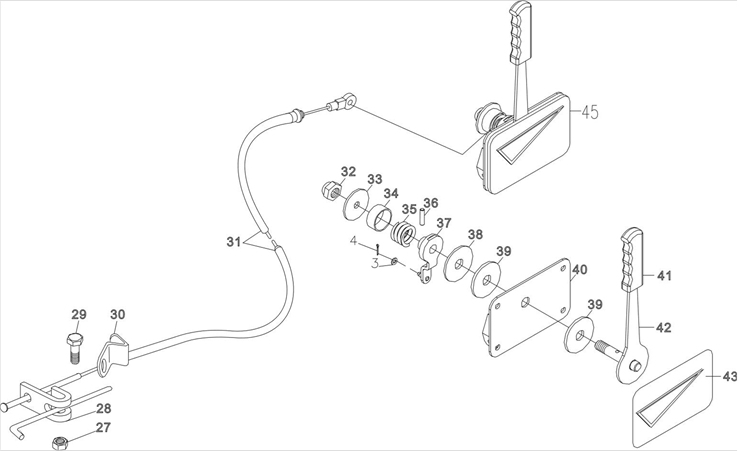

20 Accelerator control mechanism(optional two-stage balanced engine)
20 Accelerator control mechanism(optional two-stage balanced engine)
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
1 |
Intermediate rod, foot throttle control |
8A1201001/1.10.024 |
1 |
12 |
Throttle pedal unit |
SZ804.20.050 |
1 |
2 |
Rod (FR), throttle control |
SZ900.20B.101-1 |
1 |
13 |
Pin 3×16 |
GB/T91-76 |
2 |
3 |
Washer 6-Zn.D |
GB/T97.1-2002 |
10 |
14 |
Washer 14 |
GB/T97-76 |
2 |
4 |
Split pin 2×12 |
GB/T91-2000 |
10 |
15 |
Damping block |
5118180/1.83.070 |
1 |
5 |
Rocker assembly, throttle |
885147282/1.10.031 |
1 |
16 |
Elastic cylindrical pin 4×24 |
BZ/JHX-SZ |
1 |
6 |
Elastic cylindrical pin 3×16 |
BZ/JHX-SZ |
1 |
17 |
Nut M5-Zn.D |
GB/T6170-2000 |
1 |
7 |
Live shaft unit, throttle |
8A5116788/1.10.030 |
1 |
18 |
Bolt M5×40-Zn.D |
GB/T5782-2000 |
1 |
8 |
Washer 10 |
GB/T848-85 |
3 |
19 |
Leverage board unit, pedal, throttle |
5127675/1.10.020A |
1 |
9 |
Retainer ring 9 |
GB/T896-86 |
1 |
20 |
Shaft unit, linkage, foot throttle control |
SZ804.20.080 |
1 |
10 |
Rod (RR), foot throttle control |
SZ804.20.184 |
1 |
||||
11 |
Torsion spring |
5127677/1.10.021 |
1 |
.. 5 ..
20 Accelerator control mechanism(optional two-stage balanced engine)
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
21 |
Shaft, Pin |
SZ804.20.301 |
1 |
37 |
Control lever linkage, hand throttle |
5129632/1.10.053 |
1 |
22 |
Washer |
SZ804.20.302 |
1 |
38 |
Pressure plate |
SZ804.20.106 |
1 |
23 |
Pin 1.2×16 |
GB/T91-2000 |
1 |
39 |
Friction plate |
75.20.105 |
2 |
24 |
Spacer, shaft, linkage |
5134241/1.10.036 |
1 |
40 |
Support, hand throttle control |
SZ804.20.011-2 |
1 |
25 |
Linkage and sleeve unit |
5127682/1.10.027 |
1 |
41 |
Rubber sleeve, handle |
15.20.110-1 |
1 |
26 |
Grip, adjusting accelerator rod |
5117242/1.10.028 |
1 |
42 |
Handle unit, hand throttle |
SZ804.20.010 |
1 |
27 |
Nut M6-Zn.D |
GB/T6170-2000 |
1 |
43 |
Cover plate, hand throttle |
LHSYM-021.01 |
1 |
28 |
Mount, cable, hand throttle |
5110214/1.10.054 |
1 |
44 |
Dust boot, accelerator pedal |
SZ804.20.109 |
1 |
29 |
Bolt M6×25 |
GB/T5783-2000 |
1 |
45 |
Hand throttle assembly |
SZ804.20.052 |
1 |
30 |
Load transfer bracket, hand throttle |
LX954.20.101-2 |
1 |
||||
31 |
Cable assembly, hand throttle(Core wire, stainless steel) |
SZ804.20.108A |
1 |
||||
32 |
Nut M14×1.5-6 |
GB/T889-86 |
1 |
||||
33 |
Washer, hand throttle control |
5133910/1.10.055A |
1 |
||||
34 |
Bushing, spring, hand throttle control |
5133911/1.10.055B |
1 |
||||
35 |
Spring, lever, hand throttle |
5105248/1.10.056 |
1 |
||||
36 |
Pin B5×20 |
GB/T119-86 |
1 |
