LOVOL TS6A904-011K Tractor Parts Catalogue 16

Meppon Parts Posted on by





TS06435010000 PARKING BRAKE CONTROL MECHANISM ASSEMBLY



No.

Part No.

Description

Version

QTY.

Remark


TS06435010001

HAND BRAKE CONTROLLING HANDLE ASSEMBLY



1




TS06435010000

PARKING BRAKE CONTROL MECHANISM ASSEMBLY

1

1

GBT119.1-8h8X16-A0P

COLUMN PIN

2

2

GBT91-3.2X20-A0P

SPLIT PIN

2

3

GBT97.1-10-A0P

FLAT WASHER

4

4

GBT3452.1-15X2.65G

RUBBER O-SEAL RING

2

5

FT800.43.169

BRAKE CAMSHAFT

1

6

GBT5783-M8X35-8.8-A2L

HEXAGON BOLT

4

7

GBT93-8

STANDARD SPRING WASHER

4

8

GBT97.1-8-A0P

FLAT WASHER

4

9

GBT6171-M10X1-8-A2L

HEXAGON NUT, TYPE-1

1

10

FT800.21.240

PULL ROD FRONT FORK

1

11

GBT879.1-8X30

SPRING COLUMN PIN

1

12

GBT879.1-5X30

SPRING COLUMN PIN

1

13

FT800A.43.321

ROTARY HANDLE

1

14

FT800.43.132

COVER SEAT

1

15

FT800.43.194

BOLT

2

16

GBT854-10

STOPPING WASHER

2

17

FT800.43.131

PRESSURE PLATE

1

18

FT800.43.023

FRICTION PIECE UNIT

2

19

FT800.43.024

MIDDLE FRICTION PIECE UNIT

1

20

GBT894.1-48

CIRCLIP FOR SHAFT

1

21

FT800.43.136

SPLINE BUSH WHEEL

1







TS06435010000 PARKING BRAKE CONTROL MECHANISM ASSEMBLY (cont’d.)



No.

Part No.

Description

Version

QTY.

Remark

22

FT800.43.141

STEEL PIECE



2



23

FT800.43.142

ADJUSTING WASHER

999

24

GBT882-B10X30

PIN SHAFT

1

25

FT800.43.145

ADJUSTING WASHER

999

26

GBT93-10

STANDARD SPRING WASHER

4

27

GBT5783-M10X30-8.8-A3L

HEXAGON BOLT

4

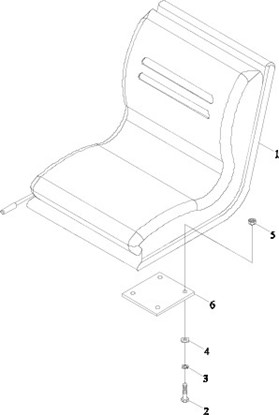

TC05441020000K SEAT INSTALLATION ASSEMBLY
























TC05441020000K SEAT INSTALLATION ASSEMBLY



No.

Part No.

Description

Version

QTY.

Remark


TC05441020000K

SEAT INSTALLATION ASSEMBLY



1

TC02440050001K

SEAT ASSEMBLY

2

GBT5783-M8X25-8.8-A2L

HEXAGON BOLT

3

GBT93-8-A3L

STANDARD SPRING WASHER

4

GBT95-8-A3L

FLAT WASHER

5

GBT6170-M8-8-A2L

HEXAGON NUT, TYPE-1

6

TC05441020001K

SEATPLATE

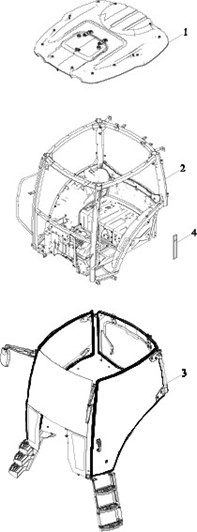

TD1C451020000K DRIVER’S CAB ASSEMBLY-1


















TD1C451020000K DRIVER’S CAB ASSEMBLY-1



No.

Part No.

Description

Version

QTY.

Remark


TD1C451020000K

DRIVER’S CAB ASSEMBLY



1



1

TS06453015000

TOP COVER ASSEMBLY

1

2

TD1C451020001K

CAB WELDMENT

1

3

TS06451020002

CAB ACCESSORY

1

4

TS06451010003

OECD NAMEPLATE

1

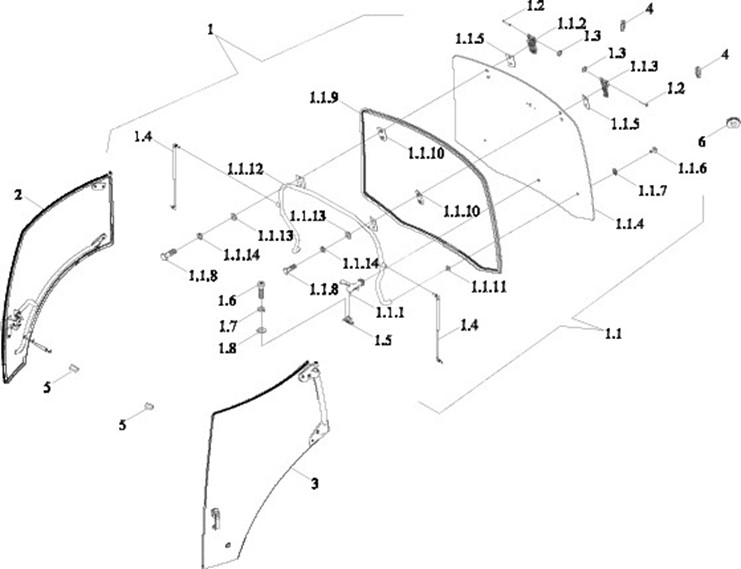

TD1C451020000K DRIVER’S CAB ASSEMBLY-2














TD1C451020000K DRIVER’S CAB ASSEMBLY-2



No.

Part No.

Description

Version

QTY.

Remark


TD1C451020000K

DRIVER’S CAB ASSEMBLY



1




TS06451020002

CAB ACCESSORY

1

1

TC03451026000

REAR WINDOW ASSEMBLY

1

1.1

TC03451026100

BACK WIND WINDOWS

1

1.1. 1

TS06451016109

HANDLE ASSEMBLY

1

1.1. 2

TS04451046111

BACK WINDOWS RIGHT HINGED SEAT

1

1.1. 3

TS04451046110

BACK WINDOWS LEFT HINGED SEAT

1

1.1. 4

TS06451016101

BACK WIND WINDOW GLASS

1

1.1. 5

TS06451016112

BACK WINDOWS HINGED OUT PAD BOARD

2

1.1. 6

TS04451013106

CAST BOLT

2

1.1. 7

TD904.451C.2-10

GLASS OUT WASHER

2

1.1. 8

GBT5783-M8X25-8.8-A2L

HEXAGON BOLT

4

1.1. 9

TS06451016108

REAR WINDOW SEAL STRIP

1

1.1. 10

TS04451046113

BACK WINDOWS HINGED INTO PAD BOARD

2

1.1. 11

TD904.451C.2-09

GLASS IN WASHER

2

1.1. 12

TS06451016102

REAR WINDOW ARMREST WELDMENT

1

1.1. 13

GBT96.1-8-A0P

BIG WASHER

4

1.1. 14

GBT93-8-A0P

STANDARD SPRING WASHER

4

1.2

TS06451016004

BACK WINDOWS HINGED PIN SHAFT

2

1.3

GBT896-6

SPLIT RETAINER RING

2

1.4

TS06451016001

REAR WINDOW PNEUMATIC SPRING

2

1.5

TS06451016003

SEAT

1

1.6

GBT818-M6X20-4.8

CROSS SCREW

2







TD1C451020000K DRIVER’S CAB ASSEMBLY-2 (cont’d.)



No.

Part No.

Description

Version

QTY.

Remark

1.7

GBT93-6-A0P

STANDARD SPRING WASHER



2



1.8

GBT97.1-6-A0P

FLAT WASHER

2

2

TC03451024000

RIGHT DOOR ASSEMBLY

1

3

TC03451023000

LEFT DOOR ASSEMBLY

1

4

FT65.48.093

RUBBER RING-1

4

5

TS06451011269

GLASS MOUNTINGS MAT

2

6

TS06451010010

PLUG COVER

2







TD1C451020000K DRIVER’S CAB ASSEMBLY-3


















TD1C451020000K DRIVER’S CAB ASSEMBLY-3



No.

Part No.

Description

Version

QTY.

Remark


TD1C451020000K

DRIVER’S CAB ASSEMBLY



1




TS06451020002

CAB ACCESSORY

1

1

TS06451018201

RIGHT REAR MIRROR INSTALLATION ASSEMBLY

1

1.1

GBT16674.1-M8X25-8.8-A2L

HEXAGON FLANGE NUT

2

1.2

TS06451018200

RIGHT REAR MIRROR ASSEMBLY

1

2

TS06451015001

FRONT WINDSHIELD

1

3

TS06451015005

RIGHT FRONT LOWER WINDOW GLASS

1

4

TS06451015004

LEFT FRONT LOWER WINDOW GLASS

1

5

TS06451019000

CAB SEAL

1

5.1

TS06451019004

PROCESS PLUG COVER 4

3

5.2

TS06451019001

PROCESS PLUG COVER 1

14

5.3

TD800.452-13

PLUG COVER

2

5.4

TS06451019003

PROCESS PLUG COVER 3

7

5.5

TS06451019002

PROCESS PLUG COVER 2

4

5.6

TD800.452-11

PLUG COVER

1

5.7

QLWZL002-80X1.5

3M GLUE PIECE

2

5.7

QLWZL002-20X1.0

3M GLUE PIECE

24

5.7

QLWZL002-35X1.0

3M GLUE PIECE

2

5.8

TS06451019006

SEAL SPONGE

1

5.9

TS06451019005

SEAL SPONGE

1

6

TS06451018101

LEFT REAR VIEW MIRROR INSTALLATION ASSEMBLY

1

6.1

TS06451018100

LEFT REAR MIRROR ASSEMBLY

1

6.2

GBT16674.1-M8X25-8.8-A2L

HEXAGON FLANGE NUT

2







TD1C451020000K DRIVER’S CAB ASSEMBLY-3 (cont’d.)



No.

Part No.

Description

Version

QTY.

Remark

7

TS06811010009

GUARD RING 2



1



8

TS06451011274

GLASS MOUNTINGS MAT

2

9

TS06811010008

GUARD RING 1

1

10

TS06451017200

LADDER INSTALLATION ASSEMBLY

2

10.1

GBT16674.1-M10X50-8.8-A3L

HEXAGON FLANGE NUT

4

10.2

TS06451017206

LADDER

1

11

TS04451010040

HANDLE BONNET

1

11.1

TS04451010042

BONNET PRESSURE PLATE

1

11.2

TS04451010041

HANDLE BONNET

1







TD1C451020000K DRIVER’S CAB ASSEMBLY-4














TD1C451020000K DRIVER’S CAB ASSEMBLY-4



No.

Part No.

Description

Version

QTY.

Remark


TD1C451020000K

DRIVER’S CAB ASSEMBLY



1




TS06451020002

CAB ACCESSORY

1


TC03451024000

RIGHT DOOR ASSEMBLY

1

1

TC03451024100

RIGHT DOOR

1

1.1

TS06451014230

RIGHT DOOR LOCK BONNET

1

1.2

GBT5789-M8X30-8.8-A2L

HEXAGON FLANGE NUT

1

1.3

GBT97.1-8-A3L

FLAT WASHER

2

1.4

GBT818-M8X30-4.8-A2L

CROSS SCREW

3

1.5

GBT96.1-8-A3L

BIG WASHER

5

1.6

TC03451024217a

LOWER RIGHT DOOR HINGE ASSY.

1

1.6. 1

TS04451044222a

LOWER RIGHT DOOR HING

1

1.6. 2

TC03451024112

RIGHT DOOR HINGE OUT RUBBER WASHER LOWER

1

1.7

GBT93-6-A3L

STANDARD SPRING WASHER

2

1.8

TC03451024117

UPPER RIGHT DOOR HINGE ASSY.

1

1.8. 1

TS04451044221

UPPER RIGHT DOOR HING

1

1.8. 2

TC03451024111

RIGHT DOOR HINGE OUT RUBBER WASHER UPTER

1

1.9

GBT97.1-6-A3L

FLAT WASHER

2

1.10

TC03451024101

RIGHT DOOR GLASS

1

1.11

TS04451043110

DOOR HINGE IN RUBBER WASHER

4

1.12

GBT818-M6X16-4.8-A2L

CROSS SCREW

2

1.13

GBT5789-M8X25-8.8-A2L

HEXAGON FLANGE NUT

3

1.14

TS06451014017

RIGHT DOOR LOCK ASSEMBLY

1

1.14 .1

GBT6170-M6-8-A2L

HEXAGON NUT, TYPE-1

2
