No.

Part No.

Description

Ver- sion

QTY.

Remark

33

4K39T-03211

VALVE ROCKER

8

34

GBT6172-M12

NUT

4

35

4K39T-03202

ROCKER ARM BRACKET

5

36

4K39T-03208

BOLT

4

37

4K39T-03203

ROCKER SHAFT SPRING

3

38

4K39T-03206

PLUG M14X1.5

2

39

4K39T-03204

ROCKER SHAFT

1

40

GBT8941-20

RETAINER RING

1

41

4K39T-03105

BOWL TYPE STOPPER PATCH

6

42

4K39T-03109

OIL INJECTOR COPPER BUSH

4

43

GBT3452.1-25X2.4

RUBBER O-SEAL RING

4

44

4K39T-03111

BOWL TYPE STOPPER PATCH 22

3

45

4K39T-03102

VALVE GUIDE PIPE

8

46

490B-01078

BOWL TYPE STOPPER PATCH 30

2

47

4K39T-03108

EXHAUST VALVE SEAT

4

48

4K39T-03107

AIR INLET VALVE SEAT

4

49

A490B-55100

HEAT PLUG CONNECTING WIRE

1

50

4K39T-54100

HEAT PLUG

4

No.

Part No.

Description

Ver- sion

QTY.

Remark

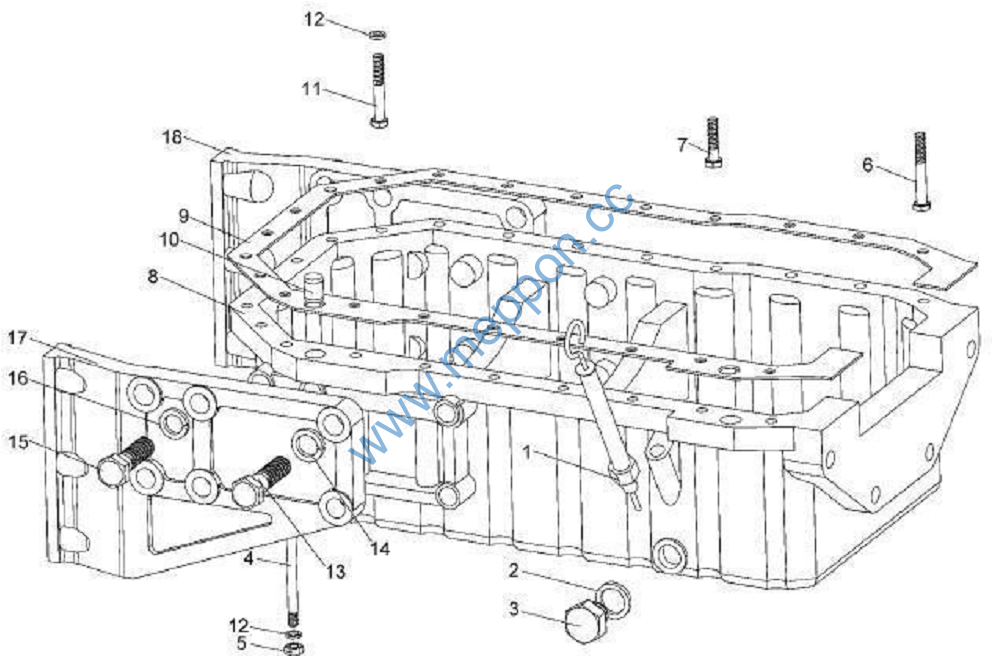

1

4K39T-07200

OIL DIPSTICK

1

2

JBT982-20

COMBINED SEAL GASKET

1

3

JBT2343-20

HEXAGON MAGNETISM PLUG

1

4

GBT899-AM8X130

DOUBLE END STUDS

6

5

GBT6170-M8

HEXAGON NUT

6

6

GBT5782-M8X60

HEXAGON BOLT

1

7

GBT5782-M8X35

HEXAGON BOLT

13

8

4K39T-07106-1

OIL SUMP

1

9

4K39T-07002

OIL SUMP GASKET

1

10

GBT119.2-B16X20

PIN

2

11

GBT5782-M8X55

HEXAGON BOLT

2

12

GBT93-8

SPRING WASHER

22

13

490BT-07800

SIDE BRACKET BOLT

4

14

GBT93-18

SPRING WASHER

4

15

GBT5782-M16X55

BOLT

8

16

GBT93-16

SPRING WASHER

8

17

4K39T-15001R

SIDE BRACKET RIGHT

1

18

4K39T-15001L

SIDE BRACKET LEFT

1

No.

Part No.

Description

Ver- sion

QTY.

Remark

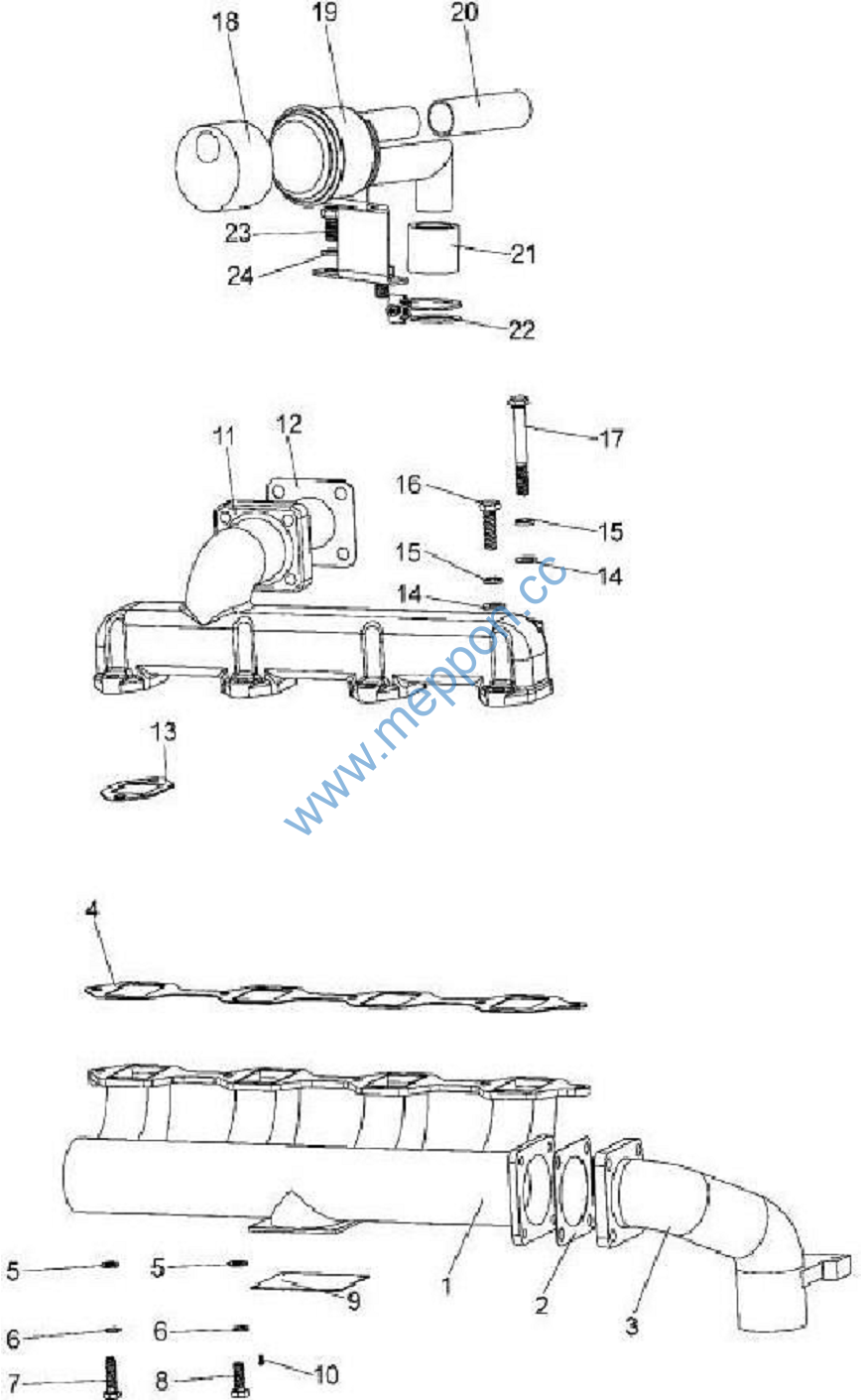

1

4K39T-09002-7

AIR INLET PIPE

1

2

4K39T-09004

AIR INLET PIPE MAT

1

3

490BT-09003-3

AIR INLET CONNECTING PIPE

1

4

4K39T-09001

AIR INLET PIPE GASKET

1

5

GBT97.1-8-140HV

FLAT WASHER

9

6

GBT93-8

SPRING WASHER

9

7

GBT5783-M8X30

BOLT

1

8

GBT5783-M8X25

BOLT

8

9

4K39T-11009

NAMEPLATE

1

10

GBT818-M3X6

CROSS SCREW

4

11

4K39T-08001-4

EXHAUST PIPE

1

12

4K39T-08004

EXHAUST PIPE MAT

1

13

4K39T-08002

GASKET,EXHAUST

4

14

GBT97.1-10

FLAT WASHER

8

15

GBT93-10

SPRING WASHER

8

16

GBT5783-M10X35

BOLT

6

17

GBT5782-M10X80

BOLT

2

18

4K39T-34006

BREATH FILTER ELEMENT

1

19

4K39T-34100

BREATHER HOUSING

1

20

JBT8406-A28X400

RUBBER HOSE

1

21

JBT8406-A32X40

RUBBER HOSE

1

22

ZBT3005-45

CLAMP HOOP

3

23

GBT5782-M12X20

HEXAGON BOLT

2

24

GBT93-12

SPRING WASHER

2

25

4K39T-08004-7

EXHAUST JOINT PIPE

1

26

4K39T-08004

WASHER

1

No.

Part No.

Description

Ver- sion

QTY.

Remark

1

4K39T-13004

FLYWHEEL HOUSING GASKET

1

2

GBT5783-M12X35

HEXAGON BOLT

2

3

GBT93-12

SPRING WASHER

2

4

4K39T-13001

FLYWHEEL HOUSING

1

5

490B-13003

INSPECTION HOLE COVER PLATE

1

6

GBT93-6

SPRING WASHER

2

7

GBT67-M6X10

SLOTTED PAN HEAD SCREW

2

8

490BT-13008-1

SCREW PLUG

1

9

GBT5783-M14X45

HEXAGON BOLT

8

10

GBT5783-M14X50

HEXAGON BOLT

2

11

GBT93-14

SPRING WASHER

10

12

4K39T-05002

NUT

1

13

4K39T-05001-9

CRANKSHAFT BELT PULLEY

1

14

GBT1096-8X60

KEY

1

15

4K41T-05003

CRANKSHAFT

1

16

GBT119-B12X20

COLUMN PIN

1

17

GBT276-6204-2Z

BEARING

1

18

4K39T-05101-14

FLYWHEEL

1

19

4K39T-05004

FLYWHEEL BOLT

6

20

A4K41T-04100

PISTON RING

4

23

A4K41T-04001

PISTON

4

24

A4K41T-04200

CONNECTINGRODS

4

25

4K39T-04005/04006

CONNECTING ROD BEARING

4

27

A4K41T-04004

PISTON PIN

4

28

GBT93.1-38

CIRCLIP FOR HOLE

8

29

GBT1096-C8X20

KEY

6

30

4K39T-06001

CAMSHAFT

1

31

4K39T-06002

VALVE TAPPET

8

32

4K39T-06003

VALVE PUSH ROD

8

33

490B-05102

FLYWHEEL GEAR RING

1

34

4K39T-04202

CONNECTING ROD BUSH

4

37

QDJ1409E-P

STARTING MOTOR ASSEMBLY

1

No.

Part No.

Description

Ver- sion

QTY.

Remark

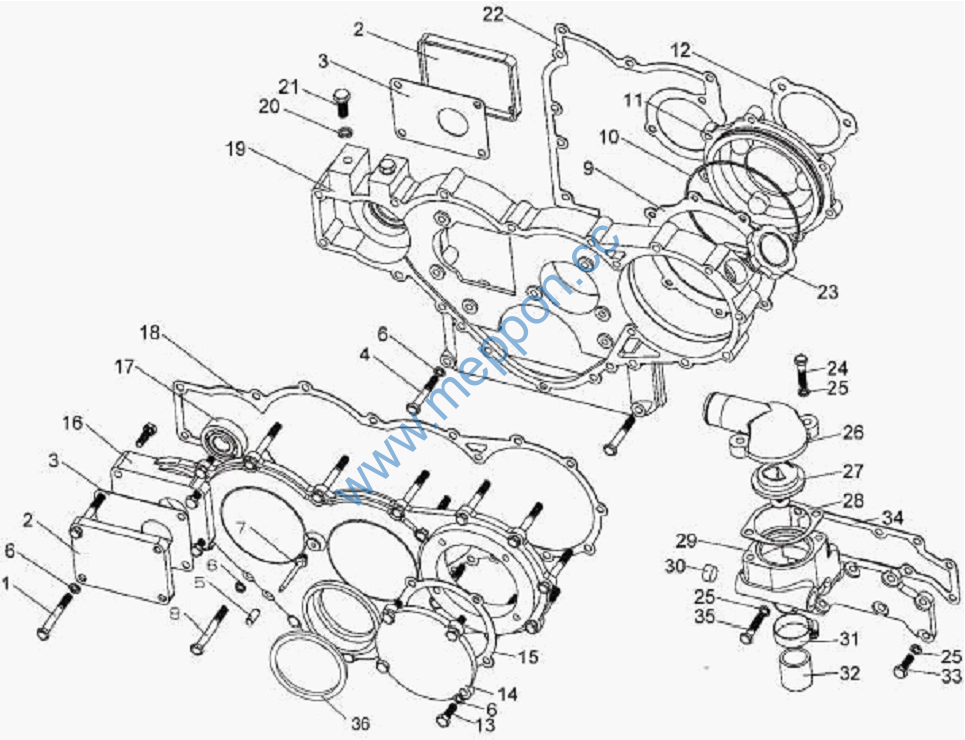

1

GBT5782-M8X65

HEXAGON BOLT

9

2

490BT-16014A

COVER PLATE

2

3

490BT-16013-1

HYDRAULIC PUMP END COVER GASKET

2

4

GBT5782-M8X70

HEXAGON BOLT

5

5

GBT119.2-8X20

COLUMN PIN

2

6

GBT93-8

SPRING WASHER

37

7

4K39T-16012

FINGER

1

8

GBT5782-M8X55

HEXAGON BOLT

2

9

4K39T-16006

OIL INJECTION PUMP CON- NECTING PLATE GASKET

1

10

GBT1235-140X3.1

O-SEAL RING

1

11

4K39T-16005

OIL INJECTION PUMP CON- NECTING PLATE

1

12

490B-16011-1

OIL INJECTION PUMP GASKET

1

13

GBT5783-M8X25

HEXAGON BOLT

20

14

490BT-16016A

AIR COMPRESSOR COVER PLATE

1

15

490BT-16005

AIR COMPRESSOR COVER PLATE GASKET

1

16

4K39T-16001

TIMING GEAR CASE COVER

1

17

GBT276-6006

DEEP GROOVE BALL BEARING

2

18

4K39T-16002

TIMING GEAR COVER GASKET

1

19

4K39T-16000-3

TIMING GEAR CASE ASSEMBLY

1

20

GBT93-10

SPRING WASHER

2

21

GBT21-M10X25

BOLT

2

22

4K39T-16004

WASHER

1

23

4K39T-16100

COVER

1

24

GBT5782-M8X30

HEXAGON BOLT

2

25

GBT93-8

SPRING WASHER

10

26

4K39T-43001

THERMOSTAT COVER

1

27

4K39T-43000

THERMOSTATASSY

1

28

4K39T-43003

THERMOSTAT COVER GASKET

1

No.

Part No.

Description

Ver- sion

QTY.

Remark

29

4K39T-43101

THERMOSTAT SHELL

1

30

490B-43008

SCREW PLUG NPT3/8

2

31

JBT8870-d40

HOOP

2

32

4K39T-43009

RUBBER HOSE 27X35

1

33

GBT5782-M8X20

HEXAGON BOLT

7

34

4K39T-43005

THERMOSTAT SHELL GASKET

1

35

GBT5782-M8X35

HEXAGON BOLT

1

36

4K39T-16035

SEAL,OIL

1

No.

Part No.

Description

Ver- sion

QTY.

Remark

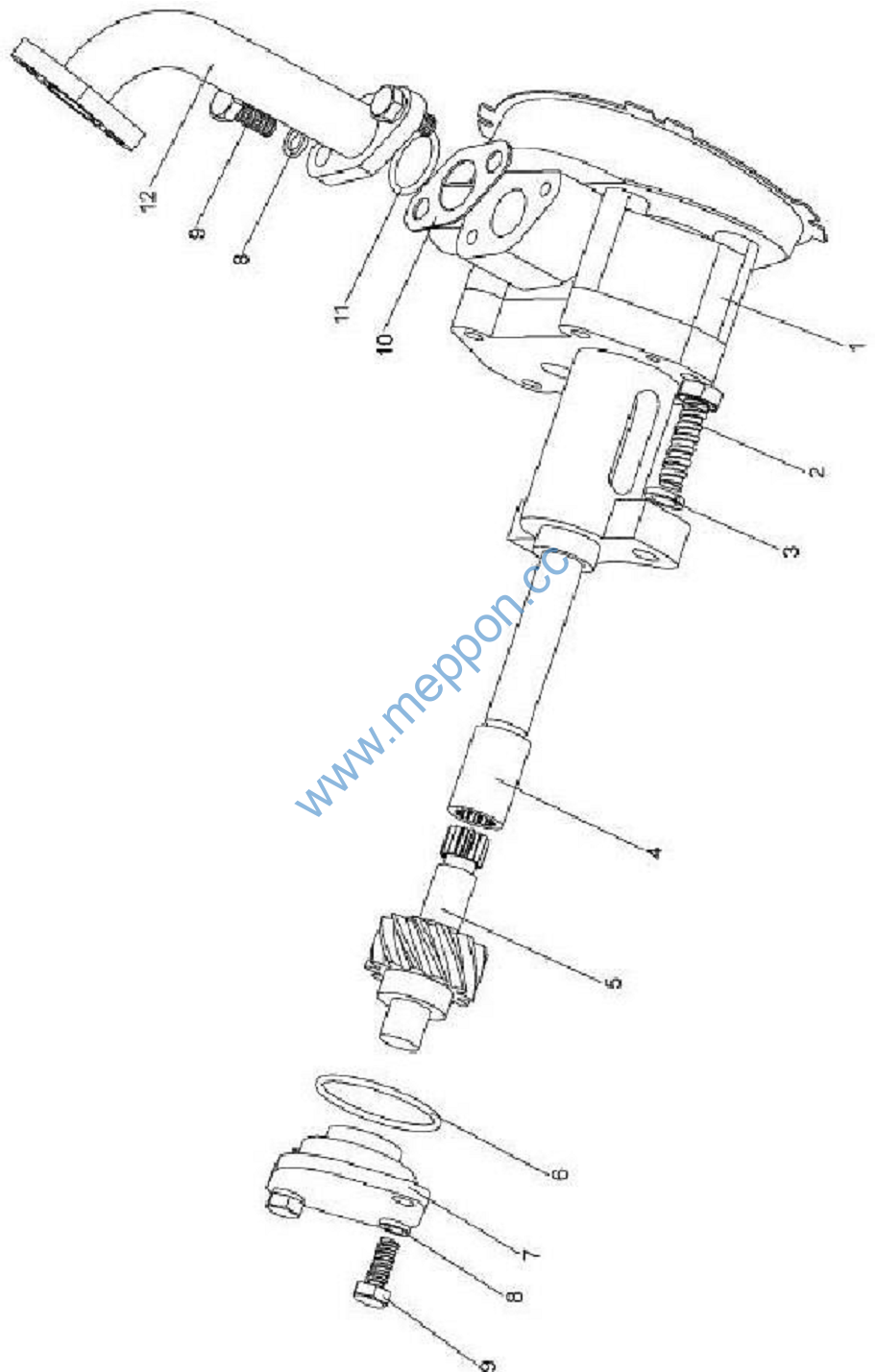

1

4K39T-31100

OIL PUMP ASSEMBLY

1

2

GBT5783-M10X35

HEXAGON BOLT

2

3

GBT93-10

SPRING WASHER

2

4

4K39T-31102

SPLINE BUSH

1

5

4K39T-31101

SHAFT OF DRIVING GEAR

1

6

GBT3452.1-46.2X2.65

RUBBER O-SEAL RING

1

7

4K39T-31002

OIL PUMP COVER

1

8

GBT93-8

SPRING WASHER

6

9

GBT5783-M8X20

HEXAGON BOLT

6

10

4K39T-31001

WASHER

2

11

GBT3452.1-22.4X2.65

RUBBER O-SEAL RING

2

12

4K39T-31200

OIL PIPE

1
