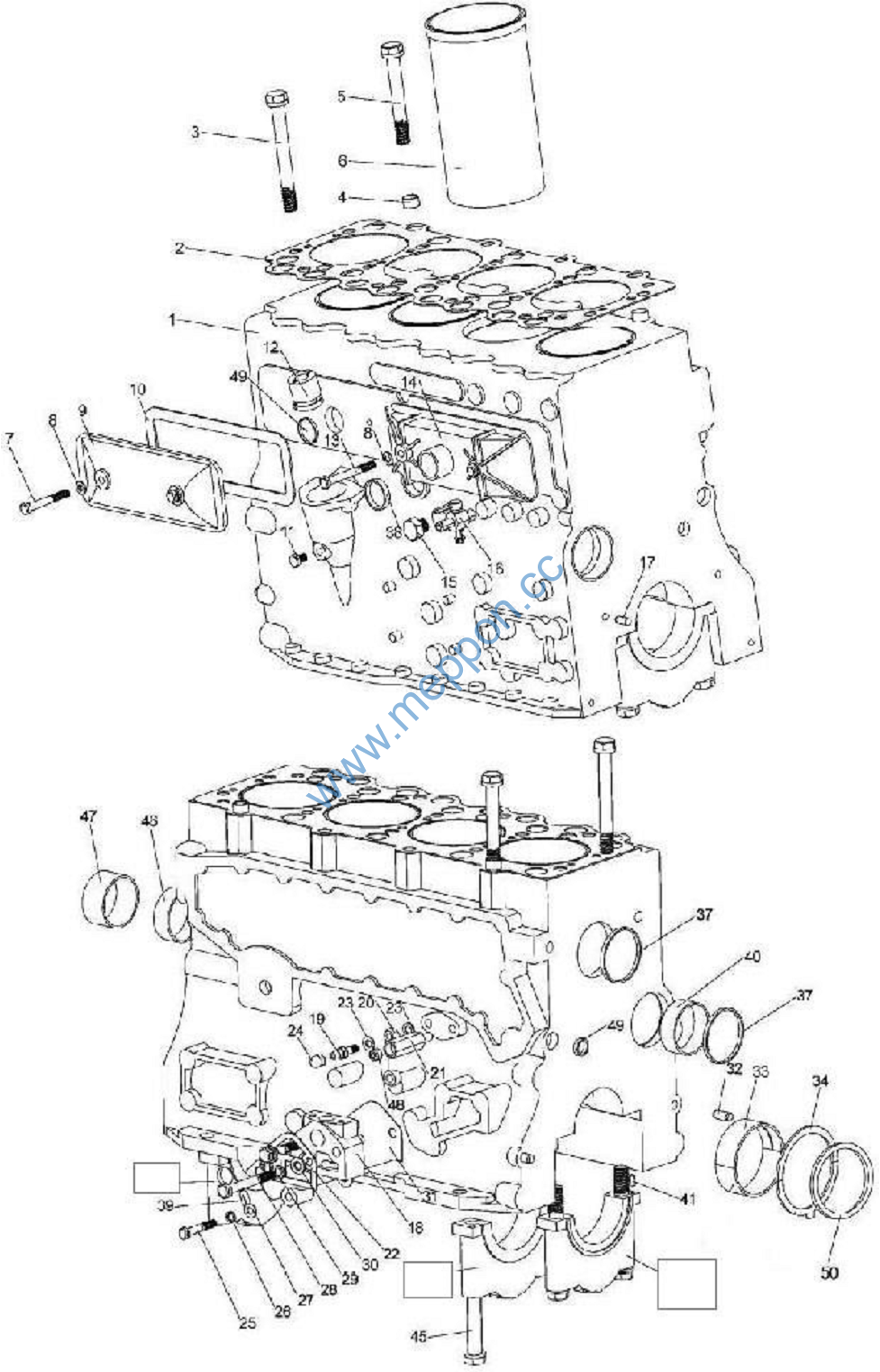

No.

Part No.

Description

Ver- sion

QTY.

Remark

A4K41T60-4C

ENGINE ASSY

1

1

4K41T-01101

CYLINDER BLOCK

1

2

4K39T-01004

CYLINDER COVER GASKET

1

3

4K39T-01002

CYLINDER HEAD BOLTⅠ

14

4

4K39T-01001

CYLINDER COVER LOCAT- ING BUSH

2

5

4K39T-01003

CYLINDER HEAD BOLTⅡ

4

6

4K41T-01005

CYLINDER BUSH

4

7

GBT5782-M8X55

BOLT

2

8

GBT982-8

COMBINED SEAL GASKET

4

9

4K39T-01042

COVER 2

1

10

4K39T-01043

GASKET

2

11

490B-01029-1

SCREW PLUG Rc1/8

2

12

4K39T-01051

BUSHING

1

13

GBT5782-M8X70

BOLT

2

14

4K39T-01041

COVER 1

1

15

490BT-13008-1

SCREW PLUG

1

16

490BT-01100-1

DRAIN SWITCH

1

17

GBT119-B8X20

PIN

2

18

4K39T-01053

FILTER SEAT

1

19

490B-52005-1

OIL INLET JOINT

1

20

4K39T-21100-2

LUBRICATING OIL PIPE OF OIL INJECTION PIPE

1

21

4K39T-01074

JOIT

1

22

4K39T-01073

OIL FILTER GASKET

1

23

JBT6013-8

WASHER

2

24

GBT923-M8

NUT

1

25

GBT5782-M8X50

BOLT

2

26

GBT93-8

WASHER

8

27

GBT97.1-8-140HV

WASHER

8

28

GBT5782-M10X85

BOLT

2

29

GBT93-10

WASHER

2

30

GBT97.1-10-140HV

WASHER

2

31

4K39T-01052

GASKET OF OIL FILTER SEAT

1

32

GBT119-B10X24

PIN

2

No.

Part No.

Description

Ver- sion

QTY.

Remark

33

4K39T-01034/01033

MAIN BEARING

5

34

4K39T-01026/01022

THRUST SHIM

2

37

4K39T-01111

PLUG COVER 65

2

38

4K39T-01112

PLUG COVER 35

1

39

490B-03017

BOWL SHIM 20

1

40

4K39T-01104

REAR BUSH OF CAMSHAFT

1

41

4K39T-01102

ORIENTATION PIN 6X12

1

45

4K39T-01103

MAIN BEARING COVER BOLT

10

46

4K39T-01107

CAMSHAFT BUSH

2

47

4K39T-01108

FRONT BUSH OR CAMSHAFT

1

48

490B-01081

SCREW PLUG R1/4

1

49

490B-01078

BOWL SHIM 30

2

50

4K39T-01036

SEAL,OIL

1

No.

Part No.

Description

Ver- sion

QTY.

Remark

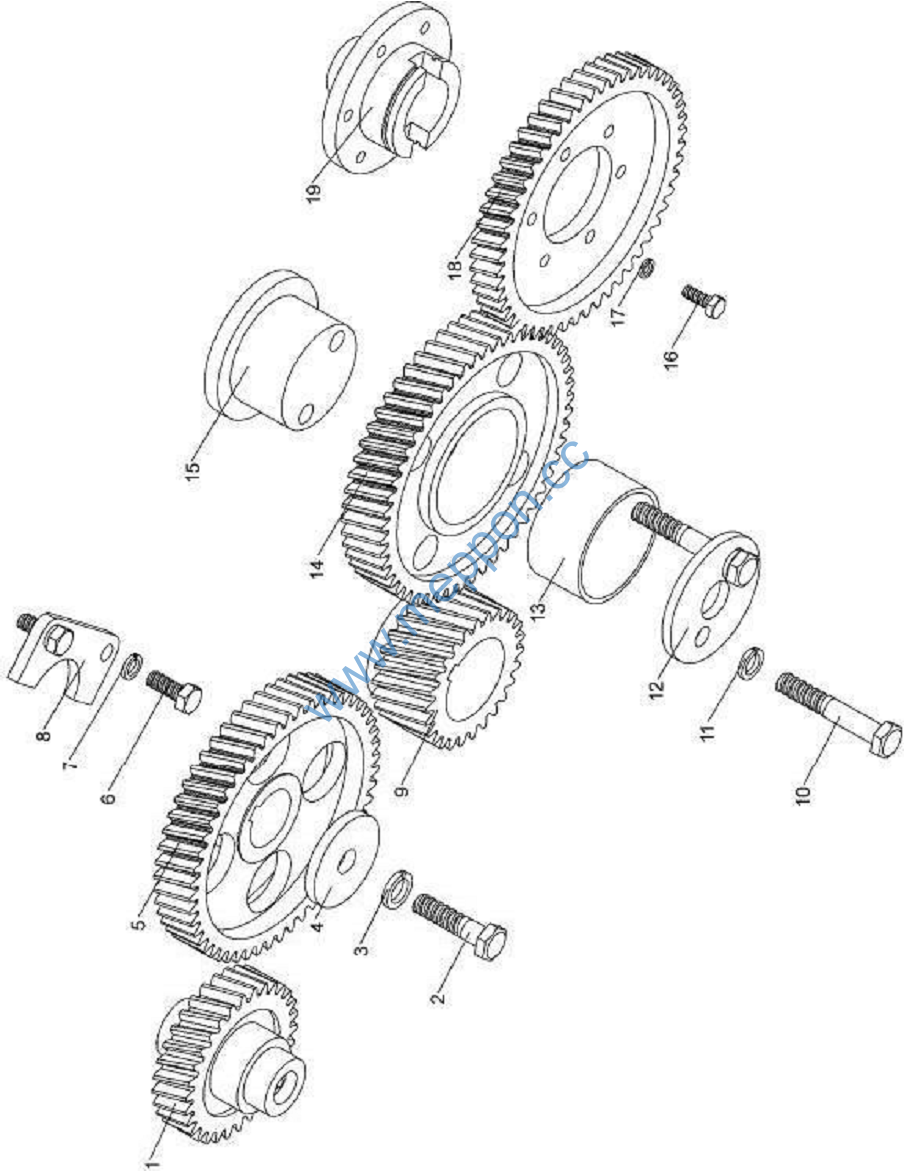

1

4K39T-02013-2

HYDRAULIC PUMP GEAR

1

2

GBT5782-M12X40

HEXAGON BOLT

1

3

GBT93-12

SPRING WASHER

1

4

4K39T-02011

CAMSHAFT GEAR PLATE

1

5

4K39T-02009

CAMSHAFT TIMING GEAR

1

6

GBT5783-M8X20

HEXAGON BOLT

2

7

GBT93-8

SPRING WASHER

2

8

4K39T-02008

CAMSHAFT THRUST PLATE

1

9

4K39T-02007

CRANKSHAFT GEAR

1

10

GBT5782-M10X60

HEXAGON BOLT

2

11

GBT93-10

SPRING WASHER

2

12

4K39T-02012

IDLE GEAR PRESSURE PLATE

1

13

4K39T-02005

BUSHING OF IDLE GEAR

1

14

4K39T-02006

IDLE GEAR

1

15

4K39T-02004

TIMING IDLE GEAR SHAFT

1

16

GBT5783-M6X16

HEXAGON BOLT

6

17

GBT93-6

SPRING WASHER

6

18

4K39T-02003

INJECTOR PUMP GEAR

1

19

4K39T-02015-2

OIL INJECTION PUMP TIM- ING GEAR SHAFT BUSH

1

No.

Part No.

Description

Ver- sion

QTY.

Remark

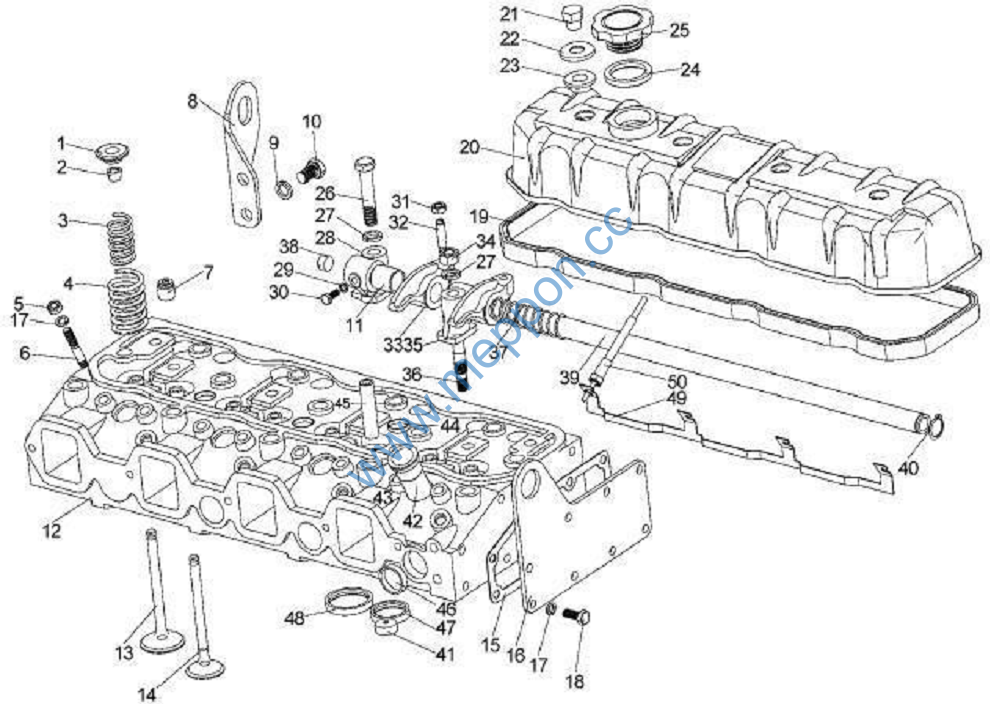

1

4K39T-03007

VALVE SPRING UPPER SEAT

16

2

4K39T-03006

VALVE COLLET

16

3

4K39T-03005

VALVE INNER SPRING

8

4

4K39T-03004

VALVE OUTER SPRING

8

5

GBT6170-M8

NUT

8

6

GBT898-AM8X45

DOUBLE END STUDS

8

7

4K39T-03008

VALVE GUIDE PIPE OIL SEAL

8

8

4K39T-03011

CONDOLE EAR

1

9

GBT93-12

SPRING WASHER

2

10

GBT5783-M12X25

HEXAGON BOLT

2

11

4K39T-03212

SLEEVE

8

12

A4K41T-03100

HEAD AS.

1

13

4K39T-03015

AIR INLET VALVE

4

14

4K39T-03014

EXHAUST VALVE

4

15

4K39T-03013

GASKET OF REAL COVER

1

16

4K39T-03012

REAL COVER

1

17

GBT93-8

SPRING WASHER

16

18

GBT5783-M8X20

BOLT

8

19

4K39T-11002

CYLINDER COVER BON- NET GASKET

1

20

4K39T-11100

CYLINDER COVER WELDMENT

1

21

4K39T-11006

LOCKING NUT

4

22

4K39T-11005

MAT

4

23

4K39T-11007

MAT

4

24

4K39T-11004

WASHER

1

25

4K39T-11003-2

FILLING CAP

1

26

4K39T-03207

ROCKER SEAT BOLT

2

27

GBT93-12

SPRING WASHER

6

28

4K39T-03205

ROCKER ARM BRACKET

1

29

GBT93-6

SPRING WASHER

1

30

GBT5783-M6X16

BOLT

1

31

GBT6171-M8X1

NUT

8

32

4K39T-03201

VALVE CLEARANCE AD- JUSTING SCREW

8
