Description

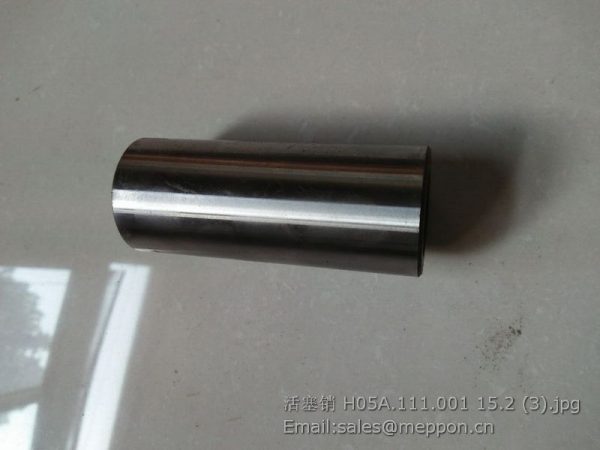

H05A.111.001 QUANCHAI PISTON PIN
TS10530020000K Traction mechanism assembly 1
1 GBT 899-GM16-M16X40-8.8-A3L Double-ended stud 2
2 GBT 93-16-A0P Standard spring washer 10
3 GBT 6170-M16-8-A3L Hexagon nut, style 1 2
4 TD800.53D.1-01 Connecting pin 2
5 TA700.53C.1.3 Hitch pin and lock pin assembly 1
5.1 TD800.35A.1.1.1 Lock pin and chain assembly 1
5.2 TA700.53C.1.3.1 Hitch pin weldment 1
6 TD800.53F.2 U-shape hook weldment 1
7 TS10530020001K Drag rack weldment 1
8 FT800.35.112 Spring lock pin 2
9 GBT 70.1-M16X45-10.9-A3L Hexagon socket cap head screw 8
10 GBT 827-3X10-A0P Label rivet 2
11 TD800.53F-01 EC certification logo 1
TS10552010000 Lift control mechanism assembly 1
1 TS10552010016 Handle head (light yellow) 2
2 GBT 68-M4X10-4.8-A2L Slotted countersunk head screw 2
3 TS10552010015 Upper handle 2 1
4 TS10552010014 Upper handle 1 1
5 GBT 6170-M8-8-A2L Hexagon nut, style 1 4
6 GBT 93-8-A0P Standard spring washer 5
7 GBT 5783-M8X20-8.8-A2L Hexagon head bolt 5
8 TS10552010008 Lift control pressing unit 1 1
9 TS10582010048 Rotary shaft weldment 1
10 TS10552010005 Lock pin assembly 4
11 TS10552010001 Control pull rod assembly 2
11.1 TS10552010003 Left-hand pull rod fork 1
11.2 GBT 6170-M8-LH-8-A2L Hexagon nut, style 1 1
11.3 TS10552010002 Connecting pull rod 1
11.4 GBT 6170-M8-8-A2L Hexagon nut, style 1 1
11.5 TS10552010004 Right-hand pull rod fork 1
12 GBT 62-M5-A2L Wing nut 2
13 GBT 93-5-A0P Standard spring washer 2
14 TB504.552-03 Limitation plate 2
15 TB504.552.5 Limitation bolt weldment 2
16 TS10552010012 Lift control pressing unit 2 1
TS10561030000K Rear Suspension Assembly 1
1 TS10561020001K Upper Pull Rod Fixed Clip Combination 1
1.1 TB500.56B.6-01 Fixed Pothook Of Upper Link 1
1.2 TS10561020002K Locking Clamp Installation Seat 1
1.3 TE300.56.6-03 Nylon Bush 1
1.4 GBT96.1-6-A0P Big Washer 1
1.5 GBT91-2X14-A0P Split Pin 1
2 GBT93-8-A0P Standard Spring Washer 2
3 GBT5783-M8X20-8.8-A2L Hexagon Bolt 2
4 TS10561010001 Upper Pull Rod Assembly 1
5 TS10561010006 Limiting Rod Bracket Weldment 2 1
6 TS10561010003 Lifting Rod Assembly 2
7 TS10561040002K Left Lower Pull Rod Weldment 1
8 TS10561010004 Limit Rod Assembly 2
9 SPL-CO-M24-F3 Hexagon Nut 2
10 TS10561010005 Limiting Rod Bracket Weldment 1 1
11 GBT9457-M24X2-8 Hexagon Slotted Nut, Style 1 2
12 GBT95-24-A0P Flat Washer 2
13 TS10561040003K Right Lower Pull Rod Weldment 1
14 TS10561010010 Sleeve 2
15 GBT91-5X40-A0P Split Pin 2
16 TS10561010009 Lower Pull Rod Support Shaft 1
TS10561030000K Rear Suspension Assembly 1
1 TS10561010003 Lifting Rod Assembly 2
1.1 TE250.56.4 Lock Pin Assembly 2
1.2 GBT95-24-A0P Flat Washer 2
1.3 TS10561010028 Lifting Rod Upper Connecting Fork Weldment 1
1.4 TS10561010027 Lifting Rod Connecting Pin 2
1.5 TS10561010029 Lifting Rod Adjusting Screw Pipe weldment 1
1.6 TS10561010030 Adjusting Sleeve Weldment 1
1.7 TS10561010008 Hook Link Assembly 2
1.8 TS10561010031 Lower Connecting Fork 1
2 TS10561010004 Limit Rod Assembly 2
1.1 TE250.56.4 Lock Pin Assembly 1
2.2 TS10561010046 Limit Rod Ball head Rivet 1
2.3 TS10561010041 Limit Rod Connecting Pin 1 1
2.4 FT300.56A.023 Limiting Rod Lock Pin Assembly 1
2.5 TS10561010045 Limit Rod Adjusting Screw Pipe 1
2.6 TS10561010047 Limit Rod Locking Nut Weldment 1
2.7 TS10561010042 Limit Rod Connecting Pin 2 1
2.8 GBT95-20-A0P Flat Washer 2
2.9 TS10561010043 Limiting Rod Connecting Fork 1
2.10 GBT91-6.3X36-A0P Split Pin 1
2.11 TS10561010044 Limit Rod Connecting Pin 3 1
3 TS10561010001 Upper Pull Rod Assembly 1
3.1 TS10561010015 Upper Pull Rod Ball Head Rivet 2 1
3.2 TS10561010012 Locking Nut 1
3.3 TS10561010014 Upper Pull Rod Adjusting Screw Pipe Assembly 1
3.4 TE250.56.4 Lock Pin Assembly 1
3.5 TS10561010013 Upper Pull Rod Ball Head Rivet 1 1
3.6 TS10561010011 Upper Pull Rod Front Connecting Pin 1
TS10581010000 Oil pump pipe filter assembly 1
1 GBT 3738-L18 24° cone connectors–Straight thread elbow 1
2 TS09580010008 O-ring 19.3X2.2-M22X1.5 1
3 TA700.581.4 Lifting pump 1
4 TS10581010016 High-pressure hose assembly 1
5 TS10581010011 High-pressure filter joint 2
6 JBT 982-42 Compound seal washer 4
7 TS10581010010 High-pressure filter 1
8 TS10581010009 High-pressure filter trestle 1
9 GBT 93-8-A0P Standard spring washer 4
10 GBT 5783-M8X25-8.8-A2L Hexagon head bolt 4
11 GBT 3754-L18 24° cone connectors – Adjustable elbow 1
12 TS10581010014 Distributor oil inlet pipe assembly 1
13 GBT 3733-L18A Straight thread connector-body 1
14 JBT 982-22 Compound seal washer 1
15 GBT 93-10 Standard spring washer 2
16 GBT 70.1-M10X30-8.8-A3L Hexagon socket cap head screw 2
17 TS09580010011 O-ring 29.6X2.9-M33X2 1
18 GBT 3738-L28 24° cone connectors–Straight thread elbow 1
19 TS10581010017 Oil suction steel pipe weldment 1
20 Q67638 B-type worm drive type hose clamp 4
21 FT650.58.105 Rubber pipe 2
22 TS10581010007 Oil suction steel pipe assembly 2 1
23 TS10581010004 Oil suction filter joint 2
24 TS10581010005 Oil suction filter 1
25 TS10581010001 Oil suction steel pipe assembly 1
26 TS10581010018 Oil suction pipe welding assembly 1
27 GBT 5783-M12X35-8.8-A3L Hexagon head bolt 1
28 GBT 93-12-A0P Standard spring washer 1
29 GBT 3452.1-38.7X3.55G O-ring sealant used for hydraulic or pneumatic parts 1
30 GBT 97.1-8-A0P Plain washer 4
31 TS10581010006 Oil suction filter trestle 1
