Description

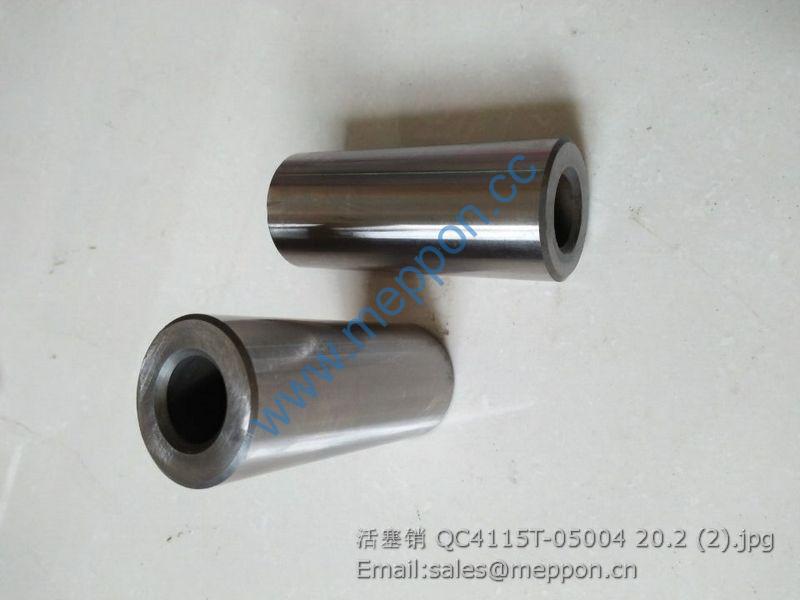

QC4115T-05004 QUANCHAI PISTON PIN

TS10455010001 Front floor cushion 1
1 TS10455010001 Front floor cushion 1

TS10456010000 Instrument panel assembly 1
1 GBT 818-M6X20-4.8-A2L Cross recessed countersunk head screw 8
2 GBT 93-6-A0P Standard spring washer 8
3 GBT 97.1-6-A0P Plain washer 8
4 TS10456010001 Instrument panel assembly 1
5 TB400.474E-01 Dustproof sleeve 1

TS10457010000 Front connecting device assembly 1
1 TS10457010001 Left front connection assembly 1
1.1 TD800.457B.1-01 Circlip 1
1.2 TD800.457B.1.2 Shock absorbing block 1
1.3 TS10457010003 Left frotn connecting mounting trestle weldment 1
1.4 TD800.457B.1-02 Circlip (2) 1
1.5 GBT 95-20-A0P Plain washer 1
1.6 GBT 93-20-A0P Standard spring washer 1
1.7 GBT 5782-M20X110-10.9-A3L Hexagon head bolt 1
2 GBT 93-20-A0P Standard spring washer 8
3 GBT 5783-M20X50-10.9-A4L Hexagon head bolt 8
4 TS10457010002 Right connection assembly 1
4.1 TD800.457B.1-01 Circlip 1
4.2 TD800.457B.1.2 Shock absorbing block 1
4.3 TS10457010005 Right frotn connecting mounting trestle weldment 1
4.4 TD800.457B.1-02 Circlip (2) 1
4.5 GBT 95-20-A0P Plain washer 1
4.6 GBT 93-20-A0P Standard spring washer 1
4.7 GBT 5782-M20X110-10.9-A3L Hexagon head bolt 1

TS10458010000 Rear connecting device assembly 1
1 GBT 5782-M20X110-10.9-A3L Hexagon head bolt 2
2 GBT 96.1-20-A0P Large washer 2
3 TD800.457B.1-01 Circlip 4
4 TD800.457B.1.2 Shock absorbing block 2
5 TS10458010006 Rear connecting bolt 8
6 GBT 97.1-16-A0P Plain washer 8
7 GBT 95-20-A0P Plain washer 2
8 GBT 93-20-A0P Standard spring washer 2
9 GBT 6170-M20-8-A9L Hexagon nut, style 1 2
10 GBT 6170-M16-8-A3L Hexagon nut, style 1 16
11 TS10458010001 Left rear connecting trestle weldment 1
12 TS10458010002 Right rear connecting trestle weldment 1

TA600.46 Safety bracket assembly 1
1 TA600.46.5 Sun roof assembly 1
1.1 TA600.46.5.1 Sun roof 1
1.2 GB/T 6170-M12-10-A3L Hexagon nut, type 1 4
1.3 GBT96.1-12-A3L Large washer 4
1.4 TA600.46.5.1.1-03 Mount 2
1.5 GB/T 96.1-8-A3L Large washer 4
1.6 GB/T 93-8-A0P Standard spring washer 4
1.7 GB/T 5783-M8×20-10.9-A2L Hexagon head bolt 4
1.8 GBT97.1-12-A3L Plain washer 4
1.9 GB/T 5782-M12×140-10.9-A3L Hexagon head bolt 4
2 TA600.46.6 Safety bracket assembly 1
2.1 TA600.46.6.1 Upper structure, safety bracket 1
2.2 FT700.46.030 Right support beam assembly 1
2.3 FT700.46.020 Left support beam assembly 1
2.4 GB/T 5782-M16×90-10.9-A2L Hexagon head bolt 6
2.5 GB/T 95-16-A0P Plain washer 6
2.6 GB/T 802-M16-10 Combined cap nut 6
2.7 GB/T 93-16-A0P Standard spring washer 6
3 TB400.46C-01 Plug 8
4 GB/T 12618-3×15 Open type flat head blind rivet 4
5 TA600.46-01 Name plate OECD 1
6 GB/T 5782-M16×80-10.9-A3L Hexagon head bolt 8
7 GB/T 6187.1-M16-10 Hexagon flange locking-nut, full metal 8
