Description

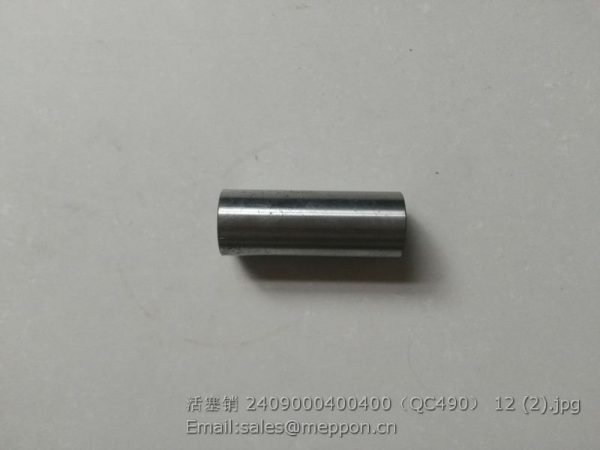

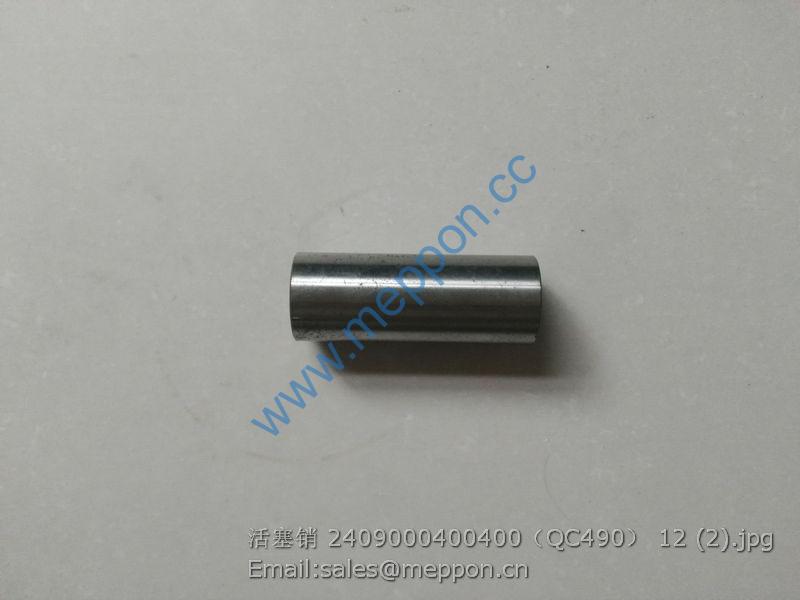

2409000400400 QC490 QC490Q(DI)-04004 quanchai piston pin
TS10413010000 PTO control assembly 1
1 TS10413010013 Handle (light yellow) 1
2 GBT 6170-M10-8-A3L Hexagon nut, style 1 2
3 FT800A.41.173 Seal seat 1
4 TS10413010001 PTO control lever weldment 1
5 GBT 882-B10X28-A0P Pin 2
6 GBT 97.1-10-A0P Plain washer 2
7 GBT 91-3.2X20-A0P Split pin 2
8 TS10413010006 PTO control rocker weldment 1
9 TB480.413A.1-01 Nylon liner 2
10 TS10413010009 Rotary shaft trestle weldment 1
11 TS10413010003 PTO rocker shaft weldment 1
12 FT300.43.108 Pull rod front fork 1
13 TS10413010011 Connecting lever 1
14 GBT 6170-M8-LH-8-A2L Hexagon nut, style 1 1
15 TS10552010003 Left-hand pull rod fork 1
16 TS10552010005 Lock pin assembly 1
17 GBT 93-8-A0P Standard spring washer 2
18 GBT 5783-M8X20-8.8-A2L Hexagon head bolt 2
19 GBT 879.1-6X32 Spring column pin 1
20 GBT 879.1-3.5X32 Spring column pin 1
21 GBT 818-M6X20-4.8 Cross recessed pan head screw 2
22 GBT 93-6-A0P Standard spring washer 2
TS10423010000 Transfer case control assembly 1
1 TS10413010013 Handle (light yellow) 1
2 GBT 6170-M10-8-A3L Hexagon nut, style 1 1
3 TG1204.435.2 Seal seat assembly 1
3.1 GBT 818-M6X14-A2L Screw 2
3.2 TG1204.435.2-01 Spherical bearing seat 2
3.3 TG1204.435.2-02 Spherical bearing 1
3.4 GBT 93-6-AOP Washer 2
3.5 GBT 6170-M6-A2L Nut 2
4 TS10423010001 Transfer case control lever weldment 1
5 GBT 882-B8X28-A0P Pin 1
6 GBT 97.1-8-A0P Plain washer 1
7 GBT 91-3.2X20-A3L Split pin 1
8 GBT 879.1-6X32 Spring column pin 1
9 GBT 879.1-3.5X32 Spring column pin 1
10 TS10423010003 Rocker arm weldment 1
TS10311010000 Front driving axle assembly 1
1 TS10311010001 Front driving axle subassembly 1
2 TS10311010006 Rear bracket pressing assembly 1
3 TG1204.34-01 Washer 4
4 GBT 5782-M20X80-10.9-A3L Bolt 2
5 GBT 5782-M20X70-10.9-A3L Bolt 2
TS10312010000 Tray assembly 1
1 TS10312010001 Tray 1
2 TB604.312-04 Washer 8
3 GBT 5782-M16X80-10.9-A2L Hexagon head bolt 6
4 FT800.31.120 Tray connecting sleeve 2
5 GBT 5782-M16X90-10.9-A2L Hexagon head bolt 2
TD800.313 Bracket front body assembly 1
1 TD800.313-01 Bracket front body 1
2 GBT 5783-M16X55-10.9-A3L Bolt 5
3 FT800.34.108 Plain washer 5
TS10320030000K Front wheel assembly 1
1 TS10320030001K Front wheel subassembly 1
1.1 TS10320010001 Rim spoke unit 1
1.1.1 GB/T 6171-M14×1.5-10-A3L Hexagon nut, style 1 6
1.1.2 FT804.32.104 Washer 6
1.1.3 FT804.32B.103 Front wheel spoke 1
1.1.4 GB/T 5785-M14×1.5×70-10.9-A3L Hexagon head bolt 6
1.1.5 FT804.32F.011 W10×24 Rim weldment assembly 1
1.2 TD824.32F-01 Inner tube/tyre assembly 12.4-24 1
1.2.1 GB/T 2979-12.4-24-8PR-R General section bias tyre of tractor drive wheel 1
1.2.2 GB/T 2979-12.4-24-R Tractor driving wheel inner tube 1
2 GB/T 6176-M18×1.5-10 Hexagon nut, style 2 8
3 TS10320010003 Washer 8
