No.

Part Name

Part No.

Qty.

No.

Part Name

Part No.

Qty.

28

Retainer, shift collar, PTO

885129512SZ/1.80.116

1

37

Jacket, shaft, PTO

SZ1204.41.101

1

29

Shift collar, PTO

8A5129513SZ/1.80.117

1

38

Bolt    M8×25-Zn.D

GB/T5783-2000

4

30

Driven gear, 540 r/min

880808062A/1.80

1

39

Washer 8-Zn.D

GB/T7244-1987

4

31

Gear retainer, 540r/min

SZ904.41.104

1

40

Guard unit, shaft, PTO

SZ804.41.161

1

32

Oil seal 68×90×11.5

SZ904.41.106A

1

41

P.T.O Shield, oil seal

4994659/1.80.151A

1

33

Driven shaft, PTO

SZ904.41.105

1

42

540/1,000 r/min PTO sign

SZ804.41.805

1

34

Nut    M12×1.25-Zn.D

GB/T889-86

3

43

Bearing 6309E(309)

GB/T276

1

35

1000rpm    PTO    shaft

head(21-spline)

4983660/1.80.107A

1

44

Retainer ring 100

12246/11062975-SZ

1

36

540rpm    PTO shaft head

(6-spline)

5140119/1.80.107B

1

45

Bolt, shaft, PTO

44012300/1.80.133

3

46

PTO shaft sliding sleeve

5109812SZ/1.80.110

1

47

Bearing NJ308E

GB/T283

1

48

Rivet 3.2×9, screen

GB12618

2

No.

Part Name

Part No.

Qty.

No.

Part Name

Part No.

Qty.

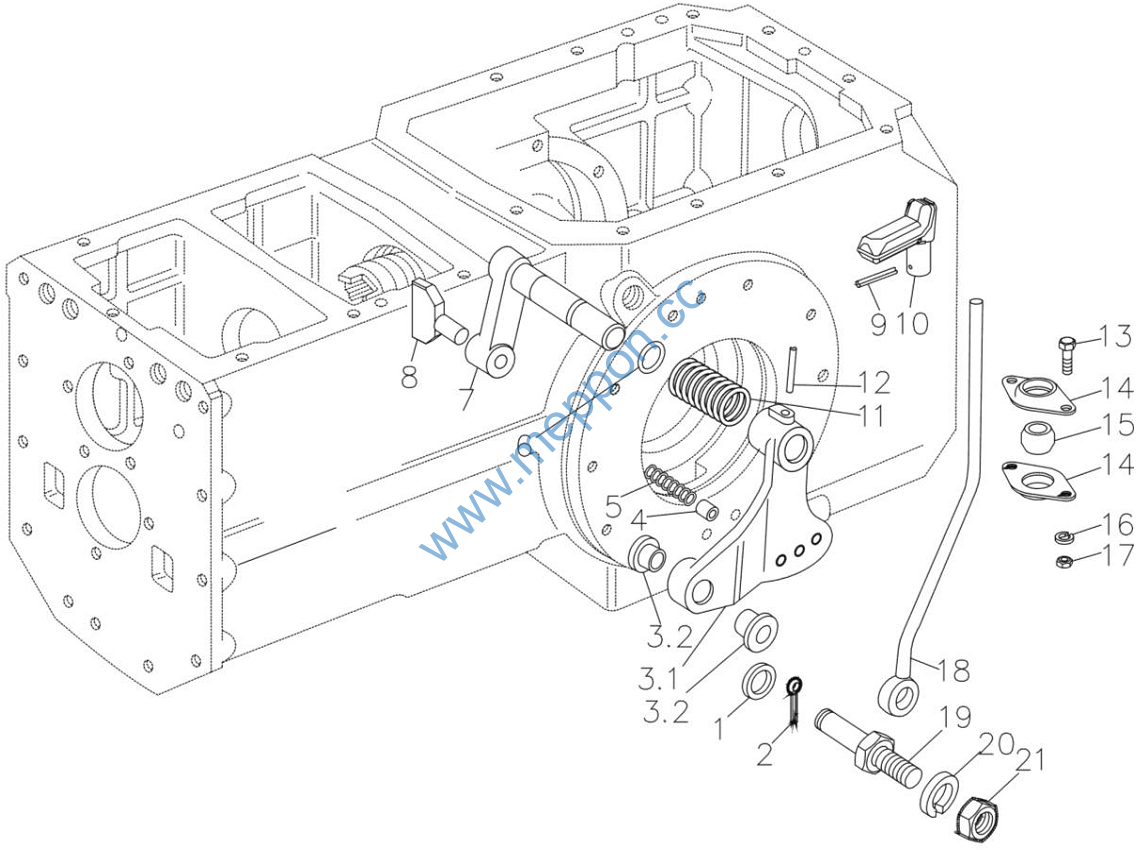

1

Washer 10-Zn.D

GB/T97.1-2002

1

10

Handle assembly

5136799/1.80.266

1

2

Pin 2×20-Zn.D

GB/T91-2000

1

11

Spring

580548/1.39.227

1

3

Outer lever and busing unit

5129486/1.80.257

2

12

Elastic cylindrical pin 6×36

BZ/JHX-SZ

1

3.1

Bushing, outer lever

5129442/1.80.268

1

13

Screw M6X16-Zn.D

GB/T818-2000

1

3.2

Outer lever, PTO control

5128426/1.80.257

1

14

Ball socket

4998311/1.80.255

1

4

Dowel pin

5150839/1.80.260

1

15

Ball socket

5109058/1.80.254

1

5

Spring

5128251/1.32.230

1

16

Washer 6-Zn.D

GB/T7244-1987

2

6

O-ring12.42×1.78

14453180/14618

1

17

Nut M6-Zn.D

GB/T6170-2000

2

7

Inner lever, PTO control

5129848/1.80.236A

1

18

Lever, PTO control

SZ804.41A.101

1

8

Shift block

884984096/1.80.237

1

19

Lever, PTO control

885134243/1.80.271

1

9

Tapping screw ST4.2×2.5-F-H

GB/T845-1985

1

20

Washer 10-Zn.D

GB/T7244-1987

1

21

Nut M10×1.25-Zn.D

GB/T6173-2000

1

No.

Part Name

Part No.

Qty.

No.

Part Name

Part No.

Qty.

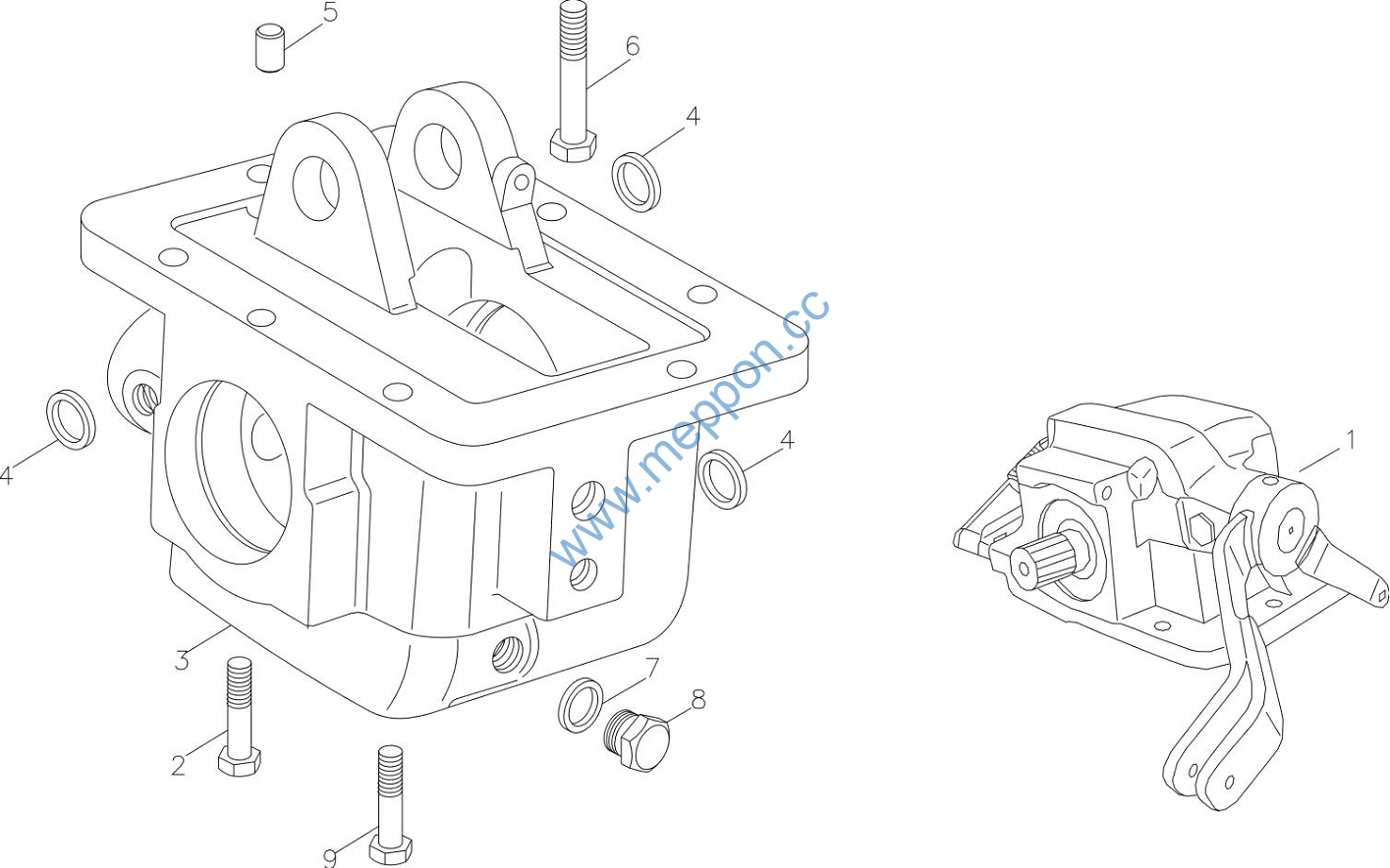

1

Transfer case assembly

LX804.42.001-TY

1

2

Bolt    M12×1.25×110

GB/T5786-2000

1

3

Housing, leadout device

8A5129778SZ/1.33.002

1

4

Sealing ring 12×18×1.5

10298460/14607

3

5

Pin B12×18

GB/T119-1986

2

6

Bolt    M12×1.25×55

GB/T5786-2000

1

7

Composite seal washer 22

GB/T982-1997

1

8

Hexagon head plug M22×1.5

10305174/14530

1

9

Bolt M12×1.25×35

GB/T5786-2000

4

No.

Part Name

Part No.

Qty.

No.

Part Name

Part No.

Qty.

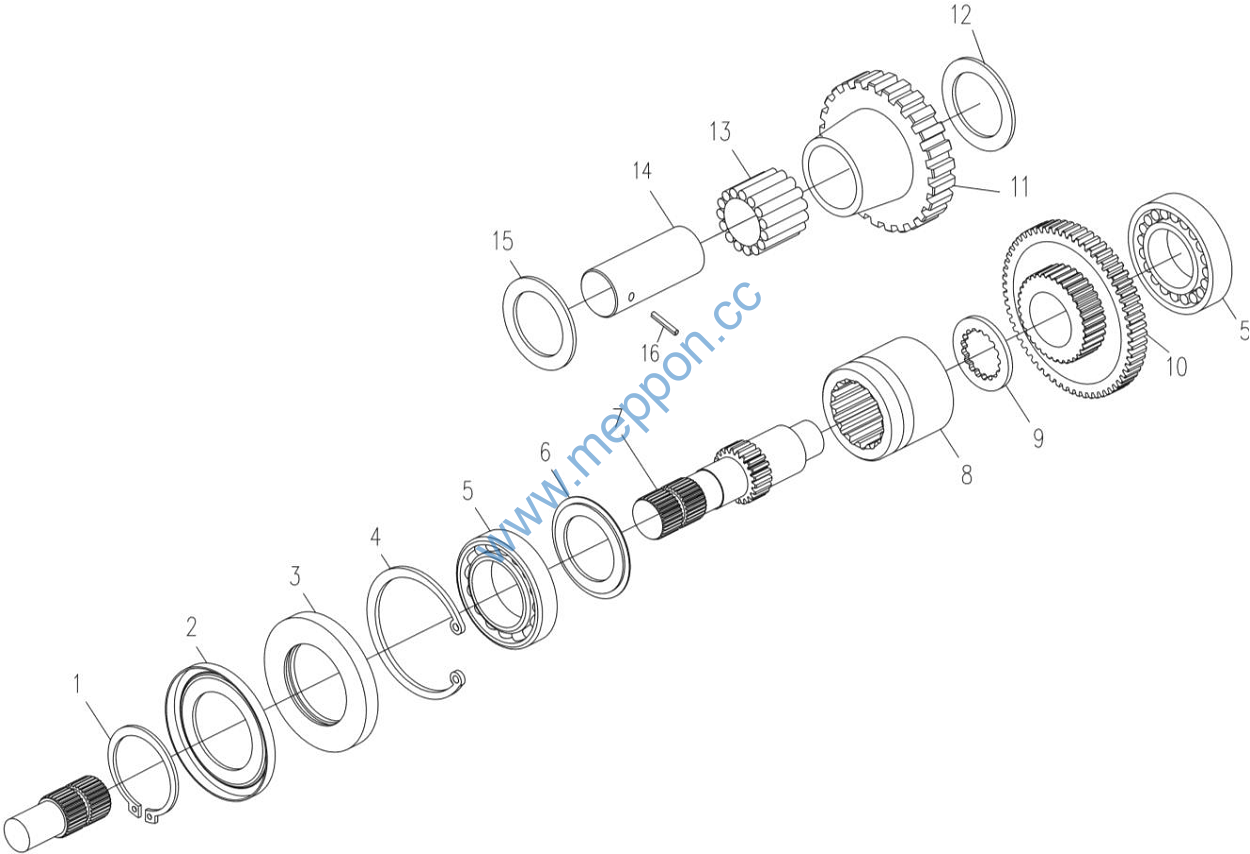

1

Retainer ring 29

GB/T894.1-1986

1

10

Driven shaft, leadout device

5125012SZ/1.33.132

1

2

Retaining plate, oil seal

5109919/1.33.136

1

11

Idler, leadout device

5125011SZ/1.33.110

1

3

Oil seal 30×72×10

5119206/1.33.135

1

12

Spacer, bearing, idler

5123389/1.33.123

1

4

Retainer ring 72

GB/T893.1-1986

1

13

Needle φ7×41

5116735/1.48.172

15

5

Bearing 6306E(306)

GB/T276

2

14

Shaft, idler, leadout device

5123387SZ/1.33.112

1

6

Oil baffle disc

584132/1.80.348

1

15

Thrust washer, idler

8A5115930/1.33.122

2

7

Driven shaft, leadout device

5123391SZ/1.33.133

1

16

Elastic cylindrical pin 6×50

BZ/JHX-SZ

1

8

Shifting sleeve

5123388SZ/1.33.116

1

9

Retainer ring, driven gear

5124122/1.33.115

1

No.

Part Name

Part No.

Qty.

No.

Part Name

Part No.

Qty.

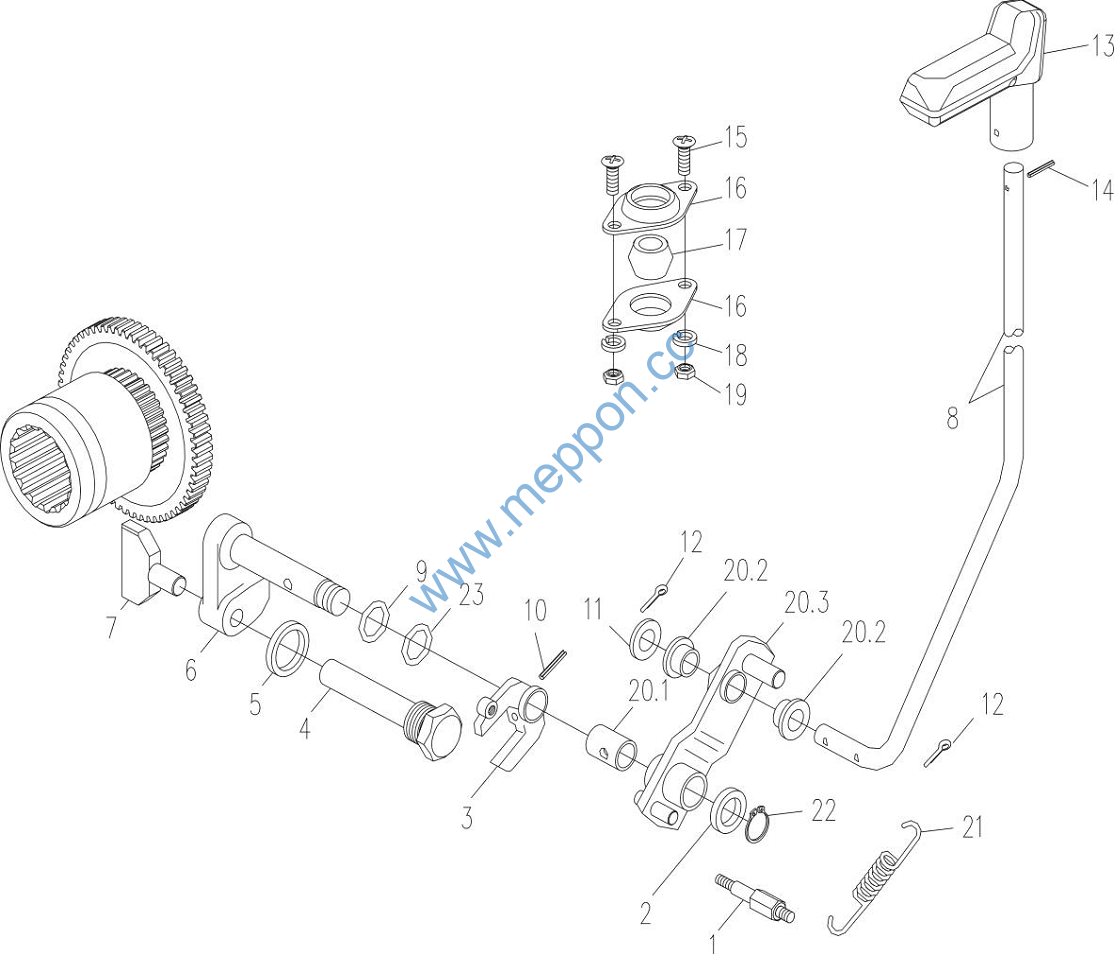

1

Limit screw

5129031/1.33.244

1

13

Handle assembly

5136799/1.80.266

1

2

Washer, external drive link, leadout

device

5129024/1.33.229

1

14

Tapping screw

ST4.2×25-F-H

GB/T845-1985

1

3

Limit fork, control, leadout device

885129032/1.33.245

1

15

Screw M6×14-Zn.D

GB/T818-2000

2

4

Stop screw, drive link

5129023/1.33.228

1

16

Ball socket

4998311/1.80.255

2

5

Rectangular cross-section seal ring

14×20×1.5

10280060/14607

1

17

Ball socket

5109058/1.80.254

1

6

Inner drive link unit, leadout device

control

5129021/1.33.222A

1

18

Washer 6-Zn.D

GB/T7244-1987

2

7

Slide block, control, leadout device

885118105/1.33.237

1

19

Nut M6-Zn.D

GB/T6170-2000

2

8

Joystick, leadout device

SZ804.42A.101

1

20

Outer lever unit with bush

5129875/1.33.234A

1

9

O-sealing ring 2.62×15.88

559983/1.80.232

1

20.1

Bushing, shaft, drive link

5129030/1.33.238

1

10

Elastic cylindrical pin 5×28

BZ/JHX-SZ

1

20.2

Bushing, joystick

5129442/1.80.268

2

11

Washer 10-Zn.D

GB/T97.1-2002

2

20.3

Outer lever weldment,

leadout device

5129874/1.33.234

1

12

Pin 2×18-Zn.D

GB/T91-2000

2

21

Return spring, control lever,

leadout device

5129033/1.33.246

1
