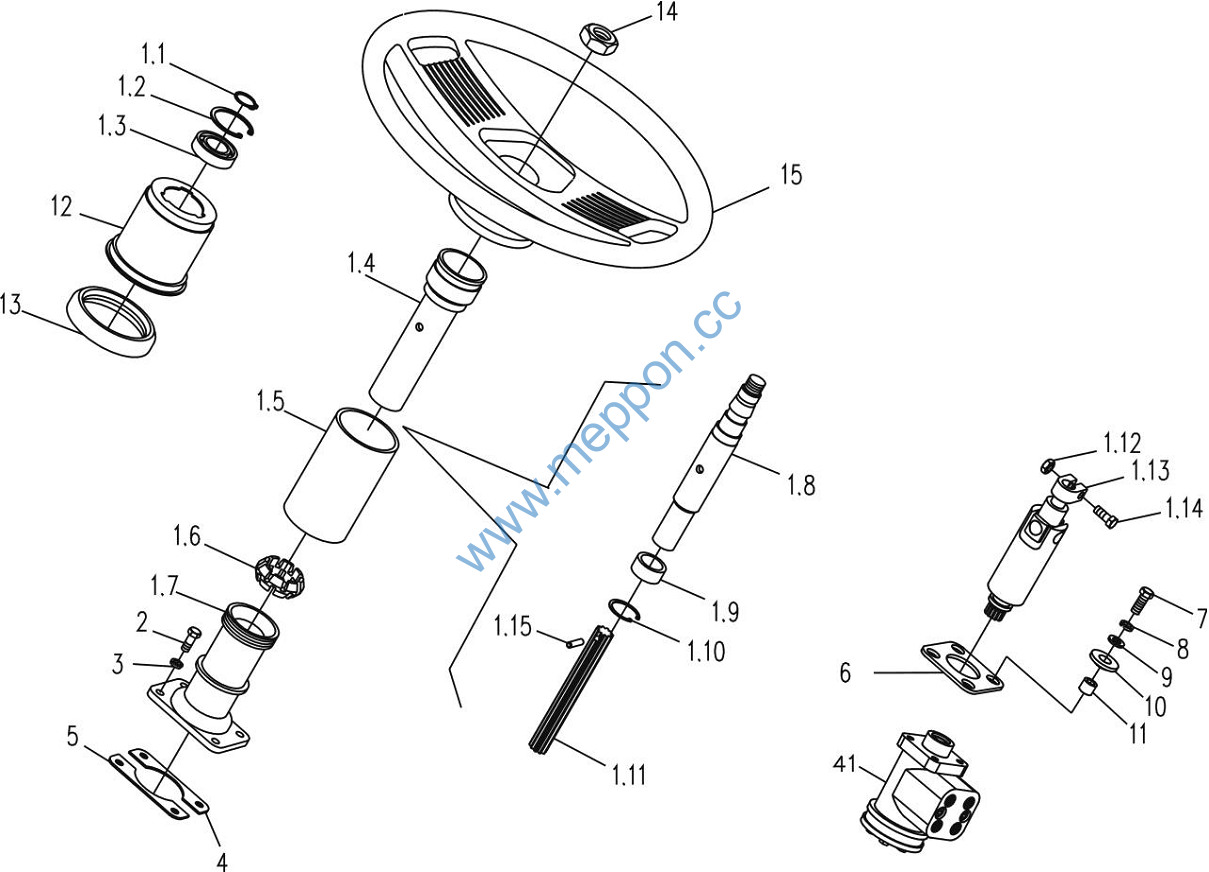

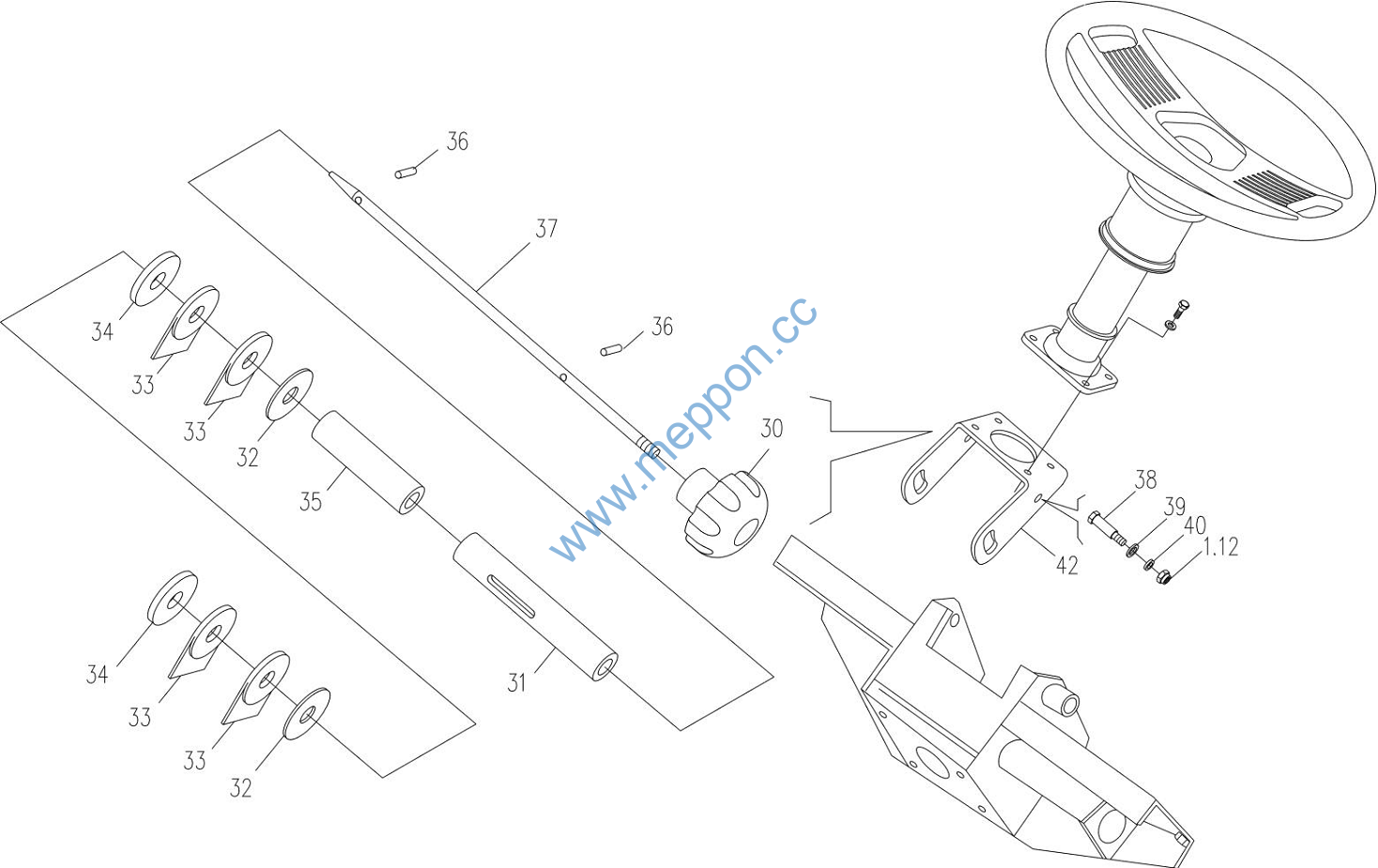

No.

Part Name

Part No.

Qty.

No.

Part Name

Part No.

Qty.

1

Steering gear assembly

5124907SZ/1.62.0

1

8

Washer 10

GB/T93-1987

4

1.1

Retainer ring 25

GB/T894.1-1986

1

9

Washer 10

GB/T5287-2002

4

1.2

Retainer ring 47

GB/T893.1-1986

1

10

Pad unit

5119125/1.87.038

4

1.3

Bearing 80105

GB 278-82

1

11

Bushing, hydraulic steering gear

5124936/1.62.0

4

1.4

Sleeve unit

5124908/1.62.0

1

12

Cover (UPR)

5124923/1.62.0

1

1.5

Locking coil, column

5139283/1.62.0

1

13

Seal ring, shield (UPR)

5130351/1.62.0

1

1.6

Taper sleeve

5124917/1.62.0

1

14

Mounting nut, steering wheel

SZ904.40.160

1

1.7

Hold-down support

5124918/1.62.0

1

15

Steering wheel assembly

SZ904.40.014

1

1.8

Steering column unit

8B885124910SZ /1.62.0

1

30

Lock handle unit, steering column

5124925/1.62.0

1

1.9

Anti-friction sleeve

5124913/1.62.0

1

31

Outer sleeve

5124934/1.62.0

1

1.1

Retainer ring 34

GB/T893.1-1986

1

32

Washer 15×45×2

1204-1.40.117

2

1.11

Splined steering shaft

5124912/1.62.0

1

33

Lining

5128972/1.62.0

4

1.12

Nut    M8-Zn.D

GB/T6814-2000

1

34

Washer

1204-1.40.118

2

1.13

Universal joint

5146310/1.62.0

1

35

Inner sleeve

5124935/1.62.0

1

1.14

Bolt    M8×35-Zn.D

GB/T5782-2000

1

36

Elastic cylindrical pin 5×30

BZ/JHX-SZ

2

2

Bolt    M8×30-Zn.D

GB/T5783-2000

4

37

Locating shaft, steering wheel

5124933/1.62.0

1

3

Washer 8-Zn.D

GB/T7244-1987

4

38

Pin, support

5110738/1.62.061

2

4

Washer

5127283/1.62.0

As required

39

Washer 8-Zn.D

GB/T848-2002

2

5

Washer

5127284/1.62.0

As required

40

Washer, bracket

5111199/1.62.058

4

6

Lining board, hydraulic steering gear

5124937/1.62.0

1

41

Hydraulic steering gear

885140382/1.63.101

1

7

Bolt    M10×30-Zn.D

GB/T5783-2000

4

42

Bracket assembly, steering column

5124930/1.62.0

1

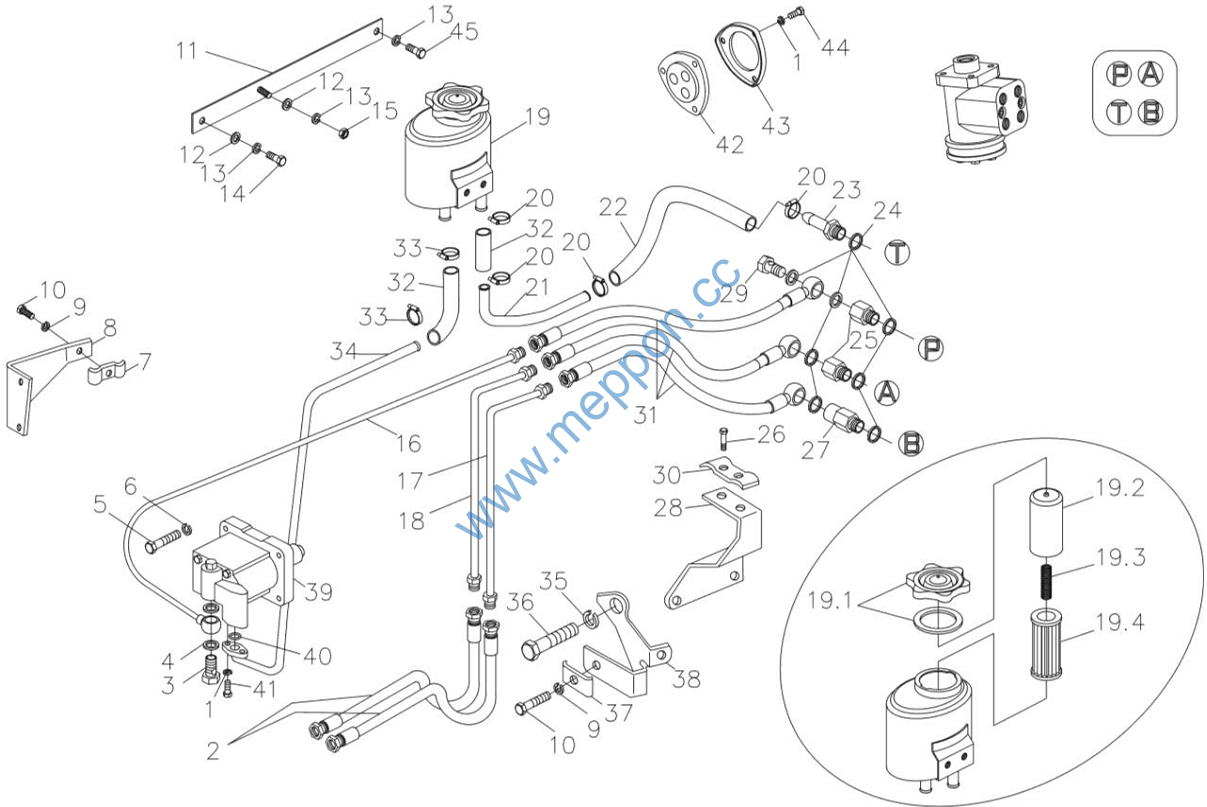

No.

Part Name

Part No.

Qty.

No.

Part Name

Part No.

Qty.

1

Washer 8

GB/T93-1987

7

19

Steering fluid reservoir assembly

SZ804.40.056

1

2

Hose assembly, cylinder

SZ804.40.051A

1

19.1

Oil tank cap with gasket

5111699/1.63.841B

1

SZ804.40.052A

1

19.2

Case, filter

4997991/1.63.857

1

3

Hollow bolt

885105699/1.63

1

19.3

Spring

5103058/1.63.807

1

4

Rectangular cross-section seal ring18×24×1.5

JB982-77

2

19.4

Filter element assembly

4997992/1.63.858

1

5

Bolt    M8×30-Zn.D

GB/T5782-2000

4

20

Hoop 24

JB3616.1-84

4

6

Washer 8-Zn.D

GB/T93-1987

4

21

Steering gear oil return pipe assembly(To oil tank)

SZ700.40.017

1

7

Oil pipe clamp

4999554/1.63.583

1

22

Oil return pipe, steering gear

SZ804.40.507

1

8

Support, oil pipe

5149036/1.63.896

1

23

Joint assembly, oil return pipe, steering gear

885126687/1.63.824

1

9

Washer 6-Zn.D

GB/T7244-1987

7

24

Rectangular cross-section seal ring 21.2×26×2

44019496/1.63.898

10

10

Bolt    M6×14

GB/T5783-2000

2

25

Connection, hose, steering gear

885126686/1.63.877

2

11

Bracket unit, steering fluid reservoir

SZ804.40.054-2

1

26

Bolt    M6×22

GB/T5783-2000

3

12

Washer 8-Zn.D

GB/T97.1-2002

2

27

Connection, hose, steering gear

885126685/1.63.878

1

13

Washer 8-Zn.D

GB/T93-1987

3

28

Bracket unit

5149025/1.63.894

1

14

Bolt    M8×20-Zn.D

GB 5781-86

1

29

Hollow bolt

5112983/1.63.881

3

15

Nut    M8-Zn.D

GB/T6170-2000

1

30

Oil pipe splint

880006302/1.63

1

16

Oil pump outlet pipe assembly

8A5149054SZ/1.63.820

1

17

Steering oil pipe assembly (RH)

5149056/1.63.871

1

18

Steering oil pipe assembly (LH)

5149058/1.63.872

1

No.

Part Name

Part No.

Qty.

No.

Part Name

Part No.

Qty.

31

Hose assembly, steering gear

SZ804.40.053

3

32

Hose

SZ804.40.505

2

33

Hoop 24

JB3616.1-84

4

34

Oil pump inlet pipe assembly

SZ804.40.062

1

35

Washer 16-Zn.D

GB/T93-1987

1

36

Bolt    M16×80-Zn.D

GB/T5782-2000

1

37

Oil pipe clamp

5137954/1.63.832

1

38

Support, oil pipe

5149037/1.63.583

1

39

Steering pump

HLCB-D16/12

1

40

O-ring20.29×2.62

14618/14457581

1

41

Bolt    M8×28-Zn.D

GB5786

2

42

Pad, hose, steering gear

SZ804.40.501

1

43

Flange, hose, steering gear

5126690/1.63.875

1

44

Bolt M8×30-Zn.D

GB/T5783-2000

3

45

Screw M8×20-Zn.D

GB 68-85

1

No.

Part Name

Part No.

Qty.

No.

Part Name

Part No.

Qty.

1

Retainer ring 90

12246/11062476-SZ

1

11

Joystick with handle

LX954.41.012-1

1

2

Bearing 6308E(308)

GB/T276

2

12

Elastic cylindrical pin 4×24

BZ/JHX-SZ

1

3

Housing unit, PTO

SZ904.41.011A

1

13

Pin, joystick

885117036/1.80.153

1

3.1

Support, front bearing, PTO

8A0808052/1.80

1

14

Bolt    M16×1.5×45

GB/T5786-2000

4

3.2

Dowel pin 10×15

10839710/12507

2

15

Shift fork

8A5109744/1.80.155

1

3.3

Housing, PTO

SZ904.41.101A

1

16

O-ring12.5×2.65

GB/T3452.1-82

1

4

Retainer ring 35

GB/T894.1-1986

1

17

Elastic cylindrical pin 5×32

BZ/JHX-SZ

1

5

Bushing, PTO shaft

880808057/1.80

1

18

Slider, shift fork

8B0808053/1.80

1

6

1000/540rpm PTO driving

shaft

880808060SZ/1.80

1

19

Steel ball 11/32G106

GB/T308-84

1

7

Double speed handle

SZ804.41A.507

1

21

Washer 12-Zn.D

GB/T93-1987

4

8

Rectangular cross-section seal

washer 22×28×1.5

10263460/14607

1

22

Bolt    M12×1.25×40

GB/T5786-2000

4

9

Oil dipstick assembly

5134687/1.80.185A

1

23

Bearing NUP307E

GB/T276-1994

1

10

Bolt    M16×1.5×90

GB/T5785-2000

6

24

Nut, shaft, driven gear

5122985/1.28.149

1

25

Gear retainer, 1,000 r/min

880808056/1.80

1

26

Inner bushing, driven gear

5101537/1.28.132

2

27

Driven gear, 1000 r/min

880808061A/1.80

1
