YTO X704 Tractor Parts Catalogue Optional model 20
61 Force-in-earth multi-way valve & pilot line assembly with two sets of hydraulic outputs
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
1 |
Oil delivery hollow bolt |
5100984/1.82.799A |
7 |
19 |
Nut M10×1.25 |
GB 6171-2000 |
3 |
2 |
Washer 18 |
JB982-77 |
18 |
20 |
Bolt M10×1.25×20 |
GB 5786-2000 |
4 |
3 |
From multi-way valve to transition housing oil pipe assembly |
ME700.58.017 |
1 |
21 |
Head, handle, position control lever |
SZ900.55.102 |
1 |
4 |
Washer 22 |
JB982-77 |
5 |
22 |
With one floating multi-valve handle lever |
SZ900.61.010-1 |
1 |
5 |
Connector |
ME700.58.102 |
2 |
23 |
Retainer ring 21 |
11066976/12245 |
2 |
6 |
O-ring11.2×1.80G |
GB 3452.1-1992 |
3 |
24 |
Spacer, pin, lever |
5127167/1.82.255B |
2 |
7 |
Oil pipe assembly (LWR) to cylinder |
ME700.58.016-1 |
1 |
25 |
Spacer, lever |
5126032/1.82.262 |
3 |
7.1 |
Oil pipe assembly (UPR) to cylinder |
ME700.58.018 |
1 |
26 |
Thickness shim, shaft, lever |
5126195/1.82.255A |
1 |
8 |
Pipe joint |
ME700.58.106 |
1 |
27 |
Spacer, lever |
5126443/1.82.216 |
3 |
9 |
Oil return pipe assembly, multi-way valve |
ME700.61B.014-1 |
1 |
28 |
Pin, lever |
5126024/1.82.254 |
1 |
10 |
Bracket, multi-way valve |
SZ804.61.111 |
1 |
29 |
Bolt M8×22 |
GB/T5783-2000 |
2 |
11 |
Three-piece multi-way valve assembly |
ME700.61B.015-1 |
1 |
30 |
Washer 8 |
GB/T93-1987 |
2 |
12 |
Connector on valve |
5112588/1.82.799B |
1 |
31 |
Nut M8 |
GB/T6170-2000 |
2 |
13 |
Adapter sleeve |
5121789/1.82.794 |
1 |
32 |
Spring washer 13 |
10125574/13130/01 |
3 |
14 |
Connector |
5143445/1.82.794A |
1 |
33 |
Cover, ball joint |
10124514/13130/01 |
3 |
15 |
High-pressure oil inlet pipe assembly to multi-way valve |
SZ804.61.031 |
1 |
34 |
Control link, multi-way valve |
SZ900.61.103 |
3 |
16 |
Bolt M10×1.25×70 |
GB 5785-2000 |
1 |
35 |
Pin 2×18 |
GB/T91-2000 |
3 |
17 |
Bolt M10×16 |
GB 5783-2000 |
3 |
36 |
Connecting pin, control lever, multi-way valve |
5/5126824 |
3 |
18 |
Washer 10 |
GB 93-1987 |
1 |
37 |
Mounting bolt , knob |
5113531/1.82.797C |
6 |
61 Force-in-earth multi-way valve & pilot line assembly with two sets of hydraulic outputs
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
38 |
Handle, two-piece valve |
SZ804.61C.011 |
1 |
||||
39.1 |
Female connector |
SZ1204.58.033-B1 |
4 |
||||
39.2 |
Male connector |
SZ1204.58.033-A |
4 |
||||
40 |
Hexagon nut M24×1.5 |
5129168/1.82.785 |
8 |
||||
41 |
Oil pipe (UPR), one-piece valve |
ME700.61.017 |
1 |
||||
42 |
Oil pipe (LWR), one-piece valve |
ME700.61.018 |
1 |
||||
43 |
Head, handle, one-piece valve |
SZ900.61.101 |
2 |
||||
44 |
Oil pipe assembly (UPR), two-piece valve |
ME700.61B.012-1 |
1 |
||||
45 |
Lever, handle, one-piece valve |
SZ804.61C.010 |
1 |
||||
46 |
Oil pipe assembly (LWR), two-piece valve |
ME700.61B.013-1 |
1 |
||||
47 |
Quick change coupler bracket |
ME700.61B.010 |
1 |
||||
48 |
Head, handle, two-piece valve |
SZ900.61.102 |
1 |
||||

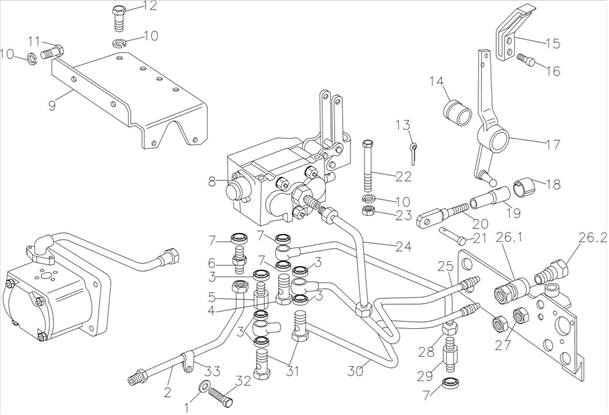

61 One-piece distribution valve
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
||
1 |
Washer 12 |
GB/T93-1987 |
1 |
19 |
Cover, ball joint |
10124514/13130/01 |
1 |
||
2 |
Connected to multi-way valve outlet pipe assembly |
880808202/1.82 |
1 |
20 |
Control link, multi-way valve |
SZ900.61.103 |
1 |
||
3 |
Rectangular cross-section seal ring 18×24×1.5 |
10259960/14607 |
5 |
21 |
Connecting pin |
5126824/5 |
1 |
||
4 |
Connector on valve |
5112588/1.82.799B |
1 |
22 |
Bolt |
M10×1.25×65 |
GB/T5785-2000 |
3 |
|
5 |
Adapter sleeve |
5121789/1.82.794 |
2 |
23 |
Nut |
M10×1.25 |
GB/T6171-2000 |
3 |
|
6 |
Connector |
5143445/1.82.794A |
1 |
24 |
Oil inlet pipe assembly, multi-way valve to lifter |
5129173/1.82.792 |
1 |
||
7 |
Rectangular cross-section seal ring 22×28×1.5 |
10263460/14607 |
4 |
25 |
Oil outlet pipe assembly, multi-way valve to lifter |
5129179/1.82.793 |
1 |
||
8 |
Single-piece single/double acting multi-way valve assembly |
885147035A |
1 |
26 |
Connector assembly, hydraulic output |
||||
9 |
Bracket, multi-way valve |
5125388/1.82.714 |
1 |
26.1 |
Female connector unit |
NV 12 GAS F V+TM12 |
2 |
||
10 |
Washer 10 |
GB/T93-1987 |
8 |
26.2 |
Male connector unit |
NV 12 GAS M V+TF12 |
2 |
||
11 |
Bolt |
M10×1.25×22 |
GB/T5786-2000 |
4 |
27 |
Hexagon nut M24×1.5 |
5129168/1.82.785 |
4 |
|
12 |
Bolt |
M10×16 |
GB/T5783-2000 |
1 |
28 |
Oil outlet pipe assembly, multi-way valve to lifter |
1.82.791/8A5129171 |
1 |
|
13 |
Pin 2×18 |
GB/T91-2000 |
1 |
29 |
Joint, oil outlet pipe, multi-way valve |
5133609/1.82.787 |
1 |
||
14 |
Bushing, outer lever |
5126032/1.82.262 |
2 |
30 |
Oil pipe assembly (UPR), multi-way valve to quick change coupler |
5129181/1.82.793A |
1 |
||
15 |
Head, handle, one-piece distribution valve |
SZ900.61.101 |
1 |
31 |
Hollow bolt, fuel feed pipe |
5100984/1.82.799A |
2 |
||
16 |
Mounting bolt , knob |
5113531/1.82.797C |
2 |
32 |
Bolt |
M12×1.25×16 |
GB/T5786-2000 |
1 |
|
17 |
Lever, handle, one-piece distribution valve |
SZ804.61C.010 |
1 |
33 |
Bracket |
885149048/1.82.158 |
1 |
||
18 |
Clip 13 |
10125574/13130/03 |
1 |

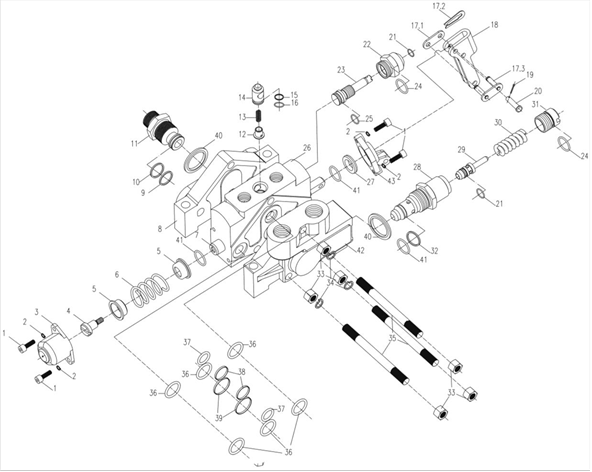

61 Single-piece single and double acting multi-way valve assembly
61 Single-piece single and double acting multi-way valve assembly
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
1 |
Screw M5×16 |
GB70-85 |
2 |
21 |
O-ringΦ9.5×1.8 |
GB3452.1-82 |
2 |
2 |
Washer 5-140HVZn.D |
GB848-85 |
4 |
22 |
Single and double acting adjusting seat |
DLF/50-1P-215 |
1 |
3 |
Spring cup |
DLF/50-1P-208 |
1 |
23 |
Single and double acting adjuster lever |
DLF/50-1P-214 |
1 |
4 |
Screw, spool valve |
DLF/50-1P-205 |
1 |
24 |
O-ringΦ17×2.65 |
GB3452.1-82 |
2 |
5 |
Seat, spring |
DLF/50-1P-206 |
2 |
25 |
O-ringΦ13.2×1.8 |
GB3452.1-82 |
1 |
6 |
Spring, spool valve |
DLF/50-1P-207 |
1 |
26 |
Housing, three-position valve |
DLF/50-1P-209 |
1 |
7 |
Rod, three-position valve |
DLF/50-1P-203 |
1 |
27 |
Scraper seal |
DLF/50-1P-201 |
1 |
8 |
Cover (RR) |
DLF/50-1P-204 |
1 |
28 |
Seat, relief valve |
DLF/50-1P-101 |
1 |
9 |
O-ring Φ17×1.8 |
GB3452.1-82 |
2 |
29 |
Core, relief valve |
DLF/50-1P-102 |
1 |
10 |
Retainer ring, seat, oil outlet |
DLF/50-1P-007 |
1 |
30 |
Spring, relief valve |
DLF/50-1P-104 |
1 |
11 |
Seat, oil outlet |
DLF/50-1P-006 |
1 |
||||
12 |
Body, one-way valve |
DLF/50-1P-210 |
1 |
||||
13 |
Spring, one-way valve |
DLF/50-1P-213 |
1 |
||||
14 |
Seat, spring, check valve |
DLF/50-1P-212 |
1 |
||||
15 |
Retainer ring, seat, spring, check valve |
DLF/50-1P-211 |
1 |
||||
16 |
O-ring Φ14×2 |
GB3452.1-82 |
1 |
||||
17.1 |
Stopper |
DLF/50-1P-003 |
1 |
||||
17.2 |
Locking plate |
DLF/50-1P-002 |
1 |
||||
17.3 |
Retainer |
DLF/50-1P-301 |
1 |
||||
18 |
Control fork |
DLF/50-1P-001 |
1 |
||||
19 |
Pin 2×10-Zn.D |
GB91-86 |
1 |
||||
20 |
Shaft, Pin B622 |
GB882-86 |
1 |
61 Single-piece single and double acting multi-way valve assembly
No. |
Part Name |
Part No. |
Qty. |
No. |
Part Name |
Part No. |
Qty. |
31 |
Adjusting block, spring |
DLF/50-1P-103 |
1 |
||||
32 |
Retainer ring, safety valve |
DLF/50-1P-106 |
1 |
||||
33 |
Nut M10×1 |
GB6170-86 |
6 |
||||
34 |
Washer 10 |
GB859-87 |
3 |
||||
35 |
Bolt M10×1-8.8L=120 |
GB901-88 |
3 |
||||
36 |
O-ringΦ19×2.65 |
GB3452.1-82 |
6 |
||||
37 |
O-ringΦ14×2.65 |
GB3452.1-82 |
2 |
||||
38 |
Small retainer ring, three-position valve |
DLF/50-1P-009 |
2 |
||||
39 |
Retainer ring, three-position valve |
DLF/50-1P-008 |
2 |
||||
40 |
Composite seal washer 27 |
JB982-77 |
2 |
||||
41 |
O-ringΦ16×1.8 |
GB3452.1-82 |
3 |
||||
42 |
Cover (FR) |
DLF/50-1P-005 |
1 |
||||
43 |
Support, control lever |
DLF/50-1P-202 |
1 |
||||
44 |
Screw M5×20 |
GB70-85 |
2 |
