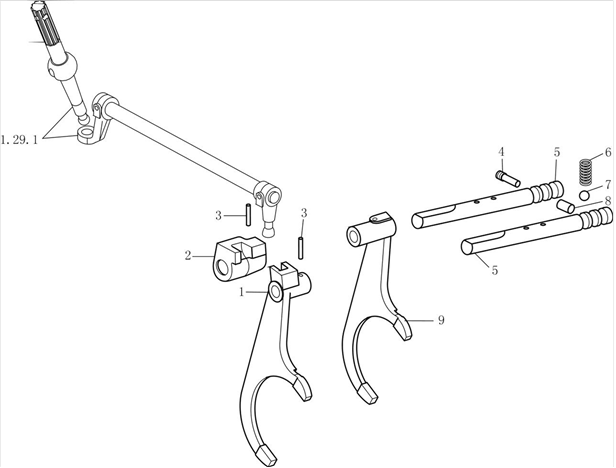

No.

Part Name

Part No.

Qty.

No.

Part Name

Part No.

Qty.

1

Fork, Ⅲ/Ⅳ

5127388/1.29.011

1

6

Spring

884994342/1.29.031

2

2

Shift block

8A5129522/1.29.004

1

7

Steel ball 11/32

GB/T308-84

2

3

Spiral spring pin 5×32

13907770/12215

3

8

Interlock pin

5110264/1.29.041

1

4

Slotted plug M12×1.25

10152314/14548

1

9

Fork, I/II

5127387/1.29.010

1

5

Main shift slider

804C-1.37.201

2

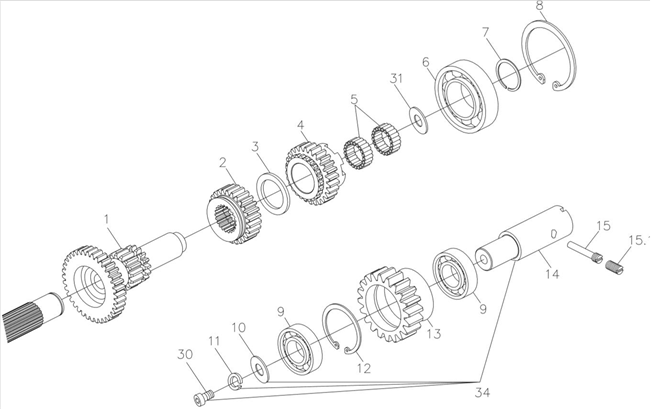

No.

Part Name

Part No.

Qty.

No.

Part Name

Part No.

Qty.

1

Driving shaft unit

5125361SZ/1.32.110

1

15.1

Slotted plug

880803204/1.32

1

2

Sliding gear, N-R

885145164SZ/1.32.106

1

16

Shift collar, Hi-Lo

5125010SZ/1.32.188

1

3

Thrust spacer, driving shaft

5109683/1.32.135

1

17

Retainer, shift collar

5125009SZ/1.32.169

1

4

Driving gear, medium range

SZ904.37.109

1

18

Driven gear, low range

5125007/1.32.117514

1

5

Needle bearing K42×50×20

GBT5846-86

2

19

Driven gear, R

5165SZ/1.32.118

1

6

Bearing NJ212E(42212)

GB/T283

1

20

Bearing (RR), shaft, bevel

pinion45×100×38.25

5138664/1.32.139

1

7

Retainer ring 50

GB/T895.1-86

1

21

Bevel gear pair

5138663SZ/1.32.130

1

8

Retainer ring 110

GB/T893.1-86

1

21.1

Shaft, bevel pinion

5138661SZ/1.32.103

1

9

Bearing 6205E(205)

GB/T276

1

21.2

Bevel gear wheel

5138662SZ/1.32.108

1

10

Gasket, reverse shaft

880803205/1.32.112

2

22

Retainer ring 42

1068976/12245

1

11

Washer 10

GB/T93-1987

1

23

Doroid, driven gear, R

5127762/1.32.173

1

12

Retainer ring 52

GB/T893.1-86

1

24

Lock nut, shaft, bevel

pinionM45×1.5

885117744/1.32.148

1

13

Idle gear, R

5145166SZ/1.32.113

1

25

Washer, nut, shaft, bevel

gear

5119261/1.32.146

1

14

Reverse shaft

8A5153087/1.32.112

1

26

Driven gear, medium range

SZ904.37.110

1

15

Thread lock pin

885152965/1.32.124

1

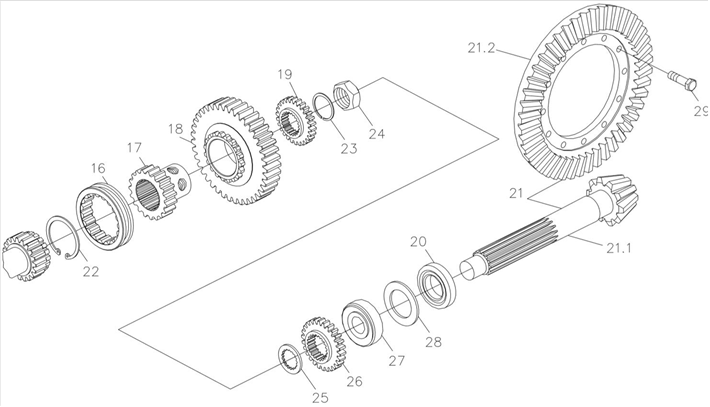

No.

Part Name

Part No.

Qty.

No.

Part Name

Part No.

Qty.

27

Bearing (FR), shaft, bevel

pinion45×100×20.75

5130990/1.32.138B

1

29

Bolt    M12×1.25×30

14274534/10357/04

12

28

Adjusting shim 1.90mm, bevel gear

5111859/1.28.139

1

30

Screw    M10×1.25×16

14359920/10356

1

Adjusting shim 1.95mm, bevel gear

5111860/1.28.139

31

Thrust ring, driving shaft,

splitter

SZ904.37.111

1

Adjusting shim 2.00mm, bevel gear

5111861/1.28.139

34

Reverse shaft unit

SZ804.37.052

1

Adjusting shim 2.05mm, bevel gear

5111862/1.28.139

Adjusting shim 2.10mm, bevel gear

5111863/1.28.139

Adjusting shim 2.15mm, bevel gear

5111864/1.28.139

Adjusting shim 2.20mm, bevel gear

5111865/1.28.139

Adjusting shim 2.25mm, bevel gear

5111866/1.28.139

Adjusting shim 2.30mm, bevel gear

5111867/1.28.139

Adjusting shim 2.35mm, bevel gear

5111868/1.28.139

Adjusting shim 2.40m, bevel gearm

5111869/1.28.139

Adjusting shim 2.45mm, bevel gear

5111870/1.28.139

Adjusting shim 2.50mm, bevel gear

5111871/1.28.139

Adjusting shim 1.85mm, bevel gear

5125098/1.28.139

Adjusting shim 2.55mm, bevel gear

5125099/1.28.139

Adjusting shim 2.60mm, bevel gear

5125100/1.28.139

Adjusting shim 2.65mm, bevel gear

5125101/1.28.139

Adjusting shim 2.70mm, bevel gear

5125102/1.28.139

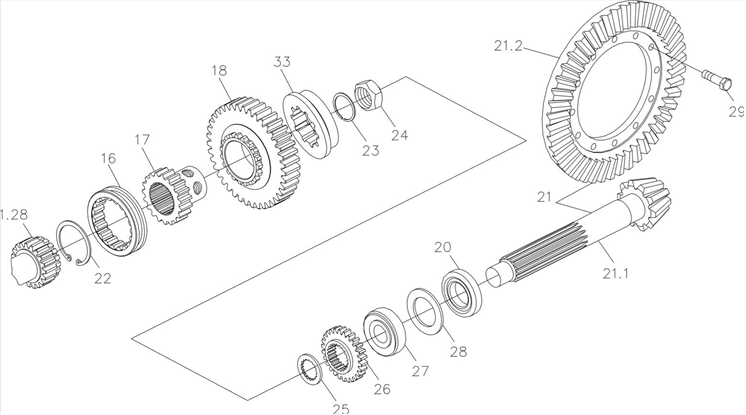

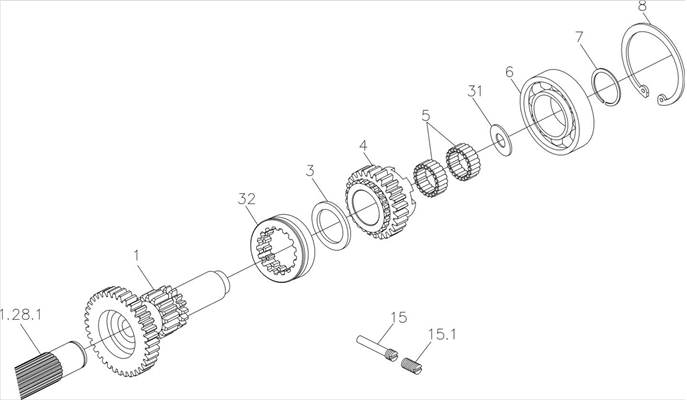

No.

Part Name

Part No.

Qty.

No.

Part Name

Part No.

Qty.

1

Driving shaft unit

5125361SZ/1.32.110

1

26

Driven gear, medium range

5125005SZ/1.32.111

1

3

Thrust spacer, driving shaft

5109683/1.32.135

1

27

Bearing (FR), shaft, bevel pinion 45×100×20.75

5130990/1.32.138B

1

4

Driving gear, medium range

885125013SZ/1.32.105

1

5

Needle bearing 42×47×27

5109747/1.32.150

2

28

Adjusting shim 1.90mm, bevel gear

5111859/1.28.139

1

6

Bearing 6212E(212)

GB/T276

1

Adjusting shim 1.95mm, bevel gear

5111860/1.28.139

7

Thrust ring

5117076/1.32.134

1

Adjusting shim 2.00mm, bevel gear

5111861/1.28.139

8

Retainer ring 110

GB/T893.1-86

1

Adjusting shim 2.05mm, bevel gear

5111862/1.28.139

15

Thread lock pin

885152965/1.32.124

1

Adjusting shim 2.10mm, bevel gear

5111863/1.28.139

15.1

Slotted plug

880803204/1.32

1

Adjusting shim 2.15mm, bevel gear

5111864/1.28.139

16

Shift collar, Hi-Lo

5125010SZ/1.32.188

1

Adjusting shim 2.20mm, bevel gear

5111865/1.28.139

17

Retainer, shift collar

5125009SZ/1.32.169

1

Adjusting shim 2.25mm, bevel gear

5111866/1.28.139

18

Driven gear, low range

5125007/1.32.117514

1

Adjusting shim 2.30mm, bevel gear

5111867/1.28.139

20

Bearing (RR), shaft, bevel pinion45×100×38.25

5138664/1.32.139

1

Adjusting shim 2.35mm, bevel gear

5111868/1.28.139

21

Bevel gear pair

5138663SZ/1.32.130

1

Adjusting shim 2.40m, bevel gearm

5111869/1.28.139

21.1

Shaft, bevel pinion

LX954.38.101

1

Adjusting shim 2.45mm, bevel gear

5111870/1.28.139

21.2

Bevel gear wheel

LX954.38.102

1

Adjusting shim 2.50mm, bevel gear

5111871/1.28.139

22

Retainer ring 42

1068976/12245

1

Adjusting shim 1.85mm, bevel gear

5125098/1.28.139

23

Doroid, driven gear, R

5127762/1.32.173

1

Adjusting shim 2.55mm, bevel gear

5125099/1.28.139

24

Lock nut, shaft, bevel pinion M45×1.5

885117744/1.32.148

1

Adjusting shim 2.60mm, bevel gear

5125100/1.28.139

25

Washer, nut, shaft, bevel gear

5119261/1.32.146

1

Adjusting shim 2.65mm, bevel gear

5125101/1.28.139

Adjusting shim 2.70mm, bevel gear

5125102/1.28.139
