LOVOL FT404–AK16 Tractor Parts Catalogue 16

Meppon Parts Posted on by



FT400.46.001 46–Ҿ;ॐጺׯ(Ⴤ)



Քࡽ No.

پࡽ Code

ఁ׬ Detcription

ຕଉ Ruantity

Ԣጀ Renark

8.7

9

FT400.46.014 GBT95–12–A0P

RIGHT SUPPORTING BEAM WELDMENT WASHER

1

4

2011–11_

2011–11_

176








177





FT400.47C.002–1 47.1–ࢫڔౄӱጎದጺׯ–1 47REAR FENDER MOUNTING ASSEMBLY–1



Քࡽ No.

پࡽ Code

ఁ׬ Detcription

ຕଉ Ruantity

Ԣጀ Renark

1

FT300.47.361

CONTROL ROD DUSTPROOF COVER

1

2011–11_

10

FT300.47.033

LEFT MUD GUARD WELDMENT ASSEMBLY

1

2011–11_

11

FT300.47.362

ARMREST WASHER UNIT

2

2011–11_

12

FT300.47.251

LEFT REAR TAIL LAMP SEAT

1

2011–11_

12

FT300.47.251

LEFT REAR TAIL LAMP SEAT

1

2011–11_



13



FT300.47.356



WASHER



10



2011–11_

14

FT300.47.301

LEFT MUD GUARD OUTER PART

1

2011–11_

15

FT300.47.037

LEFT FOOT PEDAL ASSEMBLY

1

2011–11_

16

GBT97.1–12–A0P

WASHER

2

2011–11_

17

GBT93–12–A0P

SPRING WASHER

2

2011–11_



2



FT300.47.310



U–SHAPED REAR PLATE



1



2011–11_

3

FT300.47.309

U–SHAPED FRONT PLATE

1

2011–11_

4

FT300.47.360

SEAL SLEEVE

1

2011–11_

5

GBT5783–M6x12–A2L

BOLT

25

2011–11_

6

GBT93–6–A0P

SPRING WASHER

25

2011–11_



7



GBT97.1–6–A0P



WASHER



25



2011–11_

8

FT300.47.031

LEFT FLOOR WELDMENT ASSEMBLY

1

2011–11_

9

FT300.47.035

LEFT RAIL

1

2011–11_

178








179

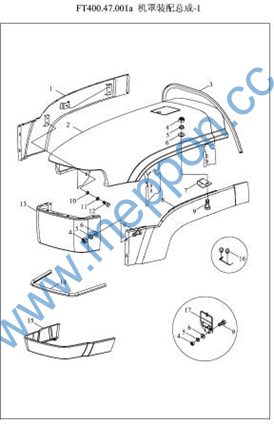

FT400.47.001a–1 47.1–ऐቸጎದጺׯ–1 47BONNET INSTALLATION ASSEMBLY–1



Քࡽ No.

پࡽ Code

ఁ׬ Detcription

ຕଉ Ruantity

Ԣጀ Renark

1

FT400.47.012

BONNET RIGHT PLATE ASSEMBLY

1

2011–11_

10

GBT97.1–8–A0P

WASHER

8

2011–11_

11

GBT93–8–A0P

WASHER

8

2011–11_

12

GBT5783–M8x25–A2L

BOLT

8

2011–11_

13

FT300.47.011

BONNET MESH PLATE WELDMENT

1

2011–11_



14



FT65.47.108



FRONT LOWER CUSHION RUBBER PIECE



1



2011–11_

15

FT300.47.025

BONNET LOWER TAIL PLATE ASSEMBLY

1

2011–11_

16

FT65.47.111

CUSHION PIN

4

2011–11_

17

FT65.47.026a

BONNET UPPER UNFIxED COVER HINGE UNIT

1

2011–11_

2

FT400.47.010

BONNET UPPER PLATE WELDMENT ASSEMBLY

1

2011–11_



3



FT300.47.110



BONNET REAR SEAL STRIP



1



2011–11_

4

GBT6170–M6–A2L

NUT

20

2011–11_

5

GBT93–6–A0P

SPRING WASHER

20

2011–11_

6

GBT97.1–6–A0P

WASHER

20

2011–11_

7

FT65.48.097

HARNESS LOCKING CLAMP (2)

5

2011–11_



8



FT400.47.013



BONNET LEFT ASSEMBLY



1



2011–11_

9

GBT5783–M6x16–A2L

BOLT

20

2011–11_

180








181

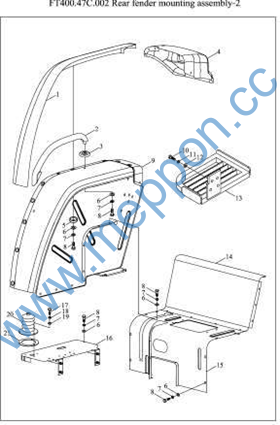

FT400.47C.002–2 47.2–ࢫڔౄӱጎದጺׯ–2 47REAR FENDER MOUNTING ASSEMBLY–2



Քࡽ No.

پࡽ Code

ఁ׬ Detcription

ຕଉ Ruantity

Ԣጀ Renark

1

FT300.47.302

RIGHT MUD GUARD OUTER PART

1

2011–11_

10

GBT97.1–12–A0P

WASHER

2

2011–11_

11

GBT93–12–A0P

SPRING WASHER

2

2011–11_

12

GBT5783–M12x30–A3L

BOLT

2

2011–11_

13

FT300.47.038

RIGHT FOOT PEDAL ASSEMBLY

1

2011–11_



14



FT300.47.055



BACKBOARD WELDMENT



1



2011–11_

15

FT300.47C.054a

SEAT PLATE ASSEMBLY

1

2011–11_

16

FT300.47.032

RIGHT FLOOR WELDMENT ASSEMBLY

1

2011–11_

17

GBT5783–M5x20–A2L

BOLT

3

2011–11_

18

GBT93–5–A0P

WASHER

3

2011–11_



19



GBT97.1–5–A0P



WASHER



3



2011–11_

2

FT300.47.036

RIGHT HANDLE

1

2011–11_

20

FT65.45.393

THROTTLE PEDAL SEAL SLEEVE

1

2011–11_

21

FT65.45.394

THROTTLE PEDAL SEAL SLEEVE PRESSURE PLATE

1

2011–11_

3

FT300.47.362

ARMREST WASHER UNIT

2

2011–11_



4



FT300.47.252



RIGHT REAR TAIL LAMP SEAT



1



2011–11_

5

FT300.47.356

WASHER

10

2011–11_

6

GBT97.1–6–A0P

WASHER

24

2011–11_

7

GBT93–6–A0P

SPRING WASHER

24

2011–11_

8

GBT5783–M6x12–A2L

BOLT

24

2011–11_



9



FT300.47.034



RIGHT MUD GUARD WELDMENT ASSEMBLY



1



2011–11_

182








183

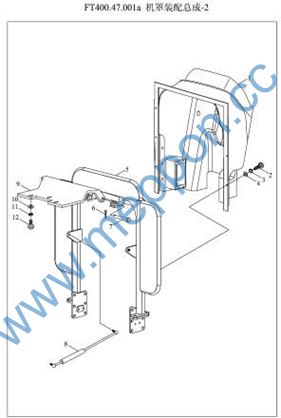

FT400.47.001a–2 47.2–ऐቸጎದጺׯ–2 47BONNET INSTALLATION ASSEMBLY–2



Քࡽ No.

پࡽ Code

ఁ׬ Detcription

ຕଉ Ruantity

Ԣጀ Renark

1

FT300.47.020

DASHBOARD ASSEMBLY

1

2011–11_

10

GBT97.1–8–A0P

WASHER

3

2011–11_

11

GBT93–8–A0P

WASHER

3

2011–11_

12

GBT5783–M8x25–A2L

BOLT

3

2011–11_

2

GBT818–M5x20–A2L

SCREW

6

2011–11_



3



GBT93–5–A0P



WASHER



6



2011–11_

4

GBT97.1–5–A0P

WASHER

6

2011–11_

5

FT300.47.018

FRONT WALL ASSEMBLY

1

2011–11_

6

GBT91–3.2×20–A0P

PIN

2

2011–11_

6

GBT91–3.2×20–A0P

PIN

2

2011–11_



7



GBT882–12×45



PIN



2



2011–11_

8

FT400.47.558

BONNET PNEUMATIC SPRING (2)

2

2011–11_

9

FT400.47.028a

CONNECTING PLATE WELDMENT

1

2011–11_

184








185

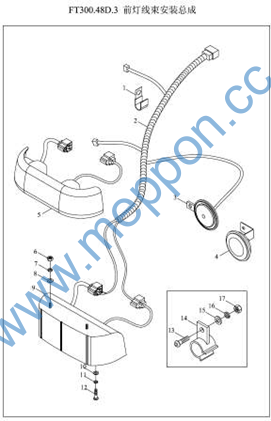

FT300.48D.3 48–മڨ၍ຐҾጎጺׯ 48–FRONT LAMP WIRE HARNESS MOUNTING ASSEMBLY



Քࡽ No.

پࡽ Code

ఁ׬ Detcription

ຕଉ Ruantity

Ԣጀ Renark

10

GBT818–M4x12–A2L

SCREW

2

2011–11_

11

GBT93–4–A0P

WASHER

2

2011–11_

12

GBT97.1–4–A0P

WASHER

2

2011–11_

13

GBT818–M5x14–A2L

SCREW

1

2011–11_

14

TB400.483–01

HARNESS CLAMP

1

2011–11_



15



GBT97.1–5–A0P



WASHER



1



2011–11_

16

GBT93–5–A0P

WASHER

1

2011–11_

17

GBT6170–M5–A2L

NUT

1

2011–11_

2

FT400.48.023

FRONT LAMP HARNESS ASSEMBLY

1

2011–11_

2

FT65.48.097

HARNESS LOCKING CLAMP (2)

6

2011–11_



3



FT65.48.340



ELECTRIC HORN



1



2011–11_

4

FT300.48D.3.2

ELECTRIC HORN

1

2011–11_

4

FT300.48D.3.2

ELECTRIC HORN

1

2011–11_

5

TB400.483A.1

FRONT COMBINED LAMP ASSEMBLY

1

2011–11_

6

GBT6170–M6–A2L

NUT

4

2011–11_



7



GBT93–6–A0P



SPRING WASHER



4



2011–11_

8

GBT97.1–6–A0P

WASHER

4

2011–11_

9

FT300.48.030

FRONT LAMP COMBINATION ASSEMBLY

1

2011–11_

186








187
