TB554.423C 42.3–ۯݴၒ֡ጻጺׯ 42.3–TRANSFER CASE CONTROL ASSEMBLY



Քࡽ No.

پࡽ Code

ఁ׬ Detcription

ຕଉ Ruantity

Ԣጀ Renark

1

FT65.38.051

PULL/PRESS HANDLE

1

2011–11_

10

TB554.423C–01

ROCKER

1

2011–11_

2

GBT6170–M10–A3L

NUT

1

2011–11_

3

TG1204.435.2

SEAL RUBBER RING

1

2004–01_

3

FT304.42D.137

SEAL RUBBER RING

1

2011–11_



4



FT304.42D.021



CONTROL ROD UNIT



1



2008–03_

4

TB554.423B.3

CONTROL ROD UNIT

1

2010–02_

5

GBT882–B10x30

PIN

1

2011–11_

6

GBT97.1–10–A0P

WASHER

1

2011–11_

7

GBT91–3.2×16–A0P

PIN

1

2011–11_



8



GBT879.1–5×32



PIN



1



2011–11_

9

GBT879.1–8×32

PIN

1

2011–11_

164








165





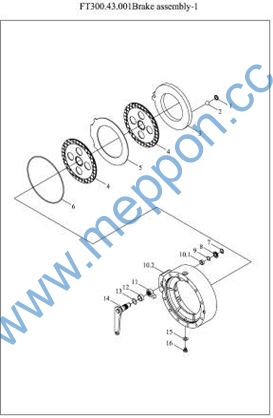

FT300.43.001–1 43.1–዆ۯഗጺׯ–1 43BRAKER ASSEMBLY–1



Քࡽ No.

پࡽ Code

ఁ׬ Detcription

ຕଉ Ruantity

Ԣጀ Renark

1

FT300.43.102

BOWL PLUG

6

2011–11_

10

FT300.43.012

LEFT BRAKE HOUSING ASSEMBLY

1

2011–11_

10.1

FT300.43.114

CRANK SHAFT BUSH

1

2011–11_

10.2

FT300.43.121

LEFT BRAKE HOUSING

1

2011–11_

11

FT300.43.106

SHIFTING BLOCK

1

2011–11_



12



FT300.43.107



SPACER BUSH



1



2011–11_

13

GBT3452.1–20.0×2.65

O.RING

1

2004–01_

14

FT300.43.014

LEFT CRANK UNIT

1

2011–11_

15

FT300.43.153

FINAL TRANSMISSION OIL DRAINING PORT WASHER

1

2011–11_

16

FT300.43.154

SCREW PLUG

1

2011–11_



2



GBT308–18.000–G100–b



BALL



6



2011–11_

3

FT300.43.103

LEFT BRAKE PRESSURE PLATE

1

2011–11_

4

FT300.43.011

BRAKE FRICTION PLATE ASSEMBLY

2

2011–11_

5

FT300.43.105

SPACER PLATE

1

2011–11_

6

FT300.43.101

O–RING

1

2011–11_



7



GBT894.1–18



RETAINER RING



1



2011–11_

8

FT300.43.109a

WASHER

1

2011–11_

9

GBT3452.1–18.0×2.65G

O–SEAL RING

1

2004–01_

166








167





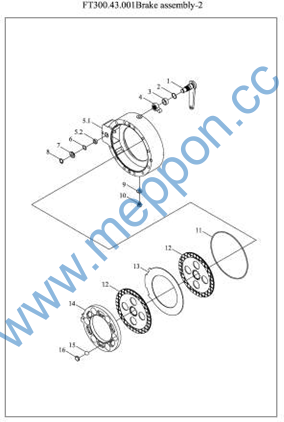

FT300.43.001–2 43.2–዆ۯഗጺׯ–2 43BRAKER ASSEMBLY–2



Քࡽ No.

پࡽ Code

ఁ׬ Detcription

ຕଉ Ruantity

Ԣጀ Renark

1

FT300.43.022

RIGHT CRANK UNIT

1

2011–11_

10

FT300.43.154

SCREW PLUG

1

2011–11_

11

FT300.43.101

O–RING

1

2011–11_

12

FT300.43.011

BRAKE FRICTION PLATE ASSEMBLY

2

2011–11_

13

FT300.43.105

SPACER PLATE

1

2011–11_



14



FT300.43.104



RIGHT BRAKE PLATEN



1



2011–11_

15

GBT308–18.000–G100–b

BALL

6

2011–11_

16

FT300.43.102

BOWL PLUG

6

2011–11_

2

GBT3452.1–20.0×2.65

O.RING

1

2004–01_

3

FT300.43.107

SPACER BUSH

1

2011–11_



4



FT300.43.106



SHIFTING BLOCK



1



2011–11_

5

FT300.43.013

RIGHT BRAKE HOUSING ASSEMBLY

1

2011–11_

5.1

FT300.43.122

RIGHT BRAKE HOUSING

1

2011–11_

5.2

FT300.43.114

CRANK SHAFT BUSH

1

2011–11_

6

GBT3452.1–18.0×2.65G

O–SEAL RING

1

2004–01_



7



FT300.43.109a



WASHER



1



2011–11_

8

GBT894.1–18

RETAINER RING

1

2011–11_

9

FT300.43.153

FINAL TRANSMISSION OIL DRAINING PORT WASHER

1

2011–11_

9

JBT982–12

COMBINED SEAL GASKET

1

2013–04_

168








169





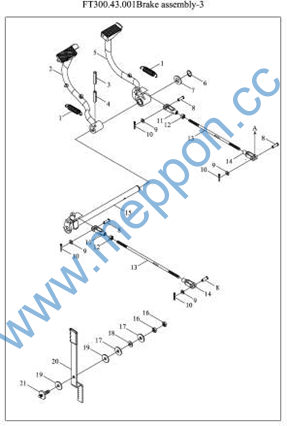

FT300.43.001–3 43.3–዆ۯഗጺׯ–3 43BRAKER ASSEMBLY–3



Քࡽ No.

پࡽ Code

ఁ׬ Detcription

ຕଉ Ruantity

Ԣጀ Renark

1

FT300.43.130

PEDAL RETURN SPRING

2

2011–11_

10

GBT91–3.2×16–A0P

PIN

4

2011–11_

11

FT300.43.108

PULL ROD FRONT FORK

2

2011–11_

12

GBT6170–M10–A3L

NUT

2

2011–11_

13

FT300.43.120

PULL ROD

2

2011–11_



14



FT300.43.110



PULL ROD REAR FORK



2



2011–11_

15

FT300.43.020a

PEDAL SHAFT UNIT

1

2006–12_

15

FT300.43.020

PEDAL SHAFT UNIT

1

2004–01_

16

GBT6173–M12x1.5–A3L

NUT

2

2011–11_

17

FT300.43.160

WASHER

2

2011–11_



18



GBT955–14–A3L



WASHER



1



2004–01_

19

FT300.43.159

HAND BRAKE FRICTION DISC

2

2011–11_

2

FT300.43.015a

LEFT BRAKE PEDAL UNIT

1

2006–12_

2

FT300.43.015

LEFT BRAKE PEDAL UNIT

1

2004–01_

2

FT300.43.015a

LEFT BRAKE PEDAL UNIT

1

2006–12_



20



FT300.43.025a



BRAKE LOCKING PLATE UNIT



1



2011–11_

21

FT300.43.158

CONNECTING BOLT

1

2011–11_

3

GBT879.1–6×40

SPRING COLUMN PIN

1

2011–11_

4

GBT879.1–10×40

PIN

1

2011–11_

5

FT300.43.016

RIGHT BRAKE PEDAL UNIT

1

2011–11_



6



GBT894.1–25



RETAINER RING



1



2011–11_

7

GBT97.1–24–A0P

WASHER

1

2011–11_

7

GBT97.1–24–A0P

WASHER

1

2011–11_

8

GBT882–B10x28–A0P

PIN

4

2011–11_

9

GBT97.1–10–A0P

WASHER

4

2011–11_

170








171





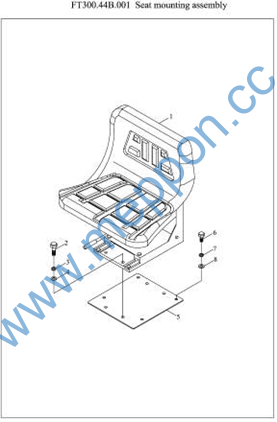

FT300.44B.001 44–ፗᅖҾጎጺׯ 44SEAT INSTALLATION ASSEMBLY



Քࡽ No.

پࡽ Code

ఁ׬ Detcription

ຕଉ Ruantity

Ԣጀ Renark

1

2

3

4

5



6

7

8

FT300.44B.010
GBT5783–M10×25–A3L
GBT93–10–A0P
GBT97.1–10–A0P
FT300.44B.011



GBT5783–M8×20–A2L
GBT93–8–A0P
GBT97.1–8–A0P

SEAT ASSEMBLY
BOLT

WASHER
WASHER

SEAT COVER PLATE WELDMENT



BOLT
WASHER
WASHER

















4

4

4

2011–11_

2011–11_

2011–11_

2011–11_

2011–11_



2011–11_

2011–11_

2011–11_

172








173




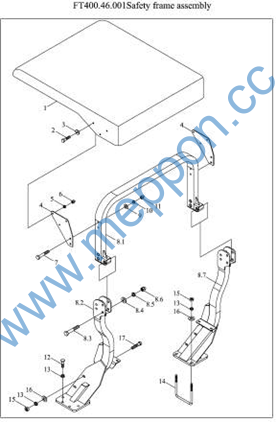

FT400.46.001 46–Ҿ;ॐጺׯ 46–SAFETY FRAME ASSEMBLY



Քࡽ No.

پࡽ Code

ఁ׬ Detcription

ຕଉ Ruantity

Ԣጀ Renark























































8.1



8.2

8.3

8.4

8.5

8.6

TB400.46C.3
FT300.46.012
TB400.46C.2
GBT93–12–A0P
GBT802–M12–6



GBT5783–M14x40–A3L
GBT93–14–A0P
GBT93–14–A0P
FT400.46.350

GBT6170–M14–A3L



GBT97.1–14–A0P
GBT12618–3×15
GBT5783–M10x30–A3L
FT400.46.021
FT300.46.106



GBT93–10–A0P
GBT802–M10–6
GBT5782–M12x70–8.8–A2L
FT400.46.010

FT400.46.011



FT400.46.013
GBT5782–M16x90–A2L
GBT95–16–A0P
GBT93–16–A0P
GBT802–M16

SHADOW ASSEMBLY
SHADOW ASSEMBLY
SHADOW ASSEMBLY
SPRING WASHER
NUT



BOLT

SPRING WASHER
SPRING WASHER
U BOLT

NUT



WASHER
RIVET
BOLT

WASHER UNIT

SHADOW LOCKING PLATE



WASHER
NUT BOLT

SUPPORT BEAM INSTALLATION ASSEMBLY
UPPER BEAM WELDMENT



LEFT SUPPORTING BEAM WELDMENT
BOLT

WASHER
SPRING WASHER

NUT

1

1

1

4

4



4

16

16

4

12



8

4

6

6

2



6

6

4

1

1



1

6

6

6

6

2012–06_

2011–11_

2011–05_

2011–11_

2004–01_



2011–11_

2011–11_

2011–11_

2011–11_

2011–11_



2011–11_

2013–07_

2011–11_

2011–11_

2011–11_



2011–11_

2004–01_

2004–01_

2011–11_

2011–11_



2011–11_

2011–11_

2011–11_

2011–11_

2013–07_

174








175
