LOVOL FT404–AK16 Tractor Parts Catalogue 06

Meppon Parts Posted on by



FT400.20.001–2 20.2–ۯ݀ऐ֡ጻऐࠓጺׯ–2 20.2ENGINE CONTROL MECHANISM ASSEMLBY–2



Քࡽ No.

پࡽ Code

ఁ׬ Detcription

ຕଉ Ruantity

Ԣጀ Renark

1

GBT879.1–5×20–A0P

PIN

2



10

GBT93–8–A0P

WASHER

4

2011–11_

11

FT300.20.011

FOOT THROTTLE ROCKER ARM WELDMENT

1

2011–11_

12

FT650.20.014

FOOT THROTTLE WIRE ASSEMBLY

1

2011–11_

13

GBT97.1–6–A0P

WASHER

2

2011–11_



14



GBT91–2×12–A0P



PIN



3



2011–11_

15

FT300.20.106

FOOT THROTTLE WIRE BRACKET

1

2011–11_

16

GBT882–B5x20–A0P

PIN



17

FT400.20.102

PULL WIRE BRACKET

1

2011–11_

2

FT650.20.101

FOOT PEDAL

1

2011–11_



3



FT650.20.107



RUBBER RING



1



2011–11_

4

FT300.20.013

FOOT PEDAL ROCKER ARM WELDMENT

1

2011–11_

5

GBT6172.1–M8–A2L

NUT

6

2011–11_

6

GBT5781–M8x45–A2L

BOLT

1

2011–11_

7

FT650.20.104

TORSION SPRING

1

2011–11_



8



GBT818–M8x20–A2L



SCREW



4



2011–11_

9

FT650.20.108

THROTTLE PEDESTAL

1

2011–11_

56








57





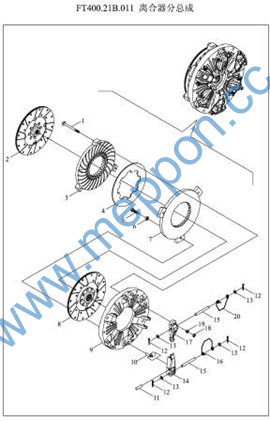

FT400.21B.011 21–૗ࢇഗݴጺׯ 21–CLUTCH SUBASSEMBLY



Քࡽ No.

پࡽ Code

ఁ׬ Detcription

ຕଉ Ruantity

Ԣጀ Renark

1

FT400.21B.104

AUxILIARY CLUTCH PULL ROD

3

2011–11_

10

FT400.21B.110

TOP ROD

3

2011–11_

11

FT300.21B.109

PIN

3

2011–11_

12

GBT91–3.2×16

PIN

10

2011–11_

14

FT400.21B.107

MAIN CLUTCH RELEASE LEVER

3

2011–11_



15



FT300.21B.111



LONG PIN



6



2011–11_

16

FT400.21B.108

MAIN RELEASE LEVER SPRING

3

2011–11_

17

FT400.21B.106

AUxILIARY CLUTCH RELEASE LEVER

3

2011–11_

18

GBT6171–M8x1–Zn.D

NUT

3

2011–11_

19

FT300.21B.105

BALL NUT

3

2011–11_



19



FT300.21B.105



BALL NUT



3



2011–11_

2

FT400.21B.015

AUxILIARY CLUTCH FRICTION PLATE ASSEMBLY

1

2011–11_

3

FT400.21B.102

AUxILIARY CLUTCH PRESSURE PLATE

1

2011–11_

4

FT400.21B.103

DISC SPRING

1

2011–11_

5

FT300.21B.114

MAIN CLUTCH ADJUSTING SCREW

3

2011–11_



6



GBT6171–M10x1–A3L



NUT



3



2011–11_

7

FT400.21B.113

MAIN CLUTCH PRESSURE PLATE

1

2011–11_

8

FT400.21B.014

MAIN CLUTCH FRICTION PLATE ASSEMBLY

1

2011–11_

9

FT400.21B.112

CLUTCH COVER

1

2011–11_

58








59





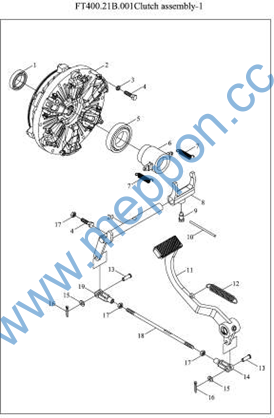

FT400.21B.001–1 21.1–૗ࢇഗጺׯ–1 CLUTCH ASSEMBLY–1



Քࡽ No.

پࡽ Code

ఁ׬ Detcription

ຕଉ Ruantity

Ԣጀ Renark

1

GBT276–6204–2RS

BEARING

1

2011–11_

10

TA800.212B–02

LOW CARBON STEEL WIRE

1

2011–11_

11

FT300.21.012

CLUTCH PEDAL ASSEMBLY

1

2011–11_

12

FT300.43.130

PEDAL RETURN SPRING

1

2011–11_

13

GBT882–B10x28

PIN

2

2011–11_



14



FT300.43.110



PULL ROD REAR FORK



1



2011–11_

15

GBT97.1–10

WASHER 10

2

2011–11_

16

GBT91–3.2×16

PIN

2

2011–11_

17

GBT6170–M10–A3L

NUT

2

2011–11_

18

FT300.21.110

PULL ROD

1

2011–11_



19



FT300.43.108



PULL ROD FRONT FORK



1



2011–11_

2

FT400.21B.011

21–CLUTCH SUBASSEMBLY

1

2011–11_

20

FT300.21.013

CLUTCH RELEASE FORK SHAFT UNIT

1

2011–11_

3

GBT93–10

WASHER 10

6

2011–11_

4

GBT5783–M10x40–A3L

BOLT

7

2011–11_



5



TA800.212–02



THRUST BEARING



1



2011–11_

6

FT400.21B.101

RELEASE BEARING SEAT

1

2011–11_

7

FT300.21.102

THRUST BEARING SEAT RETURN SPRING

2

2011–11_

8

FT300.21.103

RELEASE SHIFT FORK

1

2011–11_

9

FT300.21.113

THRUST SCREW

1

2011–11_

60








61





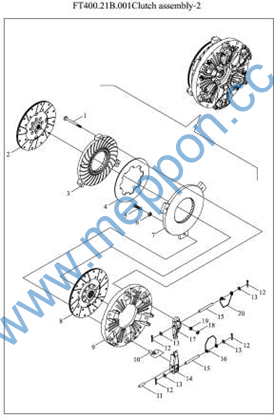

FT400.21B.001–2 21.2–૗ࢇഗጺׯ–2 CLUTCH ASSEMBLY–2



Քࡽ No.

پࡽ Code

ఁ׬ Detcription

ຕଉ Ruantity

Ԣጀ Renark

0

FT400.21B.011

21–CLUTCH SUBASSEMBLY

1

2011–11_

1

FT400.21B.104

AUxILIARY CLUTCH PULL ROD

3

2011–11_

10

FT400.21B.110

TOP ROD

3

2011–11_

11

FT300.21B.109

PIN

3

2011–11_

12

GBT91–3.2×16

PIN

10

2011–11_



13



GBT848–10



WASHER



12



2004–01_

14

FT400.21B.107

MAIN CLUTCH RELEASE LEVER

3

2011–11_

15

FT300.21B.111

LONG PIN

6

2011–11_

16

FT400.21B.108

MAIN RELEASE LEVER SPRING

3

2011–11_

17

FT400.21B.106

AUxILIARY CLUTCH RELEASE LEVER

3

2011–11_



18



GBT6171–M8x1–Zn.D



NUT



3



2011–11_

19

FT300.21B.105

BALL NUT

3

2011–11_

19

FT300.21B.105

BALL NUT

3

2011–11_

2

FT400.21B.015

AUxILIARY CLUTCH FRICTION PLATE ASSEMBLY

1

2011–11_

20

FT300.21B.120

AUxILIARY RELEASE LEVER SPRING

3

2011–11_



3



FT400.21B.102



AUxILIARY CLUTCH PRESSURE PLATE



1



2011–11_

4

FT400.21B.103

DISC SPRING

1

2011–11_

5

FT300.21B.114

MAIN CLUTCH ADJUSTING SCREW

3

2011–11_

6

GBT6171–M10x1–A3L

NUT

3

2004–01_

7

FT400.21B.113

MAIN CLUTCH PRESSURE PLATE

1

2011–11_



8



FT400.21B.014



MAIN CLUTCH FRICTION PLATE ASSEMBLY



1



2011–11_

9

FT400.21B.112

CLUTCH COVER

1

2011–11_

62








63





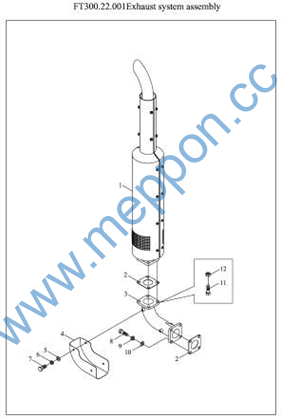

FT300.22.001 22–ಇgဣጺׯ 22–ExHAUST SYSTEM ASSEMBLY



Քࡽ No.

پࡽ Code

ఁ׬ Detcription

ຕଉ Ruantity

Ԣጀ Renark

1

TB550.22A.1

MUFFLER ASSEMBLY

1

2011–11_

10

GBT97.1–10–A0P

WASHER

4

2004–01_

11

GBT5783–M10x40–A3L

BOLT

4

2011–11_

12

SPL6177.1–M10–F3

NUT

4

2011–11_

2

FT300.22.030

SEAL GASKET UNIT

2

2011–11_



3



FT300.22.111A



ExHAUST BENDING PIPE



1



2011–11_

4

FT300.22.112

GUARD NET

1

2011–11_

5

GBT97.1–8–A0P

WASHER

4

2004–01_

6

GBT93–8–A0P

WASHER

4

2011–11_

7

GBT5783–M8x20–A2L

BOLT

4

2011–11_



8



GBT5783–M10x30–A3L



BOLT



4



2011–11_

9

GBT93–10–A0P

WASHER

4

2011–11_

64








65





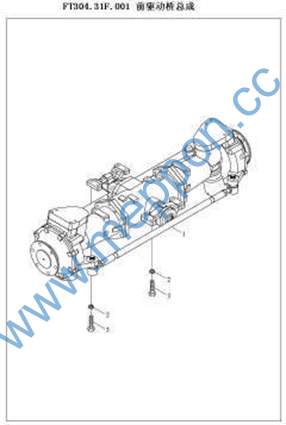

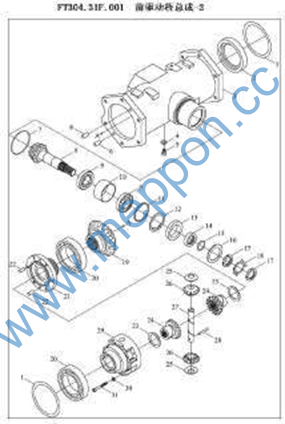

FT304.31F.001–1 31.1–മൻۯൃጺׯ–1 FRONT DRIVING AxLE ASSEMBLY–1



Քࡽ No.

پࡽ Code

ఁ׬ Detcription

ຕଉ Ruantity

Ԣጀ Renark

1

2

2

FT304.31F.011 GBT93–14–A0P GBT93–14–A0P

FRONT DRIVING AxLE SUB–ASSEMBLY SPRING WASHER

SPRING WASHER

1

8

8

2011–11_

2011–11_

2011–11_

66








67
