Description

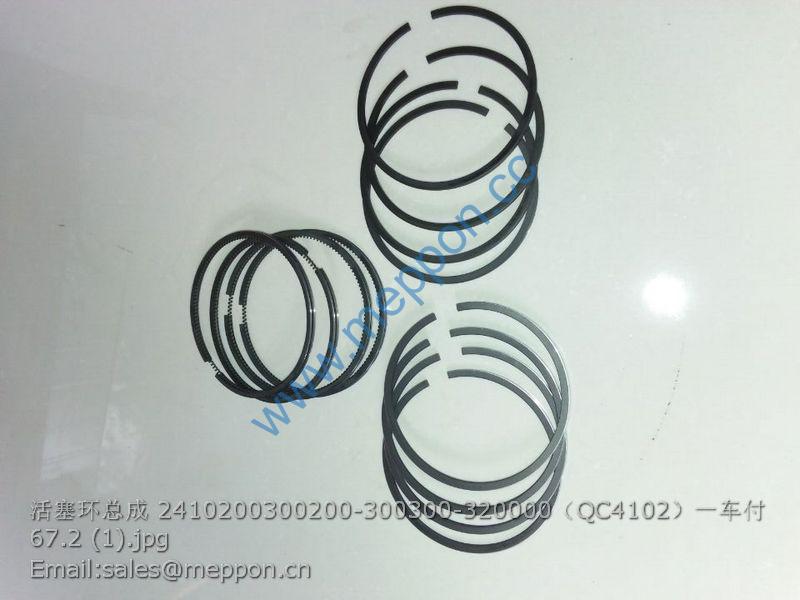

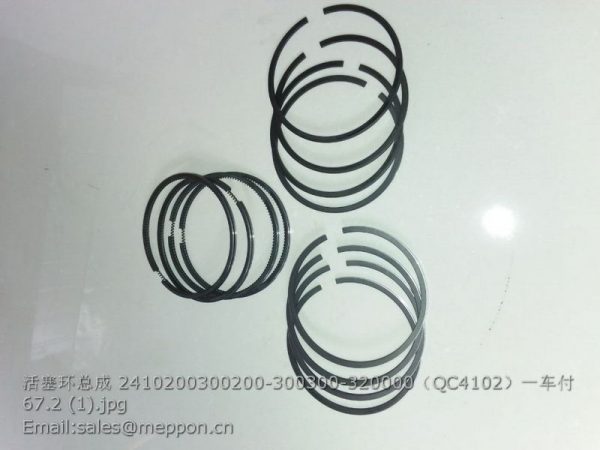

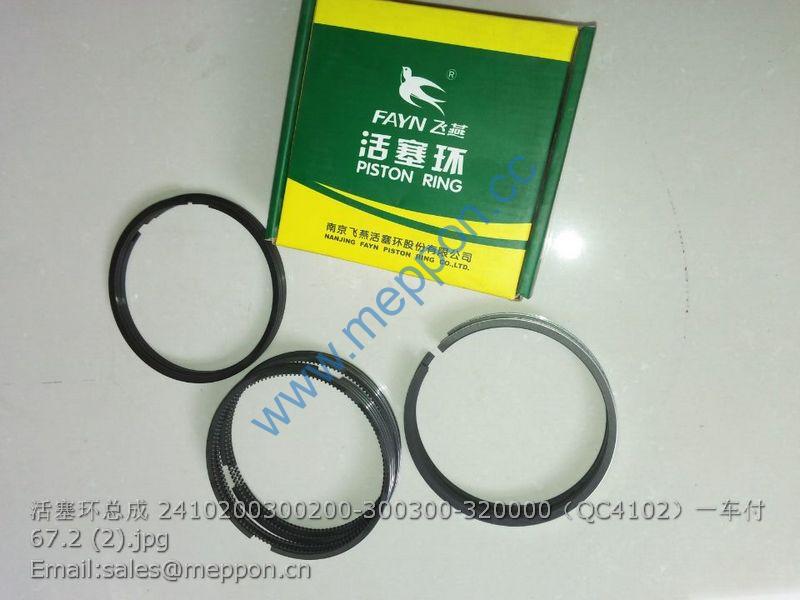

2410200300200 2410200300300 2410200320000 QC4102 PISTON RING 4102Q-03002 4102Q-03003 4102Q-03200

TG1204.95 Rear ballast assembly 1
1 GBT5786-M16X1.5X40-10.9-A3L Bolt 6
2 FT650.34.104 Washer 18
3 TG1204.95-03 Rear ballast 4
4 TG1204.95-02 Ballast screw Ⅱ 6
5 TG1204.95-01 Ballast screw Ⅰ 6
6 GBT6171-M16X1.5-10-A3L Nut 6

TS08481010000K Engine harness installation assembly 1 Engine harness installation assembly
1 GBT6170-M8-8-A2L Type 1, hex nut 1 Nut
2 FT65.48.095 Harness fixing clamp（1） 1 Harness fixing clamp（1）
3 GBT97.1-8-A0P Flat washer 4 Washer
4 GBT93-8-A0P Standard spring washer 4 Washer
5 GBT5783-M8X20-8.8-A2L Hex bolt 4 Bolt
6 TC05481010002K Water temperature sensor assembly 1
6.1 FT65.48.072 Water temperature sensor 1
6.2 TC05481010003K Water temperature sensor harness 1
7 FT800.48L.106 Wire sheath 1
8 Q67405100 Plastic strap 5
9 FT65.48.073a Oil pressure sensor 1
10 TS08481010002K Rotate speed sensor 1
11 TF1004.482-01 Through harness washer 1
12 Q67405400 Plastic strap 2
13 TG1204.481-01 Asbestos gasket 4
14 TS08481010001K Engine harness assembly 1
15 FT800.48L.107 Wire casing 2
16 FT800.48L.108a Fixed clip 2
17 GBT97.1-10-A0P Flat washer 2
18 GBT93-10-A0P Standard spring washer 2
19 GBT5783-M10X20-8.8-A3L Hex bolt 2

TS08482010000K Body harness installation assembly 1
1 3724D01-201 Disengageable tape 5
2 GBT6170-M6-8-A2L Type 1, Hex nut 2
3 GBT93-6-A0P Standard spring washer 6
4 GBT97.1-6-A0P Flat washer 6
5 TS08482010005K Central electrical box 1
5.1 FT300.48.513 Flasher relay 1
5.2 FT300.48D.2.2.2 Warm-up relay 2
5.3 TD9600000700 Fuse link（10A ) 6
5.4 TD9600001200 Fuse link（30A ) 2
5.5 TD9600000900 Fuse link（20A ) 2
5.6 TD9600000600 Fuse link（7.5A ) 1
5.7 TD9600000800 Fuse link（15A ) 1
5.8 TD9600000500 Fuse link（5A ) 3
5.9 GE20H16Y.34.6-04 Main electric source relay 1
6 GBT818-M6X25-4.8-A2L Cross recessed pan head screw 4
7 FT300.48.055 Starting relay 1
8 TS08482010001K Body harness assembly 1
9 TB550.482.3 Ignition lock 1
10 TS08482010002K Combination switch assembly 1
11 TC07482010002K Charger socket 1
12 TB550.484.2 Brake light switch 2
13 GBT6170-M4-8-A2L Type 1 hex nut 2
14 GBT93-4-A0P Standard spring washer 2
15 FT800.48B.068 Working light socket 1
16 GBT68-M4X35-4.8-A1L Slotted countersunk screw 2
17 GBT5783-M8X20-8.8-A2L Hex bolt 2
18 GBT93-8-A0P Standard spring washer 2
19 GBT97.1-8-A0P Flat washer 2
20 TG1204.482G-01 Electric box trestle 1
21 GBT5783-M6X20-8.8-A2L Hex bolt 4
22 TS08482010003K Right rocker switch 1
23 TS08482010004K Single rocker switch 1
24 Q67405100 Plastic fastening belt 1

TS08483010000K Harness installation assembly, front lamp 1
1 TS08483010001K Front lamp harness assembly 1
2 GBT6170-M6-8-A2L Hexagon nut, style 1 2
3 GBT93-6-A0P Standard spring washer 2
4 GBT97.1-6-A0P Plain washer 2
5 TC07483010002K Front lamp combination assembly 1
6 GBT5783-M8X16-8.8-A2L Hex bolt 3
7 TF1004.482-01 Rubber ring 1
8 GBT97.1-8-A0P Flat washer 3
9 GBT93-8-A0P Standard spring washer 3
10 GBT6170-M8-8-A2L Hexagon nut, style 1 1
11 TD800.483B.3 Electric horn 1

TS08484060000K Rear Lamp Harness Installation Assembly 1
1 Q67405100 Plastic Fastening Strip 2
2 3203505D9-L Tie 31
3 GBT818-M4X10 Cross Screw 5
4 GBT93-4-A0P Standard Spring Washer 5
5 TS08484050002K Oil Quantity Sensor 1
6 TS08484050001K Rear Lamp Harness Assembly 1
7 FT65.48.094 Through Harness Washer（2） 4
8 FT800A.48L.088 Parking Brake Switch 1
9 TF1004.482-01 Rubber Ring 1
10 TD800.484B-02 Reflector Assembly Plate（Right） 1
11 TD800.484B-01 Emitter Fixing Board (Left) 1
12 GBT93-8-A0P Standard Spring Washer 2
13 FT65.48.092 Through Harness Washer 3 2
14 TS10484010008 Rear Lamp Assembly 2
15 TD800.484B.2 Tail Lamp Assembly 2
16 GBT6170-M5-8-A2L Hexagon Nut, Type-1 3
17 GBT93-5-A0P Standard Spring Washer 3
18 GBT97.1-5-A0P Flat Washer 3
19 TD900.484.2 Rear Trailer Socket 1
20 GBT68-M5X35-4.8-A1L Slotted Screw 3
21 GBT97.1-8-A0P Flat Washer 2
22 TD800.484B.5 Reflector Assembly 4
23 TA600.486-01 Harness Tighten Clip 2
24 GBT5783-M8X70-8.8-A2L Hexagon Bolt 2
25 GBT6170-M8-8-A2L Hexagon Nut, Type-1 2
26 TB500.484D.2 Rotating Alarm Light Assembly 1
27 TS10484010005 Alarm Light Bracket Weldment 1
28 TD950.484-01 Cap(Φ9) 2
29 TD950.484-02 Cap(Φ14) 2
30 TD800.484B.7 Air Pressure Alarm 1
31 TS08484060001K Air Pressure Alarm Wire Assembly 1

TS08485010000K Battery installation assembly 1
1 GBT62-M6-A2L Butterfly nut 1
2 GBT93-6-A0P Standard spring washer 1
3 GBT97.1-6-A0P Flat washer 1
4 TG1454.485-01 Protective cover 1
5 GBT6170-M8-8-A2L Hexagon nut, style 1 4
6 GBT93-8-A0P Standard spring washer 4
7 GBT97.1-8-A0P Flat washer 4
8 TS08485010003K Power switch bracket weldment 1
9 TG1454.485.4 Power switch 1
10 GBT5783-M8X30-8.8-A2L Hex bolt 4
11 TC05485020003K Battery bonding 1
12 TF1204.485A.1 Battery assembly 1
13 TG1454.485.3 Switch ground wire 1
14 TD800.485A-03 Fixing clip 1
15 TS08485010001K Battery front mounting bracket weldment 1
16 TS08485010002K Battery rear mounting bracket weldment 1
17 GBT5783-M12X30-8.8-A3L Hex bolt 2
18 FT65.48.112 Power source wire fixing plate 1
19 TG1454.485A.4 Power source wire 1
20 TS08485010004K Pull rod 2
21 GBT96.1-10-A0P Big washer 4
22 GBT93-12-A0P Standard spring washer 2
23 GBT97.1-12-A0P Flat washer 2
24 TB450.485.1 Battery shock absorbing mat 2
