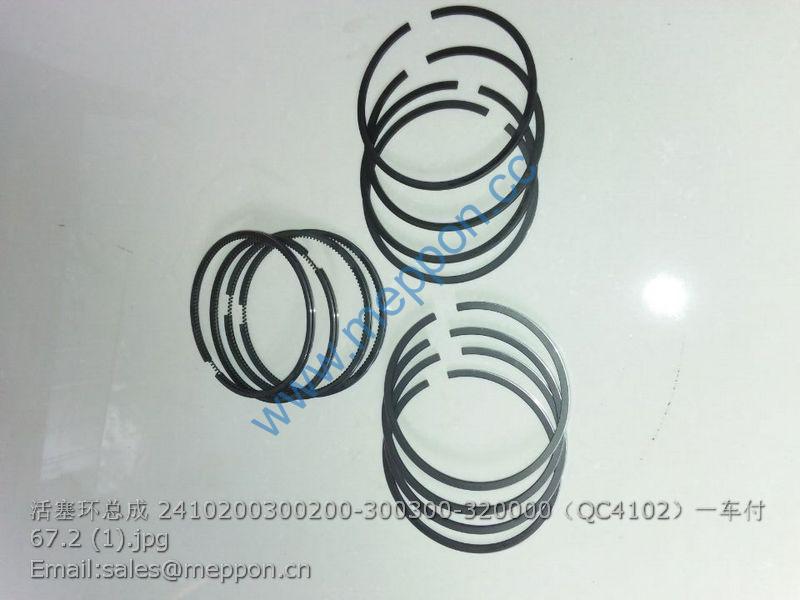

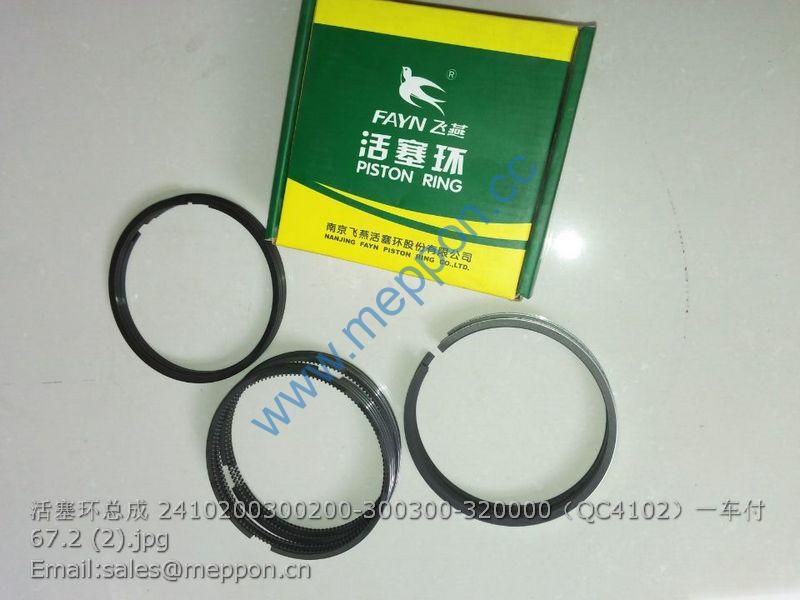

2410500300200 2410500300300 2410500320000 PISTON RING QUANCHAI QC4102 4105QA-03002 4105QA-03003 4105QA-03200

TD800.487M Combination Instrument Assembly 1
1 GBT818-M5X16-4.8-A2L Cross recessed pan head screw 2
2 GBT93-5-A0P Standard spring washer 2
3 GBT95-5-A0P Flat washer 2
4 GBT6170-M5-8-A2L Type 1 hex nut 2
5 TD800.487M.1 Compound instrument assembly 1
6 TD800.487M.2 Transit wire assembly 11 TS10110010000K Air Filter System Assembly 2
2 TS10131010000K Cooling System Assembly 4
3 TS10132010000K Water Tank Base Plate Mounting Assembly 6
4 TD800.201D Handle Throttle Assembly 8
5 TS10202010000 Foot Throttle Assembly 10
6 TS10203010000K Throttle Wire Assembly 12
7 TS10220010000 Exhaust System Assembly 14
B Drive line part
8 TS10212010000 Clutch Control Mechanism Assembly-1 16
9 TS10212010000 Clutch Control Mechanism Assembly-1(extension) 18
10 TS10212010000 Clutch Control Mechanism Assembly-2 20
11 TS10360010000 Transmission Shaft Assembly 22
12 TS10371010000 Chassis Assembly 24
13 TS10373010000 Gearbox Control Mechanism Assembly 26
14 TS10374010000 Shuttle Shift Control Mechanism Assembly 28
15 TS10383010000 Differential Control Assembly 30
16 TS10413010000 PTO Control Assembly 32
17 TS10423010000 Transfer Case Control Assembly 34
C Front axle (shaft) part
18 TS10311010000 Front Driving Axle Assembly 36
19 TS10312010000 Tray Assembly 38
20 TD800.313 Bracket Front Body Assembly 40
D Running system part
21 TS10320030000K Front Drive Wheel Assembly 42
22 TS10340030000K Rear Driving Wheel Assembly 44

23 TS10401010000 Steering Wheel and Steering Column Assembly 46
24 TS10402020000K Fully Hydraulic Steering Pipeline Assembly-1 48
25 TS10402020000K Fully Hydraulic Steering Pipeline Assembly-2 50
F Braking system part
26 TS10433010000 Braking System Control Assembly-1 52
27 TS10433010000 Braking System Control Assembly-2 54
28 TS10433010000 Braking System Control Assembly-3 56
G Hydraulic hitch and work device
29 TS11350010000 Traction Device Assembly 58
30 TS10530020000K Traction Mechanism Assembly 60
31 TS10552010000 Lift Control Mechanism Assembly 62
32 TS10561030000K Rear Hitch Mechanism Assembly-1 64
33 TS10561030000K Rear Hitch Mechanism Assembly-2 66
34 TS10581010000 Oil Pump Pipe Filter Assembly 68
35 TS10581010000 Oil Pump Pipe Filter Assembly(extetntion) 70
36 TS10582010000 Multi-way valve oil pipe assembly 72
37 TS10582010000 Multi-way valve oil pipe assembly(extetntion) 74
H Cab, driver’s seat, covering panel, etc
38 TD800.44 Seat Installation Assembly 76
39 TS10452010000K Floor assembly-1 78
40 TS10452010000K Floor assembly-2 80
41 TS10455010001 Front Floor Cushion 82
42 TS10456010000 Instrument Panel Assembly 84
43 TS10457010000 Front Connecting Device Assembly 86
44 TS10458010000 Rear Connecting Device Assembly 88

45 TA600.46 Safety Bracket Assembly 90
46 TS10471030000K Bonnet Assembly-1 92
47 TS10471030000K Bonnet Assembly-1 94
48 TA820.472A Bonnet Low Plate Assembly 96
49 TS10475010000K Bonnet Seal Mounting Assembly 98
50 TA820.477 Bonnet Lock Assembly 100
51 TS10490010000 Tool Kit Assembly 102
52 TS10501010000 Main Oil Tank Assembly-1 104
53 TS10501010000 Main Oil Tank Assembly-2 106
54 TS10503010000K Oil Delivery Pipeline Assembly 108
55 TD800.741 Front Ballast Bracket Assembly 110
56 TD800.742 Front counterweight assembly 112
57 FT800.91B.001 Rear Ballast Assembly 114
J Electrical and accessory parts
58 TS10481020000K Harness Installation Assembly, Engine 116
59 TS10482020000K Harness Installation Assembly, Body 118
60 TS10483020000K Harness Installation Assembly, Front Lamp 120
61 TS10484020000K Rear Lamp Harness Assembly 122
62 TS10485010000 Battery Installation Assembly 124
63 TS10487020000K Compound Instrument Assembly 126

TS10110010000K Air filter system assembly 1
1 SAEJ1508-SLTB54 Hoop 2
2 TD900.11H-07 Connecting pipe 1
3 TS10110010002K Compressor air intake pipe 1
4 Q67676 B-type worm drive type hose clamp 1
5 TS10110010001K Air outlet hose of air filter 1
6 TD900.11H.7 Pressing strip weldment 1
7 Q676114 B-type worm drive type hose clamp 1
8 TD900.11A-01 Air filter maintenance indicator 1
9 TD900.11H.5 Air filter assembly 1
10 TD900.11H-05 Dustproof mesh 1
11 GB/T 93-8-A0P Standard spring washer 9
12 GB/T 97.1-8-A0P Plain washer 4
13 TD900.11H.6 Support plate weldment 1
14 GB/T 62-M8-A2L Wing nut 1
15 TS10110010003K Upper cross plate weldment of air filter mounting 1
16 TS10110010004K Lower cross plate weldment of air filter mounting 1
17 GB/T 5783-M8×20-8.8-A2L Hexagon head bolt 8

TS10131010000K Cooling system assembly 1
1 TS10131010001K Radiator assembly 1
2 TA700.131-01 Rubber pad block 2
3 TA700.131-02 Sleeve 2
4 TD800.131-11 Rubber pad 2
5 FT650.13.116 Gasket 2
6 GB/T 6178-M10-8-A3L Slotted nut 2
7 GB/T 91-2.5×28-A0P Split pin 2
8 Q67664 B-type worm drive type hose clamp 3
9 FT700.13G.102 Water outlet hose 1
10 Q67670 B-type worm drive type hose clamp 1
11 TA700.131-03 Water tank inlet hose 1
