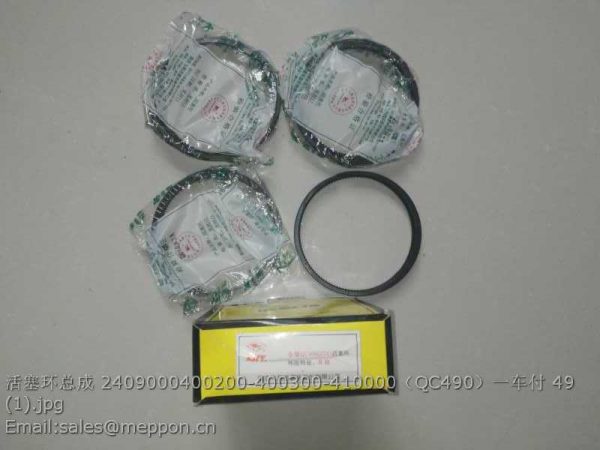

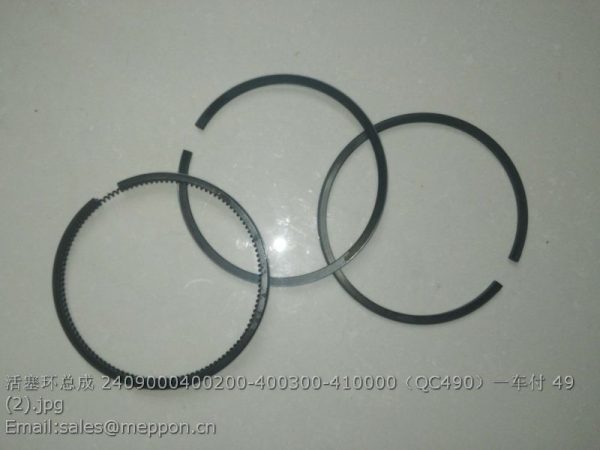

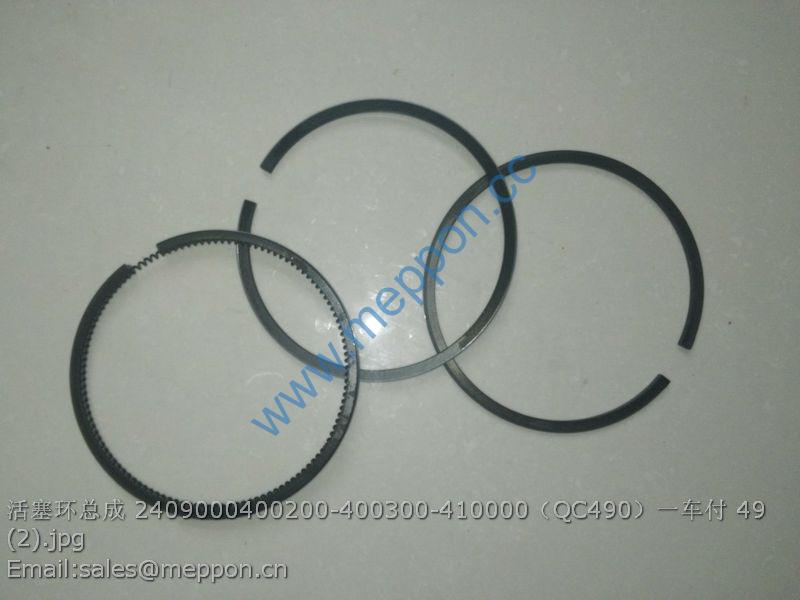

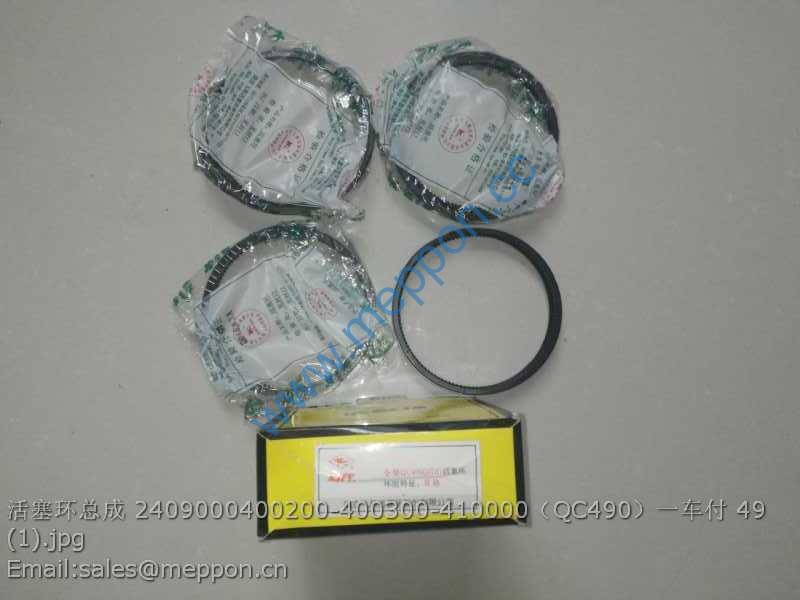

2409000400200 2409000400300 2409000410000 QC490 PISTON RING QC490Q(DI)-04002 QC490Q(DI)-04003 QC490Q(DI)-04100

TG1254.478 Right Front Mud Guard Assembly 1
1 GBT5783-M8X25-8.8-A2L Hexagon Bolt 4
2 GBT96.1-8-AOP Big Washer 4
3 TG1254.478-01 Right Front Mud Guard 1
4 TG1254.477-05 Shock Absorber 1
5 TG1254.478-02 Right Reinforced Plate 1
6 GBT5783-M12X25-8.8-A3L Hexagon Bolt 1
7 GBT93-12-AOP Standard Spring Washer 7
8 TB400.475-07 Washer 2 1
9 TG1254.478.1 Right Installation Bracket Weldment 1
10 TB400.475-05 Sleeve 1
11 TB400.475-06 Washer 1
12 TG1254.478-03 Right Torsion Spring 1
13 TG1254.478.2 Right Installation Plate Weldment 1
14 TG1254.477-04 Installation Seat 1
15 JBT7940.1-M10X1 Straight Forced Filling Oil Cup 1
16 GBT5783-M12X55-8.8-A3L Hexagon Bolt 6
17 GBT96.1-12-AOP Big Washer 6
18 GBT6170-M12-8-A3L Hexagon Nut, Type-1 6
19 GBT5783-M16X70-8.8-A3L Hexagon Bolt 4
20 GBT93-16-AOP Standard Spring Washer 4
21 GBT93-8-AOP Standard Spring Washer 4
22 GBT6170-M8-8-A2L Hexagon Nut, Type-1 5
23 GBT5783-M10X55-8.8-A2L Hexagon Bolt 1
24 GBT5783-M8X45-8.8-A2L Hexagon Bolt 1
25 GBT6170-M10-8-A3L Type-I Hexagon Nut 1

FT300.49.001 Tool box assembly 1
1 FT300.49.012 Tool box supply assembly 1
1.1 FT65.49.102 Latch 1
1.2 FT65.49.103 Fixing support plate 1
1.3 TB400.49.1.1 Tool box welding and riveting assembly 1
1.3.1 GBT867-4X8 Round head rivet 4
1.3.2 FT65.49.115 Handle 1
1.3.3 FT65.49.101 Handle seat 2
1.3.4 FT300.49.012 Tool box welding assembly 1
2 GBT6170-M12-8-A3L Type 1 hexagon nut 2
3 GBT97.1-12-A0P Flat washer 2
4 GBT93-12-A0P Standard spring washer 2
5 GBT5783-M12X35-8.8-A3L Hexagon head bolt 2

TG1854.501A Oil tank installation assembly 1
1 GBT5783-M14X45-10.9-A3L Hex bolt 2
2 GBT93-14-A0P Standard spring washer 2
3 TG1854.501.7 Oil tank front bracket weldment 1
4 TG1854.501.4 Front limitation pipe weldment 1
5 GBT95-10-A0P Flat washer 3
6 GBT93-10-A0P Standard spring washer 5
7 GBT5783-M10X55-8.8-A2L Hex bolt 2
8 TG1854.501.5 Front lock cable ties weldment 1
9 FT800A.50.209 Main oil tank ties rubber strip 2
10 TG1854.501.3 Main oil tank bracket weldment 1
11 TG1854.501-01 Shield plate 1
12 GBT5783-M10X25-8.8-A3L Hex bolt 1
13 GBT5783-M10X30-8.8-A3L Hex bolt 2
14 GBT6170-M10-8-A3L Type 1 hex nut 4
15 TG1854.501-02 Lock cable fastening frame 1
16 GBT5783-M16X50-10.9-A3L Hex bolt 4
17 GBT93-16-A0P Standard spring washer 8
18 TG1854.501.6 Rear lock cable weldment 1
19 TG1854.501.2 Rear bracket weldment 1
20 GBT5783-M16X35-10.9-A3L Hex bolt 4
21 TG1854.501.1 Oil tank assembly 1
21.1 TG1854.501.1-02 Straight pipe joint 1
21.2 JBT982-20 Compound seal washer 3
21.3 Q617B20 Hex screw plug 2
21.4 TG1854.501.1-01 Oil tank housing 1
21.5 TF1004.501.1-02 Filter screen 1
21.6 TD800.501A.1.1 Oil tank cover 1
22 TG1854.501A.1 Oil tank front bracket weldment 1
23 GBT93-20-A0P Standard spring washer 4
24 GBT5783-M20X50-10.9-A4L Hex bolt 4

TG1854.502 Delivery pipeline assembly 1
1 Q67522 Worm driven hose hoop, type A 8
2 GBT6170-M10-LH-8-A3L Hexagon nut , Style 1 2
3 GBT93-10-A0P Standard spring washer 2
4 TG1204.504.3 Spin-on diesel filter assembly 1
5 TG1854.502-06 Fuel tank outlet pipe 1
6 TG1854.502-01 Straight connector 1
7 GBT5783-M10X60-8.8-A2L Hex head bolt 2
8 TD800.503C.1 Delivery pipe assemble 1
9 TG1854.502-04 Return pipe 1
10 TG1854.502-03 3-way connecting pipe 1
11 TG1854.502-05 3-way connector 1
12 TG1854.502-02 Vent pipes before and after fuel tank 1

TA600.62 Safety Belt Assembly 1
1 TA600.62 Safety Belt 2

TG1204.741 Ballast bracket assembly 1
1 GBT5782-M20X80-A9L Bolt 6
2 GBT93-20-A0P Washer 6
3 GBT97.1-20-A0P Washer 6
4 TG1204.741-01a Ballast bracket 1
5 TG1654.741-01 Ballast Bracket 1

TG1204.742 Front counterweight assembly 1
1 TG1204.742.1 Front counterweight subassembly 1
1.1 TG1204.742-02 Counterweight block 2
1.2 GBT6170-M16-8-A3L Hexagon nut , Style 1 2
1.3 GBT93-16-A0P Washer 2
1.4 GBT97.1-16-A0P Washer 2
1.5 TG1204.742-01a Counterweight block 9
1.6 FT700.74B.107 Connecting bolt 1
2 GBT5785-M20X1.5X80-8.8-A3L Hex head bolt 2
3 GBT97.1-20-A0P Washer 2
4 TD800.742-01 Traction lug 1
5 FT650.74.108 Traction nut 2
6 GBT5783-M16X35-8.8-A3L Hex head bolt 8
7 GBT93-16-A0P Washer 8
8 GBT97.1-16-A0P Washer 8
9 FT700.74B.010 Right fixed block welding assembly 1
10 TD800.742.1 Traction pin and lockpin assembly 1
11 FT700.74B.011 Left fixed block welding assembly 1
