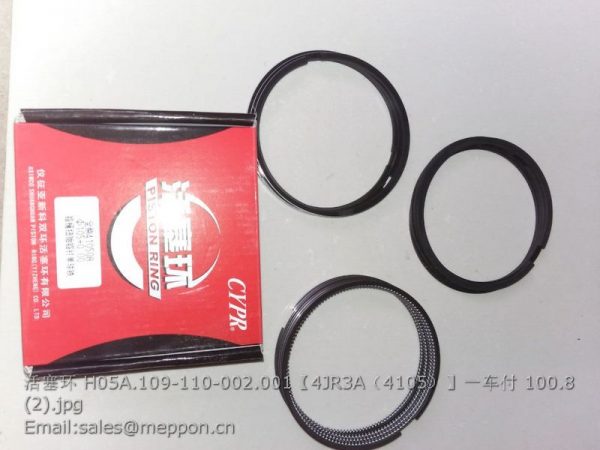

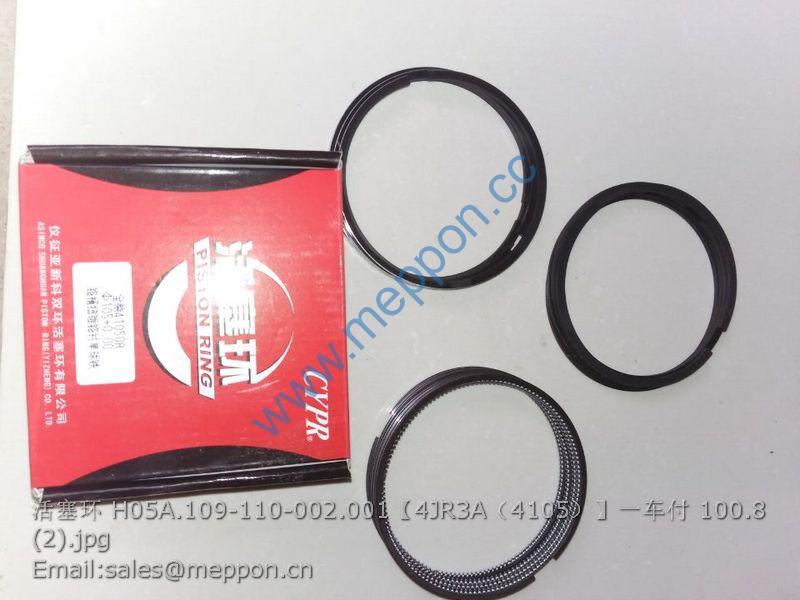

H05A.109-110-002.001 4JR3A qc4105 PISTON RING

TG1454.582J Hydraulic device assembly 2 1
1 TG1204.582.10 Multi-way valve control lever assembly 1 1
1.1 FT304.42.134 Lever sleeve 1
1.2 TG1204.582.10.1 Multi-way valve control lever weldment 1 1
1.3 TG1204.582.10-01 Nylon sleeve 1
2 GBT5783-M8X35-8.8-A2L Hex bolt 2
3 GBT93-8-A0P Standard spring washer 2
4 GBT894.1-20 Circlip for shaft 2
5 TG1204.582-02 Control fixing shaft 1
6 TG1454.582D.3 Distributor control mechanism assembly 1
7 TG1204.582-03 Spacing sleeve 1
8 GBT91-2X16-A0P Cotter pin 3
9 GBT97.1-6-A0P Flat washer 3
10 GBT882-B6X28 Shaft pin 2
11 TG1204.582.9 Distributor control lever assembly 1 1
11.1 FT804A.58L.133 Right-hand pull rod fork 2
11.2 GBT6172.1-M8-A2L Nut 2
11.3 TG1204.582.9-01 Multi-valve control lever 1 1
12 TG1204.582.7 Multi-way valve transit arm weldment 1 1
13 GBT879.1-5X24 Elastic cylindrical pin 2
14 GBT894.1-16 Circlip for shaft 2
15 TG1204.582-08 Retainer ring 2
16 TG1204.582B-01 Multi-way valve steering shaft 1 1
17 GBT882-B6X30 Shaft pin 1
18 TG1204.582A.4 Multi-way valve steering arm weldment 1 1
19 FT800A.57.107 Clamping end 4
20 FT700.58E.103 Left-hand spherical face connecting cover 2
21 GBT6172.1-M8-LH-04-A2L Hex thin nut 2
22 TG1454.582D-02 Connecting lever 2
23 FT800A.57.108 Spherical face connecting cover 2
24 TG1454.582D-01 Transit revolving shaft 1
25 TG1454.582D.4 Transit rocker assembly 1
26 GBT6172.1-M8-04-A2L Hex thin nut 2
27 GBT70.1-M8X20-8.8 Socket hexagonal cap head screw 2
28 GBT95-8-A0P Flat washer 2

TG1454.582J Hydraulic device assembly 2 1
1 GBT5783-M10X25-8.8-A3L Hex bolt 4
2 GBT93-10-A0P Standard spring washer 4
3 TG1204.582A.2 Multi-way valve bracket assembly 1
4 GBT5783-M12X30-8.8-A3L Hex bolt 4
5 GBT93-12-A0P Standard spring washer 4
6 JBT982-22 Compound seal washer 12
7 TG1204.582A-05 Multi-way valve joint 6
8 FT354.58A.030 Quick-change adaptor 6
9 JBT982-27 Compound seal washer 2
10 TG1454.582D.1a Multi-way valve oil return pipe weldment 1
11 TG1204.552-05 Hollow bolt M27X1.5 1
12 TG1204.552-06 Hollow bolt M24X1.5 1
13 JBT982-24 Compound seal washer 2
14 TG1454.582H.1 Multi-way valve oil inlet pipe assembly 1
15 GBT3737-L22 Sleeve type straight pipe joint 1

TG1454.582J Hydraulic device assembly 2 1
1 Q67645 B worm drive type hose hoop 2
2 TG1854.582A-06 Oil return hose 1
3 GBT5783-M10X20-8.8-A3L Hex bolt 6
4 GBT93-10-A0P Standard spring washer 6
5 TG1454.582D.5 Oil return filter assembly bracket weldment 1
6 TG1454.582D.6 Oil return filter assembly 1
7 Q67638 B worm drive type hose hoop 2
8 TG1454.582D-03 Rubber pipe 1
9 TS09580020008 O-ring 20X2-L22 1
10 GBT5783-M6X50-8.8-A1L Hex bolt 1
11 TG1854.581-11 Pipe clip 2
12 TG1454.582B-01 Oil pipe bracket 1
13 GBT93-6-A0P Standard spring washer 1
14 GBT6170-M6-8-A2L Type 1 hex nut 1
15 TG1454.582D.7 Oil pipe bracket weldment 1
16 GBT5783-M8X50-8.8-A2L Hex bolt 1
17 GBT93-8-A0P Standard spring washer 1
18 TG1204.581F-11 Pipe clip 2

TS08441010000K Seat installation assembly 1
1 TD800.44B.1 Seat assembly 1
2 GBT5783-M12X35-8.8-A3L Hex bolt 8 Bolt
3 GBT93-12-A0P Standard spring washer 8 Washer
4 GBT96.1-12-A0P Big washer 8 Washer
Nut
5 TS08441010001K Bracket weldment 1
6 GBT6170-M12-8-A3L Hexagon nut , Style 1 4
