No.

Part Name

Part No.

Qty.

No.

Part Name

Part No.

Qty.

Master cylinder assembly,

brake

8A4998964SZ/1.68.102

1

12.1

Housing, hydraulic pump,

brake

4999491SZ/1.68.104

1

1

O-sealing ring 26.64×2.62

14457980/14618

2

12.2

Bushing, shaft, pedal, brake (LH)

5110546/1.68.020A

1

2

Plug throttle valve M30×1.5

885103904/1.68.121

2

12.3

Bushing, shaft, pedal, brake (RH)

5110545/1.68.011A

1

3

Spring, throttle valve

4999311/1.68.118

2

13

Seal ring

884997684/1.68.125

2

4

Steel ball 6.35

GB 308-84

2

14

O-sealing ring 24.99×3.53

14463280/14168

2

5

Ball seat, throttle valve

4997676/1.68.117

2

15

Rectangular cross-section seal

ring 10×16×1

10298360/14607

1

6

Return spring, piston & pedal

5101715/1.68.110

2

16

Plug, oil passage, brake pump

881006801

1

7

Piston, master cylinder, brake

pump

4999443/1.68.108

1

17

Steel ball 12.7

GB 308-84

2

8

O-sealing ring 18.72×2.62

14457480/14618

2

18

Spring, compensation valve

4997678/1.68.119

2

9

Sping, check valve

4999488/1.68.113

2

19

O-sealing ring 17.12×2.62

14457380/14618

2

10

Check valve

884997674/1.68.112

2

20

Plug, compensation valve

4997680/1.68.119

2

11

Plug M22×1.5, check valve

5129893/1.68.123

2

21

Bolt M16×1.5×90

GB/T5785-2000

2

12

Housing with bushing & steel ball, hydraulic pump, brake

4999492/1.68.104A

1

22

Washer 16-Zn.D

GB/T97.1-2002

2

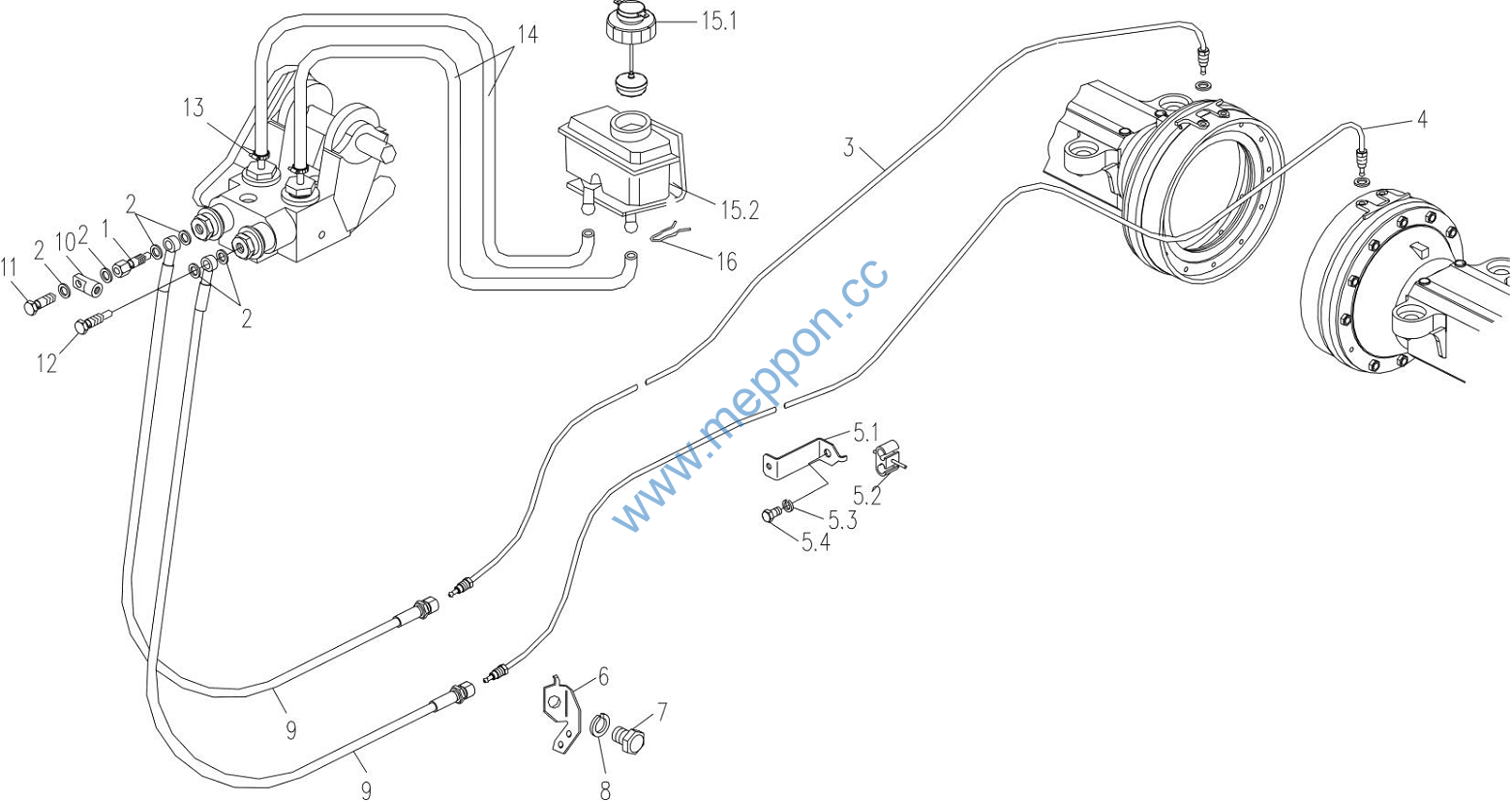

No.

Part Name

Part No.

Qty.

No.

Part Name

Part No.

Qty.

1

Connecting bolt, hose (RH),

master cylinder, brake

885111684/1.68.523

1

9

Hose, brake control

SZ804.43.013

2

2

Rectangular cross-section seal

ring 10×16×1

10298360/14607

8

10

Stop signal connector (LH), master cylinder, brake

5111683/1.68.521

1

3

Brake oil pipe assembly (RH)

SZ804.43.011

1

11

Connecting bolt, hose (LH),

master cylinder, brake

5103908/1.68.522

1

4

Brake oil pipe assembly (LH)

SZ804.43.012

1

12

Connecting bolt, hose (LH),

master cylinder, brake

885103908/1.68

1

5

Support assembly, hose, brake

SZ804.43.060

1

13

Hoop (Φ8～Φ12mm)

JK-000

4

5.1

Support, hose, brake

5129308/1.68.527

1

14

Oil inlet pipe, master cylinder

5101336/1.68.205

2

5.2

2-4.7D type oil pipe clamp unit

14575380/14562

1

15

Brake fluid reservoir

assembly

1.68.201/5105871

1

5.3

Washer 8-Zn

GB/T7244-1987

2

15.1

Cap assembly, oil tank

5105873/1.68.206A

1

5.4

Bolt    M8×1.25×14

GB 5129307/1.68.527

1

15.2

Fluid reservoir assembly, brake

5105871/1.68.201

1

6

Support, hose, brake

GB/T5786-2000

1

16

Spring clamp

5141690/1.68.227

2

7

Bolt    M12×1.25×16

GB/T93-1987

1

8

Washer 12

5141690/1.68.227

1

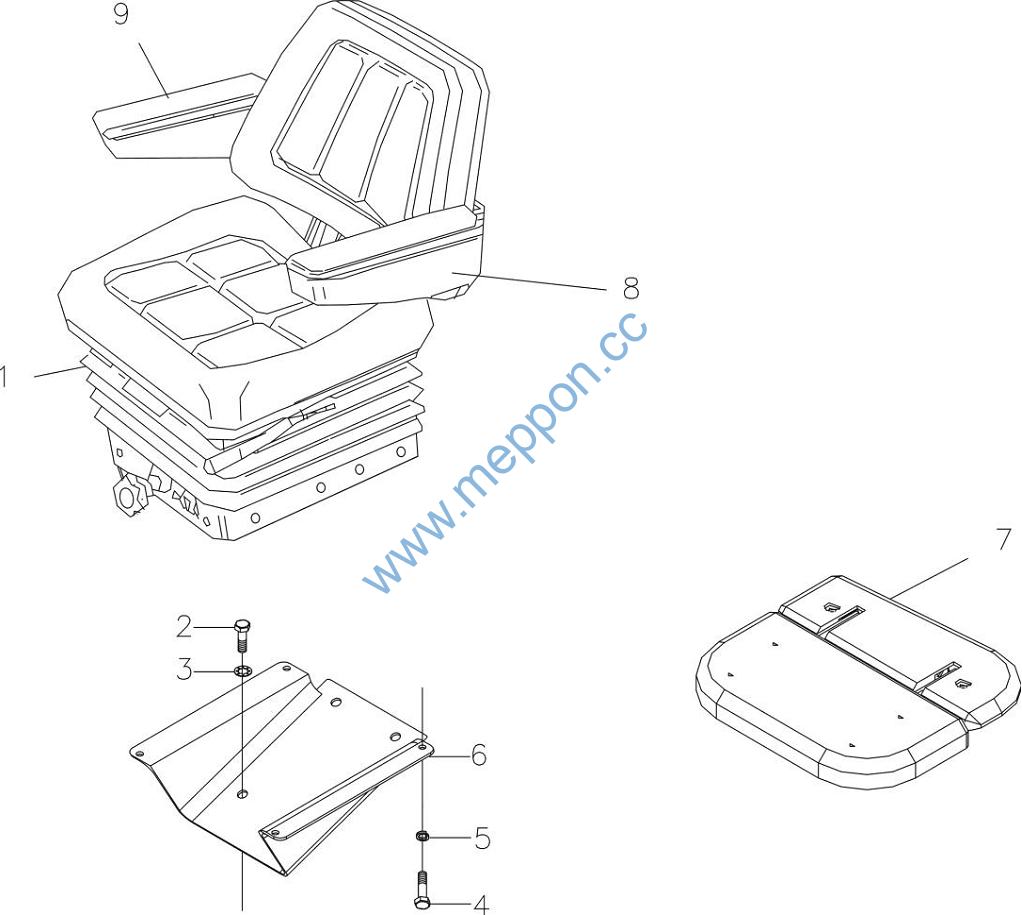

No.

Part Name

Part No.

Qty.

No.

Part Name

Part No.

Qty.

1

Seat assembly (luxury-like)

LG1304.44.010-E

1

2

Bolt    M12×30

GB/T5782-2000

4

3

Washer 12

GB 861.2-87

4

4

Bolt    M8×25-Zn.D

GB/T5783-2000

4

5

Washer 8-Zn.D

GB/T93-1987

4

6

Attachment bracket, seat

880808052/1.8.100

1

7

Auxiliary seat assembly

SZ700.44.002

1

8

Handrail (LH)

XFZY-1-00-1

1

9

Handrail (RH)

XFZY-1-00-2

1

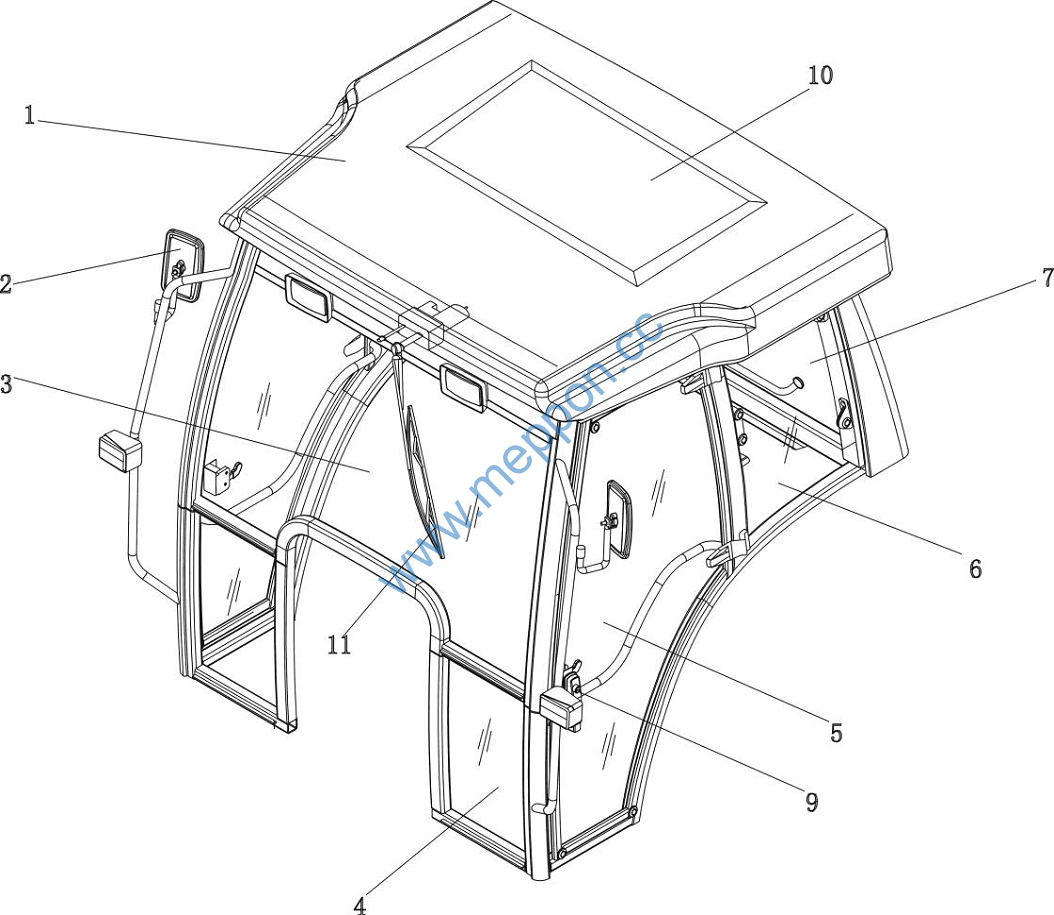

No.

Part Name

Part No.

Qty.

No.

Part Name

Part No.

Qty.

1

Cab assembly

700.45.001

1

7

Window assembly (RR)

700.45.017K

1

2

Rear-view mirror assembly

8/5143978-2

2

Air spring, rear window

4/5131707F

2

3

Glass, window (FR)

700.45.121

1

9

Lock assembly, door (set)

NBS502-1

1

Glass seal, windshield

700.45.173

1

10

Sun roof（optional）

DS/650E

1

4

Glass, window (FR, LH)

700.45.123

1

11

Wiper assembly

ZD1230B

1

Glass, window (FR, RH)

700.45.124

1

Switch, wiper

JK932-020-2.5(SX)

1

Windshield seal (LWR)

700.45.176

2

5

Door assembly (LH)

700.45.013FG

1

Door assembly (RH)

700.45.014FG

1

6

Window assembly (RR, LH)

700.45.015

1

Window assembly (RR, RH)

700.45.016

1

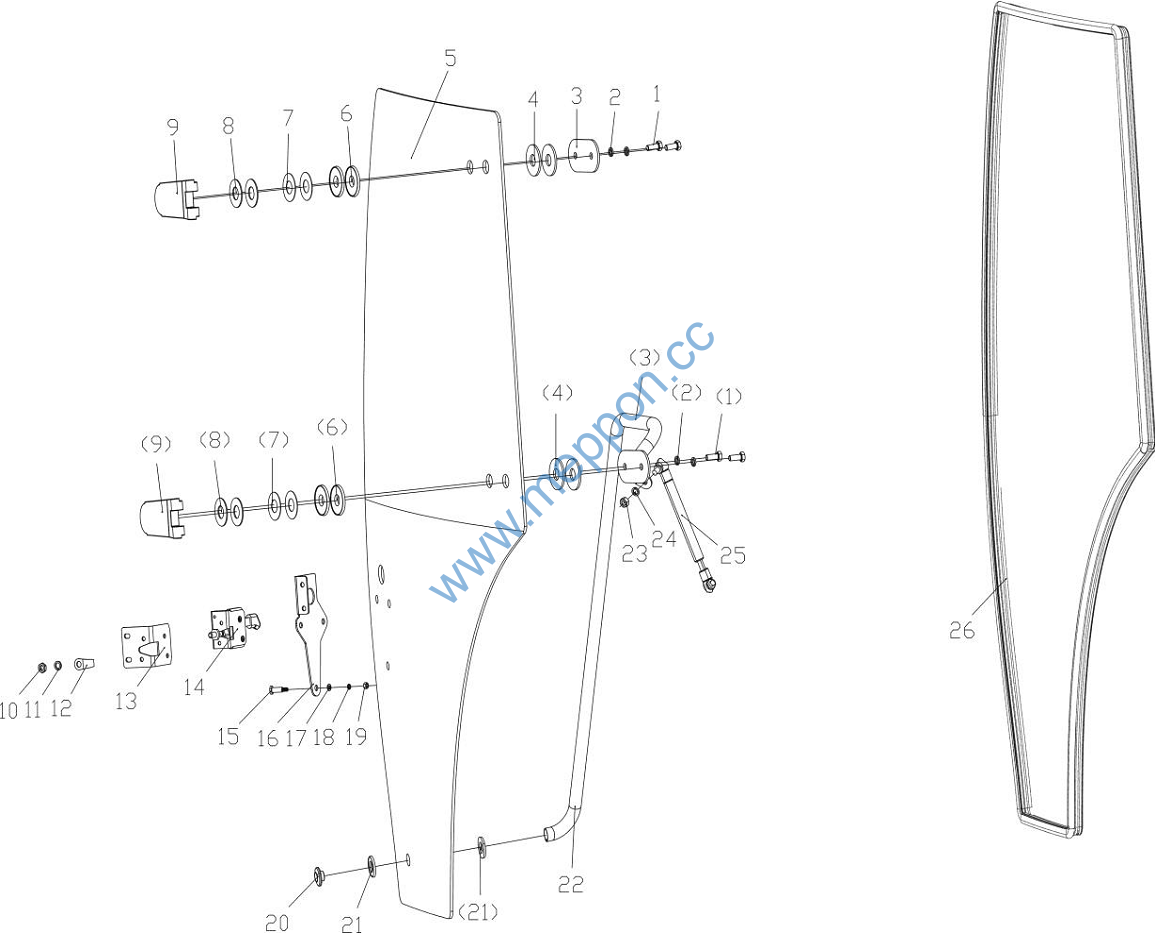

No.

Part Name

Part No.

Qty.

No.

Part Name

Part No.

Qty.

1

Bolt M10*25-8.8-Zn.D

GB/T5783

4

20

Round nut of rear window handle

4/5120540

1

2

Washer 10-Zn.D

GB/T93

4

21

Gasket, round nut

4-5108657

2

3

Inner panel (LWR), hinge

700.45.614

1

22

Welded armrest assembly, door (LH)

700.45.021FG

1

4

Inner gasket, door hinge

700.45.259

4

Welded armrest assembly, door (RH)

700.45.022FG

1

5

Glass, door (LH)

700.45.215FG

1

23

Hexagon nut M10

GB/T6170

1

Glass, door (RH)

700.45.216FG

1

24

Spring washer    10

GB/T93

1

6

Rubber pad, door hinge

700.45.258

4

25

Air spring, doorw

LG1304.45.338

1

7

Adjusting shim, hinge (UPR)

804C.45.254

4

26

Glass seal, door

700.45.225

1

8

Outer gasket, hinge (UPR)

804C.45.253

4

9

Door hinge

700.45.420FG

2

10

Nut M8-Zn.D

GB/T6170

2

11

Washer 8

GB/T93-1987

2

12

Shield, door lock

804C.45.267-1

1

13

Retaining plate, lock cylinder, door (LH)

700.45.603-1FG

1

Retaining plate, lock cylinder, door (RH)

700.45.604-1FG
