LOVOL FT404–AK16 Tractor Parts Catalogue 08

Meppon Parts Posted on by



FT304.31F.001–6 31.6–മൻۯൃݴጺׯ–6 FRONT DRIVE AxLE SUB–ASSEMBLY–6



Քࡽ No.

پࡽ Code

ఁ׬ Detcription

ຕଉ Ruantity

Ԣጀ Renark

0

FT304.31F.011

FRONT DRIVING AxLE SUB–ASSEMBLY

1

2011–11_

10

FT304.31F.147

SHAFT

1

2011–11_

11

GBT3452.1–58×3.55G

O–SEAL RING

1

2011–11_

13

GBT93–8

WASHER 8

2

2011–11_

14

GBT7940.2–45°M8x1

OIL CUP

2

2011–11_



16



GBT93–12



WASHER



18



2011–11_

17

GBT6170–M12

NUT

12

2011–11_

18

GBT900–AM12x40–8.8–Zn.D

STUD

12

2011–11_

2

GBT6170–M16

NUT

1

2011–11_

20

GBT3452.1–45×3.55G

O–SEAL RING

1

2011–11_



21



FT304.31F.155



REAR SUPPORTING SHAFT SEAT



1



2011–11_

3

FT304.31F.025

SEAL GASKET

1

2011–11_

4

FT304.31F.149

FRONT SUPPORT SHAFT SEAT

1

2011–11_

5

FT304.31F.150

WASHER

1

2011–11_

6

FT304.31F.148

SLIDING BEARING

1

2011–11_



7



GBT7940.1–M8x1



OIL CUP



2



2011–11_

8

GBT3452.1–47.5×3.55G

O–SEAL RING

1

2011–11_

9

FT304.31F.024

CONNECTING PIN

2

2011–11_

80








81





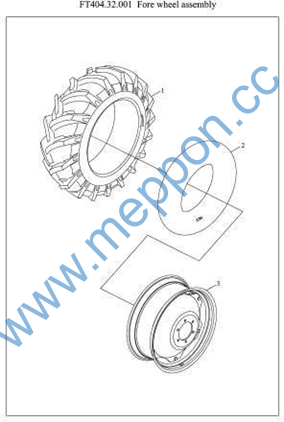

FT404.32.001 32–മ୾ጺׯ 32–FRONT WHEEL ASSEMBLY



Քࡽ No.

پࡽ Code

ఁ׬ Detcription

ຕଉ Ruantity

Ԣጀ Renark

1

2

2

3

3

GBT2979–8.3–20–6PR GBT2979–8.3–20 GBT2979–8.3–20 FT404.32.011b FT404.32.011b

OUTER TIRE

DRIVING WHEEL INNER TUBE DRIVING WHEEL INNER TUBE WHEEL RIM WELD

WHEEL RIM WELD

2

2

2

2

2

2011–11_

2003–11_

2003–11_

2003–11_

2003–11_

82








83





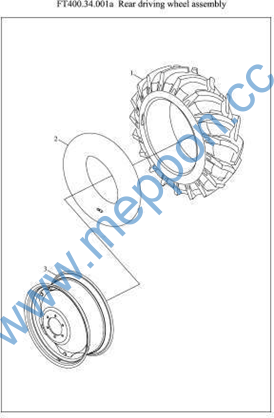

FT400.34.001a 34–ࢫൻۯ୾ጺׯ 34–REAR DRIVE WHEEL ASSEMBLY



Քࡽ No.

پࡽ Code

ఁ׬ Detcription

ຕଉ Ruantity

Ԣጀ Renark

1

2

2

3

3

GBT2979–12.4–28–8PR–R GBT2979–12.4–28–R GBT2979–12.4–28–R FT400.34.011b FT400.34.011b

DRIVING WHEEL OUTER TUBE DRIVING WHEEL INNER TUBE DRIVING WHEEL INNER TUBE RIM ASSEMBLY

RIM ASSEMBLY

2

2

2

2

2

2014–12_

2014–12_

2014–12_

2003–11_

2003–11_

84








85





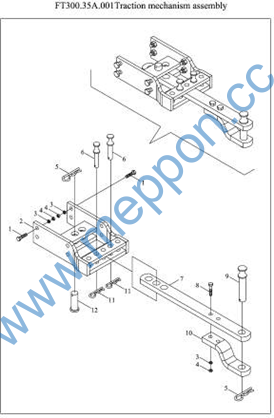

FT300.35A.001 35–ഡᆅऐࠓጺׯ 35–TOWING MECHANISM ASSEMBLY



Քࡽ No.

پࡽ Code

ఁ׬ Detcription

ຕଉ Ruantity

Ԣጀ Renark

1

10

11

12

2



2

3

4

5

6



7

8

9

GBT5783–M16×60–A3L
FT300.35A.101
FT300.35A.131
FT300.35A.103
FT300.35A.012



FT300.35A.012a
GBT93–16–A0P
GBT6170–M16–A3L
FT65.53.103
FT300.35A.104



FT300.35A.102
TB400.35.1–03
FT300.35A.105

BOLT

CONNECTING SWING ROD
PIN

CONNECTING PIN
TRACTION FRAME



TRACTION FRAME
SPRING WASHER
NUT M16–A3L
SPRING LOCK PIN
THIMBLE



UPPER PART U–HOOK
BOLT

SWING PIN

















1

10

10

2

2



1

2

1

2010–11_

2010–11_

2010–11_

2010–11_

2004–01_



2010–11_

2012–02_

2010–11_

2010–11_

2010–11_



2010–11_

2010–11_

2010–11_

86








87





TB550.371 37.1–Վ໏ၒ੕༹ጺׯ 37.1–GEARBOx HOUSING ASSEMBLY



Քࡽ No.

پࡽ Code

ఁ׬ Detcription

ຕଉ Ruantity

Ԣጀ Renark

1

TB400.371E–01

GEAR BOx

1

2007–12_

1

FT300.37.101b

GEAR BOx

1

2004–01_

1

FT300.37.101b

GEAR BOx

1

2004–01_

10

TB550.371–01

BOLT

3

2011–11_

11

GBT6170–M12–A3L

NUT

6

2011–11_



12



GBT5782–M12x110–A2L



BOLT



2



2004–01_

13

GBT119.1–12n6x22–A0P

PIN

1

2004–01_

14

GBT5782–M12x100–A2L

BOLT

3

2011–11_

15

GBT5782–M12x70–A2L

BOLT

2

2004–01_

16

GBT5783–M12x35–A3L

BOLT

4

2011–11_



16



GBT5783–M12x35–A3L



BOLT



4



2011–11_

2

GBT6171–M12x1.5–A3L

NUT

10

2004–01_

3

GBT93–12–A0P

SPRING WASHER

24

2011–11_

4

GBT899–AM12–M12x1.5×35–8.8–A3L

8.8–A3L STUD

10

2011–11_

5

FT300.37.158

PEDAL SHAFT BUSH

2

2011–11_



6



JBT7940.1–M10x1



STRAIGHT PRESSURE FILLING OIL CUP



2



2011–11_

7

FT300.37.159

RELEASE FORK SHAFT BUSH

2

2011–11_

8

GBT91–6.3×40–A0P

PIN

1

2011–11_

9

GBT119.1–12n6x30–A0P

PIN

3

2011–11_

9

GBT119.1–12n6x30–A0P

PIN

3

2011–11_

88








89





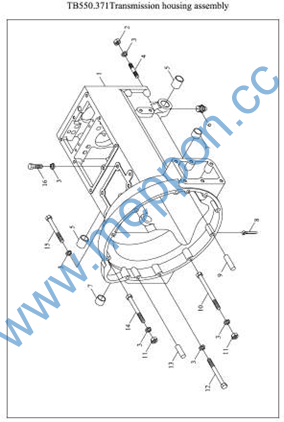

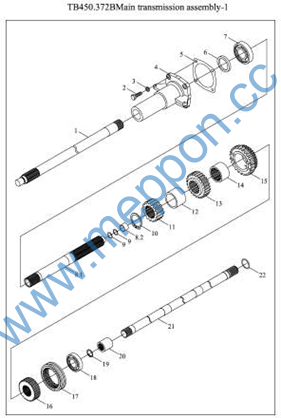

TB550.371…. 37.1Վ໏ၒ੕༹ጺׯ 37.1TRANSMISSION HOUSING ASSEMBLY



Քࡽ No.

پࡽ Code

ఁ׬ Detcription

ຕଉ Ruantity

Ԣጀ Renark

0

TB550.371

37.1–GEARBOx HOUSING ASSEMBLY

1

2011–11_

1

FT300.37.101b

GEAR BOx

1

2011–11_

1

FT300.37.101b

GEAR BOx

1

2011–11_

10

TB550.371–01

BOLT

3

2011–11_

11

GBT6170–M12–A3L

NUT

6

2011–11_



13



GBT119.1–12n6x22–A0P



PIN



1



2011–11_

14

GBT5782–M12x100–A2L

BOLT

3

2011–11_

16

GBT5783–M12x35–A3L

BOLT

4

2011–11_

16

GBT5783–M12x35–A3L

BOLT

4

2011–11_

3

GBT93–12–A0P

SPRING WASHER

24

2011–11_



4



GBT899–AM12–M12x1.5×35–8.8–A3L



8.8–A3L STUD



10



2011–11_

5

FT300.37.158

PEDAL SHAFT BUSH

2

2011–11_

6

JBT7940.1–M10x1

STRAIGHT PRESSURE FILLING OIL CUP

2

2011–11_

7

FT300.37.159

RELEASE FORK SHAFT BUSH

2

2011–11_

8

GBT91–6.3×40–A0P

PIN

1

2011–11_



9



GBT119.1–12n6x30–A0P



PIN



3



2011–11_

9

GBT119.1–12n6x30–A0P

PIN

3

2011–11_

90








91
