Description

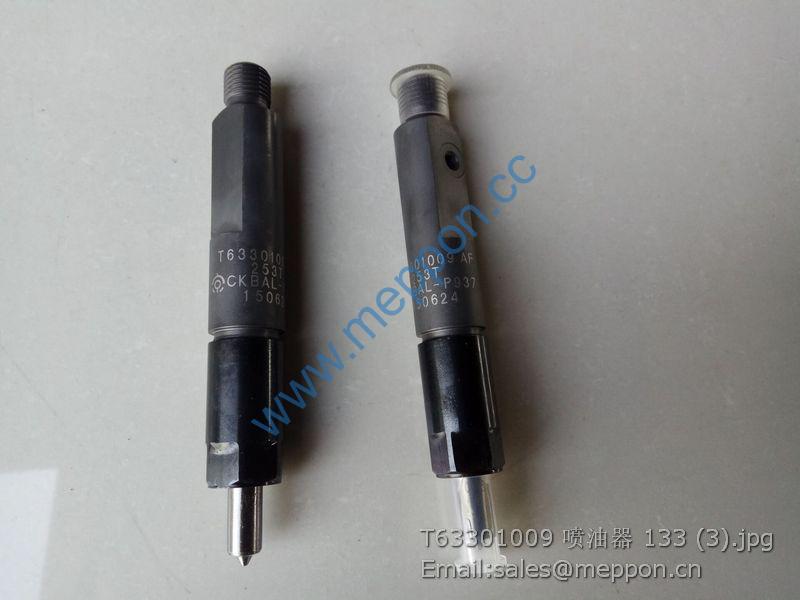

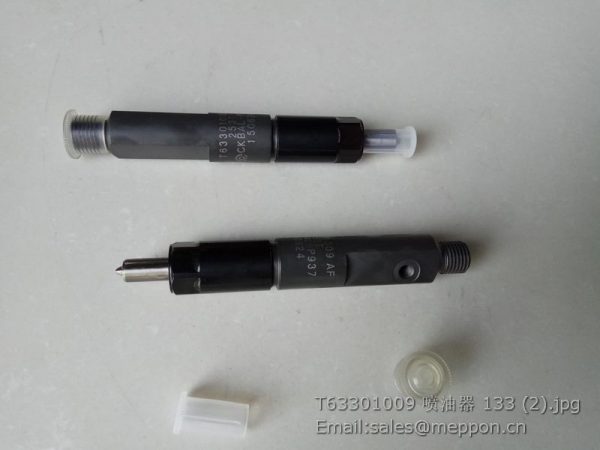

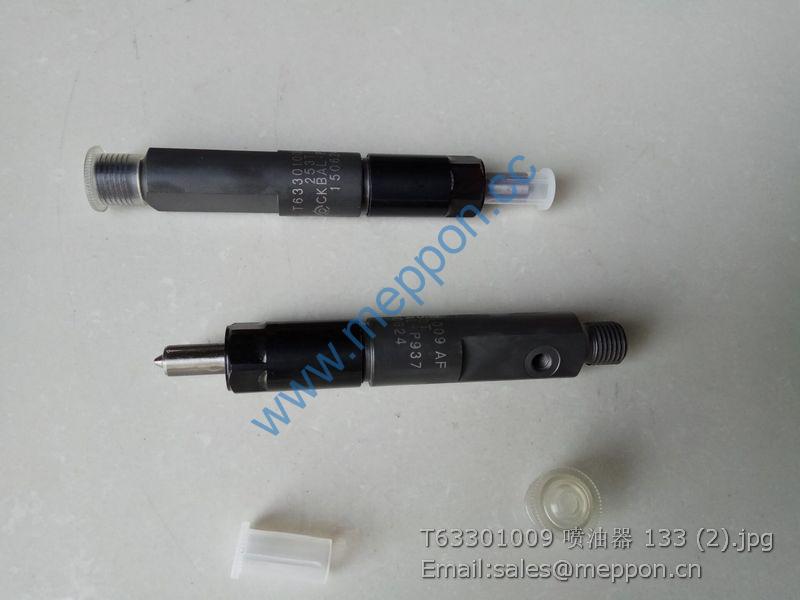

T63301009 FOTON LOVOL FUEL INJECTOR

FT800.39.001 Left Final Drive Assembly 1
1 FT800.39.108 Final Driving Gear Ring 1
2 FT800.39.113 Left Half Shaft 1
3 FT800.39.103a Final Driving Housing 1
4 GBT 297-30214 Tapered Roller Bearing 1
5 FT800.39.131 Coarse Adjusting Gasket AR
FT800.39.132 Fine Adjusting Gasket 1
FT800.39.133 Fine Adjusting Gasket 1
FT800.39.134 Fine Adjusting Gasket 1
FT800.39.135 Fine Adjusting Gasket 1
FT800.39.136 Fine Adjusting Gasket 1
FT800.39.137 Coarse Adjusting Gasket AR
FT800.39.138 Coarse Adjusting Gasket AR
6 FT800.39.104 Planet Carrier 1
7 FT800.39.106a Planet Carrier Platen 1
8 FT800.39.105a Planet Carrier Fixing Bolt 1
9 FT800.39.112a Thrust Gasket 1
10 GBT 879.1-8X32 Elastic Cylindrical Pin 3
11 FT800.39.111 Planet Gear Shaft 3
12 FT800.39.110 Planet Gear Needle Outer Spacing Ring 6
13 FT800.39.107 Planet Gear 3
14 FT800.39.118 Rolling Needle 126
15 FT800.39.109 Rolling Needle Inner Spacing Ring 3
16 GBT 297-30215 Tapered Roller Ring 1
17 FT800.39.120 Oil Seal Spacing Ring 1
18 GBT 9877.1-FB100X130X12D Oil Seal 2
19 FT800.39.012 Driving Shaft Weldment 1
20 FT800.39.101c Driving Wheel Fixing Bolt 8
21 FT800.39.130 Washer 8
22 GBT 6176-M20X1.5-LH-10-A3L Nut 8

FT800.39.002 Right Final Drive Assembly 1
1 GBT 6176-M20X1.5-10-A3L Hexagon Nut, Style 2 8
2 FT800.39.130 Washer 8
3 FT800.39.101d Driving Shaft Fixing Bolt 8
4 FT800.39.012 Driving Shaft Weldment 1
5 GBT 9877.1-FB100X130X12D Rubber Covered Rotary Shaft Lip Seal 2
6 FT800.39.120 Oil Seal Circlip 1
7 GBT 297-30215 Tapered Roller Bearing 1
8 FT800.39.103a Half Shaft Housing 1
9 GBT 297-30214 Tapered Roller Bearing 1
10 FT800.39.131 Coarse Adjusting Gasket AR
FT800.39.132 Fine Adjusting Gasket 1
FT800.39.133 Fine Adjusting Gasket 1
FT800.39.134 Fine Adjusting Gasket 1
FT800.39.135 Fine Adjusting Gasket 1
FT800.39.136 Fine Adjusting Gasket 1
FT800.39.137 Coarse Adjusting Gasket AR
FT800.39.138 Coarse Adjusting Gasket AR
11 FT800.39.104 Planet Carrier 1
12 FT800.39.106b Planet Carrier Platen 1
13 FT800.39.105a Planet Carrier Fixing Bolt 1
14 FT800.39.112a Thrust Gasket 1
15 FT800.39.108 Final Driving Gear Ring 1
16 FT800.39.114 Right Half Shaft 1
17 FT800.39.110 Planet Gear Needle Outer Spacing Ring 6
18 FT800.39.118 Rolling Needle 8X23.8 126
19 FT800.39.109 Rolling Needle Inner Spacing Ring 3
20 FT800.39.107 Planet Gear 3
21 FT800.39.111 Planet Gear Shaft 3
22 QLWZB140-12X32 Elastic Cylindrical Pin 1

TD800.411C PTO Shaft Assembly 1
1 FT800A.41.143 PTO Shaft Connecting Bolt 6
2 FT800A.41C.107 Type-I35 PTO Shaft 1
3 FT800A.41.144 Lock Washer 3
4 GBT 6176-M14X1.5-A3L Nut 6

TD800.412R PTO Gear Assembly 1
1 GBT5783-M10X30-8.8-A3L Hexagon Bolt 4
2 GBT93-10-A0P Standard Spring Washer 4
3 FT800.37.106 PTO Shaft Connecting Sleeve 1
4 TD800.412P-05 Clearance Adjusting Washer 1
4 TD800.412P-03 Clearance Adjusting Washer 1
4 TD800.412P-04 Clearance Adjusting Washer 1
4 TD800.412P-06 Clearance Adjusting Washer 1
5 TD800.412P-01 PTO Dual Gear Bearing Seat 1
6 GBT297-30309 Tapered Roller Bearing 2
7 GBT893.1-28 Circlips For Hole 1
8 TD800.412R-01 PTO Dual Gear 1
9 FT800.41.105 PTO Transmission Shaft 1
10 GBT895.2-30 Steel Wire Circlip For Shaft 1

TD800.412R PTO Gear Assembly 1
1 FT800A.41.139 PTO Transmission Shaft Locknut 1
2 FT800A.41.108 PTO Transmission Shaft 1
3 GBT288-22210C Self-Aligning Ball Bearing 1
4 FT800A.41.141 Middle Circlip Of Pto Transmission Shaft 1
5 TD800.412M-02 PTO Low Gear Driven Gear 1
6 QLWZB120-K68X78X34 Roller Needle Bearing 2
7 FT800A.41.113 PTO High Gear Sliding Sleeve 2
8 FT800.37.118 Ⅲ – Ⅳ Shift Collar 1
9 FT800.37.119 Ⅲ – Ⅳ Engaging Gear Seat 1
10 TD800.412K-02 PTO High Gear Driven Gear 1
11 FT800A.41.142 Rear Circlip Of Pto Transmission Shaft 1
12 GBT899-AM14-M14X1.5X65-8.8-A3L Double End Studs 4
13 GBT93-14-A0P Standard Spring Washer 4
14 GBT6176-M14X1.5-8-A3L Hexagon Nut, Type-2 4
15 GBT297-30212 Tapered Roller Bearing 2
16 FT800A.41.124 Rear Bearing Seat Of PTO Transmission Shaft 1
17 GBT9877.1-FB70X90X10D Seal Ring 2
18 FT800A.41.125 Rear Oil Seal Seat Of PTO Transmission Shaft 1
