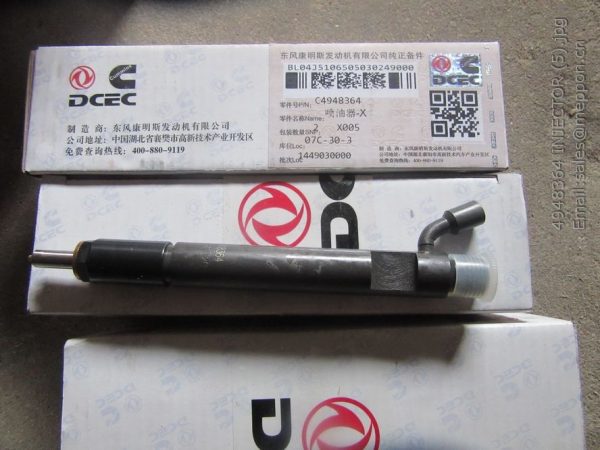

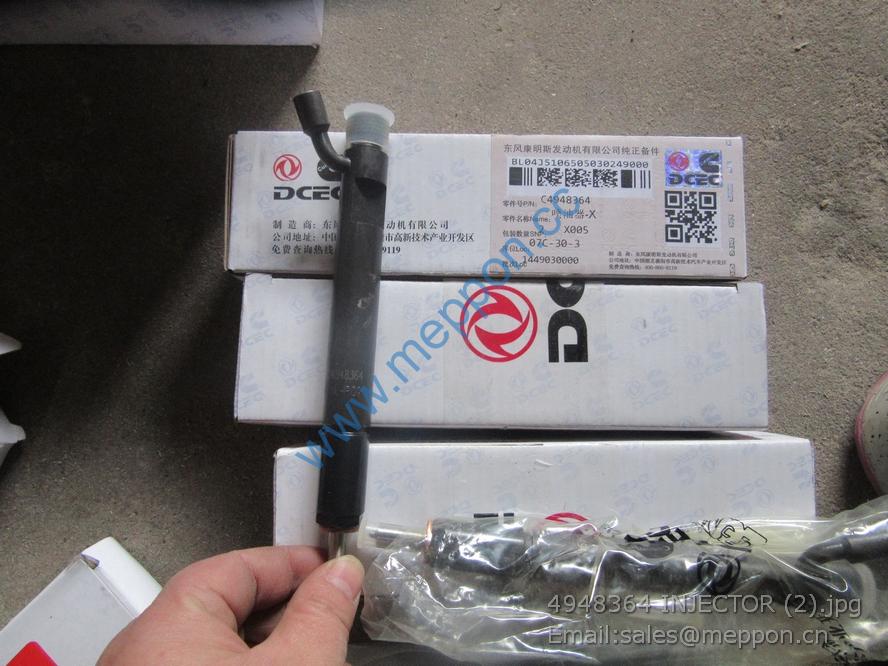

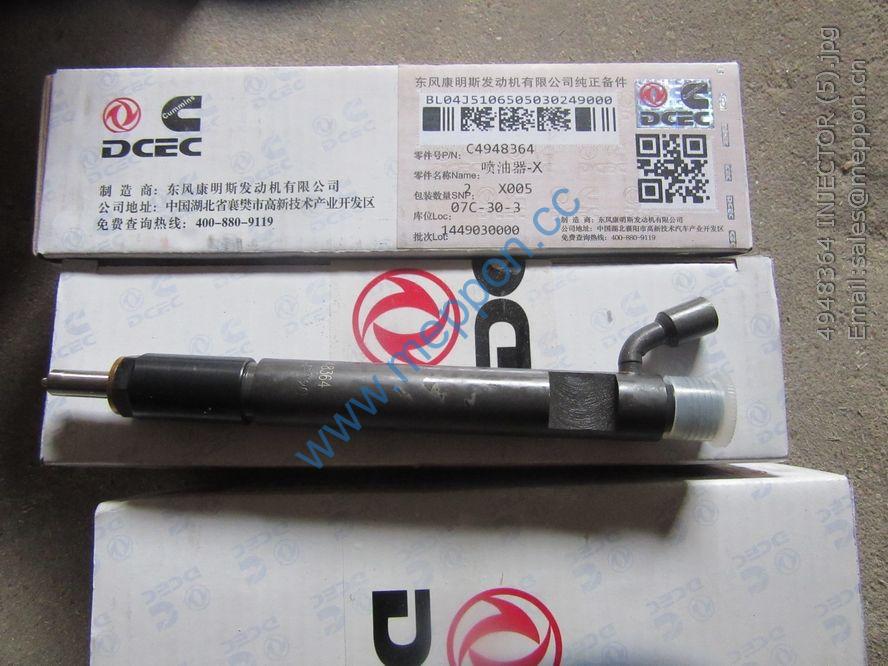

4948364 INJECTOR CUMMINS SP105863 SP125544 3283160

1 06214722 1 O-ring
2 1000880527 1 Oil Filling Pipe Cap
3 13054982 1 Front Cap
4 01118647 1 Sealing Washer
5 90003800472 1 Hexagon Head Bolt
6 90003931102 20 Spring Washer
7 90003800431 1 Hexagon Head Bolt
8 90003800441 5 Hexagon Head Bolt
9 01161340 1 O-ring
10 13031548 1 Crankcase Breather
11 01118641 4 Sealing Washer
12 01111096 1 Hexagon Head Bolt
13 13022332 1 Idler Gear Shaft
14 13022327 1 Idler Gear Assembly
15 13022331 1 Shaft
16 13022333 1 Baffle Board
17 13027282 4 Hexagon Head Bolt
18 13022340 1 Front Cover shield
19 90003802321 3 Hexagon Head Bolt
20 12188100 1 Front Oil Seal
21 90003800467 6 Hexagon Head Bolt
22 90012700003 1 Hexagon Nut, Style 2
23 90003813434 1 Double End Stud
24 90003802424 8 Hexagon Head Bolt
25 13054661 1 Plug
26 13031533 1 Gasket
27 90011620040 4 Double End Stud

28 90014040008 4 Plain Washer
29 90003888452 4
Prevailing Torque Type
All-metal Hexagon Nut,

1 13022328 1 Idler Gear
2 13022329 1 Gear Bush

1 90003802411 6 Hexagon Head Bolt
2 90003931102 6 Spring Washer
3 13032177 6 Gasket
4 1000091329 6 Piston Nozzle Set
5 90017510059 6 O-ring
