Description

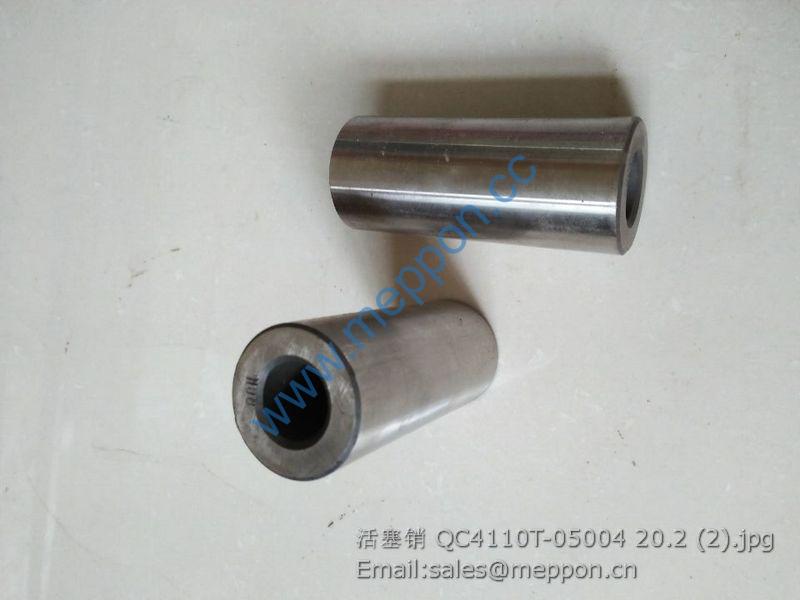

QC4110T-05004 QUANCHAI PISTON PIN
32 GBT 97.1-10 Plain washer 1
33 GBT 93-10-A0P Standard spring washer 4
34 GBT 5783-M10X25-8.8-A3L Hexagon head bolt 4
35 GBT 5783-M6X30-8.8-A2L Hexagon head bolt 2
36 FT650.58.060 Oil pipe clip and rubber pad paste 4
37 GBT 93-6-A0P Standard spring washer 2
38 GBT 6170-M6-8-A2L Hexagon nut, style 1 2
TS10582010000 Multi-way valve oil pipe assembly 1
1 GBT 68-M4X10-4.8-A2L Slotted countersunk head screw 2
2 TB504.552-04 Handle head 2
3 TS10582010022 Multi-way valve control assembly 1
4 GBT 93-8-A0P Standard spring washer 3
5 GBT 5783-M8X30-8.8-A2L Hexagon head bolt 2
6 GBT 882-B8X30-A0P Pin 4
7 TS10582010032 Connecting pull rod assembly 1 2
8 GBT 97.1-8-A0P Plain washer 4
9 GBT 91-3.2X16-A0P Split pin 4
10 GBT 5783-M8X20-8.8-A2L Hexagon head bolt 1
11 TS10582010048 Rotary shaft weldment 1
12 TS10582010009 Control trestle weldment 1
13 GBT 900-M10X130-8.8-A3L Double-ended stud 3
14 GBT 97.1-10-A0P Plain washer 3
15 GBT 93-10-A0P Standard spring washer 5
16 GBT 6170-M10-8-A3L Hexagon nut, style 1 3
17 TS10582010040 Multi-way valve control pressing unit 3 2
18 GBT 91-2X12-A0P Split pin 2
19 GBT 97.1-6-A0P Plain washer 2
20 GBT 882-B6X18-A0P Pin 2
21 TS10582010043 Connecting pull rod assembly 3 2
22 TS10582010045 Joint 2
23 GBT 93-16-A0P Standard spring washer 2
24 GBT 6170-M6-8-A2L Hexagon nut, style 1 2
25 TS10582010005 Output oil pipe weldment 3 1
26 TS10582010001 Output oil pipe weldment 1 1
27 TS10582010003 Output oil pipe weldment 2 1
28 TS10582010007 Output oil pipe weldment 4 1
29 JBT 982-22 Compound seal washer 4
30 TS10582010047 Straight thread connector-body 4
31 GBT 6173-M27X2-05-A3L Hexagon thin nut 4
32 GBT 5783-M10X20-8.8-A3L Hexagon head bolt 2
33 FT354.58A.030 Quick change connector 4
34 TS10582010018 Connecting plate weldment 1
35 TA700.582-01 Transit joint 4
TD800.44 Seat Installation Assembly 1
1 TD800.44.1 Seat Assembly 1
2 GB/T 5783-M12×35-A3L Bolt 2
3 GB/T 93-12-A0P Washer 4
4 GB/T 97.1-12-A0P Washer 4
5 GB/T 5783-M12×25-A3L Bolt 2
TS10452010000K Floor assembly 1
1 GB/T 5783-M8×20-8.8-A2L Hexagon head bolt 10
2 GB/T 93-8-A0P Standard spring washer 10
3 GB/T 97.1-8-A0P Plain washer 4
4 TS10452010006 Lifting control cover plate 1
5 TS10452010085 Seat plate weldment 1
6 FT65.45.323 Rear lower window glass seal strip 1
7 FT65.45.322 Rear lower window glass 1
8 GB/T 6170-M5-8-A2L Hexagon nut, type 1 4
9 TD800.452-07 Glass clamp 4
10 GB/T 97.1-5-A0P Plain washer 4
11 GB/T 93-5-A0P Standard spring washer 4
12 GB/T 5783-M5×16-8.8-A2L Hexagon head bolt 4
13 GB/T 6170-M12-8-A3L Hexagon nut, type 1 4
14 GB/T 93-12-A0P Standard spring washer 4
15 GB/T 96.1-12-A0P Large washer 4
16 TD800.452-04 Plug cover 1
17 TA700.452.4 Pedal assembly 1
17.1 GB/T 6170-M10-8-A3L Hexagon nut, type 1 2
17.2 GB/T 93-10-AOP Standard spring washer 2
17.3 GB/T 97.1-10-AOP Plain washer 2
17.4 GB/T 5782-M10×60-8.8-A2L Hexagon head bolt 2
17.5 TA700.452.4.3 Left upper pedal weldment 1
17.6 TA700.452.4.4 Left lower pedal weldment 1
18 GB/T 97.1-10-A0P Plain washer 6
19 GB/T 93-10-A0P Standard spring washer 6
20 GB/T 5783-M10×35-8.8-A3L Hexagon head bolt 6
21 TA700.452.5 Right pedal assembly 1
22 FT250.47.163 Armrest 2
23 TE250.45E.5 Armrest washer unit 4
24 GB/T 95-8-A0P Plain washer 6
25 TS10452010001K Floor weldment 1
TS10452010000K Floor assembly 1
1 GB/T 5783-M6×20-8.8-A2L Hexagon head bolt 4
2 GB/T 93-6-A0P Standard spring washer 4
3 GB/T 97.1-6-A0P Plain washer 4
4 TS10452010025 Harness support plate 1
5 TS10452010087 Rear-view mirror assembly 2
6 TS10452010005 Right rear-view mirror bracket weldment 1
7 GB/T 5783-M8×55-8.8-A2L Hexagon head bolt 2
8 GB/T 93-8-A0P Standard spring washer 4
9 GB/T 6170-M8-8-A2L Hexagon nut, type 1 4
10 TA700.452B-06 Rubber washer 10
11 TS10452010003 Right front windshield glass 1
12 TA700.452B-03 Rubber washer 10
13 TA700.452B-02 Nut 10
14 TS10452010002 Left front windshield glass 1
15 GB/T 5783-M8×50-8.8-A2L Hexagon head bolt 2
16 TS10452010004 Left rear-view mirror bracket weldment 1
17 GB/T 93-5-A0P Standard spring washer 10
18 GB/T 5783-M5×16-8.8-A2L Hexagon head bolt 10
