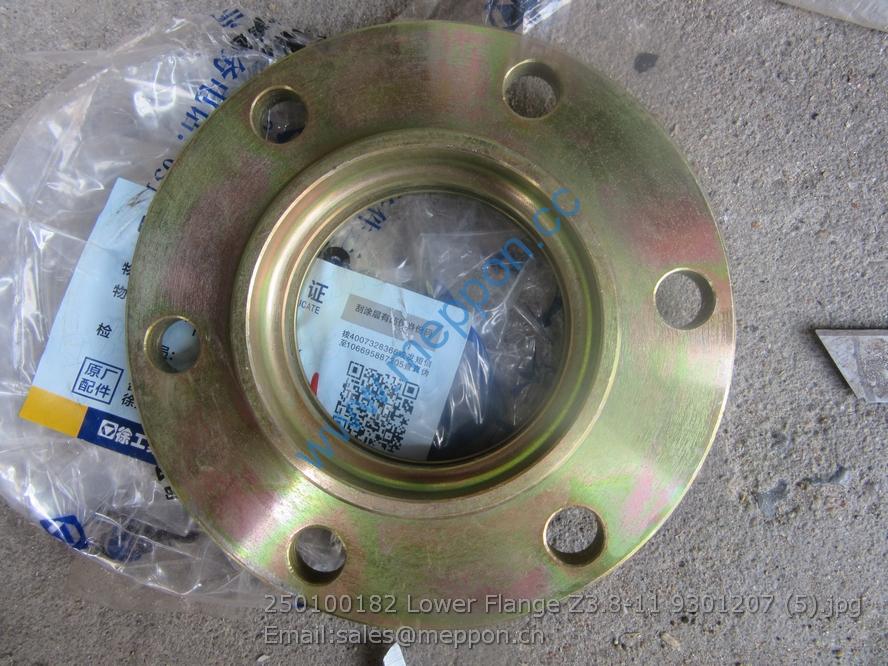

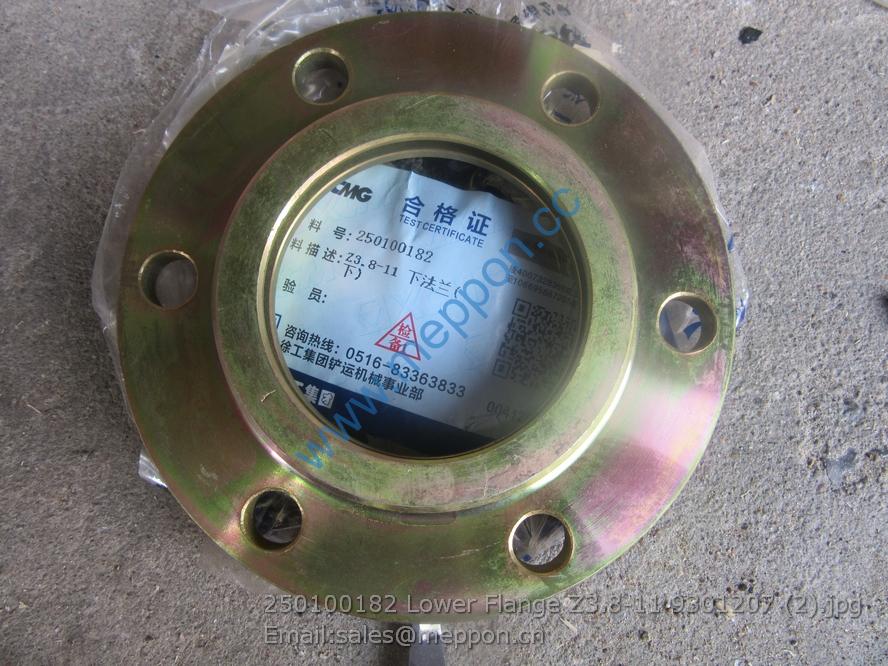

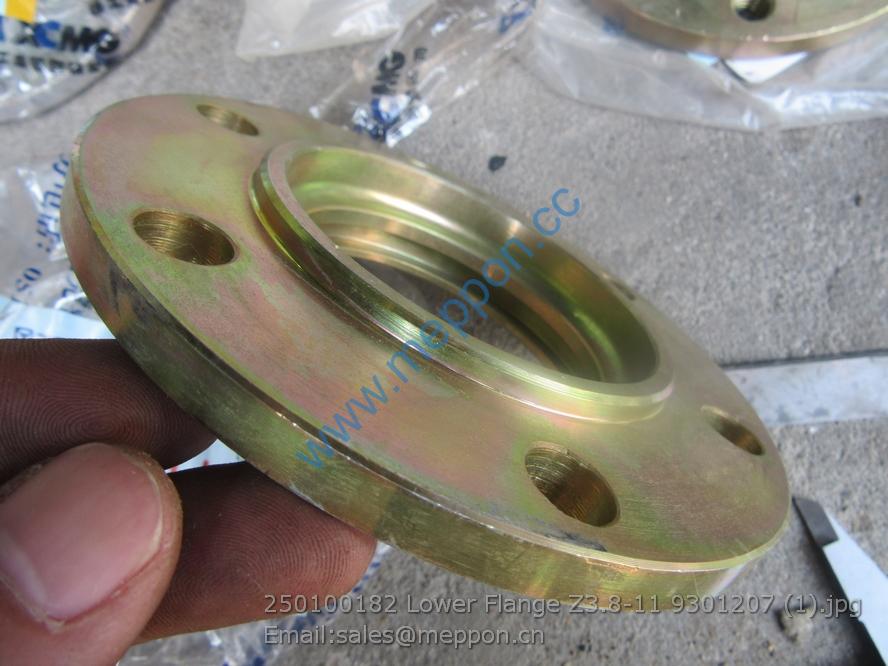

250100182 Lower Flange Z3.8-11 9301207 XCMG

1 12272783 6 Gasket
2 1001062270 1
Exhaust Manifold Heat
Shield Assembly
3 13025181 1 Turbocharger washer
4 612600110282 4 Double End Stud
5 90003888452 4
Prevailing Torque Type
All-metal Hexagon Nut,
6 12188619 4 Chip Ring
7 1001063242 1
Exhaust Manifold Heat
Shield Assembly

1 1001063410 1
2 13058323 1 Gasket
3 612600110282 6 Double End Stud
4 1000812768 1
5 90003802532 8 Hexagon Head Bolt
6 90003888452 6
Prevailing Torque Type
All-metal Hexagon Nut,
7 13058845 1 Gasket
8 13058497 1 Expansion Joint
9 90003932024 8 Wave Spring Washer
10 90012700002 8 Hexagon Nut, Style 2
11 13052450 1 Cover
12 90003802411 2 Hexagon Head Bolt
13 90003931102 2 Spring Washer
14 01154438 2 Gasket
15 13058302 1 Exhaust Manifold Bracket
16 612600114166 1 Clamp

1 90003802424 4 Hexagon Head Bolt
2 90003931102 4 Spring Washer
3 90014040007 4 Plain Washer
4 13024352 1 Sleeve
5 90003931122 1 Spring Washer
6 90013550047 1
Inner Hexagon Socket Head
Cap Screw
7 90003800619 1 Hexagon Head Bolt
8 90003931142 1 Spring Washer
9 13054703 1 Alternator Bracket
