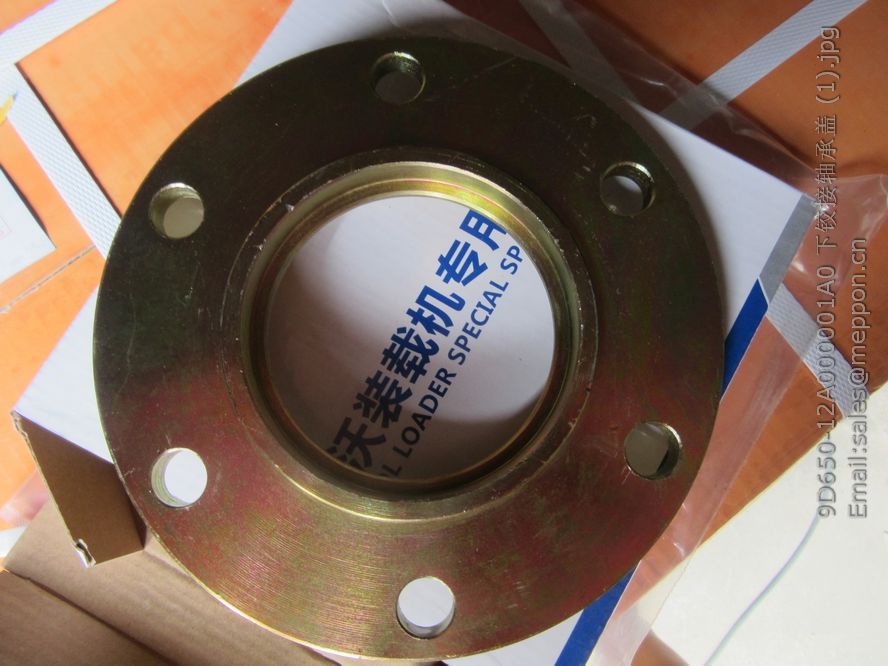

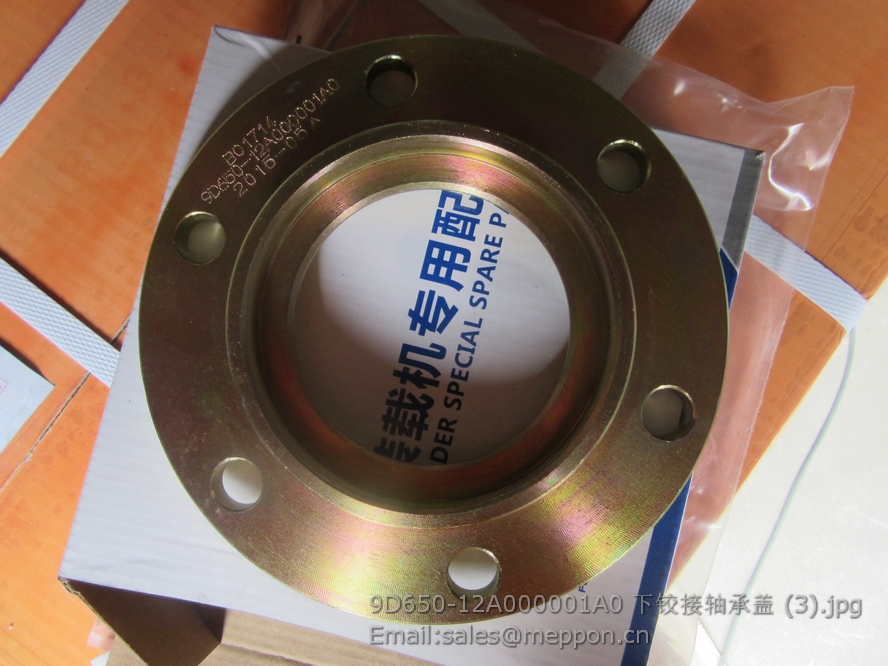

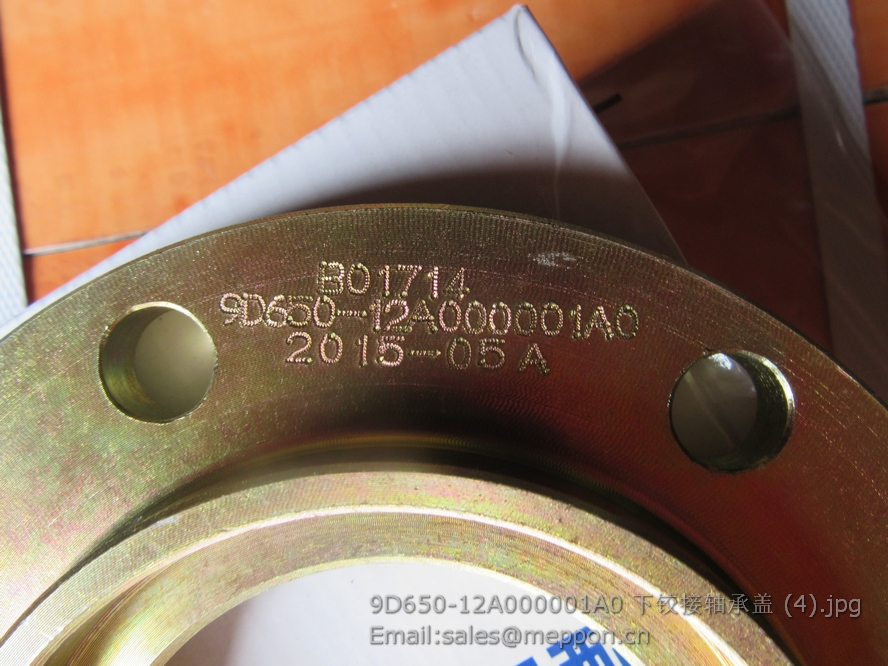

9D650-12A000001A0 upper joint pin Bearing Seat 9D20-133001

1 QC495Q(DI)-03007 气门弹簧上座 Upper valve spring seat 8
2 QC495Q(DI)-03006 气门锁夹 Valve collect 16
3 QC495Q(DI)-03015B 排气门 Exhaust valve 4
4 QC495Q(DI)-03014B 进气门 Intake valve 4
5 QC490Q(DI)-03005 气门内弹簧 Inner valve spring 8
6 QC490Q(DI)-03004 气门外弹簧 Outer valve spring 8
7 GB/T6170-1988 螺母M8 Nut M8 8
8 GB/T93-1987 垫圈8 Washer 8 8
9 N85Q（DI）-02016 喷油器压板螺栓 Fuel injection blot 8
10 N85-02203 气门间隙调整螺母 Adjusting nut for valve clearance 8
11 QC490Q(DI)-03203 气门间隙调整螺钉 Adjusting screw for valve clearance 8
12 GB/T73-1985 螺钉M10×1×10 Bolt M10×1×10 2
13 GB/T894.1-1986 挡圈20 Snap ring 20 2
14 QC490Q(DI)-03201 垫片 Gasket 8
15 QC490Q(DI)-03212 气门摇臂衬套 Valve rocker arm bushing 8
16 QC490Q(DI)-03211 气门摇臂 Valve rocker arm 8
17 QC495Q(DI)-03204 摇臂座 Preceding rocker arm seat 4
18 QC490Q(DI)-03205 气门摇臂弹簧 Rocker arm spring 3
QC495T-00003 吊耳（前） Stationary ring (anterior) 1
QC490Q(DI)-03009-2 吊耳（后） Stationary ring (posterior) 1
19
气缸盖总成QC495Q(DI)-03000
第 8 页20 GB/T93-1987 垫圈8 Washer 8 47
21 GB/T5783-2000 螺栓M8×20 Blot M8×20 4
22 QC495Q(DI)-03101 碗形塞φ25 Plug φ25 4
23 GB/T5783-2000 螺栓M8×30 Blot M8×30 8
24 4102Q-01002 气门油封总成 Oil seal of valve 8
25 QC490Q(DI)-03011 气门弹簧下座 Down valve spring seat 8 现在不装
26 QC495Q(DI)-03104 排气门座 Exhaust valve seat 4
27 QC495Q(DI)-03105 进气门座 Intake valve seat 4
28 QC495Q(DI)-03106-1 气门导管 Valve guide 8
29 QC495Q(DI)-03108 喷油器铜套 Injector tube 8 现在不装
30 N485Q-17009 垫片 Gasket 8 现在不装
31 QC495Q（DI）-03103 碗形塞φ20 Plug φ20 3
32 QC490Q（DI）-03017 螺帽 Nut 4
33 QC490Q(DI)-03016 螺母 Nut 4
34 QC495Q(DI)-03001 气门摇臂轴支座长螺栓 Bolt of rocker arm seat 4
35 QC495Q(DI)-03206 摇臂轴 Rocker arm shaft 1
36 QC495Q(DI)-03207 后摇臂轴 Rocker arm shaft 1
37 QC490Q(DI)-03003 排气管垫片 Exhaust pipe gasket 4
38 QC495Q(DI)-03107 堵塞φ10 Plug10 4
39 QC490Q(DI)-03013 后端盖垫片 Washer of rear cover 1
40 QC490Q(DI)-03012 后端盖 Rear cover 1
41 QC495Q(DI)-03109 堵塞φ8 Plug8 2
42 GB/T5783-2000 螺栓M8×20 Blot M8×20 6
43 QC495Q(DI)-03102 气缸盖 Cylinder head 1
44 QC490Q(DI)-03002 进气管垫片 Gasket 4

QC495Q(DI)-04004 4
QC498Q-04002 4
QC495Q(DI)-04005 4
QC498Q-04003 4
QC495Q(DI)-04004 4
QC498Q-04100 4
QC495Q(DI)-04001A 4
QC498Q-04001 4
挡圈32 Snap ring 32 8
挡圈34 Snap ring 34 8 QC498Q用
QC495Q(DI)-04002 4
QC498Q-04004 4
QC495Q(DI)-04202 4
QC498Q-04202 4
QC495Q(DI)-04201 4
QC498Q-04201 4
9 QC495Q(DI)-04003 连杆轴瓦 Connecting rod bearing 8
10 QC495Q(DI)-04204 连杆盖 Connecting rod cover 4
11 QC495Q(DI)-04203 连杆螺栓 Connecting rod bolt 8
1
2
3
4
GB/T893.2-1986 5
6 活塞销 Piston pin
连杆体 Connecting rod
连杆衬套 Connecting rod bushing 7
8
油环 Ring body
第二道气环 Second ring
第一道气环 First ring
活塞 Piston
