Description

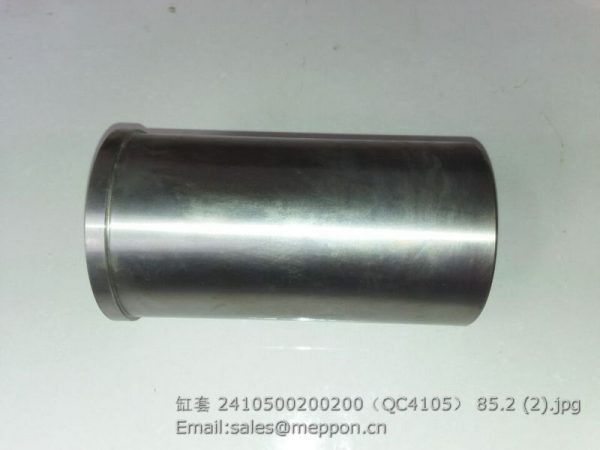

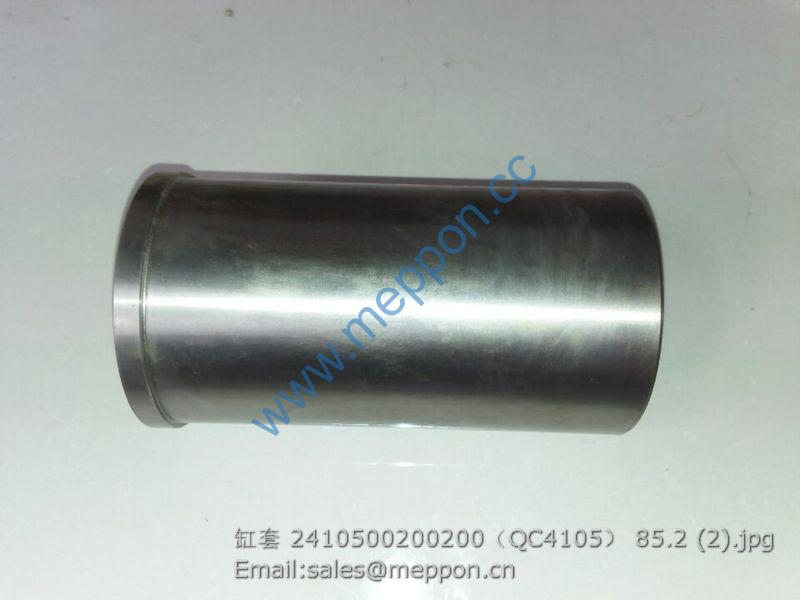

2410500200200 QC4105 4105QA-02002 QUANCHAI CYLINDER LINER

TS04220020000 Exhaust System Assembly 1
1 GBT5782-M12X50-8.8-A3L Hexagon Head Bolt 1
2 GBT97.1-12-A0P Plain Washer 1
3 TD800.22N-01 Pull Rod 1
4 TD900.22B-03 Upper Rubber Gasket 1
5 GBT5783-M8X20-8.8-A2L Hexagon Head Bolt 5
6 GBT97.1-8-A0P Plain Washer 4
7 GBT93-8-A0P Standard Spring Washer 7
8 GBT6170-M8-8-A2L Hexagon Nut, Style 1 3
9 TS04220020005 Right Clasp 1
10 GBT96.1-12-A0P Large Washer 1
11 SPL6177.1-M12-F3 Hexagon Flange Nut 1
12 TS04220010001 Muffler Assembly 1
13 SPL6175PT-M10X1.5-8F3 Spiralock Type 2 Hexagon Self-Locking Locknut 4
14 FT300.22.030 Seal Gasket Unit 2
15 TS04220010002 Exhaust Bending Pipe 1 1
16 GBT5783-M10X35-8.8-A3L Hexagon Head Bolt 8
17 TS04220010005 Fixing Bracket Weldment 1
18 GBT97.1-10-A0P Plain Washer 2
19 GBT93-10-A0P Standard Spring Washer 9
20 GBT5783-M10X25-8.8-A3L Hexagon Head Bolt 5
21 TS04220020004 Left Clasp 1
22 TS04220020001 Bracket Weldment 1
23 GBT93-6-A0P Standard Spring Washer 5
24 GBT5783-M6X16-8.8-A2L Hexagon Head Bolt 1
25 GBT6170-M10-8-A3L Hexagon Nut, Style 1 4
26 GBT5783-M8X16-8.8-A2L Hexagon Head Bolt 3
27 TS04220010011 Upper Shield Screen Weldment 1
28 TS04220010010 Lower Shield Screen Weldment 1
29 GBT97.1-6-A0P Plain Washer 4
30 GBT5783-M6X12-8.8-A2L Hexagon Head Bolt 4

TB550.211A Clutch Subassembly 1
1 CF550A.21.025 Assistant Clutch Friction Disc Assembly 1
2 FT400.21B.102 Assistant Clutch Platen 1
3 TB550.211-01 Disc Spring 1
4 FT400.21B.113 Main Clutch Platen 1
5 CF550A.21.024 Main Clutch Friction Disc Assembly 1
6 FT400.21B.112 Clutch Cover 1
7 FT300.21B.120 Assistant Release Lever Spring 1
8 FT400.21B.106 Assistant Clutch Release Lever 1
9 FT400.21B.107 Main Clutch Release Lever 1
10 FT400.21B.108 Main Release Lever Spring 1
11 FT400.21B.110 Push Rod 1
12 FT300.21B.111 Long Pin 1
13 FT300.21B.109 Pin Shaft 1
14 GBT848-10-A0P Washer 1
15 GBT91-3.2X16-A0P Cotter Pin 1
16 FT300.21B.114 Main Clutch Adjusting Screw 1
17 GBT6171-M10X1-A2L Nut 1
18 FT400.21B.104 Assistant Clutch Pull Rod 1
19 GBT6171-M8X1-A2L Nut 1
20 FT300.21B.105 Ball Head Nut 1

TS04212030000K Clutch Control Assembly 1
1 GBT276-6204-2RS Deep Groove Ball Bearing 1
2 TA800.212-02 Release Bearing 996713 1
3 FT400.21B.101 Release Bearing Seat 1
4 TB604.212-03 Thrust Bearing Seat Return Spring 2
5 FT300.21.103 Release Fork 1
6 FT300.21.113 Thrust Screw 1
7 TA800.212B-02 Low Carton Steel Wire Sz-1.4 1
8 TS04212020001K Clutch Pedal Unit 1
8.1 TS04212020002K Clutch Pedal Weldment 1
8.2 FT300.37.159 Release Fork Shaft Bush 2
9 TD800.43-01 Pedal Return Spring 1
10 TB604.212.3 Clutch Rocker Shaft Weldment 1
11 GBT882-B10X32-A3L Pin Shaft 2
12 JBT7940.1-M8X1 Straight Forced Filling Oil Cup 1
13 GBT97.1-10-A3L Flat Washer 2
14 GBT91-3.2X20-A3L Split Pin 2
15 GBT6171-M12X1.5-8-A3L Hexagon Nut, Type-1 1
16 TB604.212A.5 Upper Pull Rod Weldment 1
17 GBT6171-M12X1.5-LH-8-A3L Hexagon Nut, Type-1 1
18 TD800.311C.1-01 Dustproof Cap Of Oil Cup 1
19 TE354.433-03 Connecting Rod 1
20 TB604.212.6 Lower Pull Rod Weldment 1
21 GBT894.1-25 Circlip For Shaft 1
22 TE250.433C-02 Washer 2
23 GBT5783-M10X40-8.8-A3L Hexagon Bolt 6
24 GBT93-10-A3L Standard Spring Washer 7
25 GBT5783-M10X70-8.8-A2L Hexagon Bolt 1
26 GBT6170-M10-8-A3L Hexagon Nut, Type-1 1
27 GBT5783-M8X30-8.8-A2L Hexagon Bolt 1
28 GBT93-8-A3L Standard Spring Washer 1
29 GBT6172.1-M8-04-A2L Hexagon Thin Nut 1
30 TB604.212-02 Dustproof Sleeve 1

TB604.371 Gearbox Housing Assembly 1
1 TB604.371-01 Gearbox Housing 1
2 GBT6171-M12X1.5-A3L Nut 10
3 GBT93-12-A0P Washer 24
4 GBT899-AM12-M12X1.5X35-8.8-A3L Stud 10
5 FT300.37.158 Pedal Shaft Liner 2
6 JBT7940.1-M10X1 Oil Cup 2
7 FT300.37.159 Release Fork Shaft Bushing 2
8 GBT91-5X32-A0P Split Pin 1
9 GBT119.1-12m6X30-A0P Pin 3
10 TB604.371-02 Gearbox Upper Cover 1
11 GBT6170-M12-8-A3L Nut 3
12 GBT5782-M12X110-8.8-A2L Bolt 1
13 GBT119.1-12m6X22-A0P Pin 1
14 GBT5782-M12X70-8.8-A2L Bolt 2
15 GBT5783-M12X35-8.8-A3L Bolt 4
16 TB400.371E-03 Lower Plug Cover 1
17 GBT93-10-A0P Washer 4
18 GBT5783-M10X25-8.8-A3L Bolt 4
19 TB550.371-01 Bolt M12x160 3
20 TB550.371-02 Bolt M12x125 1
21 GBT5785-M12X1.5X55-8.8-A3L Hex Bolt 2
22 GBT5783-M8X20-8.8-A2L Hex Bolt 8
23 GBT93-8-A0P Standard Spring Washer 8
24 TD800.311C.1-01 Oil Cup Dustproof Cap 2

TB604.372T Main Transmission Assembly 1
1 FT400.37B.201 Auxiliary Clutch Shaft 1
2 GBT5783-M8X25-8.8-A2L Hex Head Bolt 4
3 GBT93-8-A0P Washer 4
4 FT300.37B.124 Ⅰ shaft Bearing Cap 1
5 GBT9877.1-FB40X62X8D Inner Skeleton Rotary Shaft Lip Seal 1
6 TB604.372T-12 Adjusting Gasket, Ⅰ shaft As Required
7 TB604.372T-13 Adjusting Gasket, Ⅰ shaft As Required
8 TB604.372T-14 Adjusting Gasket, Ⅰ shaft As Required
9 GBT276-6208 Bearing 1
10 TB604.372T.1 Ⅰ shaft Cluster 1
10.1 TB604.372T.1-01 Ⅰ shaft 1
10.2 FT300.37.170 Bush 1
11 TB604.372T-15 Gear Spacer Bush, Ⅰ Gear 1
12 TB604.372T-01 Driving Gear, Ⅰ Gear 1
13 TB604.372T-02 Gear Spacer Bush, Ⅰ – Ⅱ gear 1
14 TB604.372T-03 Driving Gear, Ⅱ Gear 1
15 TB604.372T-05 Driving Gear, Ⅲ Gear 1
16 TB604.372T-17 Needle Bearing K47x52x28 1
17 TB604.372T-16 Gear Bush, Ⅲ Gear 1
18 GBT3452.1-23.6X1.80G O-Ring 2
19 TB604.372T-04 Retainer Ring 1
20 GBT276-6007 Bearing 1
21 FT300.37J.137 Pto Connecting Shaft 1
22 GBT895.2-24 Retainer Ring 1
23 GBT893.1-21 Hole Circlip 1
24 FT300.37.136 Connecting Sleeve 1
