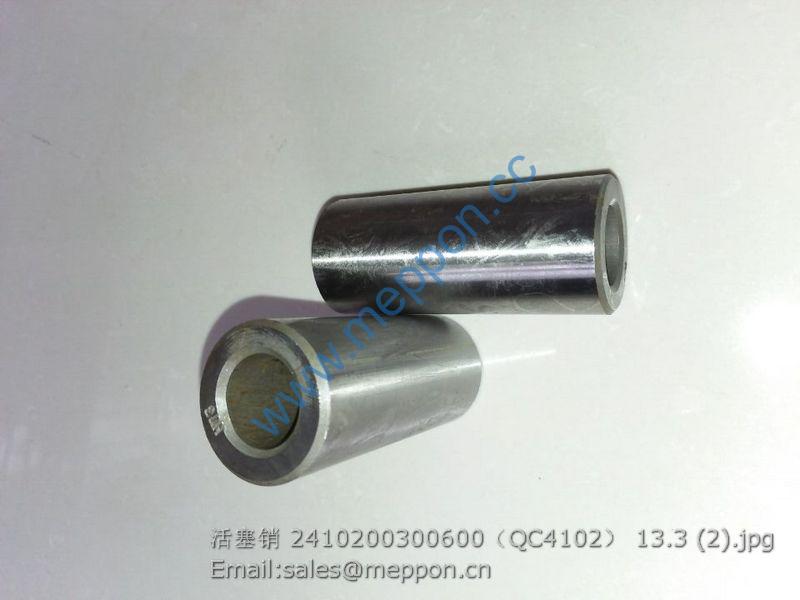

2410200300600 QC4102 QUANCHAI PISTON PIN 4102Q-03006

Description

2410200300600 QC4102 QUANCHAI PISTON PIN 4102Q-03006

TS10340030000K Rear driving wheel assembly 1
1 TS10340030003K Rear driving wheel subassembly 1
1.1 TS10340030001K Rim spoke assembly 1
1.1.1 GB/T 6171-M16×1.5-10-A3L Hexagon nut, style 1 8
1.1.2 FT800.34.108 Plain washer 8
1.1.3 FT800.34B.013 Spoke weldment 1
1.1.4 FT804.34.107 Rim bolt 8
1.1.5 TS10340030002K Rim weldment 1
1.2 FT800.34B.014 Inner/outer tube assembly 18.4-30 1
1.2.1 GB/T 2979-18.4-30-10PR-R General section bias tyre of tractor drive wheel 1
1.2.2 GB/T 2979-18.4-30-R Tractor driving wheel inner tube 1
2 GB/T 6176-M18×1.5-10 Hexagon nut, style 2 8
3 TS10320010003 Washer 8

TS10401010000 Steering gear and steering column assembly 1
1 TD1000.40A.1.1 Steering wheel assembly 1
2 TD904.401.1 Steering column assembly 1
2.1 GBT 6173-M16X1.5-05-A3L Hexagon thin nut 1
2.2 FT800A.40L.109 Steering rod 1
2.3 FT650.40.172 Bearing circlip 1
2.4 GBT 894.1-20 Circlip for shaft 1
2.5 GBT 276-61804-2LS Deep grooved ball bearing 1
2.6 FT650.40.173 Bearing circlip 2 1
2.7 GBT 893.1-32 Circlip for hole 1
2.8 TD904.401.1.1 Steering sleeve weldment 1
3 GBT 97.1-16-A0P Plain washer 1
4 FT650.40.014 Horn brush seat assembly 1
4.1 GBT 67-M5X12-ZnD Screw 1
4.2 GBT 848-5-ZnD Washer 2
4.3 FT650.40.170 Copper brush 1
4.4 FT650.40.169 Horn brush seat 1
4.5 GBT 93-5-AOP Washer 1
4.6 GBT 6170-M5-ZnD Nut 1
4.7 GBT 73-M5X8-ZnD Screw 1
4.8 FT650.40.034 Horn wire combination 1
5 TA700.40Q.1-01 Steering rod shield 1
6 GBT 5783-M10X25-8.8-A3L Hexagon head bolt 4
7 GBT 93-10-A0P Standard spring washer 4
8 TS10401010001 Steering gear and valve block assembly 1

TS10402020000K Fully hydraulic steering pipeline assembly 1
1 FT650.40.102 Hollow bolt M20×1.5 2
2 JB/T 982-20 Compound seal washer 6
3 TS10402010008 Left oil outlet pipe assembly of steering gear 1
4 TS10402010002 Steering gear joint 2
5 TS10402010007 Right oil outlet pipe assembly of steering gear 1
6 GB/T 5781-M8×25-4.8-A2L Hexagon head bolt 2
7 GB/T 93-8-A0P Standard spring washer 5
8 TB454.40X-01 Single-hole pipe clip 6
9 TS10402010003 Steering high-pressure oil pipe assembly 2 1
10 TS10402010001 Steering oil cylinder inlet hose 1
11 TG1204.402D-01 Hollow bolt 2
12 JB/T 982-14 Compound seal washer 4
13 TS10402020002K Steering cylinder oil inlet hose assembly 1
14 GB/T 5783-M8×35-8.8-A2L Hexagon head bolt 1
15 GB/T 5782-M8×40-8.8-A2L Hexagon head bolt 1
16 TS10402020005K Pipe clip trestle 1
17 GB/T 6170-M8-8-A2L Hexagon nut, style 1 3
18 GB/T 5782-M8×35-8.8-A2L Hexagon head bolt 1
19 FT354.40C.121 Double-pipe clip 4
20 TS10402020003K Left steering steel pipe assembly 1
21 GB/T 5783-M6×25-8.8-A2L Hexagon head bolt 2
22 TD904.402X-01 Clamping plate-01 1
23 TD904.402X-03 Shock absorbing pad-01 1
24 GB/T 93-6-A0P Standard spring washer 2
25 GB/T 6170-M6-8-A2L Hexagon nut, style 1 2
26 TS10402020006K Pipe clip trestle 1

TS10402020000K Fully hydraulic steering pipeline assembly 1
1 FT650.40.102 Hollow bolt M20×1.5 2
2 JB/T 982-20 Compound seal washer 6
3 TS10402010006 Steering gear oil return pipe assembly 1
4 TS10402010014 Steering gear joint 2
5 Q67632 B-type worm drive type hose clamp 4
6 TS10402010016 Oil return hose 1
7 GB/T 5783-M10×25-8.8-A3L Hexagon head bolt 2
8 GB/T 93-10-A0P Standard spring washer 6
9 GB/T 6170-M10-8-A3L Hexagon nut, style 1 4
10 GB/T 5783-M10×20-8.8-A3L Hexagon head bolt 2
11 TS10402010015 Oil can trestle welding assembly 1
12 TA824.40G.2 Steering oil tank assembly 1
13 FT800A.40L.101 Oil inlet hose 1
14 TS10402020001K Oil suction steel pipe assembly 1
15 FT800A.40A.028 Steering pump assembly 1
16 TD900.402A.6 Connecting oil pipe assembly 1
17 JB/T 982-27 Compound seal washer 1
18 GB/T 5783-M10×30-10.9-A3L Hexagon head bolt 2
19 GB/T 97.1-10-A0P Plain washer 2
20 JB/T 982-18 Compound seal washer 2
21 FT650.40.105 Hollow bolt M18×1.5 1
22 TS10402020004K Oil pump outlet steel pipe assembly 1
23 TS10402010005 Steering cylinder oil inlet hose assembly 1
24 GB/T 5783-M6×25-8.8-A2L Hexagon head bolt 2
25 TD904.402X-02 Clamping plate-02 1
26 TD904.402X-04 Shock absorbing pad-02 1
27 GB/T 93-6-A0P Standard spring washer 2
28 GB/T 6170-M6-8-A2L Hexagon nut, style 1 2
