Description

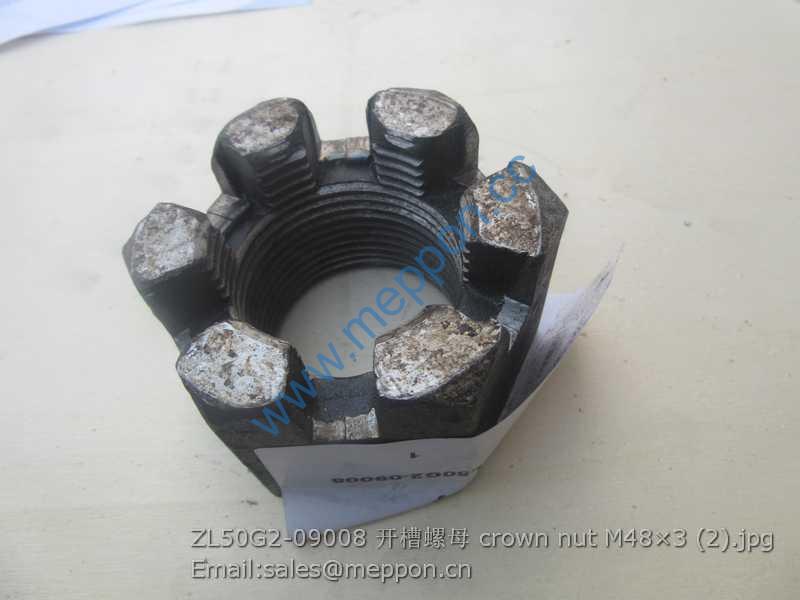

ZL50G2-09008 crown nut M48×3

LG520-1702027B1 换档拨块 Selector gate
Q5280636 弹性圆柱销 Spring roll pin
Q5280436 弹性圆柱销 Spring roll pin
LG520-1702023B1 四、五挡变速叉 4th/5th speed gearshift fork
LG520-1702033J 互锁板 Interlocking plate
LG520-1702024B1 二、三速变速叉 2nd/3rd speed gearshift fork
LG520-1702030Q3 一倒速拨叉合件 1st/R speed fork unit
LG525-1702021Q 变速叉轴 Gearshift fork shaft
LG520-1702022B1 换档销 Gearshift pin

PTJ520-1701221B1-1224B1 调整垫片 Adjusting washer
GB297-84 轴承30206 Bearing 30206
MW520-1701211Q-1 中间轴 Countershaft
LG520-1701214Q2 二三速齿轮 2nd/3rd speed gear
LG520-1701213Q 五速齿轮-中间轴 5th speed gear, counter shaft
LG520-1701212Q 一级减速齿轮 Primary reduction gear
PTJ520-1701221B1 调整垫片 Adjusting washer
GB297-84 轴承32206 Bearing 32206
LG520-1701332B1 挡圈 Retainer ring
PTJ520-1701334B1 短圆柱滚子 Short cylindrical roller
LG520-1701129Q 一轴及锥体合件 Input shaft and cone seaming
150208(6208-ZNB) 球轴承(特制） Ball bearing
GB305-89 止动环80/86.6 Retainer ring 80/86.6
GB894.1 轴用挡圈40 Circlip for shaft 40 mm

LG520-1701333B1 锁环-四五速齿座 Locking ring -4th/5th speed gear seat
MW520-1701372-1 四五速同步器齿毂套合件 4th/5th speed gear hub bush unit,synchronizer
LG520-1701312 同步器弹簧 Synchronizer spring
LG520-1701311B1 弹簧座 Spring seat
MW520-1701308B1-1 同步器滑块 Synchronizer slide block
PTJ520-1701306B1 同步器锥环（二三四五速） Cone ring of synchronizer(2nd/3rd/4th/5th speed)
LG520-1701318QN 五速齿轮合件 5th speed gear unit
LG520-1701322B1 五速椎体 5th speed cone body
GB5846-86 滚针轴承K38×44×25 Needle bearing K38×44×25 mm
PTJ520-1366B3 套环 Bush
GB308-89 钢球4 Steel ball 4 mm
PTJ520-1701364B1 止推垫-三速齿轮 Thrust washer- 3rd speed gear
LG520-1701315Q2 三速齿轮及锥体 3rd speed gear and cone
PTJ520-1701317B1 锁环-二三速齿座 Locking ring -2nd/3rd speed gear seat
LG520-1701303-1307B1 二三速同步器齿毂套合件 2nd/3rd speed gear hub bush unit,synchronizer
LG520-1701305Q2 二速齿轮及锥体 2nd speed gear and cone
GB5846-86 滚针轴承K4550274 Needle bearing K4550274
MW520-1701301B1-1 二轴 Output shaft
LG520-1701340Q3 一速齿轮及锥体合件 1st speed gear and cone module
LG520-1701306Q3 一档同步器锥环 1st speed synchronizer cone ring
LG520-1701309-1339Q3 一倒档同步器齿毂套合件 1st/R speed gear hub bush unit,synchronizer
PTJ520-1701316B1 轴承座圈 Bearing seat ring
LG520-1701338Q3 倒车齿轮 Reverse gear
MW520-1701341B1-1 止推垫-倒速齿轮 Thrust washer- R speed gear
GB277-89 轴承6307N Bearing 6307N
GB305-89 止动环80/86.5 Throusting ring 80/86.5

LG520-1701354B1 二轴螺母 Nut of output shaft
法兰盘 Flange
LG520-1701350B1 二轴油封45X72X12 Oil seal 45X72X12 mm , output shaft
PTJ520-1701351B1 油封座圈 Oil seal seat ring
GB/T276 轴承6207 Bearing 6207
LG520-1701344B1 里程表主动齿轮 Odometer driving gear
LG520-1701343B1 隔套 Spacer
PTJ520-1701013B1 油堵总成 Oil plug assy
PTJ520-1701015B1 组合垫圈 Combination washer
PTJ520-1702036B1 堵塞 Plug
LG520-1702029B1 自锁弹簧 Self-locking spring
GB308-89 钢球8 Steel ball 8 mm
LG520-1701012N2A 后壳体 Rear housing
GB119-86 圆柱销8X28 Cylindrical pin 8X28 mm
MW520-1702036 堵塞 Plug
MW520-1701356Q-1 二轴后盖 output shaft rear cover
GB93-87 垫圈8 Gasket 8 mm
GB6176-86 螺母M10X1 Nut M10X1 mm
GB898-88 螺柱AM10-M10X1X25 Stud AM10-M10X1X25 mm
PTJ520-1701363-Y2 里程表锁片 Locking shim of Odometer
GB93-87 垫圈6 Washer 6 mm
GB5783-86 螺栓M6X12 Bolt M6X12 mm
LG520EQ6-1701346 里程表被动齿轮 Odometer driven gear
GB1235-76 O形密封圈30X3.1 O seal ring 30X3.1 mm
MW520EQ6-1701361L 接头 Connector
GB5783-86 螺栓M8X16 Bolt M8X16 mm
PTJ520-1701416B1 倒档轴锁片 R gear shift locking sheet
PTJ520-1701411N2 倒挡惰轮总成 Reverse speed idle gear assy
MW520-1701413B1-1 惰轮轴 Idle gear shaft
PTJ520-1701144C1 垫密片 Gasket
PTJ520-1701417B1 盖板 Cover board

LG520-1701011Q 前壳体 Front housing
GB893.1-86 孔用挡圈62 Circlip for hole 62 mm
MW520-1701216 前堵盖装配合件 Front plug unit
PTJ520-1701144C1 一轴盖纸垫 Paper washer of input shaft cover
MW521L-1701146 一轴轴承盖 Input shaft bearing cover
GB5783-86 螺栓M8×25 Bolt M8×25 mm
GB898-88 螺柱AM8-M8X1X25 Stud AM8-M8X1X25 mm
LG520E27-1702092 止动螺栓 Stop bolt
GB6171-86 螺母M8X1 Nut M8X1 mm
GB898-88 螺柱AM8-M8X1X22 Stud AM8-M8X1X22 mm
PTJ520-1702091B1 通气塞合件 Vent plug unit
GB5783-86 螺栓M8×20 Bolt M8×20 mm
LG520-1702034Z/J 限位块 Limit stop
LG520-1702032B1 垫密片 Gasket
LG520-1702040FT 倒车开关 Reverse switch
MW521-1701147 弹簧勾板 Spring bend plate
LG520-1701343B1 隔套 Spacer
