Description

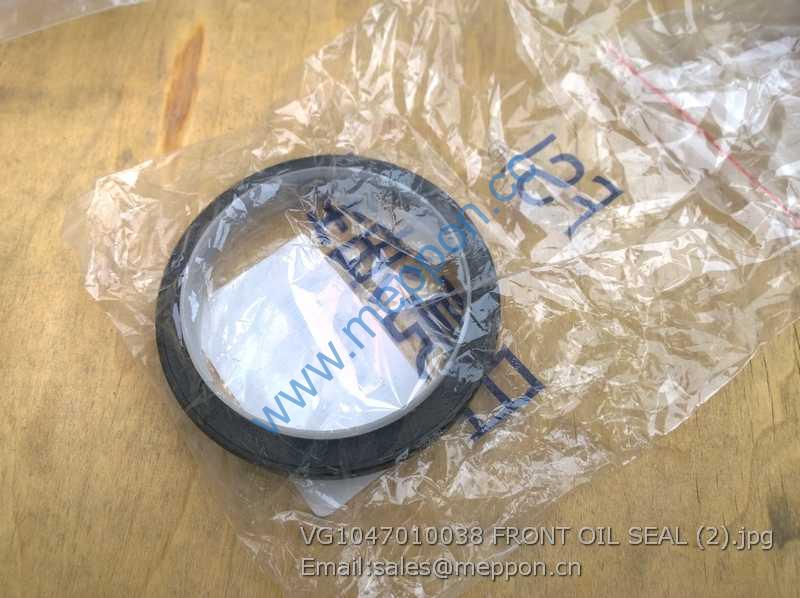

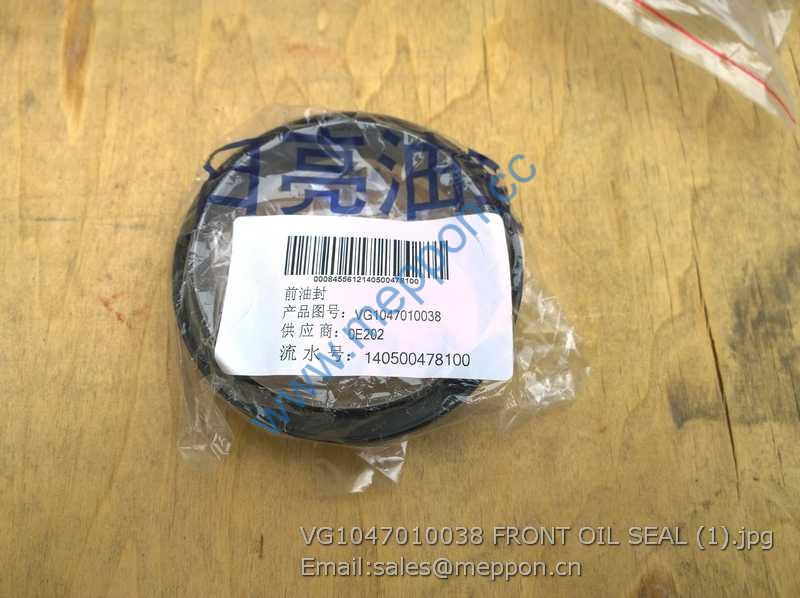

VG1047010038 FRONT OIL SEAL SINOTRUCK

43C2246 斗杆组件 ARM ASSY
21D1105 斗杆 ARM
54A1974 轴套 BUSHING
54A1972 轴套 BUSHING
54A1976 轴套 BUSHING
12B0061 防尘圈 80×95×8 SEAL;DUST 80×95×8
60A1367 轴 PIN
10B0157 O形圈147×10 O-RING 147×10
26B0036 黄油咀 M10×1 FITTING;GREASE
12B0062 防尘圈71×86×8 SEAL;DUST 71×86×8
60A1419 轴 PIN
01B0985 GB/T 5782-2000 螺栓M20×220 BOLT M20×220
03B0849 GB/T6170-2000 螺母 M20 NUT M20
56A0078 垫片 2.0 PLATE;THRUST 2.0
60A1368 轴 PIN
01B0259 GB/T5782-2000 螺栓 M20×150 BOLT M20×150
03B0015 GB/T6170-2000 螺母 M20 NUT M20
01B1080 GB/T5782-2000 螺栓 M16×150 BOLT M16×150
03B0034 GB/T6170-2000 螺母 M16 NUT M16
64B0033 黄油咀盖 COVER
60A1420 轴 PIN
56A0076 垫片 2.0 PLATE;THRUST 2.0
56A0077 垫片 1.0 PLATE;THRUST 1.0
60A1425 轴 PIN
56A0079 垫片 1.0 PLATE;THRUST 1.0
12B0060 防尘圈90×105×8 SEAL;DUST 90×105×8
60A1424 轴 PIN

43C0100 连杆总成 Rod ASSY
21D0826 连杆 Rod
64B0033 黄油咀盖 COVER
54A1973 轴套 BUSHING
12B0061 防尘圈80×95×8 SEAL DUST 80×95×8
54A1975 轴套 BUSHING
26B0036 黄油咀 M10×1 FITTING;GREASE

21D0827 摇臂总成 LINK ASSY
17A1488 摇臂 LINK

22D1963 铲斗 BUCKET
72A0389 齿座 ADAPTER;TOOTH
72A0387 右侧齿 CUTTER;SIDE
06B0142 GB93-87 弹性垫圈 24 WASHER;SPRING
03B0687 GB6171-2000 螺母M24×1.5 NUT M24×1.5
00B0053 GB5782-2000 螺栓M24×1.5×80 BOLT M24×1.5×80
72A0388 左侧齿 CUTTER;SIDE
72A0385 齿套 POINT;TOOTH
33C0796 横销 PIN
54A1859 轴套 BUSHING
00B0283 GB5783-2000 螺栓M16×50 BOLT M16×50
06B0020 GB93-87 弹性垫圈 16 WASHER;SPRING
55A1524 止动环 STOPPER
56A0513 调整垫片 2.0 PLATE;THRUST 2.0
56A0514 调整垫片 1.0 PLATE;THRUST 1.0
10A0245 钢片 PLATE
