Description

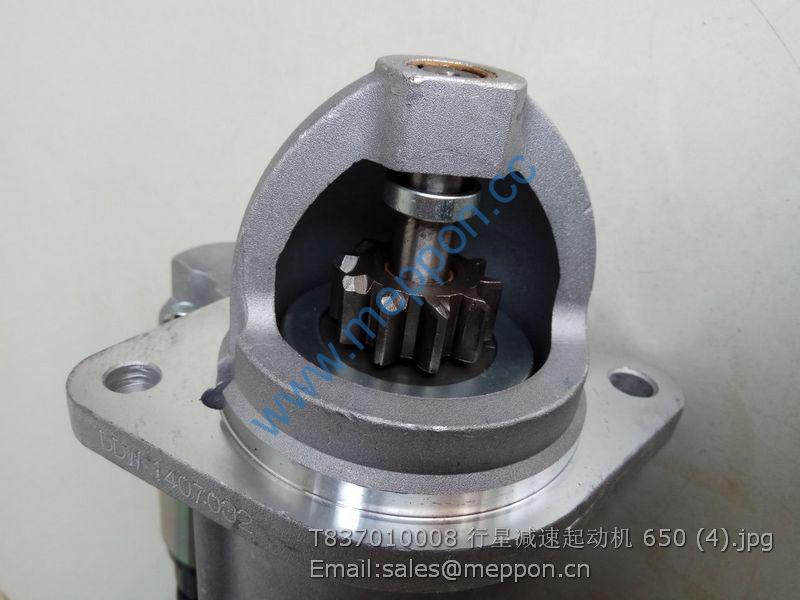

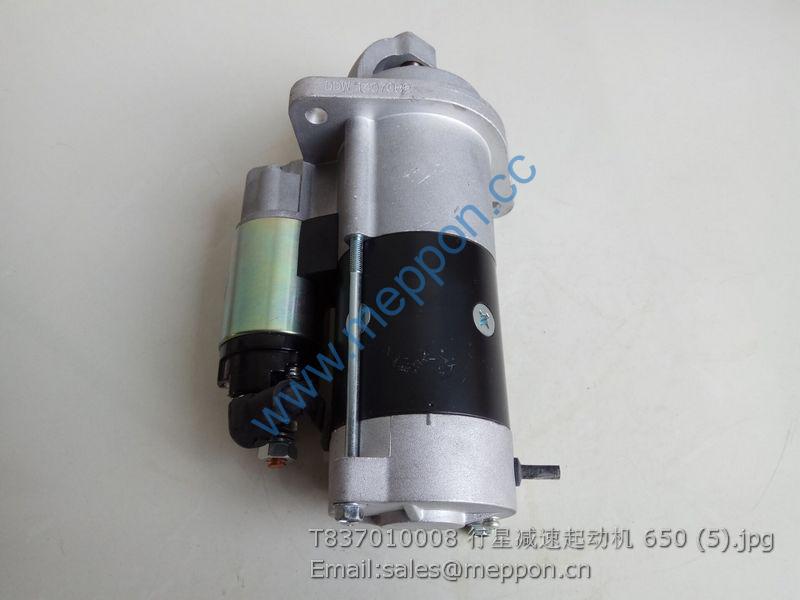

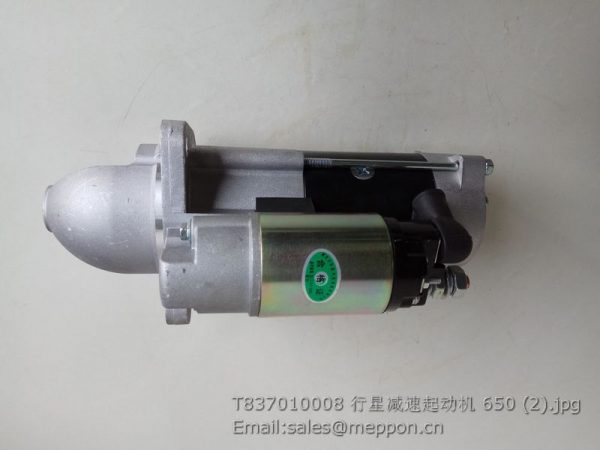

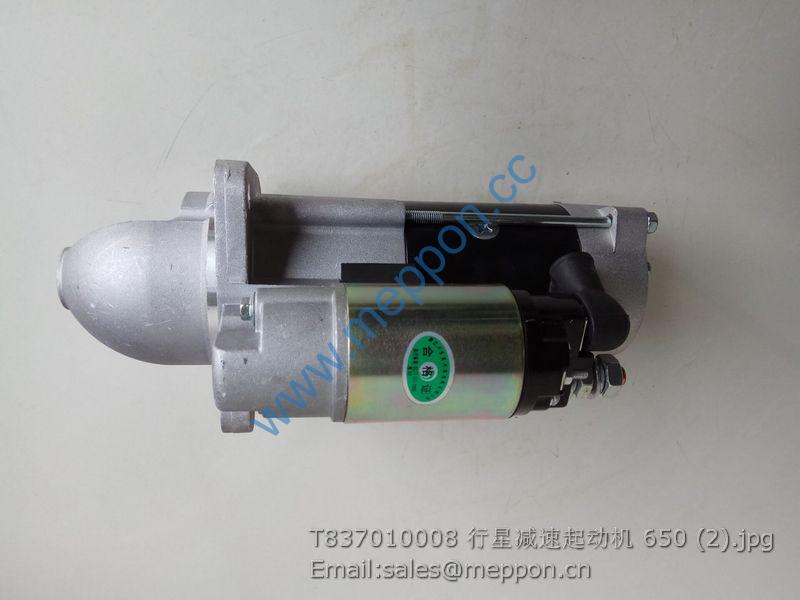

T837010008 motor starter lovol parts

TB554.311 Front Driving Axle Subssembly 1
1 FT304.31F.160 Dustproof Cap 2
2 JBT 7940.1 Oil Cup M6x1 2
3 FT304.31F.165a Fixing Pin 2
4 GBT 893.1 Circlip 35 2
5 GBT 9163 Knuckle Bearing Ge20es 2
6 FT304.31F.185 Left Protection Plate 1
FT304.31F.186 Right Protection Plate 1
7 GBT 5783 Bolt M8x16 4
8 GBT 93 Washer 8 4
9 FT304.31F.195 Left Piston Lever Ear Ring 1
FT304.31F.196 Right Piston Lever Ear Ring 1
10 FT304.31F.167 Spacing Sleeve 2
11 FT304.31F.168 Hex Slotted Nut 4
12 GBT 91 Cotter Pin 3.2X40 4
13 GBT 6173 Nut M20x1.5 2
14 FT304.31F.027 Dustproof Sleeve 2
15 Q50MZ3040 Clamp 50 2
16 FT304.31F.019a Hydraulic Cylinder 2
17 FT304.31F.184 Snap Spring 2
18 FT304.31F.026A Dustproof Bladder 2
19 FT304.31F.174A Left Ball Head Pin Seat 1
20 JBT 7940.1 Oil Cup M6x1 2
21 804.31.151 Ball Head Pin Seat 2
22 FT304.31F.177A Ball Head Pin 2
23 804.31.153 Ball Head Pin Cover 2
24 804.31.154 Spring 2
25 FT304.31F.187 Press Cover 2
26 GBT 3452.1 O-Ring 33.5X1.8g 1
27 GBT 893.1 Circlip 37 2
28 GBT 6171 Nut M20x1.5lh 1
29 FT304.31F.175 Pull Rod 1
30 GBT 6171 Nut M20x1.5 1
31 FT304.31F.176A Right Ball Head Pin Seat 1

TB554.311.011 Front Driving Axle Subassembly 1
1 GBT 5783 Bolt M16x40-Zn.d 1
2 GBT 6170 Nut M16 1
3 FT304.31F.025 Seal Gasket 1
4 TB554.311.149 Front Support Seat 1
5 FT304.31F.150 Gasket 1
6 FT304.31F.148 Sliding Bearing 50X40 1
7 GBT 7940.1 Oil Cup M8x1 2
8 GBT 3452.1 O-Ring 47.5X3.55g 1
9 FT304.31F.024 Connecting Pin 2
10 TB554.311.147 Support Shaft 1
11 GBT 3452.1 O-Ring 58X3.55g 1
12 GBT 5783 Bolt M8x20-Zn.d 2
13 GBT 93 Washer 8 2
14 GBT 7940.2 Oil Cup 45° M8x1 2
15 GBT 5783 Bolt M12x40-Zn.d 6
16 GBT 93 Washer 12 18
17 GBT 6170 Nut 12 12
18 GBT 900 Stud Am12x40-8.8-Zn.d 12
19 FT304.31F.156 Sliding Bearing 90X55 1
20 GBT 3452.1 O-Ring 45X3.55g 1
21 FT304.31F.155 Rear Support Seat 1

TB554.312 Front Bracket Assembly 1
1 GBT 5782-M16X110-10.9-A2L Hex Bolt 6
2 GBT93-16-A0P Standard Spring Washer 6
3 TB554.312-01 Front Bracket 1

FT404.32F.001 Front Drive Wheel Assembly 1
1 TB704.32B.2 Inner Tube/Tyre Assembly 8.3-20 1
1.1 GBT2979-8.3-20-6PR-R General Section Bias Tyre Of Tractor Drive Wheel 1
1.2 GBT2979-8.3-20-R Inner Tube Of Tractor Drive Wheel 1
2 FT404.32F.011 Rim Welding 1

FT550.34F.001 Rear Driving Wheel Assembly 1
1 TB604.34A.1.2 Tire And Tube Assembly 14.9-28 1
1.1 GBT 2979-14.9-28-6PR-R Diagonal Tire With Conventional Section, Tractor Driving Wheel 1
1.2 GBT 2979-14.9-28-R Tube, Tractor Driving Wheel 1
2 FT550.34F.011 Rim Disc Assembly 1
2.1 GBT 6171-M16X1.5-10-A3L Nut 6
2.2 FT654.32.104 Washer 6
2.3 FT550.34F.012 Rim Weldment 1
2.4 FT550.34.105b Spoke 1
2.5 FT650.34.107 Rim Bolt 6
