Description

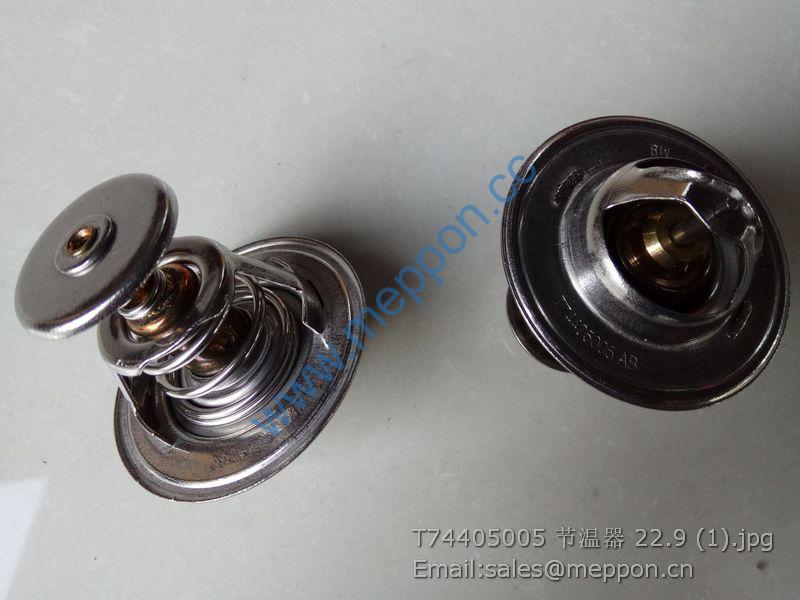

T74405005 LOVOL THERMOSTAT

TS06471010000 Bonnet Assembly 1
1 TS06471012001 Bonnet Upper Cover Plate 1
2 TS06471010007 Front Shock Absorbing Strip 1
3 TS06471010004 Middle Shock Absorbing Strip 2
4 TS06471010008 Rear Shock Absorbing Strip 1
5 TS06471010001 Bonnet Rear Seal Strip 1
6 TS06471011000 Bonnet Welding Assembly 1
7 TS06471010002 Front Lower Buffer Strip 1
8 TS06471010006 Bonnet Side Rear Seal Strip 2
9 TS06471014000 Bonnet Lower Side Plate Assembly 1
10 TS06471010005 Rubber Plug 2

TS06471010000 Bonnet Assembly 1
1 TS06471019000 Bonnet Air Spring Assembly 2
2 TS06471011040 Upper Support Plate Of Right Front Mesh Plate 1
3 TS06471011041 Lower Support Plate Of Right Front Mesh Plate 1
4 TS06471010003 Bonnet Pull Wire 1
5 GBT 97.1-8-A0P Plain Washer 1
6 GBT 93-8-A0P Standard Spring Washer 1
7 GBT 5783-M8X20-8.8-A2L Hexagon Head Bolt 1
8 TS04471010003 Bonnet Front Handle 1
9 TD800.471A-05 Bonnet Front Handle Washer 2
10 TS06471011038 Upper Support Plate Of Left Front Mesh Plate 1
11 TS06471011039 Lower Support Plate Of Left Front Mesh Plate 1
12 GBT 97.1-12-A0P Plain Washer 2
13 GBT 93-12-A0P Standard Spring Washer 6
14 GBT 6170-M12-8-A3L Hexagon Nut, Style 1 2
15 TS06471013000 Bonnet Hinge Chain Assembly 1
15.1 GBT 91-5X32-A0P Split Pin 2
15.2 GBT 97.1-16-A0P Plain Washer 2
15.3 FT800B.47B.161 Hinge Chain Upper Seat 2
15.4 GBT 882-B16X90-A0P Pivot 2
15.5 TS06471013001 Bonnet Lower Bracket Weldment 1
15.6 GBT 6170-M8-8-A2L Hexagon Nut, Style 1 2
15.7 GBT 5783-M8X55-8.8-A2L Hexagon Head Bolt 2
16 GBT 97.1-10-A0P Plain Washer 6
17 GBT 93-10-A0P Standard Spring Washer 6
18 GBT 5783-M10X35-8.8-A3L Hexagon Head Bolt 6
19 GBT 5783-M12X35-8.8-A3L Hexagon Head Bolt 4
20 GBT 96.1-12-A0P Large Washer 4
21 GBT 5783-M6X16-8.8-A2L Hexagon Head Bolt 21
22 GBT 97.1-6-A0P Plain Washer 36
23 GBT 93-6-A0P Standard Spring Washer 21
24 GBT 6170-M6-8-A2L Hexagon Nut, Style 1 21

TS06473010000 Bonnet Lock Device Assembly 1
1 TB450.473-02 Rubber Ring 1
2 TS06473010005 Pull Rod 1
3 TS06473010002 Bonnet Lock 1
4 GBT 97.1-8-A0P Plain Washer 3
5 GBT 93-8-A0P Standard Spring Washer 5
6 GBT 5783-M8X25-8.8-A2L Hexagon Head Bolt 3
7 TS06473010001 Bonnet Lock Post Weldment 1
8 GBT 5783-M8X30-8.8-A2L Hexagon Head Bolt 2
9 GBT 96.1-8-A0P Big Washer 2

TS06473020000 Bonnet Air Spring Bracket Assembly 1
1 GBT5783-M10X35-8.8-A3L Hexagon Head Bolt 1
2 GBT93-10-A0P Standard Spring Washer 7
3 GBT97.1-10-A0P Plain Washer 7
4 GBT5783-M10X25-8.8-A3L Hexagon Head Bolt 6
5 TS06473020003 Right Trestle Weldment 1
6 TS06473020001 Left Trestle Weldment 1

TS06475030000 Engine Hood Sealing Assembly 1
1 TS06475010002 Hood Upper Seal Cotton 1
2 TS06475020002 Hood Upper Seal Strip 1
3 TS06475010005 Hood Side Seal Strip 2
4 TS06475010001 Hood Lower Seal Strip 1
5 TS06475030001 Seal Spacing Plate 1
6 GBT5783-M8X25-8.8-A2L Hexagon Head Bolt 2
7 GBT97.1-8-A0P Plain Washer 4
8 GBT93-8-A0P Standard Spring Washer 2
9 GBT6170-M8-8-A2L Hexagon Nut, Type 1 2
10 TS06475010006 Hood Right Seal Cotton 1

TS06049020000 Tool Box Assembly 1
1 FT300.49.001 Tool Box Assembly 1
1.1 TB400.49.1 Tool Box Supply Assembly 1
1.1.1 TB400.49.1.1 Tool Box Welding And Riveting Assembly 1
1.1.2 FT65.49.102 Latch 1
1.1.3 FT65.49.103 Fixing Bracket 1
1.2 GBT 5783-M12X35-8.8-A3L Hexagon Head Bolt 2
1.3 GBT 93-12-A0P Standard Spring Washer 2
1.4 GBT 97.1-12-A0P Plain Washer 2
1.5 GBT 6170-M12-8-A3L Hexagon Nut, Style 1 2
2 TS06049020001 Tool Box Bracket Weldment 1

TS06501020000 Main Oil Tank Installation Assembly 1
1 TS06501020013 Main Oil Tank Belt Weldment 2
2 GBT 6170-M10-A3L Nut 4
3 FT800A.50.209 Main Oil Tank Belt Rubber Piece 2
4 TS06501020001 Main Oil Tank Assembly 1
4.1 TS06501020002 Main Oil Tank Weldment 1
4.2 TS09580010005 O-Ring 13.3X2.2-M16x1.5 1
4.3 FT65.50.226 Discharge Oil Screw Plug 1
4.4 TD800.501A.1.1 Oil Tank Cover 1
4.5 FT300.50.015 Filter Screen Assembly 1
4.6 Q67627 B-Type Worm Drive Hose Hook 2
4.7 TD800.501A.1-01 Breather Hose 1
4.8 Q67405300 Plastic Fastening Strap 3
5 GBT 5783-M10X20-A3L Bolt 4
6 GBT 93-10-A0P Washer 4
7 GBT 5783-M16X30-A3L Bolt 2
8 GBT 93-16-A0P Washer 2
9 FT800A.50.207 Main Oil Tank Rubber Washer (1) 1
10 TS06501020004 Main Oil Tank Front Bracket Weldment 1
11 TD800.502-01 Oil Tank Rubber Washer 2
12 TD800.501-05 Oil Tank Short Rubber Washer 2
13 TS06501020007 Upper Bracket Weldment 1
14 TS06501020010 Lower Bracket Weldment 1
