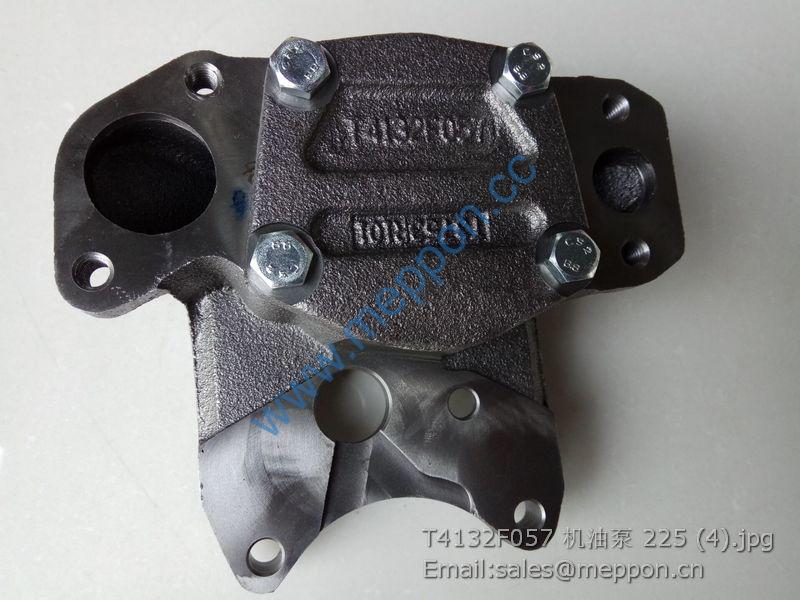

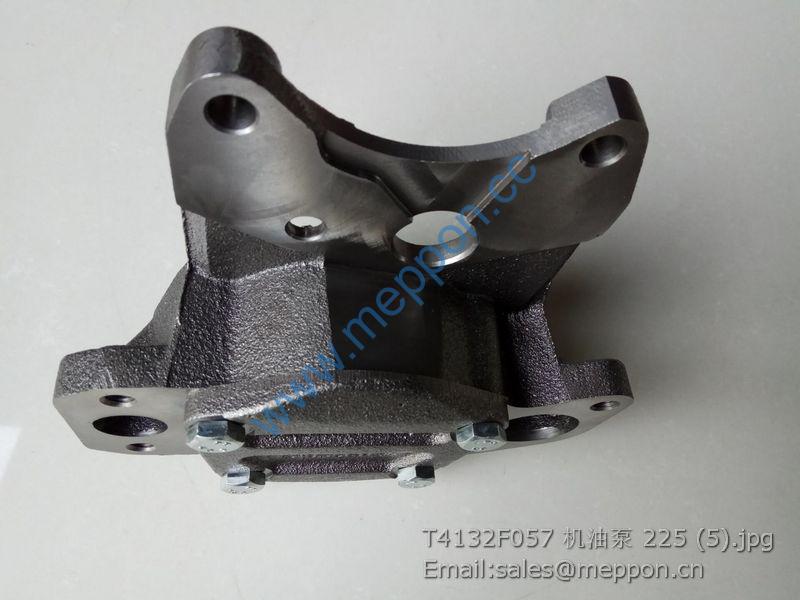

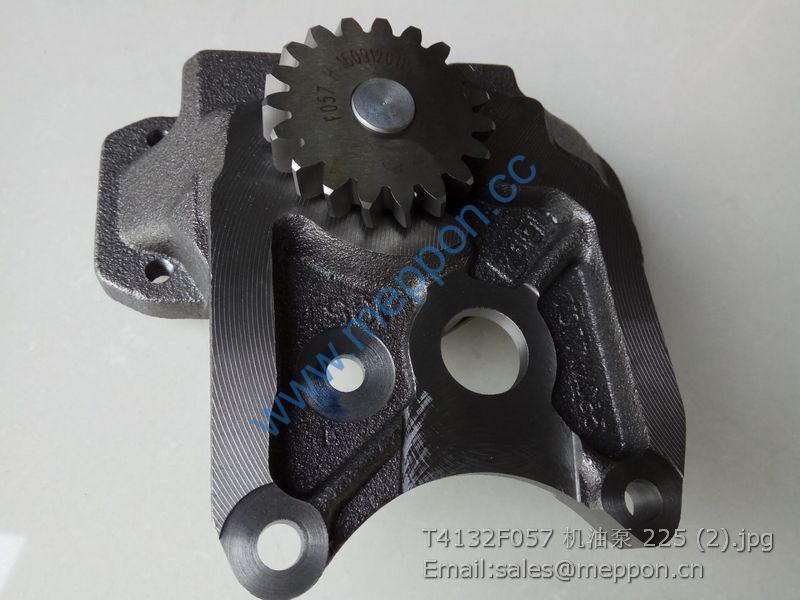

T4132F057 Lub. Oil Pump Assy.

Description

T4132F057 Lub. Oil Pump Assy.

TS06202010000 Foot Throttle Control Assembly 1
1 TS06202010002 Foot Pedal 1
2 GBT 879.1-5X20-A0P Elastic Cylindrical Pin 1
3 TD800.202.1 Foot Pedal Control Subassembly 1
3.1 FT650.20.107 Rubber Plug 1
3.2 FT800.20.013 Foot Pedal Rocker Arm Weldment 1
3.3 FT650.20.108 Throttle Trestle 1
3.4 TD800.202.1-01 Washer 1
3.5 FT650.20.011 Foot Throttle Rocker Arm Weldment 1
3.6 GBT 879.1-5X20-A0P Elastic Cylindrical Pin 1
3.7 GBT 6172.1-M8-04-A2L Hexagon Thin Nut 1
3.8 GBT 5781-M8X45-4.8-A2L Hexagon Head Bolt 1
3.9 FT650.20.104 Torsion Spring 1
4 GBT 5781-M8X20-4.8-A2L Hexagon Head Bolt 2
5 GBT 93-8-A0P Standard Spring Washer 2
6 GBT 6172.1-M8-04-A2L Hexagon Thin Nut 2
7 TS06202010001 Foot Throttle Pedal Seal Sleeve 1

TS06203010000 Throttle Wire Assembly 1
1 TS06203010001 Hand Throttle Wire Assembly 1
2 TG1204.20A-02 Wire Through Ring 2
3 TS06203010003 Flameout Pull Wire Assembly 1
4 TS06203010002 Foot Throttle Wire Assembly 1
5 GBT 97.1-6-A0P Plain Washer 1
6 GBT 91-2X12-A0P Split Pin 1
7 TF1354.203.1 Throttle Wire Fixing Seat Unit 1
7.1 GBT 5781-M5X10-4.8-A2L Hexagon Head Bolt 1
7.2 TF1354.203.1-01 Throttle Wire Fixing Seat 1
7.3 GBT 848-6-A0P Small Washer 1
7.4 GBT 91-1.6X12-A0P Split Pin 1
8 Q67405100 Plastic Fastening Strap 2

TS06220010000 Exhaust System Assembly 1
1 TS06220010013 Muffler Assembly 1
2 SPL6175PT-M10X1.5-8F3 Spiralock Type 2 Six Angle Self-Locking Locknut 4
3 TD800.22C.6 Buckle Installation Assembly 1
3.1 GBT 5783-M8X20-8.8-A2L Hexagon Head Bolt 1
3.2 TD800.22C.6-01 Left Clamp 1
3.3 TD800.22C.6-02 Right Clamp 1
3.4 GBT 93-8-A0P Standard Spring Washer 1
3.5 GBT 6170-M8-8-A2L Hexagon Nut, Style 1 1
4 GBT 5783-M8X20-8.8-A2L Hexagon Head Bolt 2
5 GBT 93-8-A0P Standard Spring Washer 4
6 GBT 6170-M8-8-A2L Hexagon Nut, Style 1 2
7 GBT 97.1-8-A0P Plain Washer 4
8 GBT 5782-M12X50-8.8-A3L Hexagon Head Bolt 1
9 GBT 97.1-12-A0P Plain Washer 1
10 TD900.22B-04 Pull Rod 1
11 TD900.22B-03 Upper Rubber Pad 1
12 GBT 96.1-12-A0P Large Washer 1
13 SPL6177.1-M12-F3 Hexagon Flange Nut 1
14 FT900.22A.040 Seal Gasket Subassembly 2 2
15 TS06220010012 Exhaust Elbow 1
16 GBT 5783-M10X35-8.8-A3L Hexagon Head Bolt 4
17 GBT 5783-M10X30-8.8-A3L Hexagon Head Bolt 8
18 GBT 93-10-A0P Standard Spring Washer 10
19 TS06220010001 Fixing Bracket Weldment 1
20 TS06220010004 Lower Protection Net Weldment 1
21 GBT 93-6-A0P Standard Spring Washer 4
22 GBT 5783-M6X12-8.8-A2L Hexagon Head Bolt 1
23 GBT 97.1-10-A0P Plain Washer 6
24 GBT 5783-M8X16-8.8-A2L Hexagon Head Bolt 2
25 TS06220010003 Upper Protection Net Weldment 1
26 GBT 5783-M10X25-8.8-A3L Hexagon Head Bolt 2
27 GBT 5783-M6X12-8.8-A2L Hexagon Head Bolt 4
28 GBT 97.1-6-A0P Plain Washer 4

FT800.21C.001 Clutch Assembly 1
1 L-03031-0757-04 Assistant Clutch Driven Plate Assembly 1
2 L-02103-0733-00 Assistant Clutch Press Plate 1
3 L-04130-0003-01 Film Spring 1
4 L-02165-0105-01 Support Washer 1
5 L-00454-0002-00 Flexible Column Pin 1
6 L-02103-0732-10 Main Clutch Press Plate 1
7 L-03031-0117-00 Driving/Driven Plate Assembly 1
8 L-02101-0215-06 Clutch Housing 1
9 L-02615-0031-02 Assistant Clutch Separator Rod Assembly 3
10 L-02615-0051-02 Main Clutch Separator Rod Assembly 3
