Description

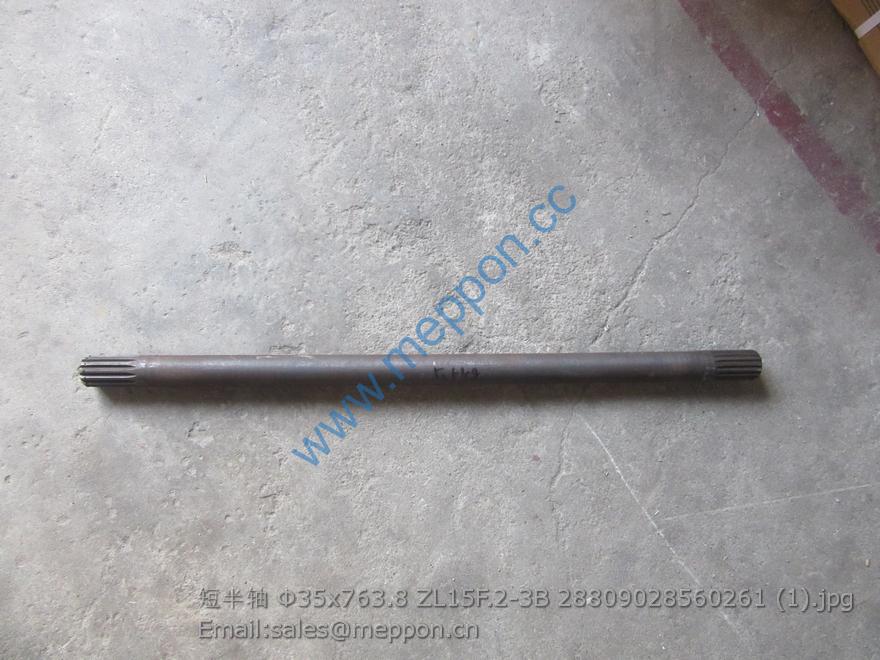

SP107463 Φ35×763.8 ZL15F.2-3B 28809028560261 HALF SHAFT
27 9401-01899 JB/T982-1977 垫圈 14 Washer 18
28 4401-02479 胶管总成 1-10-H13-1350 Hose assembly 1
29 4401-00771 胶管总成 Hose assembly 1
30 9401-01062 GB/T5783-2000 螺栓
M12X35-Ep.Zn
Bolt 20
31 9401-01672 GB/T93-1987 垫圈 12-Ep.Zn Washer 30
32 9411-00543 法兰 51 Flange 2
33 9401-00680 GB1235-1976 O 形圈 65X3.5 O-ring 1
34 4401-02888 吸油弯管 Oil pipe 1
35 4401-02921 胶管总成 1-10-H13-2110 Hose 1
36 4401-02262 齿轮泵 CBGj3125(花反) Pump 1
37 9401-01614 GB/T899-1988 螺柱
AM12X35-Ep.Zn
Bolt 4
38 9401-01317 GB/T6170-2000 螺母 M12-Ep.Zn Nut 7
39 9411-00542 法兰 38 Flange 8
40 9401-00677 GB1235-1976 O 形圈 55X3.5 O-ring 4
41 9401-01041 GB/T5783-2000 螺栓
M10X35-Ep.Zn
Bolt 36
42 9411-00541 法兰 32 Flange 16
43 9401-00670 GB1235-1976 O 形圈 45X3.5 O-ring 8
44 4401-00210 胶管总成 2-25-Fd13-1400 Hose assembly 1
45 4401-01499 泵吸油管 G51X64-520 Oil pipe 1
46 9401-03032 QC/T619-1999 B 型环箍 64 B-clip 2
47 4401-02481 胶管总成 1-10-H33-830V0 Hose assembly 1
48 4400-02626 端直通接头 1CM-18-27WD Joint 2
49
50 9401-01445 GB/T70.1-2000 螺钉
M8X55-Ep.Zn
Bolt 4
51 4401-00947 过滤器 ZUI-H25X20DLP Filter 1
52 9401-01180 GB/T5783-2000 螺栓
M8X25-Ep.Zn
Bolt 8
53 4401-08283 先导供油阀 Dgf-63 Valve 1
54 4401-02266 胶管总成 2-10-H13-970 Hose assembly 1
55 4401-02487 右油管总成 Oil pipe assy 1
56 4401-01684 油管总成 Oil pipe assy 1
57 4401-01674 右夹板 Clip 1
58 4401-01686 油管总成 Oil pipe assy 1
59 4401-00878 管夹 Clip 4
60 4401-00879 压板 Clip 2
61 9401-00915 GB/T5782-2000 螺栓
M10X90-Ep.Zn
Bolt 4
62 4401-01034 胶管总成 2-19-Fc13-1200 Hose assembly 4
63 4401-03767 右油管总成 Oil pipe assy 1
64 4401-10524 动臂油缸 180/90-1557X925 Boom Cylinder 2
65 9401-01100 GB/T5783-2000 螺栓
M16X25-Ep.Zn
Bolt 2
66 9401-01676 GB/T93-1987 垫圈 16-Ep.Zn Washer 2
67 9401-01725 GB/T96.1-2002 垫圈 16-Ep.Zn Washer 2
68 4401-02411 胶管总成 2-25-F13-1080 Hose assembly 1
69 4601-01725 焊接销轴 Pin 2
70 4401-02412 胶管总成 2-25-F13-1210 Hose assembly 1
71 4401-02342 胶管总成 1-10-H13-2600 Hose assembly 1
72 9401-01030 GB/T5783-2000 螺栓
M10X20-Ep.Zn
Bolt 1
73 9401-01741 GB/T97.1-2002 垫圈 10-Ep.Zn Washer 5
74 4401-11668 胶管总成 1-6-H13-2750 Hose assembly 2
75 4400-00251 端直通接头 1CM-14WD Joint 8
76 4401-01552 油管总成 Oil pipe assy 2
77 4401-01679 油管总成 Oil pipe assy 1
78 4401-03769 左油管总成 Oil pipe assy 1
79 4401-01673 左夹板 Clip 1
80 9401-02452 GB／T70.1-2000 螺钉
M12X115-12.9-Ct.D3
Bolt 3
81 4401-01682 油管总成 Oil pipe assy 1
83 4401-01669 胶管总成 2-25-H11-770 Hose assembly 1
84 4401-11666 胶管总成 1-6-H13-2350 Hose assembly 2
85 4401-01696 液控多路阀 FYZ-31A Valve 1
86 4401-01669 胶管总成 2-25-H11-770 Hose assembly 1
87 4401-02538 管夹 Clip 2
1 CG241B-100/55-01 缸体 Cylinder 1
2 GB894.1-86 挡圈 65 Buck-up ring 1
3 HSG-100-02 卡键冒 Snap-nut 1
4 HSG-100-03 轴用卡键 Snap 1
5 GB1235-76 O 形圈 40X3.1 O-ring 1
6 CY143-97 矩形封 UF-0100 Piston ring 1
7 CY166-94 支承环 ZD100A Bushing 2
8 HSG-100-05D 活塞 Piston 1
9 CG241B-100/55-02 活塞杆 Rod 1
10 CG241B-100/55-03 标牌 Mark card 1
11 GB827-86 钉 2X4 Bolt 4
12 HSG-100/55-07BM 导向套 Head 1
13 GB1235-76 O 形圈 100X5.7 O-ring 1
14 CY127-97 组合密封 s-55 Buffer ring 1
15 GB1235-76 O 形圈 70X5.7 O-ring 1
16 HSG-100-09 孔用卡键 Snap 1
17 HSG-100-10 挡环 Buck-up ring 1
18 B3 5570 P5008 活塞杆密封 Rod packing 1
19 GB894.1-86 挡圈 90 Buck-up ring 1
20 CY129-97 防尘圈 CK-55 Dust seal 1
21 GB893.1-86 挡圈 75 Buck-up ring 4
22 GB9163-90 关节轴承 GE50ES-2RS Bearing 2
23 CY101-86 油塞 d20 Plug 2
24 G415C-100/55-03 油口盖板 Cover 2
25 GB67-85 螺钉 M8X10 Bolt 4
