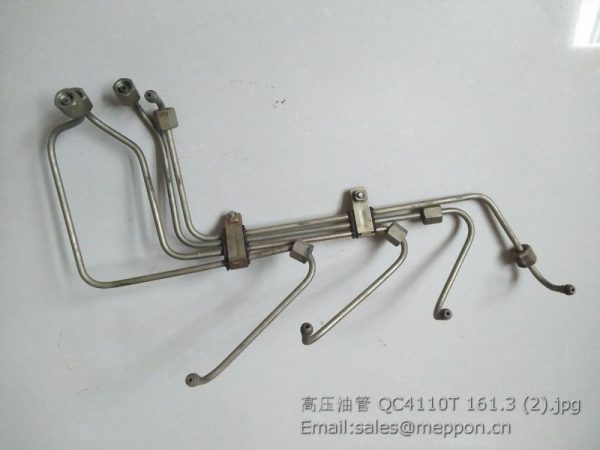

QUANCHAI QC4110T Fuel injection pipe assembly

Description

QUANCHAI QC4110T Fuel injection pipe assembly

TB554.312 Front Bracket Assembly 1
1 GBT5782-M16X110-10.9-A2L Hex Bolt 6
2 GB/T93-16-A0P Standard Spring Washer 6
3 TB554.312-01 Front Bracket 1

FT404.32F.001 Front Drive Wheel Assembly 1
1 TB704.32B.2 Inner Tube/Tyre Assembly 8.3-20 1
1.1 GBT2979-8.3-20-6PR-R General Section Bias Tyre Of Tractor Drive Wheel 1
1.2 GBT2979-8.3-20-R Inner Tube Of Tractor Drive Wheel 1
2 FT404.32F.011 Rim Welding 1

FT404.34F.001 Rear Driving Wheel Assembly 1
1 FT404.34.011 Tire And Tube Assembly 14.9-24 1
1.1 GBT2979-14.9-24-6PR-R Diagonal Tire With Conventional Section, Tractor Driving Wheel 1
1.2 GBT2979-14.9-24-R Tube, Tractor Driving Wheel 1
2 FT404.34F.011 Rim Disc Assembly 1
2.1 GBT6171-M16X1.5-8-A3L Hexagon Nut, Style 1 6
2.2 FT300.34.106 Washer 6
2.3 FT404.34F.012 Rim Weldment 1
2.4 FT404.34.102b Spoke 1
2.5 FT300.34.102 Rim Bolt 6

TC04401080000 Steering Gear And Steering Column Assembly 1
1 TS04401010001 Steering Wheel Assembly 1
2 TS04401010002 Steering Column Assembly 1
3 GBT5783-M10X30-8.8-A3L Hexagon Head Bolt 4
4 GBT93-10-A0P Standard Spring Washer 4
5 TC04400010009 Hydraulic Steering Gear Assembly 1

TC02402200000K Fully Hydraulic Steering Pipeline Assembly 1
1 TS04402010019 Steering Oil Tank And Breather Assembly 1
2 GBT5783-M10X25-8.8-A3L Hexagon Head Bolt 2
3 GBT97.1-10-A0P Plain Washer 1
4 TC02402200020K Steering Oiler Bracket Weldment 1
5 GBT93-10-A0P Standard Spring Washer 2
6 GBT6170-M10-8-A3L Hexagon Nut, Style 1 2
7 Q67627 B-Type Worm Drive Hose Hoop 5
8 TC02402200024K Oil Suction Rubber Pipe D16 1
9 TC02402200025K Oil Return Rubber Pipe 1
10 GBT6170-M8-8-A2L Hexagon Nut, Style 1 1
11 GBT93-8-A0P Standard Spring Washer 10
12 TC02402200015K Oil Pipe Clip And Rubber Pad Paste 16-12 4
13 GBT5783-M8X35-8.8-A2L Hexagon Head Bolt 1
14 GBT5783-M8X40-8.8-A2L Hexagon Head Bolt 1
15 TC02402200002K Oil Pump Outlet Steel Pipe Weldment 1
16 TC02402200004K Oil Pump Oil Suction Steel Pipe Weldment 1
17 TC04400020003 Adjustable Connector M18-12 Assembly 1
18 TC02402270002K Constant-Flow Overflow Pump 1
19 GBT70.1-M8X65-8.8 Hexagon Socket Head Cap Screw 2
20 GBT3452.1-17.0X2.65G O-Ring Sealant Used For Hydraulic Or Pneumatic Parts 1
21 GBT5783-M8X30-8.8-A2L Hexagon Head Bolt 3
22 TC02402200029K Steering Gear Oil Return Pipe Assembly 1
23 TC02402200028K Oil Return Steel Pipe 1
24 TC04402080012 Straight Thread Connector L16 Subassembly 1
25 GE20D18.24.93.5 Straight Thread Connector 20-18 2
26 TC02402200001K High-Pressure Hose Assembly 1
27 GBT70.1-M8X45-8.8-A2L Hexagon Socket Head Cap Screw 2

TC02402200000K Fully Hydraulic Steering Pipeline Assembly 1
1 GBT6170-M8-8-A2L Hexagon Nut, Style 1 1
2 GBT93-8-A0P Standard Spring Washer 1
3 TC02402200018K Oil Pipe Clip 3
4 GBT5783-M8X25-8.8-A2L Hexagon Head Bolt 2
5 FT650.40.112 Hollow Bolt 2
6 JBT982-16 Compound Seal Washer 4
7 TC02402200012K Right Rubber Pipe Of Cylinder 1
8 TC02402200013K Left Rubber Pipe Of Cylinder 1
9 TC02402200011K Steel Pipe Bracket 1
10 GBT93-10-A0P Standard Spring Washer 2
11 GBT5783-M10X20-8.8-A3L Hexagon Head Bolt 2
12 GBT6173-M16X1.5-05-A3L Hexagon Thin Nut 2
13 GBT97.1-16-A0P Plain Washer 2
14 TC02402200009K Right Steering Steel Pipe Weldment 1
15 TC02402200007K Left Steering Steel Pipe Weldment 1
16 TC02402200026K Bracket Weldment 1
17 TC02402200006K Steering Right Oil Outlet Pipe Assembly 2
18 TC04402080010 Straight Thread Connector, Body L12 Subassembly 1

TB504.431B Left Brake Assembly 1
1 FT300.43.102 Bowl-Shape Plug 6
2 GBT308-18.000-G100-b Steel Ball 6
3 FT300.43.103 Left Brake Platen 1
4 TB450.431.1 Brake Friction Disc Assembly 2
5 FT300.43.105 Partition Plate 1
6 FT300.43.101 O-Ring 1
7 GBT894.1-18 Shaft Circlip 1
8 FT300.43.109a Washer 1
9 GBT3452.1-18.0X2.65 O-Ring 1
10 FT300.43.012 Left Brake Housing Assembly 1
10.1 FT300.43.114 Crankshaft Bush 1
10.2 FT300.43.121 Left Brake Housing 1
11 FT300.43.106 Shifting Block 1
12 FT300.43.107 Spacer Bush 1
13 GBT3452.1-20.0X2.65 O-Ring 1
14 TB504.431B.1 Left Crank Welded Part 1
15 FT300.43.153 Final Drive Oil Drain Hole Gasket 1
16 FT300.43.154 Screw Plug 1

TB504.432B Right Brake Assembly 1
1 TB504.432B.1 Right Crank Unit 1
2 GBT3452.1-20.0X2.65 O-Ring 1
3 FT300.43.107 Spacing Sleeve 1
4 FT300.43.106 Shift Block 1
5 FT300.43.013 Right Brake Housing Assembly 1
5.1 FT300.43.122 Right Brake Housing 1
5.2 FT300.43.114 Crank Shaft Bushing 1
6 GBT3452.1-18.0X2.65 O-Ring 1
7 FT300.43.109a Washer 1
8 GBT894.1-18 Circlip For Shaft 1
9 FT300.43.153 Final Transmission Oil Drainage Washer 1
10 FT300.43.154 Screw Plug 1
11 FT300.43.101 O-Ring 1
12 TB450.431.1 Brake Friction Disc Assembly 2
13 FT300.43.105 Spacing Plate 1
14 FT300.43.104 Right Brake Press Disc 1
15 GBT308-18.000-G100-b Steel Ball 6
16 FT300.43.102 Bowl-Shape Plug 6

TS04433040000K Brake System Control Assembly 1
1 TE250.212D-05 Clutch Pedal Return Spring 3
2 GBT894.1-25 Circlip For Shaft 2
3 GBT97.1-24-A3L Flat Washer 1
4 TE250.433C-02 Washer 7
5 TS04433020001K Left Brake Pedal Unit 1
6 GBT882-B10X30-A3L Pin Shaft 4
7 GBT97.1-10-A3L Flat Washer 4
8 GBT91-3.2X22-A3L Split Pin 4
9 GBT5783-M10X45-8.8-A3L Hexagon Bolt 2
10 GBT6170-M10-8-A3L Hexagon Nut, Type-1 4
11 TS04433020004K Right Brake Pedal Unit 1
12 TE354.433-03 Connecting Rod 2
13 TB604.212A.5 Upper Pull Rod Weldment 2
14 TB604.433E.10 Brake Lower Pull Rod Weldment 2
15 TB604.433E.5 Rocker Unit Hub 1
16 JBT7940.1-M8X1 Straight Forced Filling Oil Cup 3
17 GBT6170-M10-LH-8-A3L Hexagon Nut, Type-1 1
18 TB604.433E-03 Lower Pull Rod 1
19 TA700.431A-01 Dextrorotation Long Hole Connect Fork 1
20 TB704.433.5 Right Return Spring Connecting Plate Weldment 1
21 GBT6171-M12X1.5-8-A3L Hexagon Nut, Type-1 2
22 TB704.433-04 Connecting Pin 1
23 GBT6171-M12X1.5-LH-8-A3L Hexagon Nut, Type-1 2
24 TS04433010011 Brake Rocker Sleeve 1
25 TB604.433E-06 Dustproof Sleeve 1
26 TD800.311C.1-01 Dustproof Cap Of Oil Cup 1
