Description

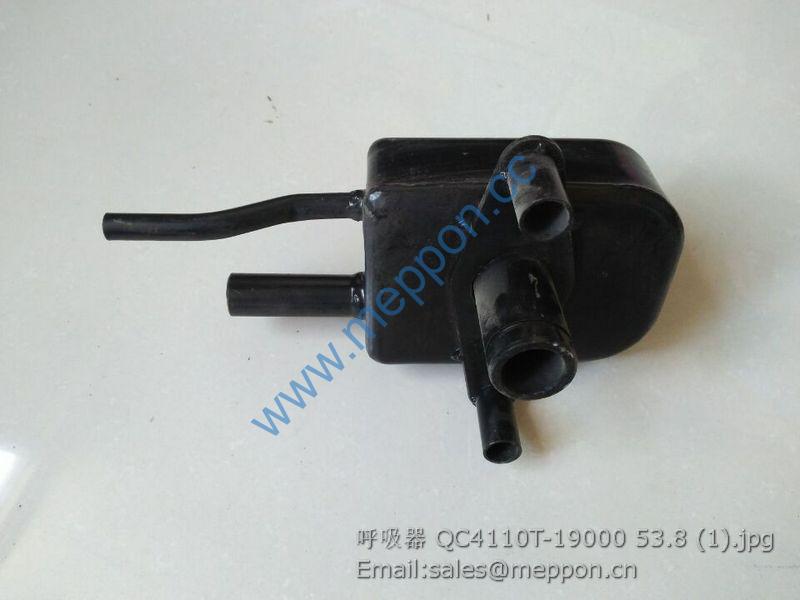

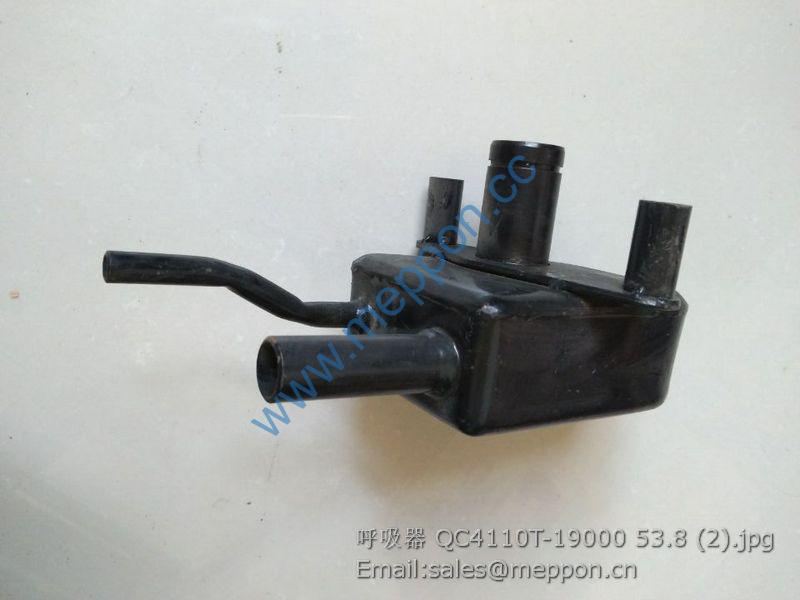

QC4110T-19000 QUANCHAI BREATHER

TS04487010000 Compound Instrument Assembly 1
1 TS04487010001 Compound Instrument Assembly 1
2 GBT96.1-6-A0P Large Washer 4
3 GBT93-6-A0P Standard Spring Washer 4
4 GBT818-M6X16-4.8-A2L Cross Recessed Pan Head Screw 4

TB450.489 Preheating Device Assembly 1
1 FT400.48A.027 Preheating Wire 1

1 TS08110010000K Air Filter Assemlby 2
2 TS08131020000K Cooling System Assembly-1 (001) 4
3 TS08131020000K Cooling System Assembly-2 (001) 6
4 TS08131020000K Cooling System Assembly-3 (001) 8
5 TG1854.20 Engine Control Mechanism Assembly-1 10
6 TG1854.20 Engine Control Mechanism Assembly-2 12
7 TS08220010000K Exhaust System Assembly 14
B Drive line part
8 TG1204.211 Clutch Assembly 16
9 TG1654.212B Control Assembly, Master Clutch 18
10 TG1654.213 Auxiliary Clutch Control Assembly-1 20
11 TG1654.213 Auxiliary Clutch Control Assembly-1(extension) 22
12 TG1654.213 Auxiliary Clutch Control Assembly-2 24
13 TG1204.36D Drive Shaft Assembly 26
14 TG1204.371D Gearbox Housing Assembly 28
15 TG1254.372 Gearbox Main & Assistant Gear Assembly-1 30
16 TG1254.372 Gearbox Main & Assistant Gear Assembly-2 32
17 TG1654.373C Gearbox Control Mechanism Assembly-1 34
18 TG1654.373C Gearbox Control Mechanism Assembly-2 36
19 TG1204.381A Rear Axle Assistant Gear Assembly-1 38
20 TG1204.381A Rear Axle Assistant Gear Assembly-2 40
21 TG1254.382 Rear Axle Central Transmission Assembly-1 42
22 TG1254.382 Rear Axle Central Transmission Assembly-2 44
23 TG1204.383B Real Axle Control Mechanism Assembly-1 46
24 TG1204.383B Real Axle Control Mechanism Assembly-2 48

25 TG1204.383B Real Axle Control Mechanism Assy-3 50
26 TG1204.383B Real Axle Control Mechanism Assy-4 52
27 TG1204.384 Rear Axle Housing Assembly 54
28 TS08385010000K Breather Assembly 56
29 TG1654.391 Final Drive Assembly (LH) 58
30 TG1654.392 Final Drive Assembly (RH) 60
31 TD800.411D PTO Assembly 62
32 TG1204.411J PTO Gear Assembly-1 64
33 TG1204.411J PTO Gear Assembly-2 66
34 TG1654.412A PTO Control Assembly 68
35 TG1654.412A PTO Control Assembly(extension) 70
36 TG1204.414A PTO Protection Shield Assembly 72
37 TG1204.42E Transfer Case Assembly 74
C Front axle (shaft) part
38 TG1204.311D Front Drive Axle Assembly-1 76
39 TG1204.311D Front Drive Axle Assembly-2 78
40 TG1204.311D Front Drive Axle Assembly-3 80
41 TG1204.311D Front Drive Axle Assembly-4 82
42 TG1204.311D Front Drive Axle Assembly-5 84
43 TG1204.312D Bracket Assembly 86
D Running system part
44 TG1454.32 Front Driving Wheel Assembly 88
45 TG1254.34 Rear Driving Wheel Assembly 90
E Steering system part
46 TS08401010000K Full Hydraulic Redirector Assembly-1 92
47 TS08401010000K Full Hydraulic Redirector Assembly-2 94

48 TS08402020000K Steering Pipe Assembly – 1 96
49 TS08402020000K Steering Pipe Assembly – 1(extension) 98
50 TS08402020000K Steering Pipe Assembly – 2 100
51 TS08402020000K Steering Pipe Assembly – 3 102
52 TS08402020000K Steering Pipe Assembly – 4 104
F Braking system part
53 TG1204.431 Brake Assembly (LH) 106
54 TG1204.432 Brake Assembly (RH) 108
55 TS08433010000K Control Mechanism Assembly, Service Brake-1 110
56 TS08433010000K Control Mechanism Assembly, Service Brake-2 112
57 TS08433010000K Control Mechanism Assembly, Service Brake-3 114
58 TG1204.434 Handle Brake Block Assembly 116
59 TG1654.435 Parking Brake Control Mechanism Assembly-1 118
60 TG1654.435 Parking Brake Control Mechanism Assembly-2 120
61 TS08801010000K Brake Valve Assemlby (001) 122
62 TS08802010000K Air Cylinder Assemlby (001) 124
63 TS08803010000K Air Conveying Pipeline Assemlby (001) 126
G Hydraulic hitch and work device
64 TG1204.35 Traction Mechanism Assembly 128
65 TG1204.53 Tow Mechanism Assembly 130
66 TG1204.551 Lifting Device Assembly 132
67 TG1454.552C Distributor and Oil Pipe Assembly-1 134
68 TG1454.552C Distributor and Oil Pipe Assembly-2 136
69 TG1454.552C Distributor and Oil Pipe Assembly-3 138
70 TG1204.56F Suspension Mechanism Assembly-1 140
71 TG1204.56F Suspension Mechanism Assembly-2 142

72 TG1204.56F Suspension Mechanism Assembly-3 144
73 TG1204.56F Suspension Mechanism Assembly-3(extension) 146
74 TG1454.581Q Hydraulic Device Assembly 1-1 148
75 TG1454.581Q Hydraulic Device Assembly 1-2 150
76 TG1454.581Q Hydraulic Device Assembly 1-3 152
77 TG1454.582J Hydraulic Device Assembly 2-1 154
78 TG1454.582J Hydraulic Device Assembly 2-1(extension) 156
79 TG1454.582J Hydraulic Device Assembly 2-2 158
80 TG1454.582J Hydraulic Device Assembly 2-3 160
81 TG1454.582J Hydraulic Device Assembly 2-4 162
H Cab, driver’s seat, covering panel, etc
82 TS08441010000K Seat Installation Assembly 164
83 TS08452040000K Floor Assembly-1 166
84 TS08452040000K Floor Assembly-2 168
85 TS08452040000K Floor Assembly-2(extension) 170
86 TG1254.454 Control Cover Assembly 172
87 TS08456010000K Instrument Panel Assembly 174
88 TS08461010000K Safety Frame Assembly 176
89 TS08471010000K Engine Hood Assembly 178
90 TG1204.472F Lengthening plate assembly, engine hood 180
91 TG1204.473 Bonnet Low Plate Assembly 182
92 TG1204.474 Bonnet Lock Control Assembly 184
93 TS08475010000K Bonnet Bracket Assembly 186
94 TG1254.475 Engine Hood Sealing Assembly（004） 188
95 TG1254.477 Left Front Mud Guard Assembly 190
96 TG1254.478 Right Front Mud Guard Assembly 192

97 FT300.49.001 Tool Box Assembly 194
98 TG1854.501A Oil Tank Installation Assembly 196
99 TG1854.502 Delivery Pipeline Assembly 198
100 TA600.62 Safety Belt Assembly 200
101 TG1204.741 Front Ballast Bracket Assembly 202
102 TG1204.742 Front Counterweight Assembly 204
103 TG1204.95 Rear Ballast Assembly 206
J Electrical and accessory parts
104 TS08481010000K Engine Harness Installation Assembly 208
105 TS08482010000K Body Harness Installation Assembly 210
106 TS08483010000K Harness Installation Assembly, Front Lamp 212
107 TS08484060000K Rear Lamp Wire Harness Mounting Assembly 214
108 TS08485010000K Battery Installation Assembly 216
109 TD800.487M Combination Instrument Assembly 218
